Building and evaluation of a PBPK model for Ethinylestradiol in adults

Version 2.0-OSP12.3
based on Model Snapshot and Evaluation Plan https://github.com/Open-Systems-Pharmacology/Ethinylestradiol-Model/releases/tag/v2.0
OSP Version 12.3
Qualification Framework Version 3.6

This evaluation report and the corresponding PK-Sim project file are filed at:

https://github.com/Open-Systems-Pharmacology/OSP-PBPK-Model-Library/

Table of Contents

1 Introduction

The presented PBPK model of ethinylestradiol (EE) has been developed to be used in a PBPK Drug-Drug-Interactions (DDI) network with ethinylestradiol as perpetrator of CYP1A2.

Ethinylestradiol is an estrogen medication which is used widely as a birth control pills in combination with progestins. The following ADME properties characterize ethinylestradiol (SmPC Namuscla, FDA. QUARTETTE):

Absorption: ethinylestradiol is rapidly and completely absorbed from the gut but it undergoes some first pass metabolism in the gut wall (mediated by a.o. CYP3A4 (Wiesinger 2015, Wang 2004)). After oral administration, an initial peak occurs in plasma at 2 to 3 hours, with a secondary peak at about 12 hours after dosing; the second peak is interpreted as evidence for extensive enterohepatic circulation of ethinylestradiol.

Distribution: ethinylestradiol is rapidly distributed throughout most body tissues with the largest concentration found in adipose tissue. It distributes into breast milk, with low concentrations. More than 80% of ethinylestradiol in serum is conjugated as sulphate and almost all the conjugated form is bound to albumin.

Metabolism: ethinylestradiol is metabolized in the liver. Hydroxylation appears to be the main metabolic pathway. 60% of a dose is excreted in the urine and 40% in the faeces.

Excretion: About 30% is excreted in the urine and bile as the glucuronide or sulphate conjugate. The rate of metabolism of ethinylestradiol is affected by several factors, including enzyme-inducing agents, antibiotics, and cigarette smoking. The elimination half-life of ethinylestradiol ranges from 5 to 16 hours.

After i.v. administration, ethinylestradiol displays approximately linear dose relationship in the dose range 30-100 µg. A wide variability is present in the terminal part of the dose-normalized concentrations.

After p.o. single dose, ethinylestradiol shows linear dose relationship in the dose range 30-3000 µg. Secondary peaks can be observed in individual data, compatible with enterohepatic re-circulation. However, mean data do not display such feature as a result of such peak being averaged out. Therefore, enterohepatic re-circulation was not taken into account in the model.

2 Methods

2.1 Modeling Strategy

The general workflow for building an adult PBPK model has been described by Kuepfer et al. (Kuepfer 2016). Relevant information on the anthropometry (height, weight) was gathered from the respective clinical study, if reported. Information on physiological parameters (e.g. blood flows, organ volumes, hematocrit) in adults was gathered from the literature and has been incorporated in PK-Sim® as described previously (Willmann 2007). The applied activity and variability of plasma proteins and active processes that are integrated into PK-Sim® are described in the publicly available 'PK-Sim® Ontogeny Database Version 7.3' (PK-Sim Ontogeny Database Version 7.3).

The following steps were undertaken in model development:

  1. Define lipophilicity and distribution model on data after i.v. administration with linear total hepatic clearance fitted to data and renal clearance set to literature value (Ezuruike 2018).

  2. Predict p.o. data after single dose and at steady state

  3. Detail metabolic contribution of different CYPs and UGTs to total hepatic clearance.

Details about input data (physicochemical, in vitro and clinical) can be found in Section 2.2.

Details about the structural model and its parameters can be found in Section 2.3.

A standard female subject was created based on the European (ICRP,2002) PK-Sim database (age = 30 y, weight = 60 kg, height = 163 cm, BMI = 22,58 kg/m2) and used for simulations, until stated otherwise. Expression of the enzymes CYP3A4, CYP2C9, CYP1A2, CYP2C8, and UGT1A1 from RT PCR database were added.

2.2 Data

2.2.1 In vitro and physico-chemical data

A literature search was performed to collect available information on physico-chemical properties of ethinylestradiol, see Table 1.

Parameter Unit Value Source Description
MW+ g/mol 296.4 DrugBank DB00977 Molecular weight
pKa,acid+ 10.33 DrugBank DB00977 Acidic dissociation constant
Solubility (pH)+ mg/mL 6.77e-3
(7)		 DrugBank DB00977 Aqueous Solubility
logD 3.63 - 3.9 DrugBank DB00977 Distribution coefficient
fu+ % 3 DrugBank DB00977 Fraction unbound in plasma
CYP1A2 CL+ µl/min/pmol 0.51 Ezuruike 2018 Clearance by CYP1A2
CYP2C8 CL+ µl/min/pmol 0.13 Ezuruike 2018 Clearance by CYP2C8
CYP2C9 CL+ µl/min/pmol 0.51 Ezuruike 2018 Clearance by CYP2C9
CYP3A4 CL+ µl/min/pmol 0.5 Ezuruike 2018 Clearance by CYP3A4
Km UGT1A1+ µmol/l 19.22 Ezuruike 2018 UGT1A1 saturation constant
Vmax UGT1A1+ pmol/min/mg prot. 408.5 Ezuruike 2018 Maximal metabolization rate by UGT1A1
Renal Elimination+ l/h 2.079 Stanczyk 2013 Renal clearance
Clint HLM+ µL/min/mg prot. 118.83 Ezuruike 2018 Intrinsic clearance in Human Liver Microsomes
Ki CYP1A2 µmol/l 10.6 Karjalainen 2008 CYP1A2 inhibition constant

Table 1: Physico-chemical and in-vitro metabolization properties of ethinylestradiol extracted from literature. +: Value used in final model

2.2.2 Clinical data

A literature search was performed to collect available clinical data on ethinylestradiol, see Table 2.

Source Route Dose [mg]/ Schedule * Pop. Sex N Form.
Back 1981+ i.v. 0.03 HV F 5 solution
Back 1981+ p.o. 0.03 HV F 5 tablet
Back 1979+ i.v. 0.05 HV F 6 solution
Back 1979+ p.o. 0.05 HV F 6 NA
Back 1987 p.o. 0.05 q.d. HV F 5 tablet
Orme 1991+ i.v. 0.03 HV F 10 solution
Orme 1991+ p.o. 0.03 HV F 10 tablet
Kuhnz 1996 i.v. 0.06 HV F 19 solution
Goebelsmann 1986+ p.o. 0.03 HV F 24 solution and tablet
Stanczyk 1983+ p.o. 0.12 HV F 24 solution and tablet
Zhang 2017+ p.o. 0.03 HV F 12 tablet
Martin 2016 p.o. 0.03 q.d. HV F 27 tablet
Stockis 2014 p.o. 0.03 q.d. HV F 24 tablet
Sidhu 2006 p.o. 0.03 q.d. HV F 16 tablet
Kothare 2012+ p.o. 0.03/0.03 q.d. HV F 20 tablet
Timmer 2000+ p.o. 0.03 HV F - tablet

Table 2: Literature sources of clinical concentration data of ethinylestradiol used for model development and validation. *: single dose unless otherwise specified;+: Data used for final parameter identification

2.3 Model Parameters and Assumptions

2.3.1 Absorption

Intestinal permeability was fitted to po data. Formulation of ethinylestradiol tablet was modeled with Weibull-function and parameters Dissolution time (50% dissolved) and Lag time fitted to po data.

2.3.2 Distribution

Physico-chemical parameters were set to the reported values (see Section 2.2.1). It was assumed that the major binding partner in plasma is albumin. The value of lipophilicity was estimated by fitting the model to iv and po data.

After testing the available organ-plasma partition coefficient and cell permeability calculation methods available in PK-Sim, observed clinical data were best described by choosing the partition coefficient calculation by Berezhkovskiy and cellular permeability calculation by PK-Sim Standard.

2.3.3 Metabolism and Elimination

Following metabolization processes have been implemented based on Ezuruike 2018:

  • Linear CYP1A2 CL
  • Linear CYP2C8 CL
  • Linear CYP2C9 CL
  • Linear CYP3A4 CL
  • Saturable UGT1A1
  • Unspecific liver metabolization

Renal plasma clearance is modeled with Plasma clearance set to 2.079 l/h reported in literature (Stanczyk 2013). The value was normalized to body weight by dividing by 70 kg.

2.3.4 Enzyme Inhibition

Simulations of co-administration of ethinylestradiol with tizanidine (see CYP1A2 DDI Qualification report) indicate that the reported competitive inhibition of CYP1A2 by ethinylestradiol (Karjalainen 2008) is not sufficient to describe the increased concentrations of tizanidine after multiple days administration. Therefore, it was decided to fit a time-dependent inhibition (TDI) function to the CYP1A2 enzyme system. The parameters Kinact and K_kinact_half were estimated by fitting the model to concentration-time profiles of tizanidine (Granfors 2005).

2.3.5 Automated Parameter Identification

Following parameter values were estimated for the model:

  • Lipophilicity
  • Specific intestinal permeability
  • Dissolution time (50% dissolved) (Weibull formulation)
  • Lag time (Weibull formulation)
  • Kinact (CYP1A2 TDI)
  • K_kinact_half (CYP1A2 TDI)

3 Results and Discussion

The next sections show:

  1. Final model input parameters for the building blocks: Section 3.1.
  2. Overall goodness of fit: Section 3.2.
  3. Simulated vs. observed concentration-time profiles for the clinical studies used for model building and for model verification: Section 3.3.

3.1 Final input parameters

The parameter values of the final PBPK model are illustrated below.

Compound: Ethinylestradiol

Parameters

Name Value Value Origin Alternative Default
Solubility at reference pH 0.00677 mg/ml Database-DrugBank DB00977 S_aq True
Reference pH 7 Database-DrugBank DB00977 S_aq True
Lipophilicity 3.4805414593 Log Units Parameter Identification LogP True
Fraction unbound (plasma, reference value) 0.03 Database-DrugBank DB00977 fu_plasma True
Specific intestinal permeability (transcellular) 0.000168 cm/min Parameter Identification Fit True
Is small molecule Yes
Molecular weight 296.4 g/mol Database-DrugBank DB00977
Plasma protein binding partner Albumin

Calculation methods

Name Value
Partition coefficients Berezhkovskiy
Cellular permeabilities PK-Sim Standard

Processes

Metabolizing Enzyme: CYP1A2-Ezuruike_2018

Molecule: CYP1A2

Parameters
Name Value Value Origin
In vitro CL/recombinant enzyme 0.51 µl/min/pmol rec. enzyme Publication-Ezuruike 2018
Metabolizing Enzyme: CYP2C8-Ezuruike_2018

Molecule: CYP2C8

Parameters
Name Value Value Origin
In vitro CL/recombinant enzyme 0.13 µl/min/pmol rec. enzyme Publication-Ezuruike 2018
Metabolizing Enzyme: CYP2C9-Ezuruike_2018

Molecule: CYP2C9

Parameters
Name Value Value Origin
In vitro CL/recombinant enzyme 0.51 µl/min/pmol rec. enzyme Publication-Ezuruike 2018
Metabolizing Enzyme: CYP3A4-Ezuruike_2018

Molecule: CYP3A4

Parameters
Name Value Value Origin
In vitro CL/recombinant enzyme 0.5 µl/min/pmol rec. enzyme Publication-Ezuruike 2018
Metabolizing Enzyme: UGT1A1-Ezuruike_2018

Molecule: UGT1A1

Parameters
Name Value Value Origin
In vitro Vmax for liver microsomes 408.5 pmol/min/mg mic. protein Publication-Ezuruike 2018
Content of CYP proteins in liver microsomes 33.6 pmol/mg mic. protein Publication-Ezuruike 2018
Km 19.22 µmol/l Publication-Ezuruike 2018
Systemic Process: Renal Clearances-Stanczyk_2013

Species: Human

Parameters
Name Value Value Origin
Fraction unbound (experiment) 0.03
Plasma clearance 0.0285 l/h/kg Publication-Stanczyk_2013; 2.079/73=
Systemic Process: Total Hepatic Clearance-Ezuruike_2018

Species: Human

Parameters
Name Value Value Origin
Fraction unbound (experiment) 0.03
Lipophilicity (experiment) 3.4805414593 Log Units
Plasma clearance 0 ml/min/kg
Specific clearance 1.1002777778 1/min Publication-Ezuruike 2018 - Calculated from 118.83 µl/min/mg mic. protein divided by 108 pmol/mg/ mic. protein
Inhibition: CYP1A2-Fit

Molecule: CYP1A2

Parameters
Name Value Value Origin
kinact 200 1/min Parameter Identification
K_kinact_half 0.4833013314 µmol/l Parameter Identification

Formulation: Ethinylestradiol tablet

Type: Weibull

Parameters

Name Value Value Origin
Dissolution time (50% dissolved) 36.5087007601 min Parameter Identification
Lag time 6.7747764588 min Parameter Identification
Dissolution shape 0.92
Use as suspension Yes

3.2 Diagnostics Plots

The following section displays the goodness-of-fit visual diagnostic plots for the PBPK model performance of all data listed in Section 2.2.2.

The first plot shows observed versus simulated plasma concentration, the second weighted residuals versus time.

Table 3-1: GMFE for Ethinylestradiol concentration in plasma

Group GMFE
iv administration (model building) 1.45
iv administration (model validation) 1.27
Oral administration (model building) 1.46
Oral administration (model validation) 1.26
All 1.41

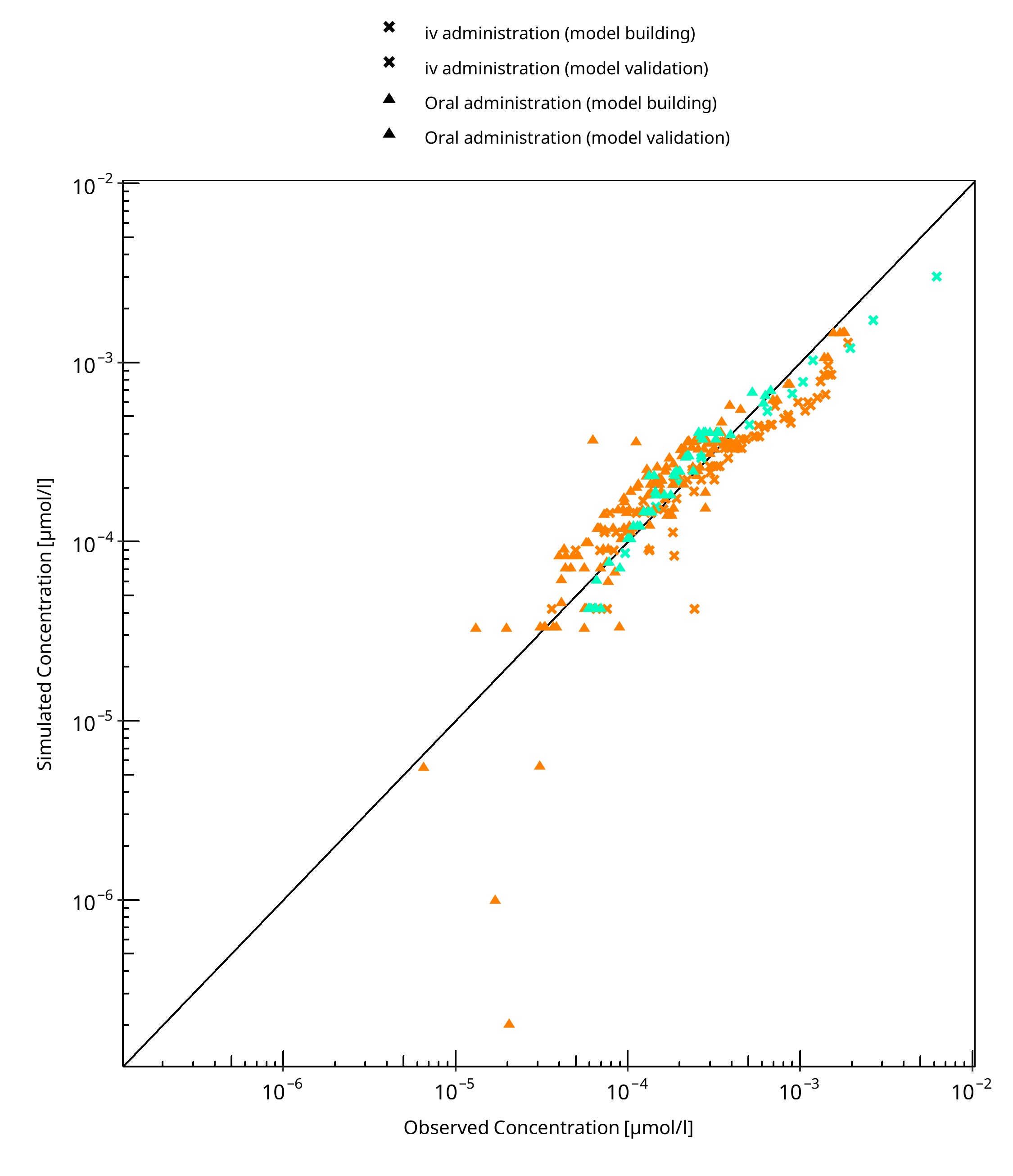

Figure 3-1: Ethinylestradiol concentration in plasma

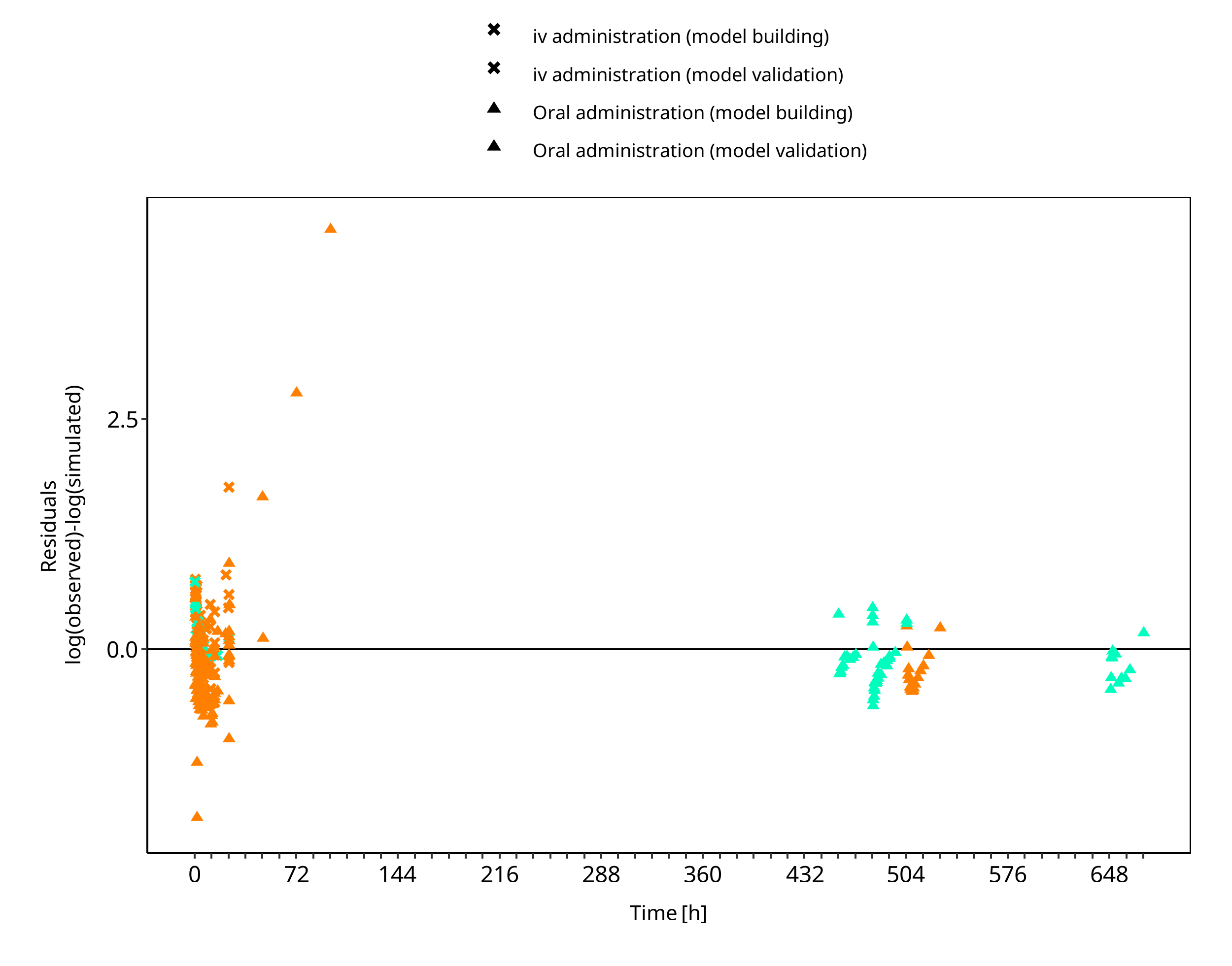

Figure 3-2: Ethinylestradiol concentration in plasma



3.3 Concentration-Time Profiles

Simulated versus observed concentration-time profiles of all data listed in Section 2.2.2 are presented below.

3.3.1 Model Building

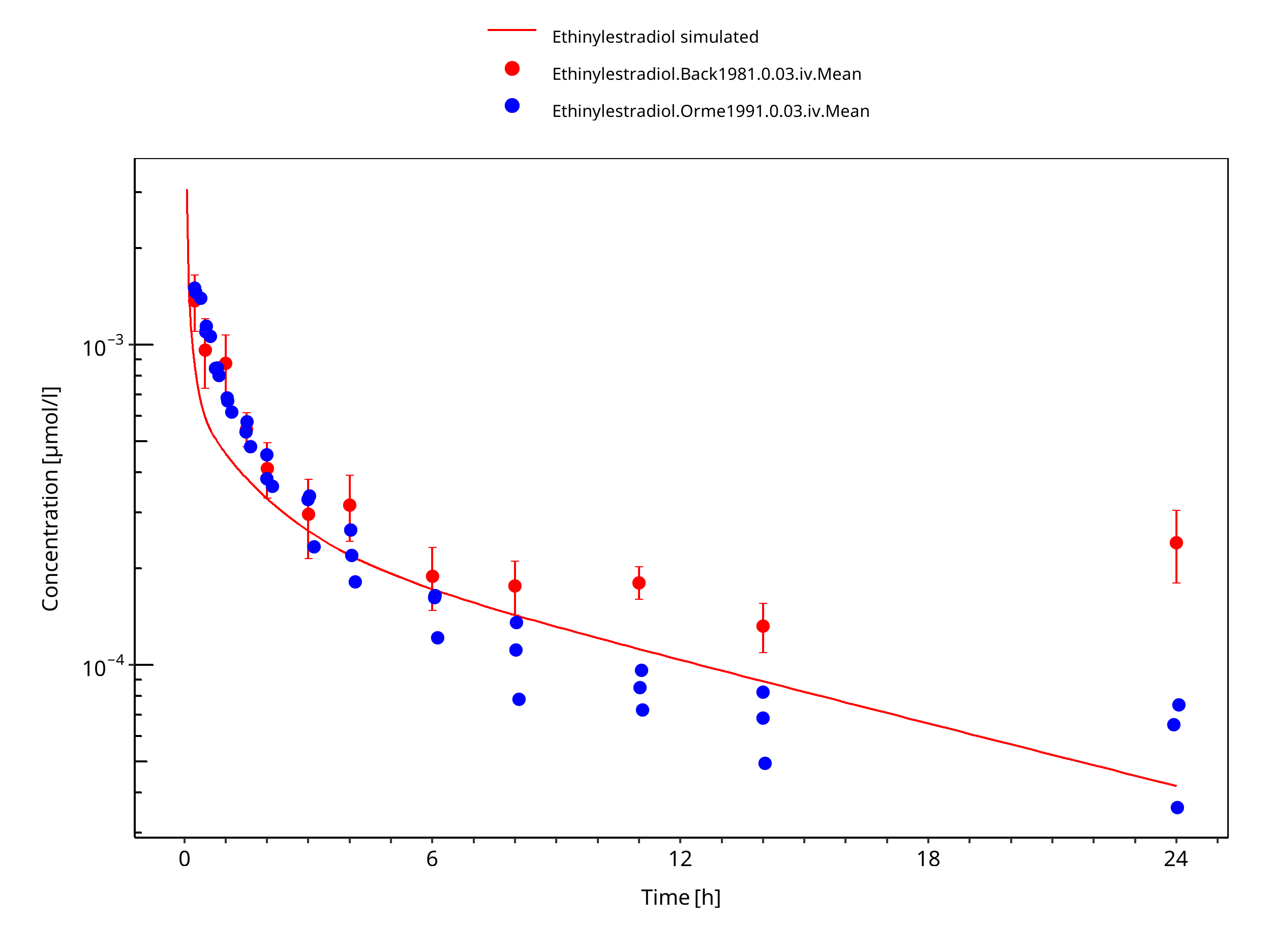

Figure 3-3: Ethinylestradiol 0.03 mg iv

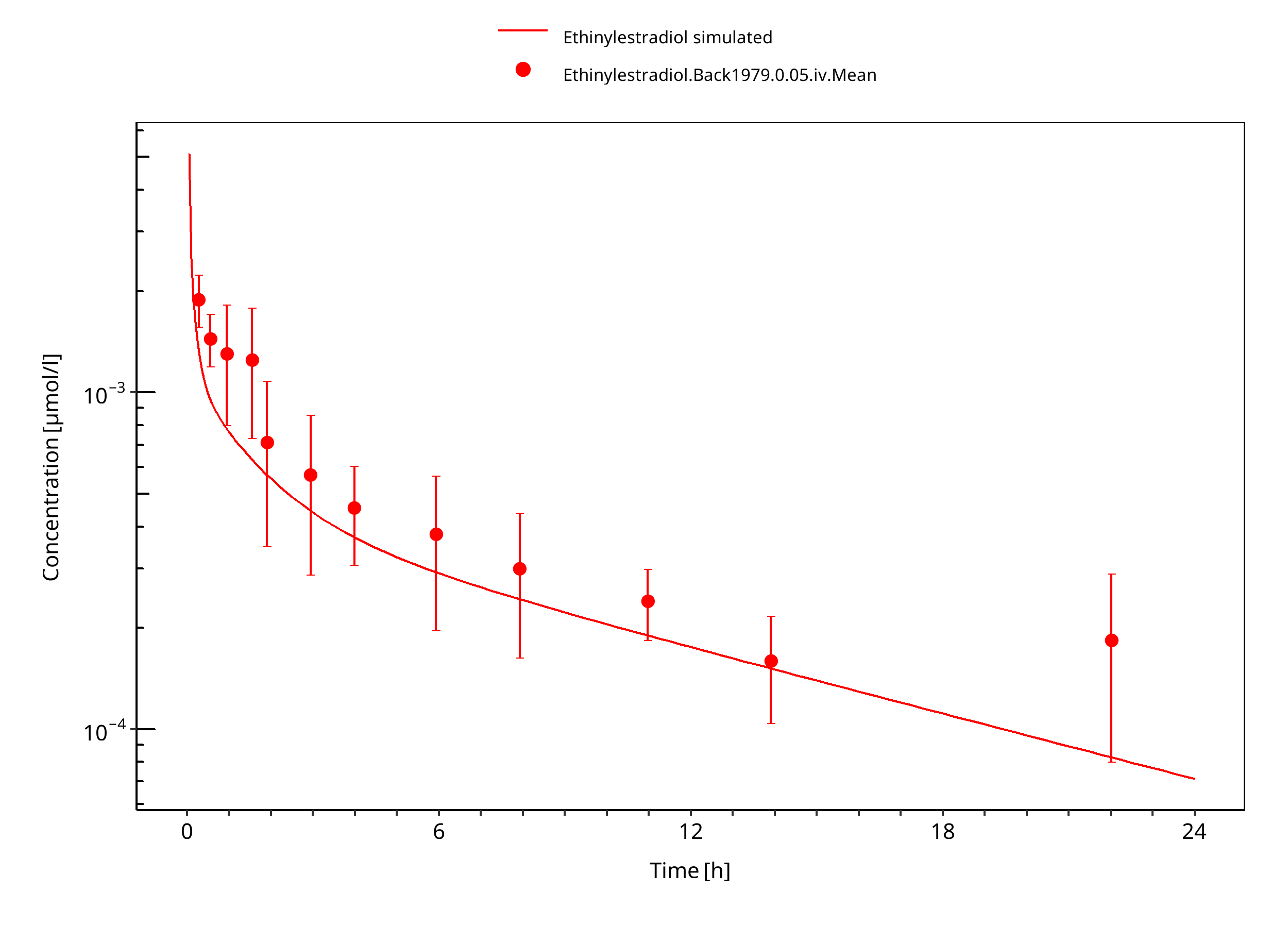

Figure 3-4: Ethinylestradiol 0.05 mg iv

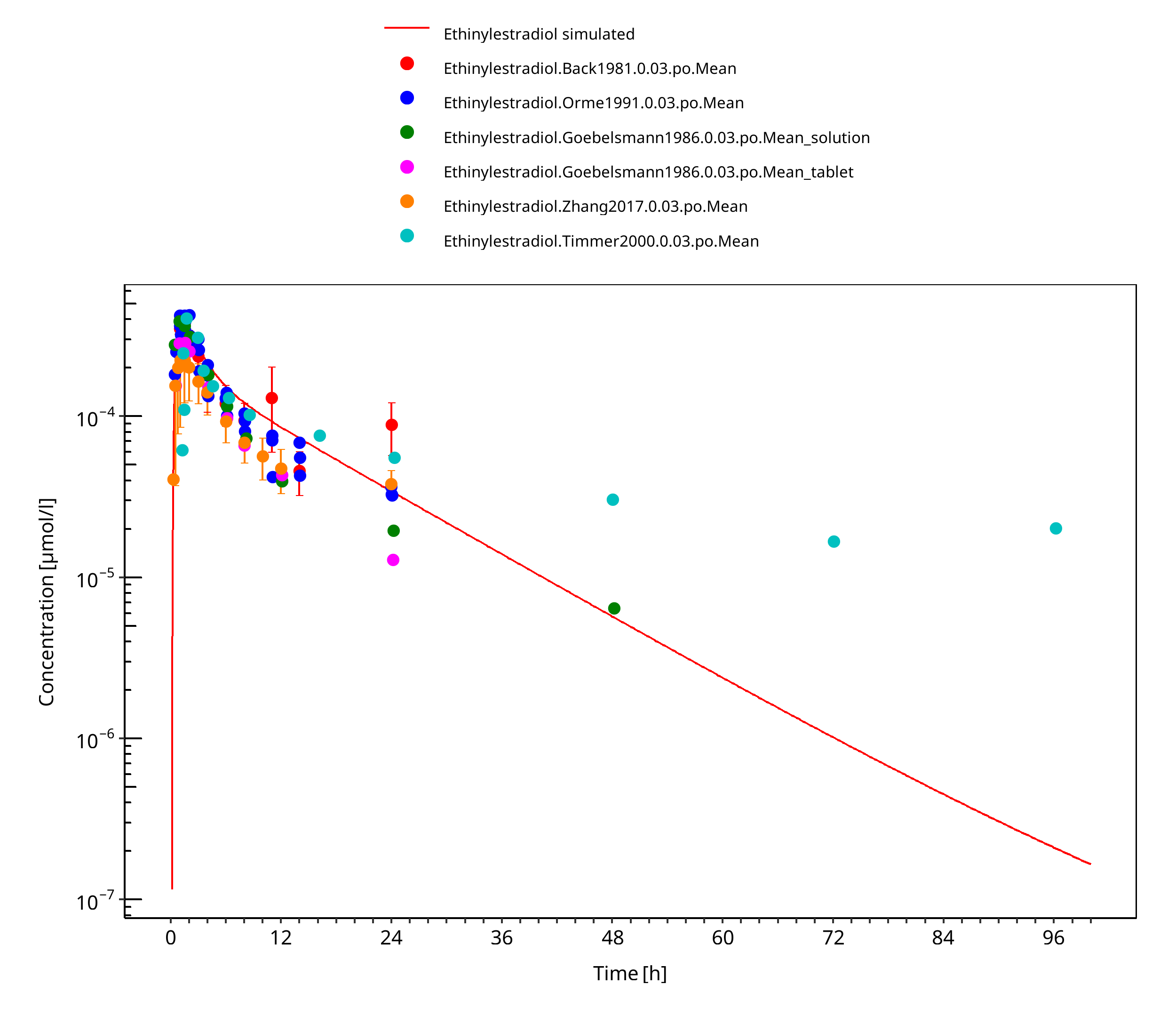

Figure 3-5: Ethinylestradiol 0.03 mg po

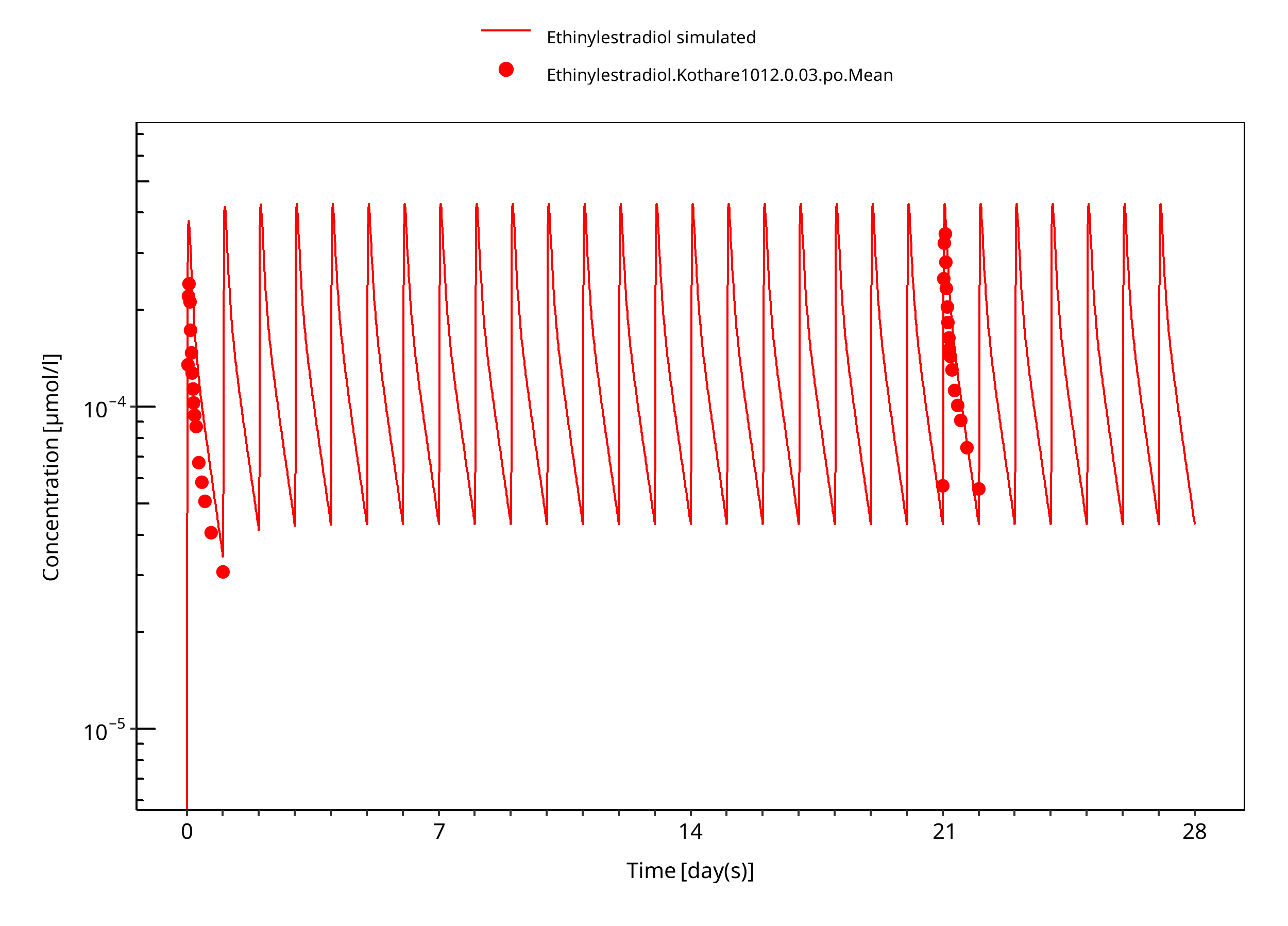

Figure 3-6: Ethinylestradiol 0.03 mg po 28d

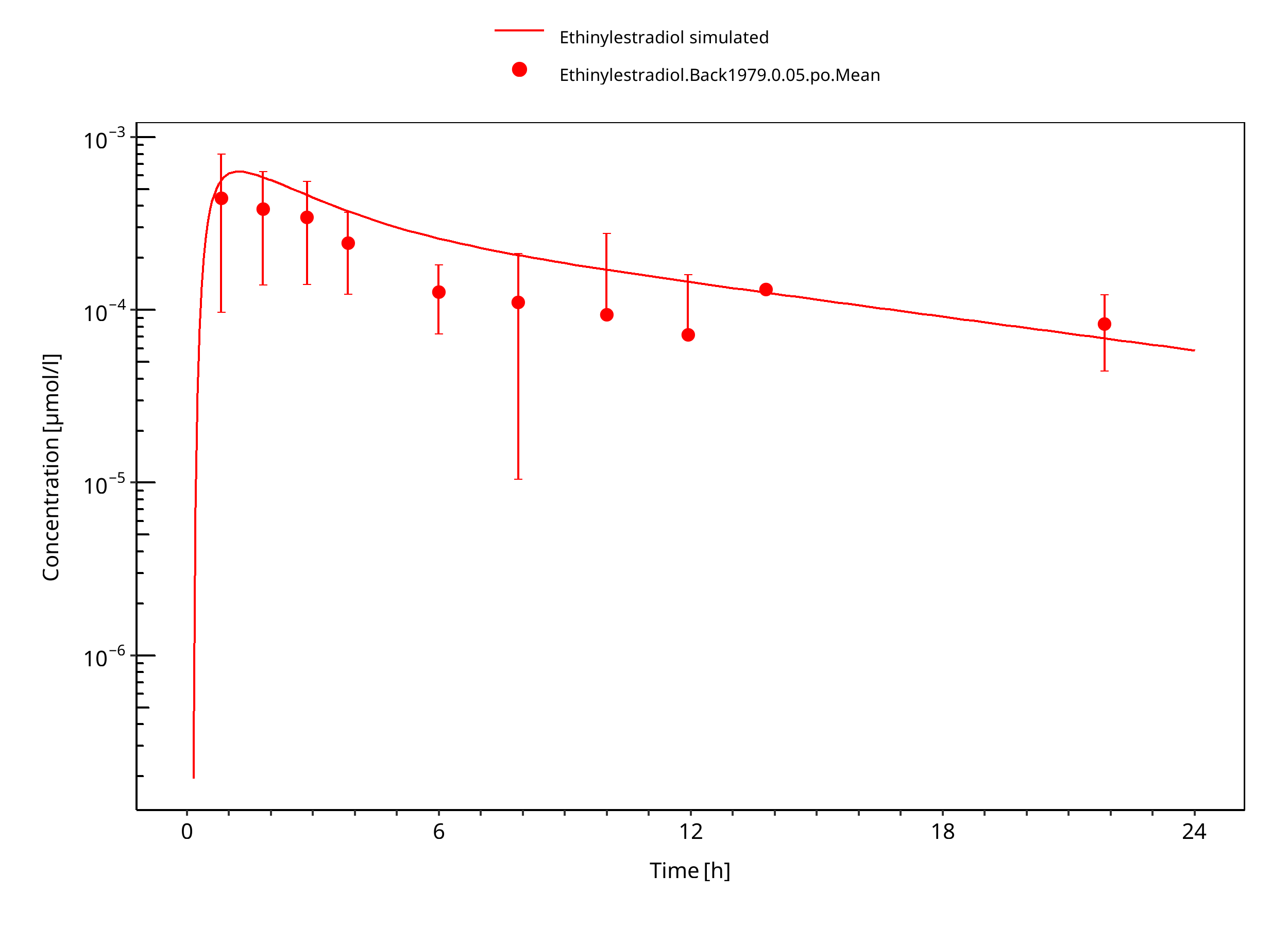

Figure 3-7: Ethinylestradiol 0.05 mg po

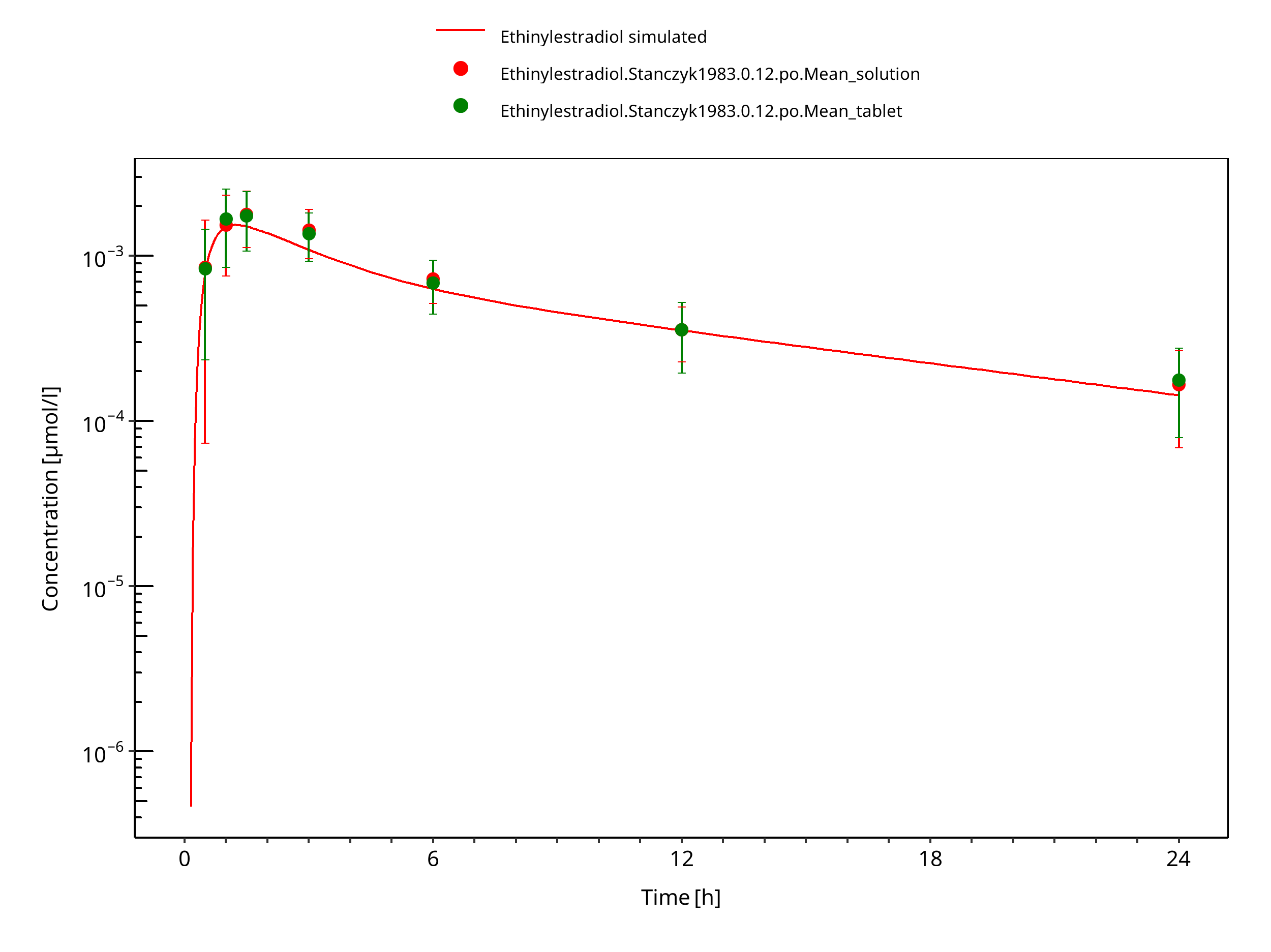

Figure 3-8: Ethinylestradiol 0.12 mg po



3.3.2 Model Verification

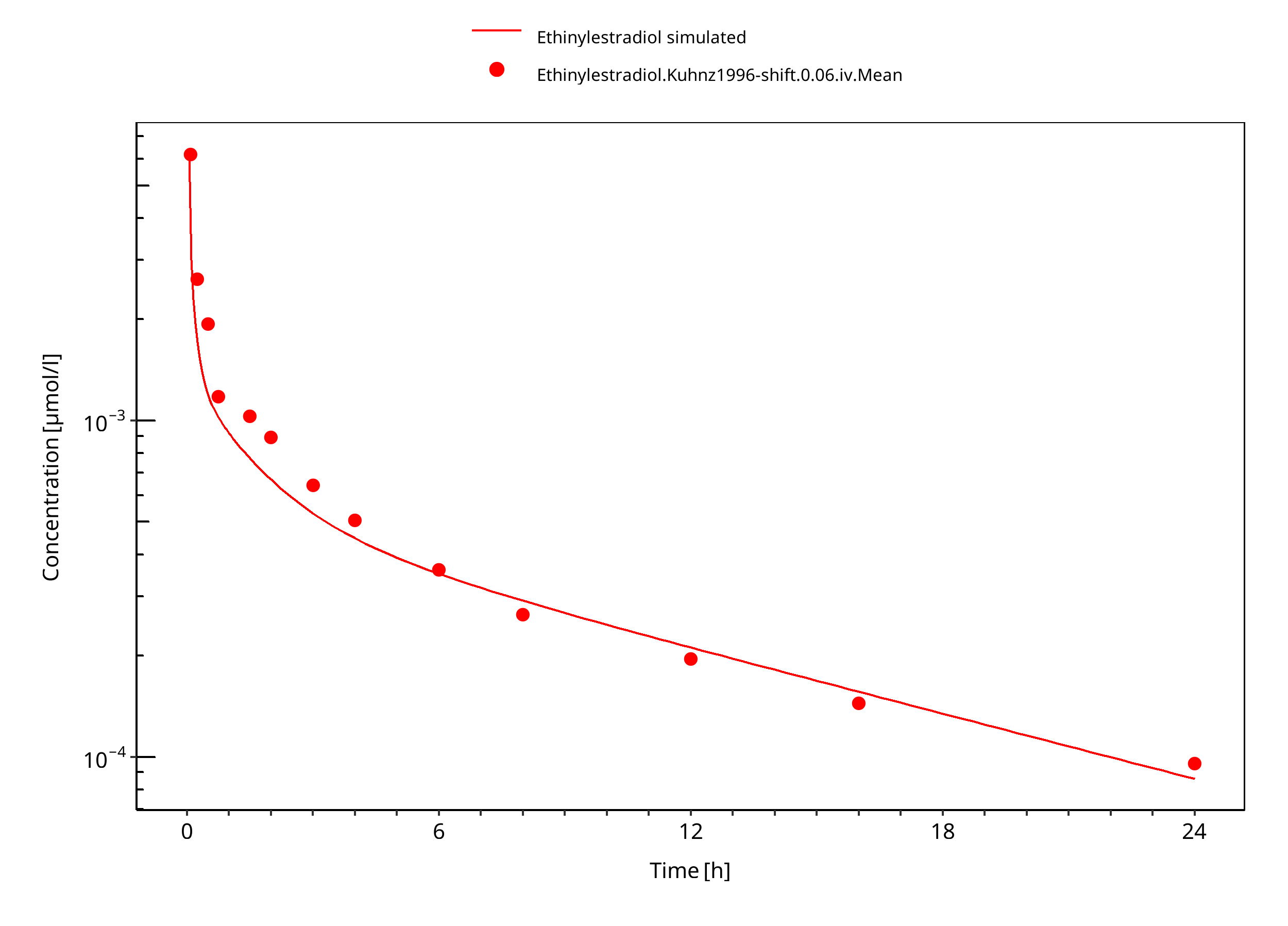

Figure 3-9: Ethinylestradiol 0.06 mg iv

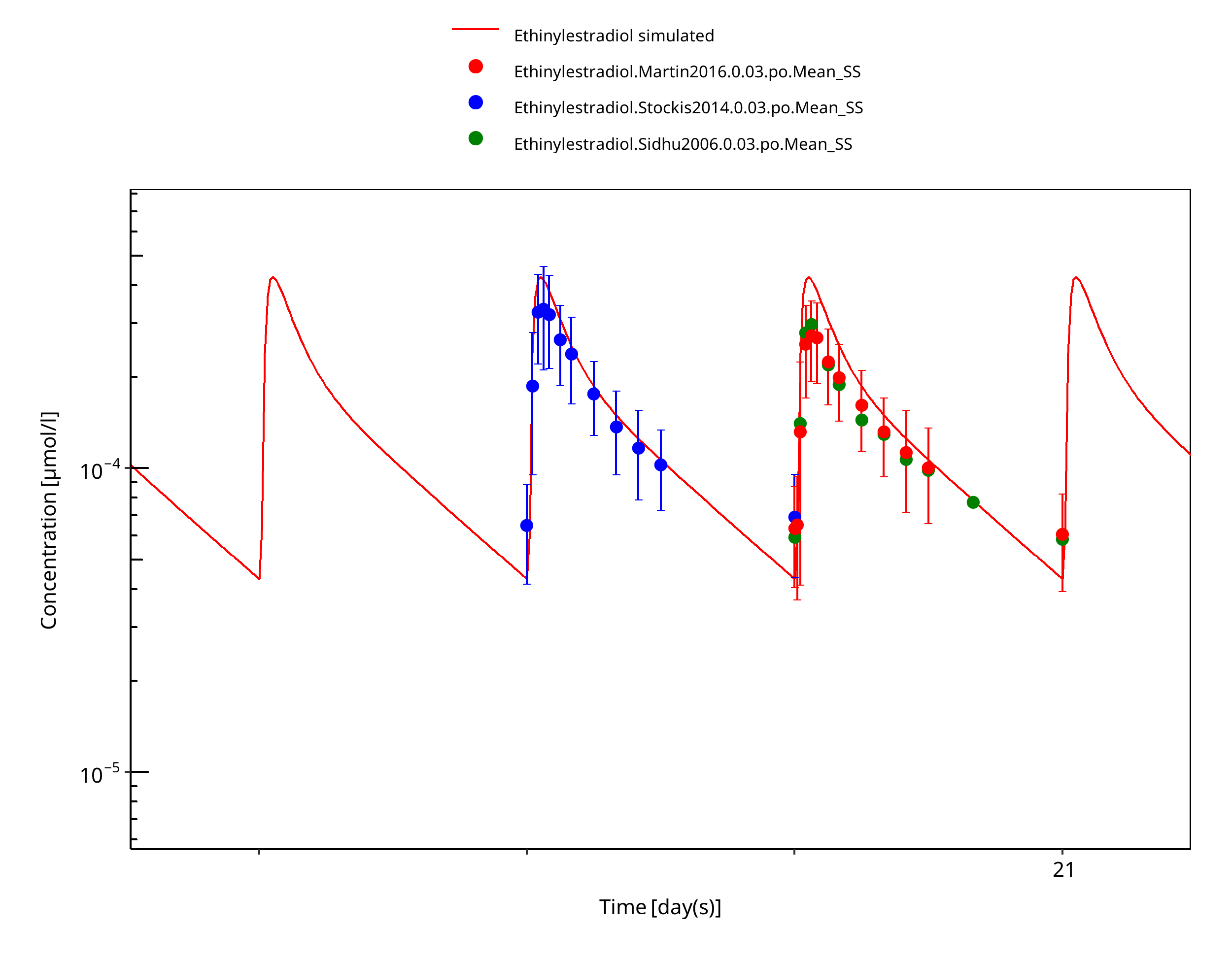

Figure 3-10: Ethinylestradiol 0.03 mg po 28d pred

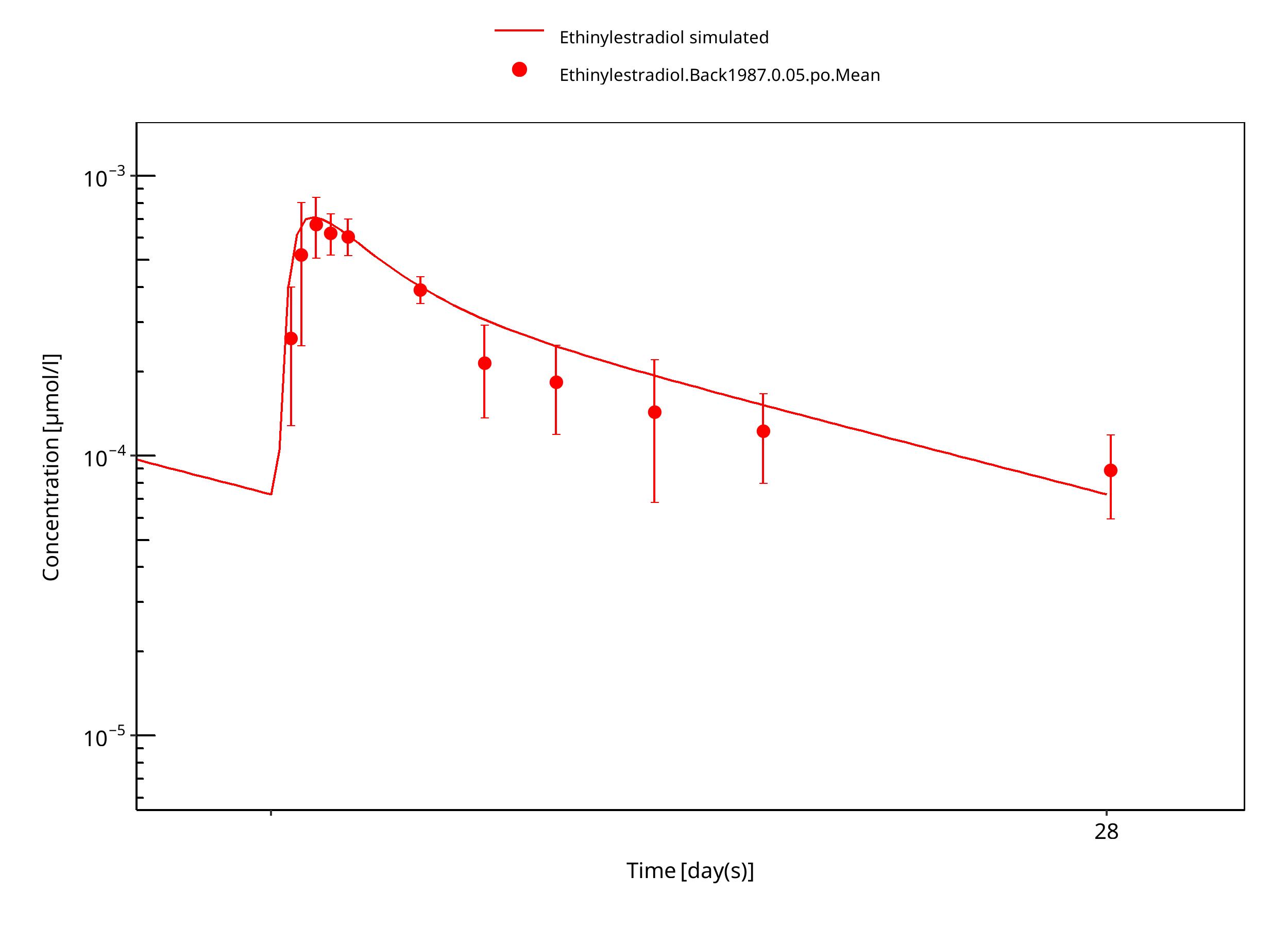

Figure 3-11: Ethinylestradiol 0.05 mg po 28d



4 Conclusion

The developed PBPK model of ethinylestradiol is able to predict the time-profiles following single and multiple dosing of ethinylestradiol accurately.

The implemented TDI mechanism for ethinylestradiol was not evident in literature (Zanaflex prescribing information, Karjalainen 2008). The substantial and prolonged inhibition may result from CYP1A2 inhibition by EE-metabolites having a different half-life from the parent. Chang 2009 for example found that the EE-2hydroxy and EE-2methoxy IC50s toward rCYP1A1 and rCYP1A2 are comparable to that of the parent. However, not having the possibility to model EE-metabolites contribution, a time-dependent inhibition function on CYP1A2 was used instead to account for this effect.

5 References

Back 1979 Back DJ, Breckenridge AM, Crawford FE, et al. An investigation of the pharmacokinetics of ethynylestradiol in women using radioimmunoassay. Contraception. 1979;20(3):263-273.

Back 1981 Back DJ, Bates M, Breckenridge AM, et al. The pharmacokinetics of levonorgestrel and ethynylestradiol in women - studies with Ovran and Ovranette. Contraception. 1981;23(3):229-239.

Back 1987 Back DJ, Grimmer SF, Rogers S, Stevenson PJ, Orme ML. Comparative pharmacokinetics of levonorgestrel and ethinyloestradiol following intravenous, oral and vaginal administration. Contraception. 1987;36(4):471-479.

Balogh 1995 Balogh A, Boerner A, Kuhnz W, Klinger G, Vollanth R, Henschel L. Influence of ethinylestradiol-containing combination oral contraceptives with gestodene or levonorgestrel on caffeine elimination. Eur J Clin Pharmacol. 1995;48(2):161-166.

Chang 2009 Chang, S. Y., Chen, C., Yang, Z., Rodrigues, A. D. (2009). Further assessment of 17α-ethinyl estradiol as an inhibitor of different human cytochrome P450 forms in vitro. Drug Metabolism and Disposition, 37(8), 1667-1675.

DrugBank DB00977 (https://www.drugbank.ca/drugs/DB00977)

Ezuruike 2018 Ezuruike U, Humphries H, Dickins M, Neuhoff S, Gardner I, Rowland Yeo K. Risk–Benefit Assessment of Ethinylestradiol Using a Physiologically Based Pharmacokinetic Modeling Approach. Clin Pharmacol Ther. 2018;104(6):1229-1239

FDA. QUARTETTE FDA. QUARTETTE (levonorgestrel/ethinyl estradiol and ethinyl estradiol) tablets, for oral use. Website: https://www.accessdata.fda.gov/drugsatfda_docs/label/2013/204061s000lbl.pdf

Goebelsmann 1986 Goebelsmann U, Hoffman D, Chiang S, Woutersz T. The relative bioavailability of levonorgestrel and ethinyl estradiol administered as a low-dose combination oral contraceptive. Contraception. 1986;34(4):341-351.

Granfors 2005 Granfors MT, Backman JT, Laitila J, Neuvonen PJ. Oral contraceptives containing ethinyl estradiol and gestodene markedly increase plasma concentrations and effects of tizanidine by inhibiting cytochrome P450 1A2. Clin Pharmacol Ther. 2005;78(4):400-411.

Karjalainen 2008 Karjalainen, M. (Thesis, 2008). Inhibition of CYP1A2-mediated drug metabolism in vitro and in humans: With special emphasis on rofecoxib and other NSAIDs. Website: https://helda.helsinki.fi/bitstream/handle/10138/23039/inhibiti.pdf?sequence=1&origin=publication_detail

Kothare 2012 Kothare PA, Seger ME, Northrup J, Mace K, Mitchell MI, Linnebjerg H. Effect of exenatide on the pharmacokinetics of a combination oral contraceptive in healthy women: an open-label, randomised, crossover trial. BMC Clin Pharmacol. 2012;12:8.

Kuepfer 2016 Kuepfer L, Niederalt C, Wendl T, Schlender JF, Willmann S, Lippert J, Block M, Eissing T, Teutonico D. Applied Concepts in PBPK Modeling: How to Build a PBPK/PD Model.CPT Pharmacometrics Syst Pharmacol. 2016 Oct;5(10):516-531.

Kuhnz 1996 Kuhnz W, Humpel M, Biere H, Gross D. Influence of repeated oral doses of ethinyloestradiol on the metabolic disposition of [13C2]-ethinyloestradiol in young women. Eur J Clin Pharmacol. 1996;50(3):231-235.

Martin 2016 Martin P, Gillen M, Ritter J, et al. Effects of Fostamatinib on the Pharmacokinetics of Oral Contraceptive, Warfarin, and the Statins Rosuvastatin and Simvastatin: Results From Phase I Clinical Studies. Drugs R D. 2016;16(1):93-107.

Orme 1991 Orme M, Back DJ, Ward S, Green S. The pharmacokinetics of ethynylestradiol in the presence and absence of gestodene and desogestrel. Contraception. 1991;43(4):305-316.

PK-Sim Ontogeny Database Version 7.3 (https://github.com/Open-Systems-Pharmacology/OSPSuite.Documentation/blob/38cf71b384cfc25cfa0ce4d2f3addfd32757e13b/PK-Sim%20Ontogeny%20Database%20Version%207.3.pdf)

Sidhu 2006 Sidhu J, Job S, Singh S, Philipson R. The pharmacokinetic and pharmacodynamic consequences of the co-administration of lamotrigine and a combined oral contraceptive in healthy female subjects. Br J Clin Pharmacol. 2006;61(2):191-199.

SmPC Namuscla SmPC Namuscla 167 mg hard capsules, 2019, website https://www.medicines.org.uk/emc/product/9838/smpc

Stanczyk 1983 Stanczyk FZ, Mroszczak EJ, Ling T, et al. Plasma levels and pharmacokinetics of norethindrone and ethinylestradiol administered in solution and as tablets to women. Contraception. 1983;28(3):241-251.

Stanczyk 2013 Stanczyk FZ, Archer DF, Bhavnani BR. Ethinyl estradiol and 17beta-estradiol in combined oral contraceptives: pharmacokinetics, pharmacodynamics and risk assessment. Contraception. 2013;87(6):706-727.

Stockis 2014 Stockis A, Watanabe S, Fauchoux N. Interaction between brivaracetam (100 mg/day) and a combination oral contraceptive: A randomized, double-blind, placebo-controlled study. Epilepsia. 2014;55(3):27-31.

Study c13608215-02 Study c13608215. A study to investigate the pharmacokinetic drug-drug interaction following oral administration of ethinylestradiol/levonorgestrel (Microgynon®) and BI 409306 in healthy Korean premenopausal female subjects (an open-label, two-period, fixed-sequence study).” Boehringer Ingelheim Pharma, 06-Aug-2018.

Timmer 2000 Timmer C, Mulders T. Pharmacokinetics of etonogestrel and ethinylestradiol released from a combined vaginal ring. Clin Pharmacokinet. 2000;39(3):233-242.

Wang 2004 Wang, B., Sanchez, R.I., Franklin, R.B., Evans, D.C.,Huskey, S.E. The involvement of CYP3A4 and CYP2C9 in the metabolism of 17 alpha-ethinylestradiol. Drug Metab. Dispos. 32, 1209–1212 (2004).

Wiesinger 2015 Wiesinger, H. et al. Pharmacokinetic interaction between the CYP3A4 inhibitor ketoconazole and the hormone drospirenone in combination with ethinylestradiol or estradiol. Br. J. Clin. Pharmacol. 80, 1399–1410 (2015).

Willmann 2007 Willmann S, Höhn K, Edginton A, Sevestre M, Solodenko J, Weiss W, Lippert J, Schmitt W. Development of a physiology-based whole-body population model for assessing the influence of individual variability on the pharmacokinetics of drugs. J Pharmacokinet Pharmacodyn 2007, 34(3): 401-431.

Zanaflex prescribing information Zanaflex prescribing information. Website: https://www.accessdata.fda.gov/drugsatfda_docs/label/2006/020397s021,021447s002lbl.pdf , 2006, Acorda Therapeutics Inc

Zhang 2017 Zhang C, Li H, Xiong X, et al. An open-label, two-period comparative study on pharmacokinetics and safety of a combined ethinylestradiol/gestodene transdermal contraceptive patch. Drug Des Devel Ther. 2017;11:725-731.

6 Glossary

ADME Absorption, Distribution, Metabolism, Excretion
AUC Area under the plasma concentration versus time curve
AUCinf AUC until infinity
AUClast AUC until last measurable sample
AUCR Area under the plasma concentration versus time curve Ratio
b.i.d. Twice daily (bis in diem)
CL Clearance
Clint Intrinsic liver clearance
Cmax Maximum concentration
CmaxR Maximum concentration Ratio
CYP Cytochrome P450 oxidase
CYP1A2 Cytochrome P450 1A2 oxidase
CYP2C19 Cytochrome P450 2C19 oxidase
CYP3A4 Cytochrome P450 3A4 oxidase
DDI Drug-drug interaction
e.c. Enteric coated
EE Ethinylestradiol
EM Extensive metabolizers
fm Fraction metabolized
FMO Flavin-containing monooxygenase
fu Fraction unbound
FDA Food and Drug administration
GFR Glomerular filtration rate
HLM Human liver microsomes
hm homozygous
ht heterozygous
IM Intermediate metabolizers
i.v. Intravenous
IVIVE In Vitro to In Vivo Extrapolation
Ka Absorption rate constant
kcat Catalyst rate constant
Ki Inhibitor constant
Kinact Rate of enzyme inactivation
Km Michaelis Menten constant
m.d. Multiple dose
OSP Open Systems Pharmacology
PBPK Physiologically-based pharmacokinetics
PK Pharmacokinetics
PI Parameter identification
PM Poor metabolizers
RT-PCR Reverse transcription polymerase chain reaction
p.o. Per os
q.d. Once daily (quaque diem)
SD Single Dose
SE Standard error
s.d.SPC Single dose Summary of Product Characteristics
SD Standard deviation
TDI Time dependent inhibition
t.i.d Three times a day (ter in die)
UGT Uridine 5'-diphospho-glucuronosyltransferase
UM Ultra-rapid metabolizers

Explore other Antibiotics models in this library:

View all Antibiotics →

← Back to Model Library Home
