Plot Predicted vs Observed Values

Source: R/plot-with-ospsuite-plots.R
plotPredictedVsObserved.Rd

Plots predicted vs observed data, grouped by "group".

This function visualizes the relationship between predicted and observed values, allowing for easy identification of discrepancies.

Usage

plotPredictedVsObserved(
  plotData,
  metaData = NULL,
  mapping = ggplot2::aes(),
  yUnit = NULL,
  xyScale = "log",
  predictedAxis = "y",
  comparisonLineVector = ospsuite.plots::getFoldDistanceList(folds = c(2)),
  ...
)

Arguments

plotData

An object of class DataCombined or a data.table. If a data.table, it must include the following:

  • xValues: Numeric time points.

  • yValues: Observed or simulated values (numeric).

  • group: Grouping variable (factor or character).

  • name: Name for the dataset (factor or character).

  • xUnit: Unit of the x-axis values (character).

  • yUnit: Unit of the y-axis values (character).

  • dataType: Specifies data type—either observed or simulated.

  • Optional:

    • yErrorType: Type of y error, relative to ospsuite::DataErrorType.

    • yErrorValues: Numeric error values.

    • yMin, yMax: Custom ranges for y-axis instead of error types.

    • IndividualId: Used for aggregation of simulated population data.

metaData

A list containing metadata for the plot. If NULL, a default list is constructed from the data. Expected structure includes information about dimensions and units for both x and y axes.

mapping

A ggplot2 aesthetic mapping object. Default is ggplot2::aes(). This is added or replaces the default mapping constructed by the data.

yUnit

A character string specifying the target unit for the x and y-axis. If NULL (default), the most frequent unit in the data is used. For available units, see ospsuite::ospUnits.

xyScale

A character string specifying the scale for the x and y-axis. Default is log.

predictedAxis

A character string specifying which axis to use for predicted values. Options are "x" (predicted on x-axis, observed on y-axis) or "y" (default, predicted on y-axis, observed on x-axis).

comparisonLineVector

A named list generated by the function ospsuite.plots::getFoldDistanceList. This list contains fold distances, where each entry represents a fold and its reciprocal. The identity fold (1) will be included if specified in getFoldDistanceList.

...

Arguments passed on to ospsuite.plots::plotYVsX

geomPointAttributes

A list with arguments which are passed on to the call ggplot2::geom_point

geomGuestLineAttributes

A list of arguments passed to ggplot2::geom_function to display guest criteria.

geomComparisonLineAttributes

A list of arguments passed to ggplot2::hline or ggplot2::abline to display comparison lines.

geomLLOQAttributes

A list with arguments which are passed on to the call ggplot2::geom_hline

addRegression

A boolean that activates the insertion of a regression line.

deltaGuest

Numeric value parameter for the Guest function.

labelGuestCriteria

Label used in the legend for guest criteria (default: "guest criteria").

xScaleArgs

list of arguments passed to ggplot2::scale_x_continuous() or ggplot2::scale_x_log10()

yScaleArgs

list of arguments passed to ggplot2::scale_y_continuous() or ggplot2::scale_y_log10()

Value

A ggplot2 plot object representing predicted vs observed values, including aesthetics for the x and y axes.

See also

Other plot functions based on ospsuite.plots: plotQuantileQuantilePlot(), plotResidualsAsHistogram(), plotResidualsVsCovariate(), plotTimeProfile()

Examples

if (FALSE) { # \dontrun{

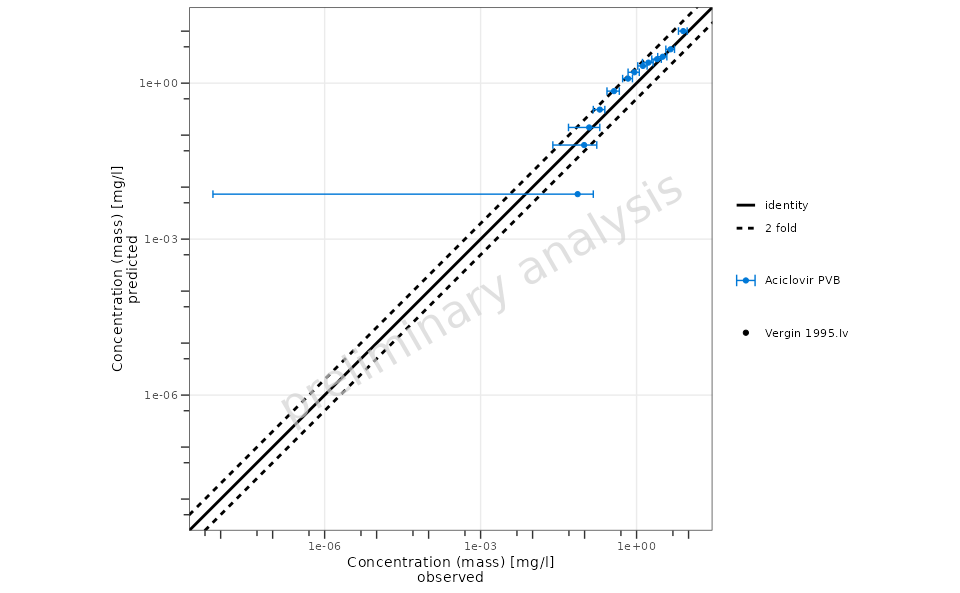

# Generate a predicted vs observed plot for the provided data
plotPredictedVsObserved(myDataCombined)

# Generate an observed vs predicted plot (swap axes)
plotPredictedVsObserved(myDataCombined, predictedAxis = "x")
} # }
