This vignette focuses on PK parameters plots and tables generated using either mean model or population workflows.

Overview

The PK parameter task aims at generating tables and, when possible, plots of requested PK parameters. Depending on the workflow type, different plots and tables can be obtained.

Inputs

Results obtained from the calculatePKParameters task and stored as csv files within the subdirectory PKAnalysisResults from the workflowFolder directory are required in order to perform the PK parameters (plotPKParameters) task. As a consequence, if the workflow output folder does not include the appropriate simulations, the task calculatePKParameters needs to be active.

The objects SimulationSet (or PopulationSimulationSet for population workflows) and Output define which and how the simulated PK parameters will be reported.

Outputs

Mean model workflow

For mean model workflows, the PK parameters task generates directly the table of PK parameters requested in the requested Output field pkParameters.

Population model workflow

The distribution of the calculated PK parameters for each requested output are plotted as Box Whisker plots along with a table. By default, the 5th, 25th, 50th, 75th and 95th percentiles are plotted.

Check the article PK Parameters in Population Workflows for more details

Template examples

The following sections will introduce template scripts including PK parameter tasks as well as their associated reports. Table 1 shows the features tested in each template script. All the examples use Mean Model Workflows.

Table 1: Features tested by each template script
Example	Workflow	Simulation Sets
1	MeanModelWorkflow	1
2	MeanModelWorkflow	1
3	MeanModelWorkflow	2
4	MeanModelWorkflow	2

Example 1

Example 1 shows a basic example of PK parameters performed by a mean model workflow. In this example, ‘C_max’ and ‘AUC_tEnd’ are calculated. Since the task PK parameters requires results from the folder PKAnalysisResults, the tasks simulate and calculatePKParameters need to be performed. The task simulate needs to be performed because the task calculatePKParameters is using the time profile simulation results.

Code

# Get the pkml simulation file: "MiniModel2.pkml"
simulationFile <- system.file("extdata", "MiniModel2.pkml",
  package = "ospsuite.reportingengine"
)

# Define the input parameters
outputA <- Output$new(
  path = "Organism|A|Concentration in container",
  displayName = "A",
  pkParameters = c("C_max", "AUC_tEnd")
)

setA <- SimulationSet$new(
  simulationSetName = "A",
  simulationFile = simulationFile,
  outputs = outputA
)

# Create the workflow instance
workflow1 <-
  MeanModelWorkflow$new(
    simulationSets = setA,
    workflowFolder = "Example-1"
  )
#> 10/03/2023 - 15:27:06
#>  [32m [1mi Info   [22m [39mReporting Engine Information:
#>  Date: 10/03/2023 - 15:27:06
#>  User Information:
#>  Computer Name: WDEC030076
#>  User: ZTSOJ
#>  Login: ZTSOJ
#>  System is NOT validated
#>  System versions:
#>  R version: R version 4.2.2 (2022-10-31 ucrt)
#>  OSP Suite Package version: 11.1.198
#>  OSP Reporting Engine version: 2.1.244
#>  tlf version: 1.5.125

# Set the workflow tasks to be run
workflow1$activateTasks(c("simulate",
                          "calculatePKParameters",
                          "plotPKParameters"))

# Run the workflow
workflow1$runWorkflow()
#> 10/03/2023 - 15:27:06
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mMean Model Workflow [23m [22m [39m
#> 10/03/2023 - 15:27:06
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mSimulation task [23m [22m [39m
#> 10/03/2023 - 15:27:07
#>  [32m [1mi Info   [22m [39mSplitting simulations for parallel run: [36m [1m [3m1 [23m [22m [39m simulations split into  [36m [1m [3m1 [23m [22m [39m subsets
#> 10/03/2023 - 15:27:07
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3msubset simulations [23m [22m [39m
#>
  |
  |                                                                      |   0%
  |
  |======================================================================| 100%
#> 10/03/2023 - 15:27:07
#>  [32m [1mi Info   [22m [39m [36m [1m [3mSimulation task [23m [22m [39m completed in 0 min
#> 10/03/2023 - 15:27:07
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mCalculate PK Parameters task [23m [22m [39m
#> 10/03/2023 - 15:27:07
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mCalculate PK Parameters task [23m [22m [39m for  [36m [1m [3mA [23m [22m [39m
#> 10/03/2023 - 15:27:08
#>  [32m [1mi Info   [22m [39m [36m [1m [3mCalculate PK Parameters task [23m [22m [39m completed in 0 min
#> 10/03/2023 - 15:27:08
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mPlot PK Parameters task [23m [22m [39m
#> 10/03/2023 - 15:27:08
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mPlot PK Parameters task [23m [22m [39m for  [36m [1m [3mA [23m [22m [39m
#> 10/03/2023 - 15:27:09
#>  [32m [1mi Info   [22m [39m [36m [1m [3mPlot PK Parameters task [23m [22m [39m completed in 0 min
#> Executing: pandoc --self-contained --wrap=none --toc --from=markdown+tex_math_dollars+superscript+subscript+raw_attribute --reference-doc="C:/Users/ztsoj/AppData/Local/Temp/RtmpwxXS6L/temp_libpath298c4a21481f/ospsuite.reportingengine/extdata/reference.docx" --resource-path="Example-1" -t docx -o "Example-1/Report-word.docx" "Example-1/Report-word.md"
#> 10/03/2023 - 15:27:11
#>  [32m [1mi Info   [22m [39m [36m [1m [3mMean Model Workflow [23m [22m [39m completed in 0.1 min

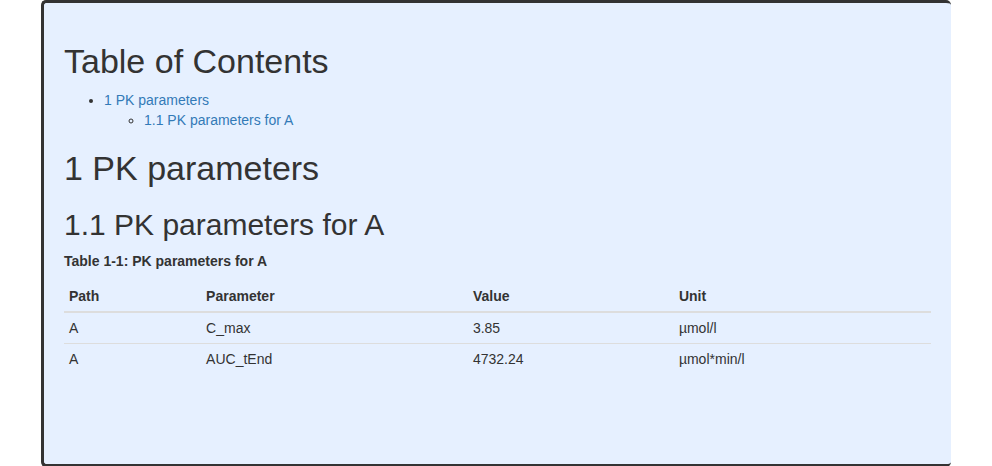

The output report for Example 1 is shown below. The table indicates the requested parameters in their base unit.

Report

Example 2

Example 2 shows how to perform workflows with user defined PK parameters. In this example, ‘MyAUC’ is added to the list of PK parameters. To create user defined PK parameter, the function addUserDefinedPKParameter() from the ospsuite package needs to be used.

Code

# Get the pkml simulation file: "MiniModel2.pkml"
simulationFile <- system.file("extdata", "MiniModel2.pkml",
  package = "ospsuite.reportingengine"
)

myAUC <- addUserDefinedPKParameter(name = "MyAUC", standardPKParameter = StandardPKParameter$AUC_tEnd)
myAUC$startTime <- 50
myAUC$endTime <- 80

# Define the input parameters
outputA <- Output$new(
  path = "Organism|A|Concentration in container",
  displayName = "A",
  pkParameters = c("C_max", "AUC_tEnd", "MyAUC")
)

setA <- SimulationSet$new(
  simulationSetName = "A",
  simulationFile = simulationFile,
  outputs = outputA
)

# Create the workflow instance
workflow2 <-
  MeanModelWorkflow$new(
    simulationSets = setA,
    workflowFolder = "Example-2"
  )
#> 10/03/2023 - 15:27:18
#>  [32m [1mi Info   [22m [39mReporting Engine Information:
#>  Date: 10/03/2023 - 15:27:17
#>  User Information:
#>  Computer Name: WDEC030076
#>  User: ZTSOJ
#>  Login: ZTSOJ
#>  System is NOT validated
#>  System versions:
#>  R version: R version 4.2.2 (2022-10-31 ucrt)
#>  OSP Suite Package version: 11.1.198
#>  OSP Reporting Engine version: 2.1.244
#>  tlf version: 1.5.125

# Set the workflow tasks to be run
workflow2$activateTasks(c("simulate",
                          "calculatePKParameters",
                          "plotPKParameters"))

# Run the workflow
workflow2$runWorkflow()
#> 10/03/2023 - 15:27:18
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mMean Model Workflow [23m [22m [39m
#> 10/03/2023 - 15:27:18
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mSimulation task [23m [22m [39m
#> 10/03/2023 - 15:27:18
#>  [32m [1mi Info   [22m [39mSplitting simulations for parallel run: [36m [1m [3m1 [23m [22m [39m simulations split into  [36m [1m [3m1 [23m [22m [39m subsets
#> 10/03/2023 - 15:27:18
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3msubset simulations [23m [22m [39m
#>
  |
  |                                                                      |   0%
  |
  |======================================================================| 100%
#> 10/03/2023 - 15:27:18
#>  [32m [1mi Info   [22m [39m [36m [1m [3mSimulation task [23m [22m [39m completed in 0 min
#> 10/03/2023 - 15:27:18
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mCalculate PK Parameters task [23m [22m [39m
#> 10/03/2023 - 15:27:18
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mCalculate PK Parameters task [23m [22m [39m for  [36m [1m [3mA [23m [22m [39m
#> 10/03/2023 - 15:27:19
#>  [32m [1mi Info   [22m [39m [36m [1m [3mCalculate PK Parameters task [23m [22m [39m completed in 0 min
#> 10/03/2023 - 15:27:19
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mPlot PK Parameters task [23m [22m [39m
#> 10/03/2023 - 15:27:19
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mPlot PK Parameters task [23m [22m [39m for  [36m [1m [3mA [23m [22m [39m
#> 10/03/2023 - 15:27:19
#>  [32m [1mi Info   [22m [39m [36m [1m [3mPlot PK Parameters task [23m [22m [39m completed in 0 min
#> Executing: pandoc --self-contained --wrap=none --toc --from=markdown+tex_math_dollars+superscript+subscript+raw_attribute --reference-doc="C:/Users/ztsoj/AppData/Local/Temp/RtmpwxXS6L/temp_libpath298c4a21481f/ospsuite.reportingengine/extdata/reference.docx" --resource-path="Example-2" -t docx -o "Example-2/Report-word.docx" "Example-2/Report-word.md"
#> 10/03/2023 - 15:27:21
#>  [32m [1mi Info   [22m [39m [36m [1m [3mMean Model Workflow [23m [22m [39m completed in 0.1 min

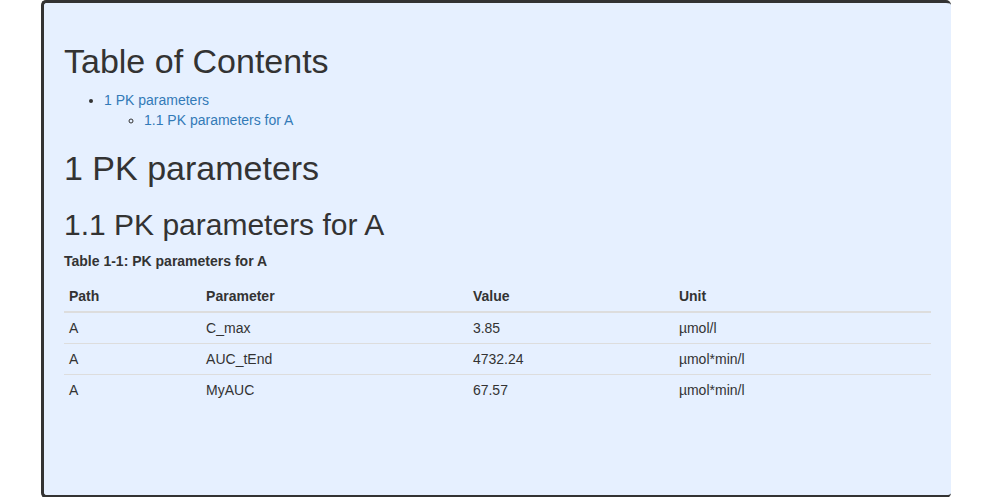

The output report for Example 2 is shown below. The table indicates the requested parameters in their base unit.

Report

Example 3

Example 3 shows a similar example with 2 simulation sets. In this example, the names and units of the PK parameters are updated using the function updatePKParameter from the ospsuite package.

Code

# Get the pkml simulation file: "MiniModel2.pkml"
simulationFileA <- system.file("extdata", "MiniModel1.pkml",
  package = "ospsuite.reportingengine"
)

simulationFileB <- system.file("extdata", "MiniModel2.pkml",
  package = "ospsuite.reportingengine"
)

updatePKParameter("C_max",
                  displayName = "Cmax",
                  displayUnit = "nmol/l")
#> PKParameter:
#>    Name: C_max
#>    DisplayName: Cmax
#>    Dimension: Concentration (molar)
#>    DisplayUnit: nmol/l
updatePKParameter("AUC_tEnd",
                  displayName = "AUC",
                  displayUnit = "nmol*min/l")
#> PKParameter:
#>    Name: AUC_tEnd
#>    DisplayName: AUC
#>    Dimension: AUC (molar)
#>    DisplayUnit: nmol*min/l

# Define the input parameters
outputA <- Output$new(
  path = "Organism|A|Concentration in container",
  displayName = "A",
  pkParameters = c("C_max", "AUC_tEnd")
)
outputB <- Output$new(
  path = "Organism|B|Concentration in container",
  displayName = "B",
  pkParameters = c("C_max", "AUC_tEnd")
)

setA <- SimulationSet$new(
  simulationSetName = "A",
  simulationFile = simulationFileA,
  outputs = outputA
)
setB <- SimulationSet$new(
  simulationSetName = "B",
  simulationFile = simulationFileB,
  outputs = outputB
)

# Create the workflow instance
workflow3 <-
  MeanModelWorkflow$new(
    simulationSets = c(setA, setB),
    workflowFolder = "Example-3"
  )
#> 10/03/2023 - 15:27:29
#>  [32m [1mi Info   [22m [39mReporting Engine Information:
#>  Date: 10/03/2023 - 15:27:29
#>  User Information:
#>  Computer Name: WDEC030076
#>  User: ZTSOJ
#>  Login: ZTSOJ
#>  System is NOT validated
#>  System versions:
#>  R version: R version 4.2.2 (2022-10-31 ucrt)
#>  OSP Suite Package version: 11.1.198
#>  OSP Reporting Engine version: 2.1.244
#>  tlf version: 1.5.125

# Set the workflow tasks to be run
workflow3$activateTasks(c("simulate",
                          "calculatePKParameters",
                          "plotPKParameters"))

# Run the workflow
workflow3$runWorkflow()
#> 10/03/2023 - 15:27:29
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mMean Model Workflow [23m [22m [39m
#> 10/03/2023 - 15:27:29
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mSimulation task [23m [22m [39m
#> 10/03/2023 - 15:27:30
#>  [32m [1mi Info   [22m [39mSplitting simulations for parallel run: [36m [1m [3m2 [23m [22m [39m simulations split into  [36m [1m [3m1 [23m [22m [39m subsets
#> 10/03/2023 - 15:27:30
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3msubset simulations [23m [22m [39m
#>
  |
  |                                                                      |   0%
  |
  |======================================================================| 100%
#> 10/03/2023 - 15:27:30
#>  [32m [1mi Info   [22m [39m [36m [1m [3mSimulation task [23m [22m [39m completed in 0 min
#> 10/03/2023 - 15:27:30
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mCalculate PK Parameters task [23m [22m [39m
#> 10/03/2023 - 15:27:30
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mCalculate PK Parameters task [23m [22m [39m for  [36m [1m [3mA [23m [22m [39m
#> 10/03/2023 - 15:27:30
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mCalculate PK Parameters task [23m [22m [39m for  [36m [1m [3mB [23m [22m [39m
#> 10/03/2023 - 15:27:31
#>  [32m [1mi Info   [22m [39m [36m [1m [3mCalculate PK Parameters task [23m [22m [39m completed in 0 min
#> 10/03/2023 - 15:27:31
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mPlot PK Parameters task [23m [22m [39m
#> 10/03/2023 - 15:27:31
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mPlot PK Parameters task [23m [22m [39m for  [36m [1m [3mA [23m [22m [39m
#> 10/03/2023 - 15:27:31
#>  [32m [1mi Info   [22m [39mStarting run of  [36m [1m [3mPlot PK Parameters task [23m [22m [39m for  [36m [1m [3mB [23m [22m [39m
#> 10/03/2023 - 15:27:31
#>  [32m [1mi Info   [22m [39m [36m [1m [3mPlot PK Parameters task [23m [22m [39m completed in 0 min
#> Executing: pandoc --self-contained --wrap=none --toc --from=markdown+tex_math_dollars+superscript+subscript+raw_attribute --reference-doc="C:/Users/ztsoj/AppData/Local/Temp/RtmpwxXS6L/temp_libpath298c4a21481f/ospsuite.reportingengine/extdata/reference.docx" --resource-path="Example-3" -t docx -o "Example-3/Report-word.docx" "Example-3/Report-word.md"
#> 10/03/2023 - 15:27:33
#>  [32m [1mi Info   [22m [39m [36m [1m [3mMean Model Workflow [23m [22m [39m completed in 0.1 min

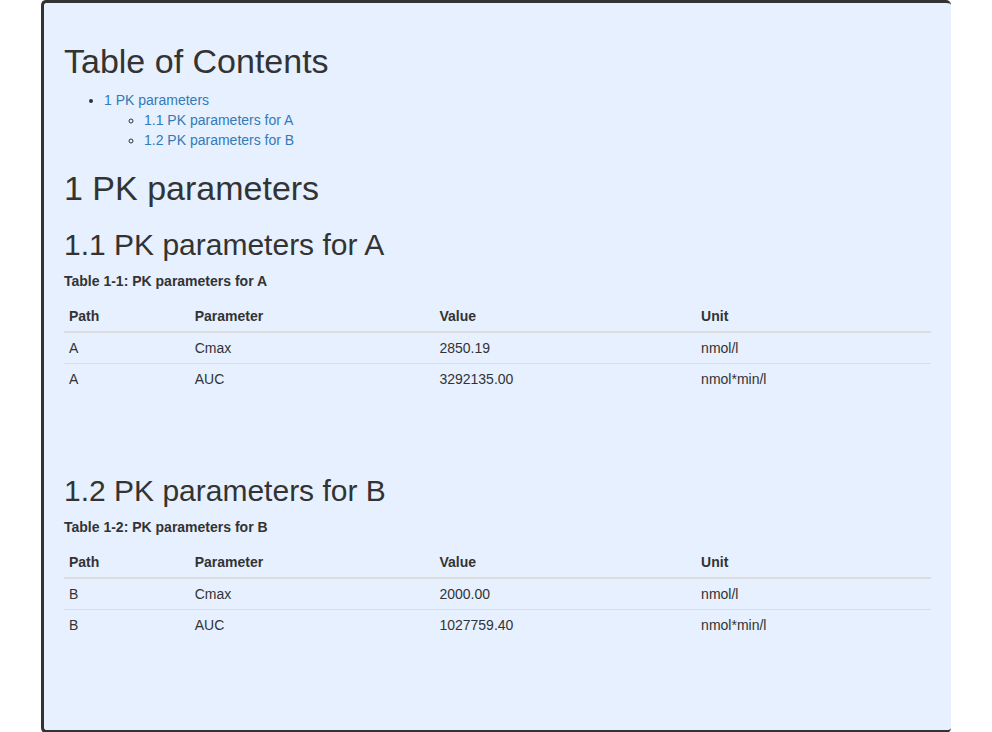

The output report for Example 3 is shown below. The table indicates the requested parameters in the updated units and display names.

Report

Example 4

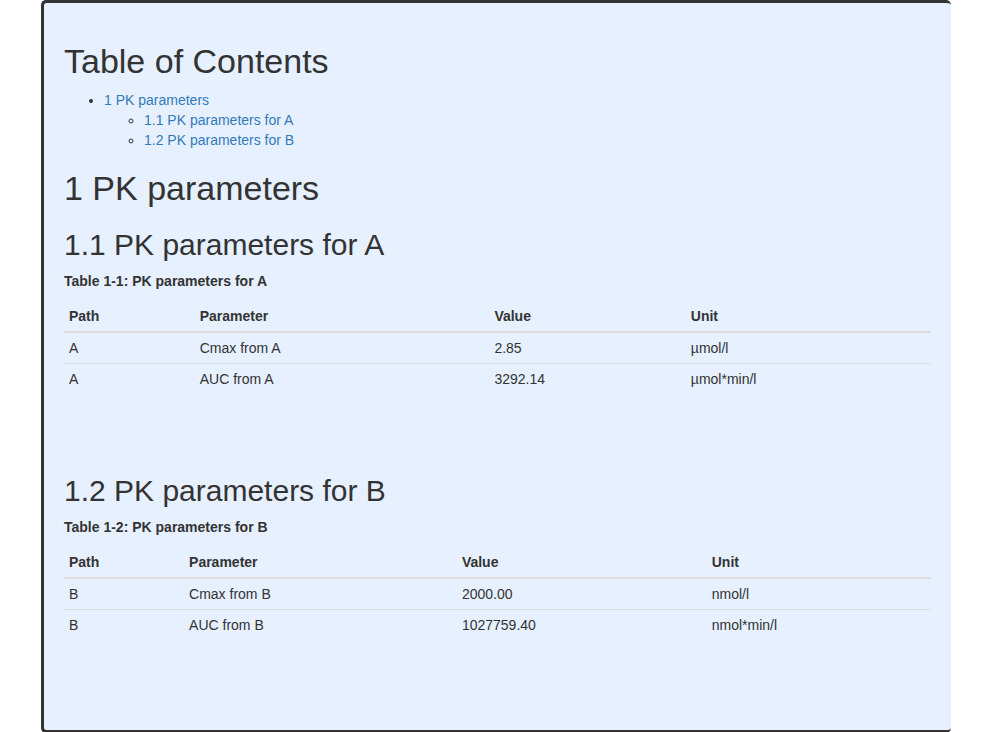

Example 4 shows a different way of updating the PK parameters using the instance PkParameterInfo. Using that instance, it is possible to define different names and units for the same parameters from different paths or simulations.

Code

# Get the pkml simulation file: "MiniModel2.pkml"
simulationFile <- system.file("extdata", "MiniModel2.pkml",
  package = "ospsuite.reportingengine"
)

CmaxA <- PkParameterInfo$new("C_max",
                  displayName = "Cmax from A",
                  displayUnit = "µmol/l")
CmaxB <- PkParameterInfo$new("C_max",
                  displayName = "Cmax from B",
                  displayUnit = "nmol/l")
AUCA <- PkParameterInfo$new("AUC_tEnd",
                  displayName = "AUC from A",
                  displayUnit = "µmol*min/l")
AUCB <- PkParameterInfo$new("AUC_tEnd",
                  displayName = "AUC from B",
                  displayUnit = "nmol*min/l")

# Define the input parameters
outputA <- Output$new(
  path = "Organism|A|Concentration in container",
  displayName = "A",
  pkParameters = c(CmaxA, AUCA)
)
outputB <- Output$new(
  path = "Organism|B|Concentration in container",
  displayName = "B",
  pkParameters = c(CmaxB, AUCB)
)

setA <- SimulationSet$new(
  simulationSetName = "A",
  simulationFile = simulationFile,
  outputs = outputA
)
setB <- SimulationSet$new(
  simulationSetName = "B",
  simulationFile = simulationFile,
  outputs = outputB
)

# Create the workflow instance
workflow4 <-
  MeanModelWorkflow$new(
    simulationSets = c(setA, setB),
    workflowFolder = "Example-3"
  )
#> 10/03/2023 - 15:28:04
#> i Info  Reporting Engine Information:
#>  Date: 10/03/2023 - 15:28:04
#>  User Information:
#>  Computer Name: WDEC030076
#>  User: ZTSOJ
#>  Login: ZTSOJ
#>  System is NOT validated
#>  System versions:
#>  R version: R version 4.2.2 (2022-10-31 ucrt)
#>  OSP Suite Package version: 11.1.198
#>  OSP Reporting Engine version: 2.1.244
#>  tlf version: 1.5.125

# Set the workflow tasks to be run
workflow4$activateTasks("plotPKParameters")
workflow4$inactivateTasks(c("simulate", "calculatePKParameters"))

# Run the workflow
workflow4$runWorkflow()
#> 10/03/2023 - 15:28:05
#> i Info  Starting run of Mean Model Workflow
#> 10/03/2023 - 15:28:05
#> i Info  Starting run of Plot PK Parameters task
#> 10/03/2023 - 15:28:05
#> i Info  Starting run of Plot PK Parameters task for A
#> 10/03/2023 - 15:28:05
#> i Info  Starting run of Plot PK Parameters task for B
#> 10/03/2023 - 15:28:05
#> i Info  Plot PK Parameters task completed in 0 min
#> Executing: pandoc --self-contained --wrap=none --toc --from=markdown+tex_math_dollars+superscript+subscript+raw_attribute --reference-doc="C:/Users/ztsoj/AppData/Local/Temp/RtmpwxXS6L/temp_libpath298c4a21481f/ospsuite.reportingengine/extdata/reference.docx" --resource-path="Example-3" -t docx -o "Example-3/Report-word.docx" "Example-3/Report-word.md"
#> 10/03/2023 - 15:28:07
#> i Info  Mean Model Workflow completed in 0 min

The output report for Example 4 is shown below. The table indicates the requested parameters in the updated units and display names.

Report
