Residuals versus time scatter plot

Usage

plotResidualsVsTime(
  dataCombined,
  defaultPlotConfiguration = NULL,
  scaling = "lin"
)

Arguments

dataCombined

A single instance of DataCombined class containing both observed and simulated datasets to be compared.

defaultPlotConfiguration

A DefaultPlotConfiguration object, which is an R6 class object that defines plot properties.

scaling

A character of length one specifying the scale type for residual. can be lin or log.

See also

Other plotting: DefaultPlotConfiguration, plotIndividualTimeProfile(), plotObservedVsSimulated(), plotPopulationTimeProfile(), plotResidualsVsSimulated()

Examples

# Create a new instance of `DefaultPlotConfiguration` class
myPlotConfiguration <- DefaultPlotConfiguration$new()
myPlotConfiguration$title <- "My Plot Title"
myPlotConfiguration$subtitle <- "My Plot Subtitle"
myPlotConfiguration$caption <- "My Sources"

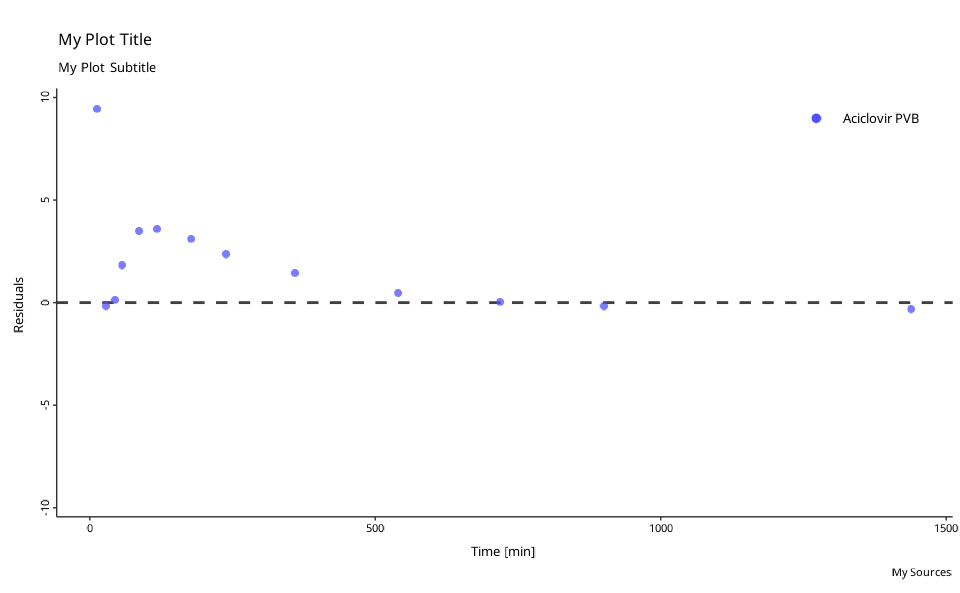

# plot
plotResidualsVsTime(
dataCombinedAciclovir,
scaling = "lin",
defaultPlotConfiguration = myPlotConfiguration
)
#> Warning: `plotResidualsVsTime()` was deprecated in ospsuite 12.4.2.
#> ℹ Please use `plotResidualsVsCovariate()` instead.
#> ℹ It will be removed in version 14.0.
