Plotting with ospsuite.plots • ospsuite

Introduction

The ospsuite package provides a set of plotting functions based on the ospsuite.plots library. These functions are designed to work seamlessly with DataCombined objects and provide advanced visualization capabilities for pharmacometric data analysis.

This vignette describes the exported plotting functions from the plot-with-ospsuite-plots.R file:

plotTimeProfile() - Creates time profile plots
plotPredictedVsObserved() - Creates predicted vs observed scatter plots
plotResidualsVsCovariate() - Creates residual plots against time, observed, or predicted values
plotResidualsAsHistogram() - Creates histogram plots of residuals
plotQuantileQuantilePlot() - Creates Q-Q plots for assessing residual distribution

All these functions return ggplot2 objects that can be further customized and saved.

For more information on the underlying library: - ospsuite.plots: GitHub repository

Initial Setup

Before creating plots with ospsuite.plots, it’s important to initialize the plotting environment properly. This involves two key steps:

Set default plotting options using ospsuite.plots::setDefaults()
Configure the watermark option using options(ospsuite.plots.watermark_enabled = TRUE) or options(ospsuite.plots.watermark_enabled = FALSE)

library(ospsuite)

# Set default plotting options for ospsuite.plots
# Note: ospsuite.plots is imported by ospsuite, so we use :: for clarity
ospsuite.plots::setDefaults()

# Enable watermark for plots (optional)
options(ospsuite.plots.watermark_enabled = TRUE)

The setDefaults() function initializes various plotting defaults that ensure consistent appearance across all plots. The watermark option allows you to add a watermark to your plots.
Refer to the ospsuite.plots package documentation for details.

Setting up the data

Next, let’s create DataCombined objects that we will use throughout this vignette:

# Load simulation
simFilePath <- system.file("extdata", "Aciclovir.pkml", package = "ospsuite")
sim <- loadSimulation(simFilePath)
# simulate with two outputs
addOutputs(
  quantitiesOrPaths = "Organism|Kidney|Urine|Aciclovir|Fraction excreted to urine",
  simulation = sim
)
simResults <- runSimulations(sim)[[1]]

# Load observed data
obsData <- loadDataSetFromPKML(system.file(
  "extdata",
  "ObsDataAciclovir_1.pkml",
  package = "ospsuite"
))

# Create DataCombined object
myDataCombined <- DataCombined$new()

myDataCombined$addSimulationResults(
  simulationResults = simResults,
  quantitiesOrPaths = "Organism|PeripheralVenousBlood|Aciclovir|Plasma (Peripheral Venous Blood)",
  names = list(
    "Organism|PeripheralVenousBlood|Aciclovir|Plasma (Peripheral Venous Blood)" = "Plasma"
  ),
  groups = "Aciclovir PVB"
)

myDataCombined$addDataSets(
  obsData,
  groups = "Aciclovir PVB"
)

# Create DataCombined object with more than one simulation result and observed data set
myDataCombinedMulti <- DataCombined$new()

myDataCombinedMulti$addSimulationResults(
  simulationResults = simResults,
  names = list(
    "Organism|PeripheralVenousBlood|Aciclovir|Plasma (Peripheral Venous Blood)" = "Plasma (Peripheral Venous Blood) ",
    "Organism|Kidney|Urine|Aciclovir|Fraction excreted to urine" = "fraction excreted"
  ),
  groups = "Aciclovir"
)

myDataCombinedMulti$addDataSets(
  obsData,
  groups = "Aciclovir"
)

obsDataUrine <- DataSet$new(name = 'urine data')
obsDataUrine$yDimension <- "Fraction"
obsDataUrine$yUnit <- ""

obsDataUrine$setValues(
  xValues = c(3, 12, 24),
  yValues = c(0.5, 0.9, 0.98),
  yErrorValues = NULL
)

myDataCombinedMulti$addDataSets(
  obsDataUrine,
  groups = "Aciclovir"
)

Population Simulation Data

For demonstrating population-specific features, let’s also create a DataCombined object with population simulation results:

# Load population from CSV file
popFilePath <- system.file("extdata", "pop.csv", package = "ospsuite")
population <- loadPopulation(csvPopulationFile = popFilePath)

# Run population simulation
popResults <- runSimulations(simulations = sim, population = population)[[1]]

# Create DataCombined object for population
myPopDataCombined <- DataCombined$new()

myPopDataCombined$addSimulationResults(
  simulationResults = popResults,
  quantitiesOrPaths = "Organism|PeripheralVenousBlood|Aciclovir|Plasma (Peripheral Venous Blood)",
  names = list(
    "Organism|PeripheralVenousBlood|Aciclovir|Plasma (Peripheral Venous Blood)" = "Plasma"
  ),
  groups = "Aciclovir Population"
)

myPopDataCombined$addDataSets(
  obsData,
  groups = "Aciclovir Population"
)

Time Profile Plots

The plotTimeProfile() function creates time profile plots showing observed and simulated data over time. This is one of the most common visualizations in pharmacometric analysis.

plotTimeProfile(myDataCombined)

Population Data Aggregation

When working with population simulations, you can control how the data is aggregated using the aggregation parameter. Options include:

"quantiles" (default) - Shows median and specified quantiles
"arithmetic" - Shows arithmetic mean with standard deviations
"geometric" - Shows geometric mean with standard deviations

Here’s an example using the population simulation data:

# Plot population data with default quantile aggregation
plotTimeProfile(myPopDataCombined, yScale = 'log')

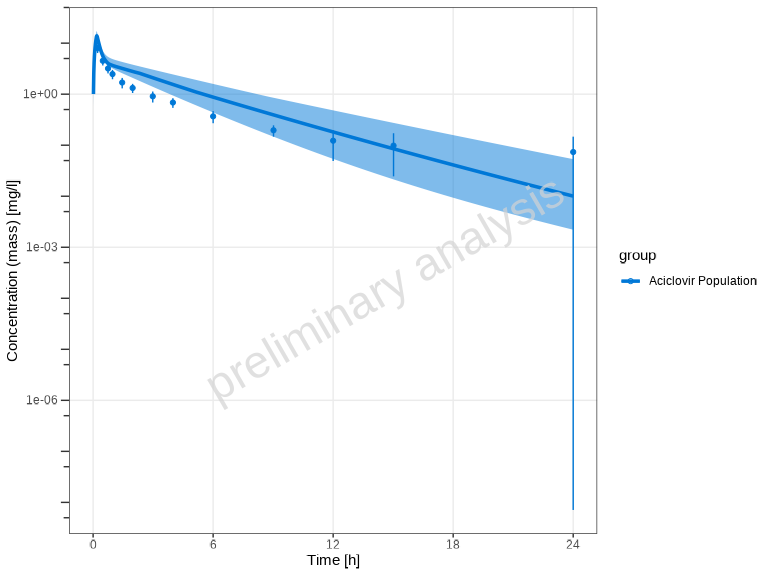

You can customize the quantiles:

plotTimeProfile(
  myPopDataCombined,
  yScale = 'log',
  aggregation = "quantiles",
  quantiles = c(0.1, 0.5, 0.9)
)

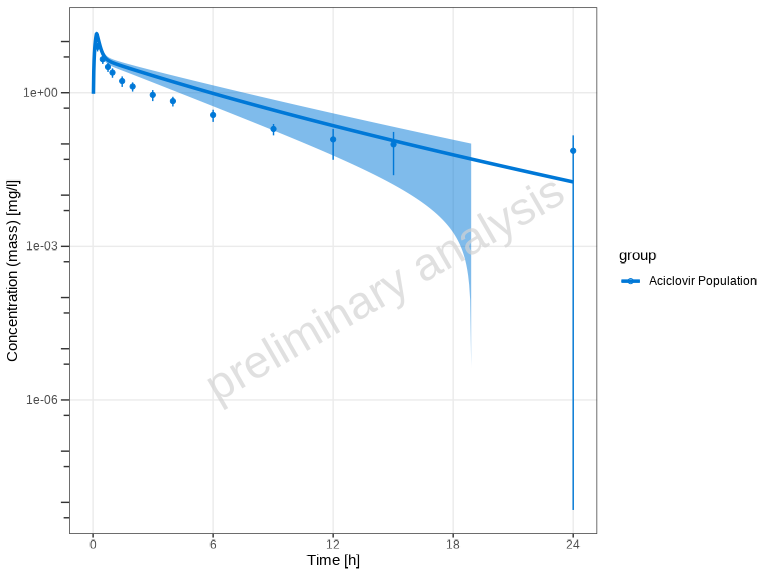

Alternatively, you can use arithmetic mean aggregation with standard deviation bands:

plotTimeProfile(
  myPopDataCombined,
  yScale = 'log',
  aggregation = "arithmetic",
  nsd = 1
)

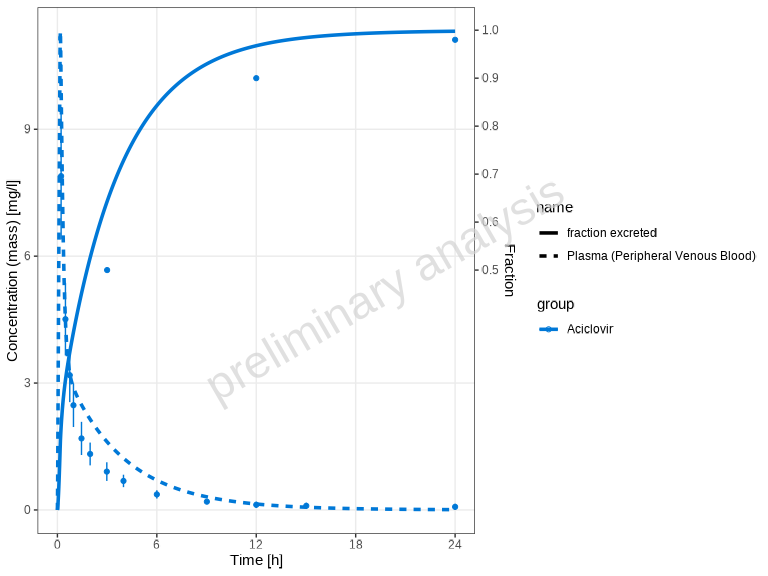

Showing Individual Dataset Names

By default, the legend is created using the group variable of the DataCombined object.

For datasets with multiple observed or simulated results, you can display individual dataset names in the legend using the showLegendPerDataset parameter.

# No per-dataset differentiation (default)
plotTimeProfile(myDataCombinedMulti, showLegendPerDataset = "none")


# Show all individual dataset names (both observed and simulated)

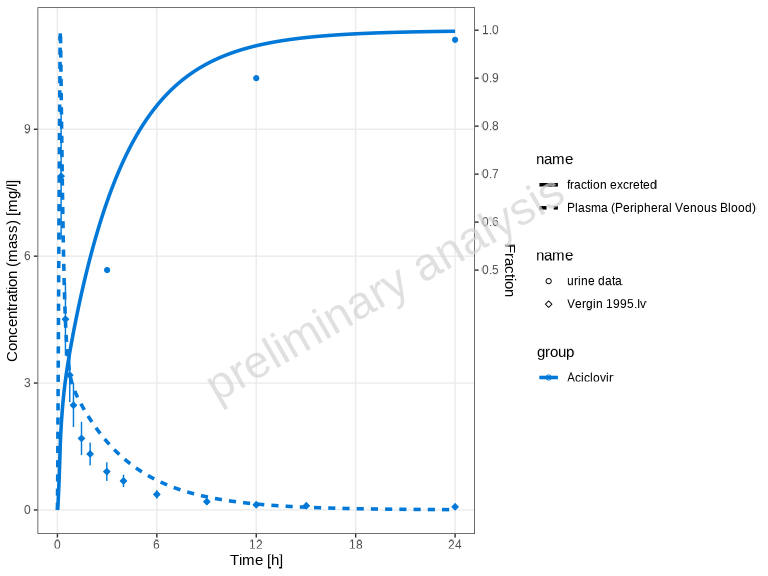

plotTimeProfile(myDataCombinedMulti, showLegendPerDataset = "all")


# Show only observed dataset names (different shapes)
plotTimeProfile(myDataCombinedMulti, showLegendPerDataset = "observed")


# Show only simulated dataset names (different line types)

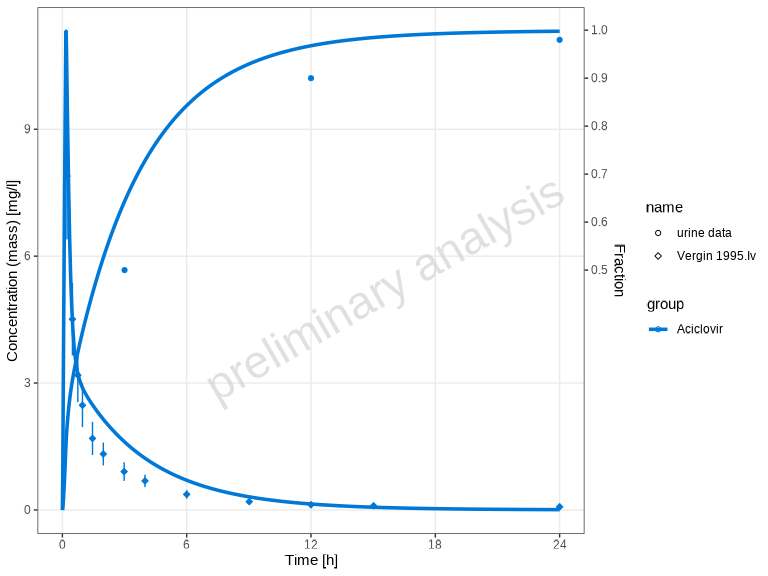

plotTimeProfile(myDataCombinedMulti, showLegendPerDataset = "simulated")

Custom Aesthetic Mappings

For manual control over aesthetics, use the mapping and observedMapping parameters.

Important: The aesthetic used for differentiation depends on data type: - Observed data (points): Uses different shapes (shape = name) - Simulated data (lines): Uses different line types (linetype = name)

The default of observedMapping is a copy of mapping.

To get the same plots as above you have to set the aesthetics as following:

# Show all individual dataset names (both observed and simulated)
plotTimeProfile(
  myDataCombinedMulti,
  mapping = ggplot2::aes(linetype = name),
  observedMapping = ggplot2::aes(shape = name)
)

# Show only observed dataset names (different shapes)
plotTimeProfile(
  myDataCombinedMulti,
  observedMapping = ggplot2::aes(shape = name)
)

# Show only simulated dataset names (different line types)
plotTimeProfile(
  myDataCombinedMulti,
  mapping = ggplot2::aes(linetype = name),
  observedMapping = ggplot2::aes()
)

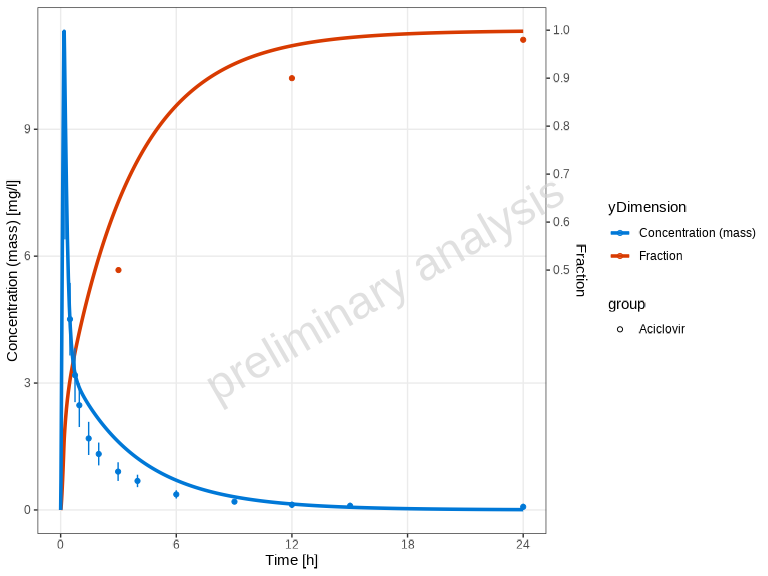

You can further customize the plot appearance using ggplot2 aesthetic mappings and all columns available in myDataCombinedMulti$toDataFrame().

# Customize aesthetics
plotTimeProfile(
  myDataCombinedMulti,
  mapping = ggplot2::aes(color = yDimension, fill = yDimension)
)

Predicted vs Observed Plots

Beyond time profiles, you can assess model performance using goodness-of-fit plots. The plotPredictedVsObserved() function creates scatter plots comparing predicted (simulated) values to observed values. This helps assess model performance and identify systematic biases.

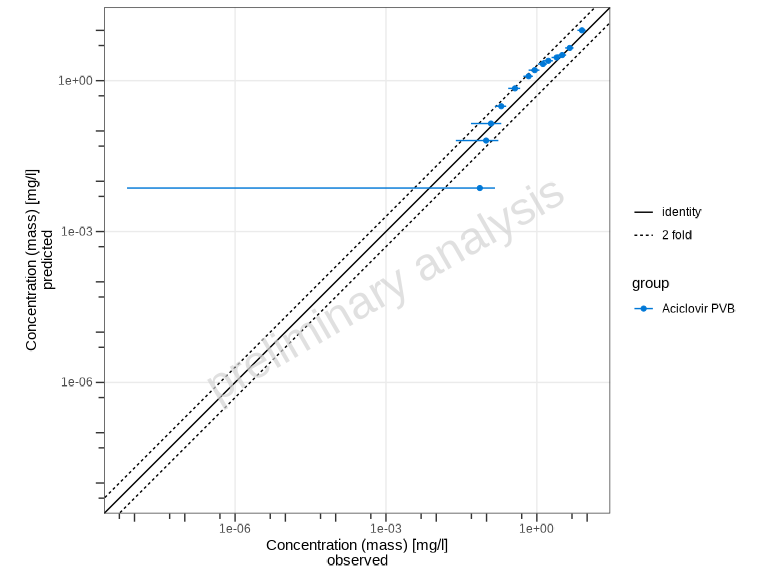

plotPredictedVsObserved(myDataCombined)

By default, the plot shows: - Identity line (perfect agreement) - Fold-distance lines (default: 2-fold range)

Customizing Fold Distance

You can customize the fold-distance lines using the comparisonLineVector parameter:

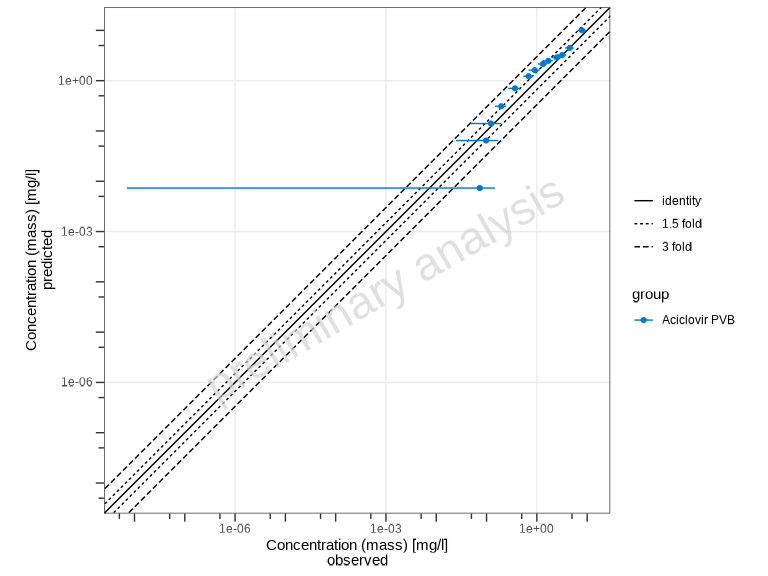

# Show 1.5-fold and 3-fold ranges
plotPredictedVsObserved(
  myDataCombined,
  comparisonLineVector = ospsuite.plots::getFoldDistanceList(folds = c(1.5, 3))
)

Swapping Axes

By default, predicted values are on the y-axis and observed on the x-axis. You can swap these using the predictedAxis parameter:

# Put predicted on x-axis, observed on y-axis

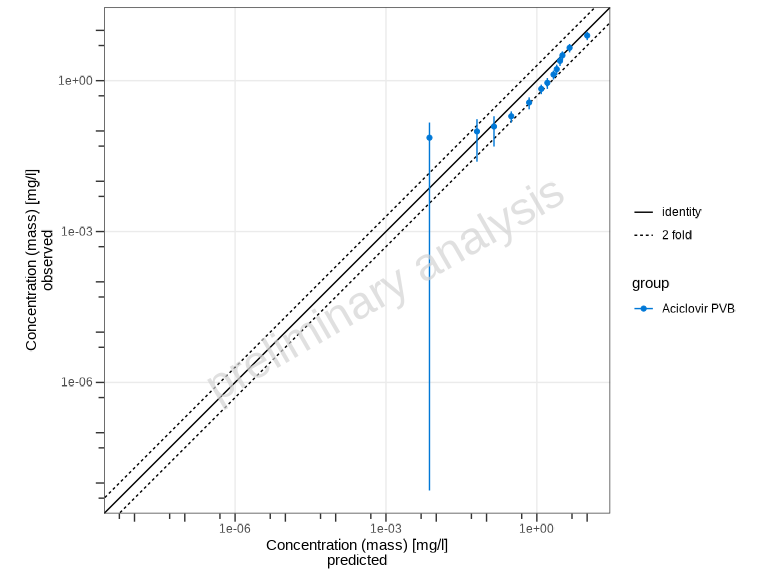

plotPredictedVsObserved(myDataCombined, predictedAxis = "x")

Scaling Options

The xyScale parameter controls the axis scaling:

# Use linear scale instead of log

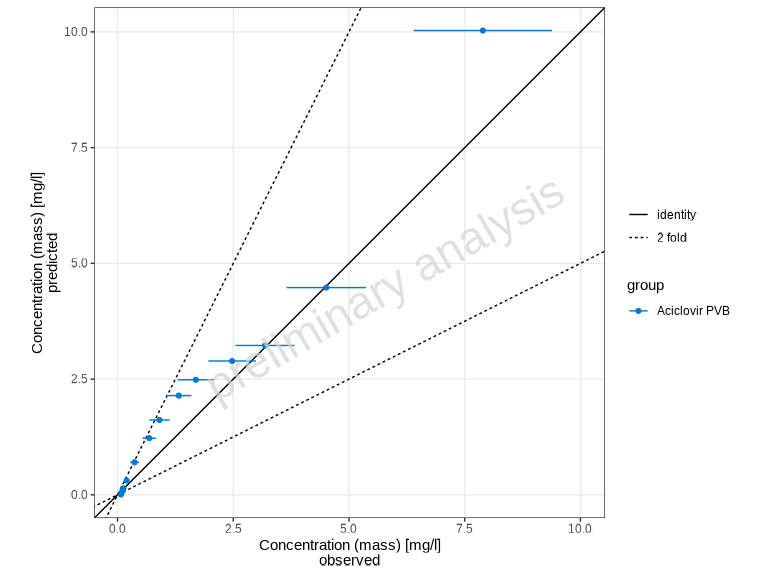

plotPredictedVsObserved(myDataCombined, xyScale = "linear")

Residuals vs Covariate Plots

The plotResidualsVsCovariate() function creates residual plots to assess systematic bias in the model. You can plot residuals against time, observed values, or predicted values.

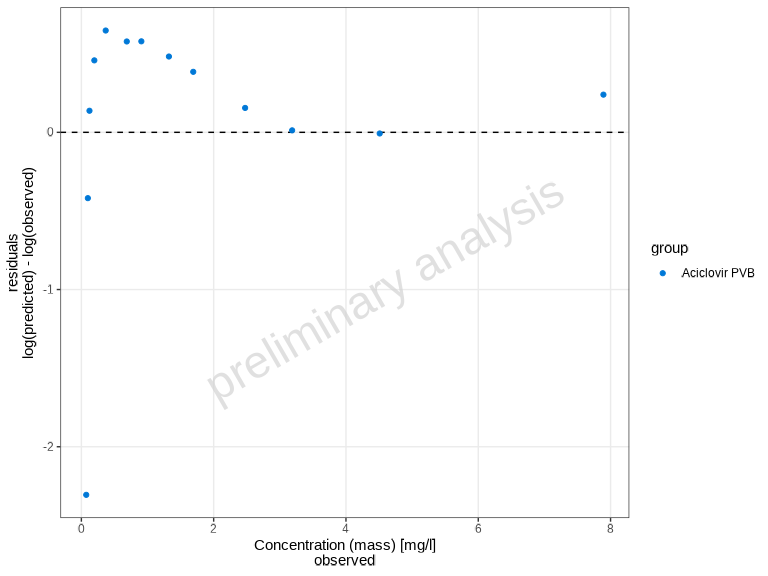

Residuals vs Observed Values

plotResidualsVsCovariate(myDataCombined, xAxis = "observed")

Residuals vs Time

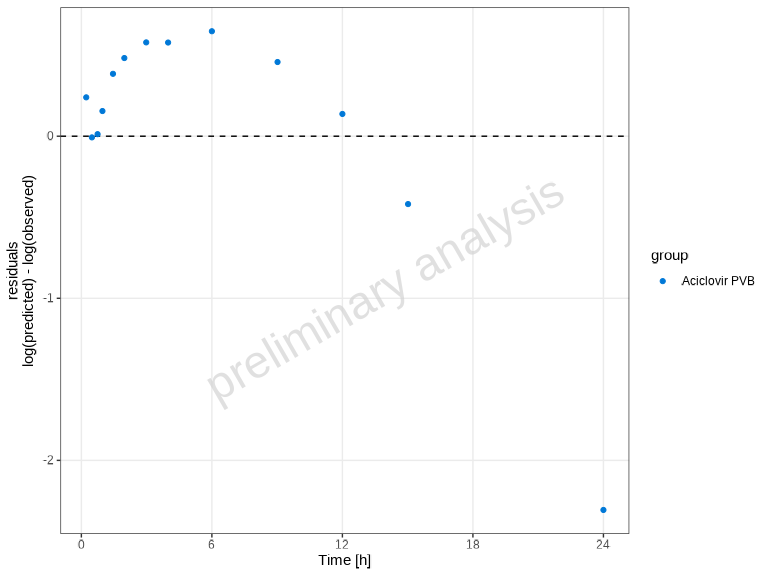

plotResidualsVsCovariate(myDataCombined, xAxis = "time")

Residuals vs Predicted Values

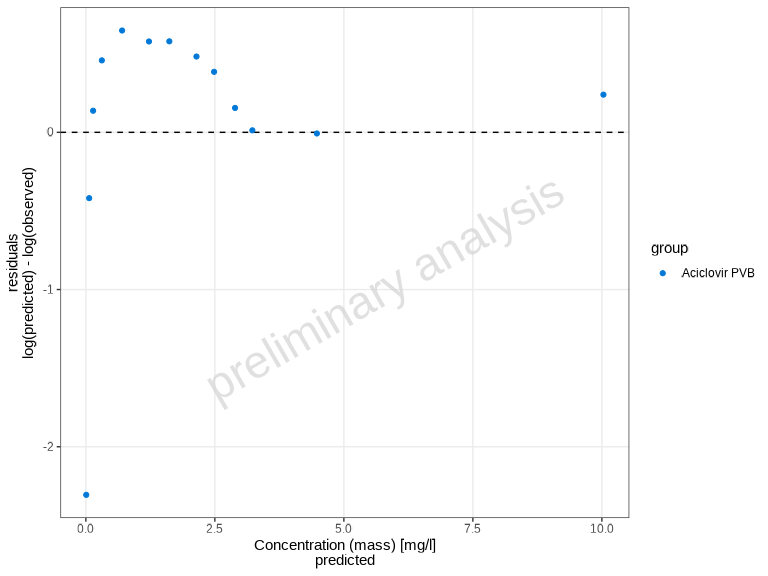

plotResidualsVsCovariate(myDataCombined, xAxis = "predicted")

Residual Scale Options

The residualScale parameter controls how residuals are calculated and displayed (this same parameter is used in plotResidualsAsHistogram and plotQuantileQuantilePlot):

"log" (default) - Logarithmic residuals: log(observed/predicted)
"linear" - Linear residuals: observed - predicted
"ratio" - Ratio: observed/predicted

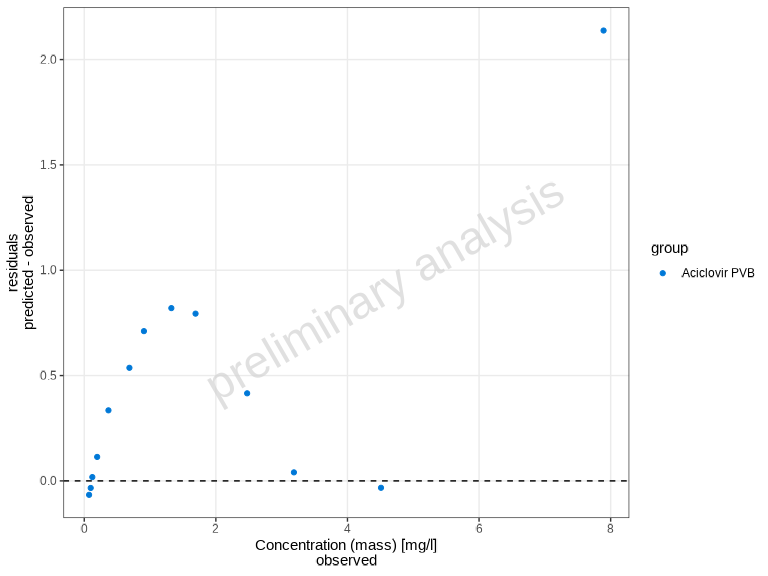

# Use linear residuals
plotResidualsVsCovariate(
  myDataCombined,
  xAxis = "observed",
  residualScale = "linear"
)

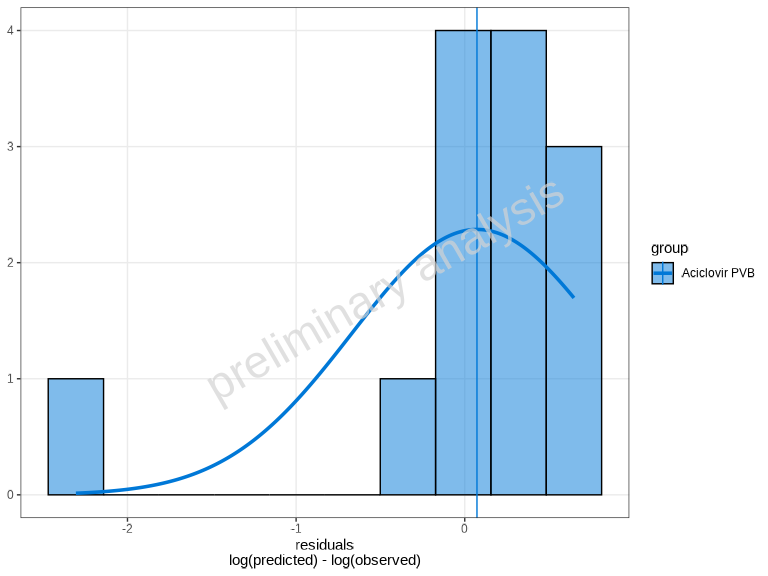

Residuals as Histogram

The plotResidualsAsHistogram() function creates a histogram of residuals, which helps assess the distribution of errors.

plotResidualsAsHistogram(myDataCombined)

By default, a normal distribution overlay is added to help assess normality. You can control this using the distribution parameter:

# Without distribution overlay
plotResidualsAsHistogram(myDataCombined, distribution = 'none')

The residualScale parameter works the same as in plotResidualsVsCovariate():

# Linear residuals histogram
plotResidualsAsHistogram(myDataCombined, residualScale = "linear")

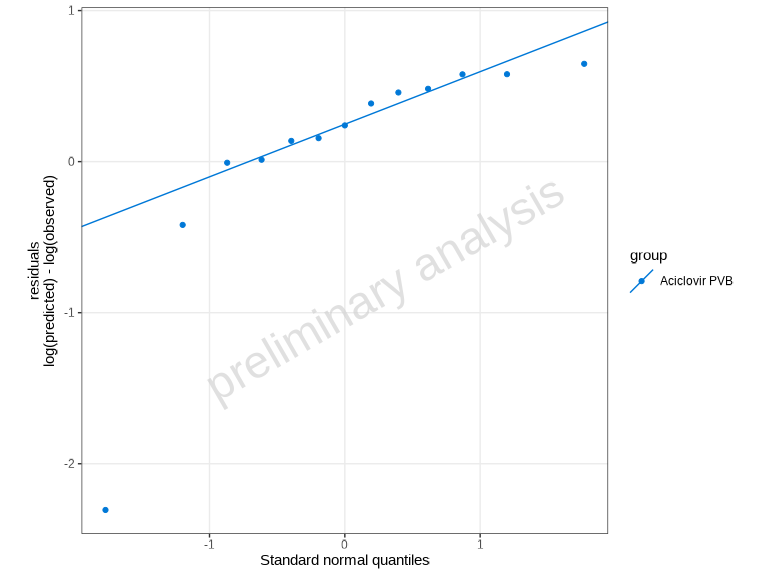

Quantile-Quantile (Q-Q) Plot

The plotQuantileQuantilePlot() function creates a Q-Q plot to assess whether residuals follow a normal distribution.

plotQuantileQuantilePlot(myDataCombined)

Points falling along the diagonal line indicate that the residuals follow a normal distribution. Deviations suggest non-normality.

# Use linear residuals
plotQuantileQuantilePlot(myDataCombined, residualScale = "linear")

Automatic Unit Conversion

A key feature of these plotting functions is automatic unit conversion. For manual unit conversion of DataCombined objects outside of plotting, you can use the convertUnits() function. When using a DataCombined object with mixed units in plotting functions:

The target unit is automatically determined by the most frequently occurring unit in the observed data
If no observed data exists, the most common unit in simulated data is used
Concentration dimensions (Concentration (mass) and Concentration (molar)) are treated as compatible
Conversion between mass and molar concentrations is possible if molecular weight is available

This ensures that all data is displayed in consistent units without manual conversion.

Specifying Units Directly

All plotting functions in this family accept xUnit and yUnit arguments. Here, xUnit and yUnit refer to the unit field names in the underlying DataCombined data frame (xUnit for the x-values column, yUnit for the y-values column), which do not necessarily correspond to the physical x- or y-axis of the resulting plot. For example, in plotPredictedVsObserved(), yUnit controls the unit for both axes since both predicted and observed are taken from the y-values of the data.

plotTimeProfile() additionally accepts y2Unit for controlling the secondary y-axis unit when data contains two distinct y-dimensions (i.e., when a secondary y-axis is used for a different measurement type such as Fraction alongside Concentration). The function plotResidualsVsCovariate() supports xUnit and yUnit, all other functions (plotPredictedVsObserved(), plotResidualsAsHistogram(), plotQuantileQuantilePlot()) support yUnit only.

# Default: auto-detected units (e.g. µmol/l and h from the data)
plotTimeProfile(myDataCombined)

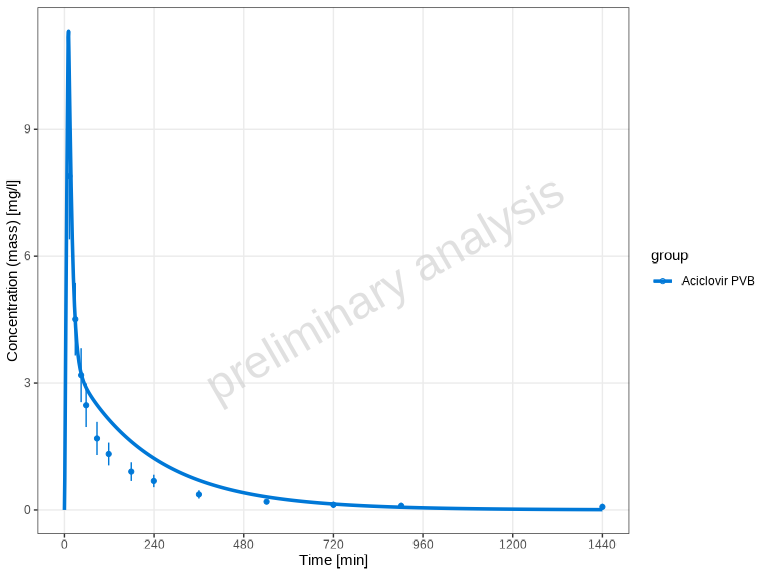

# Override x-axis unit: display time in minutes instead of hours
plotTimeProfile(myDataCombined, xUnit = "min", yUnit = "mg/l")

Passing units directly is equivalent to pre-converting the data with convertUnits():

plotTimeProfile(convertUnits(myDataCombined, xUnit = "min", yUnit = "mg/l"))

Handling Mixed Error Types

These functions automatically handle datasets with different error type specifications:

If all data uses the same error type (ArithmeticStdDev or GeometricStdDev), it is used directly
If data contains mixed error types, they are automatically converted to yMin/yMax bounds:
- ArithmeticStdDev: yMin = yValues - yErrorValues, yMax = yValues + yErrorValues
- GeometricStdDev: yMin = yValues / yErrorValues, yMax = yValues * yErrorValues

Using data.table Instead of DataCombined

While these functions are designed to work with DataCombined objects, you can also provide a data.table directly. Use toDataFrame() to convert a DataCombined object to a data frame if needed. The table must include the following columns:

xValues: Numeric time points or x-axis values
yValues: Observed or simulated values (numeric)
group: Grouping variable (factor or character)
name: Name for the dataset (factor or character)
xUnit: Unit of the x-axis values (character)
yUnit: Unit of the y-axis values (character)
dataType: Specifies data type—either "observed" or "simulated"

Optional columns: - yErrorType: Type of y error (see ospsuite::DataErrorType) - yErrorValues: Numeric error values - yMin, yMax: Custom ranges for y-axis - IndividualId: Used for aggregation of simulated population data - predicted: Predicted values (required for residual plots)

Further Customization

All plotting functions accept additional arguments that are passed to the underlying ospsuite.plots functions. This allows for extensive customization. Refer to the ospsuite.plots package documentation for details.

Additionally, since all functions return ggplot2 objects, you can further modify them using standard ggplot2 functions:

library(ggplot2)

# Create a plot and customize it
p <- plotTimeProfile(myDataCombined)

# Add customizations
p <- p +
  theme_minimal() +
  labs(title = "My Custom Title") +
  theme(legend.position = "bottom")

print(p)

Saving Plots

Since all functions return ggplot2 objects, you can save them using ospsuite.plots::exportPlot():

# Create a plot
myPlot <- plotTimeProfile(myDataCombined)

# Save to file using ospsuite.plots::exportPlot
ospsuite.plots::exportPlot(
  plotObject = myPlot,
  filePath = "timeprofile.png",
  width = 8,
  height = NULL,
  dpi = 300
)

This function is a wrapper around ggsave() that automatically adjusts the plot height based on content when height = NULL.

Alternatively, you can use directly the standard ggsave() function from ggplot2:

# Save using ggsave
ggsave("timeprofile.png", myPlot, width = 8, height = 6, dpi = 300)
