Plot Residuals vs Covariate

Plots residuals vs a covariate (time, observed, or predicted values), grouped by "group".

This function visualizes the residuals against time, observed, or predicted (simulated) values, helping to assess model performance.

Usage

plotResidualsVsCovariate(
  plotData,
  metaData = NULL,
  mapping = ggplot2::aes(),
  xUnit = NULL,
  yUnit = NULL,
  residualScale = "log",
  xAxis = "observed",
  ...
)

Arguments

plotData

An object of class DataCombined or a data.table. If a data.table, it must include the following:

xValues: Numeric time points.
yValues: Observed or simulated values (numeric).
group: Grouping variable (factor or character).
name: Name for the dataset (factor or character).
xUnit: Unit of the x-axis values (character).
yUnit: Unit of the y-axis values (character).
dataType: Specifies data type—either observed or simulated.
Optional:
- yErrorType: Type of y error, relative to ospsuite::DataErrorType.
- yErrorValues: Numeric error values.
- yMin, yMax: Custom ranges for y-axis instead of error types.
- IndividualId: Used for aggregation of simulated population data.

metaData

A list containing metadata for the plot. If NULL, a default list is constructed from the data. Expected structure includes information about dimensions and units for both x and y axes.

mapping

A ggplot2 aesthetic mapping object. Default is ggplot2::aes(). This is added or replaces the default mapping constructed by the data.

xUnit

A character string specifying the target unit for the time values. (only relevant if xAxis = "time") If NULL (default), the most frequent unit in the data is used. For available units, see ospsuite::ospUnits.

yUnit

A character string specifying the target unit for the simulated and observed y-values used for residual calculation and (if xAxis != "time") displayed on the x-Axis. If NULL (default), the most frequent unit in the data is used. For available units, see ospsuite::ospUnits.

residualScale

Either "linear", "log", or "ratio" method for computing residuals. Default is log.

xAxis

A character string specifying what to display on the x-axis. Options are "time" (time points from xValues), "observed" (observed values, default), or "predicted" (predicted/simulated values).

...

Arguments passed on to ospsuite.plots::plotYVsX, ospsuite.plots::plotResVsCov

geomPointAttributes: A list with arguments which are passed on to the call ggplot2::geom_point
geomComparisonLineAttributes: A list of arguments passed to ggplot2::hline or ggplot2::abline to display comparison lines.
geomLLOQAttributes: A list with arguments which are passed on to the call ggplot2::geom_hline
groupAesthetics: A character vector of aesthetic names used for grouping data points when calculating comparison statistics. Data will be grouped by combinations of these aesthetics before computing counts and proportions within comparison lines. Common grouping aesthetics include "colour", "fill", "shape".
addRegression: A boolean that activates the insertion of a regression line.
xScale: either 'linear' then ggplot2::scale_x_continuous() or 'log' then ggplot2::scale_x_log10() is used
xScaleArgs: list of arguments passed to ggplot2::scale_x_continuous() or ggplot2::scale_x_log10()
yScale: either 'linear' then ggplot2::scale_y_continuous() or 'log' then ggplot2::scale_y_log10() is used
comparisonLineVector: A vector defining the comparison lines.

Value

A ggplot2 plot object representing residuals vs time, observed, or predicted values.

Details

Residual Calculation

Residuals are calculated by pairing observed and simulated data at matching time points within the same group. Only datasets that can be paired (i.e., have corresponding observed and simulated values) are included in the residual plot. The function automatically removes unpaired datasets with a warning, converts units to ensure consistent comparisons, and computes residuals as the difference between observed and predicted values.

Residual Scales

The residualScale parameter controls how residuals are displayed:

linear: Absolute residuals (Observed - Predicted). Values centered around zero indicate good model fit. Useful for normally distributed errors.
log: Log-transformed residuals, calculated as log(Observed / Predicted). Values centered around zero indicate good fit. Preferred for log-normally distributed data or when errors are proportional to magnitude.
ratio: Ratio of observed to predicted (Observed / Predicted). Values centered around 1.0 indicate good fit. Useful for understanding relative prediction error.

Examples

if (FALSE) { # \dontrun{

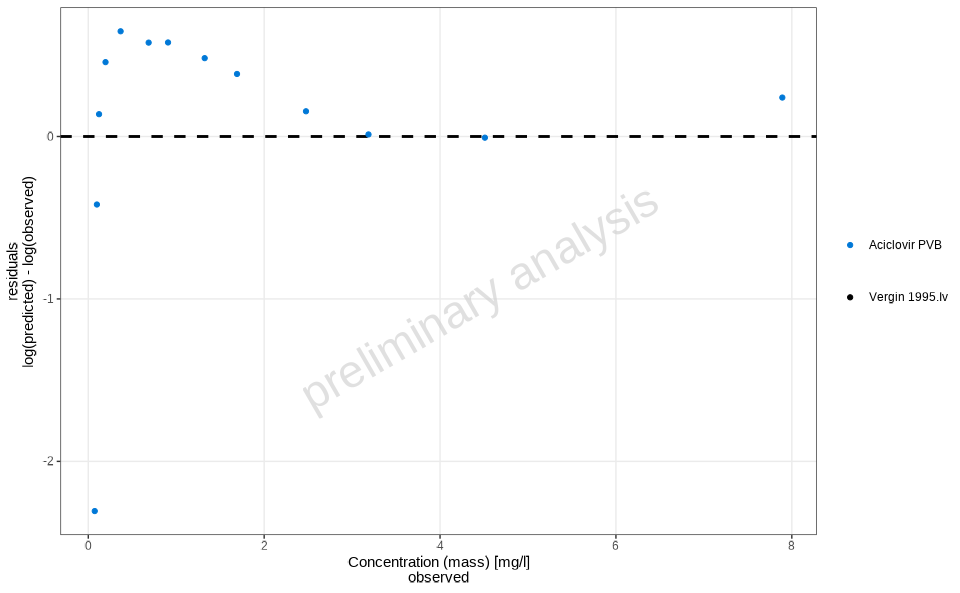

# Generate a residuals vs observed plot for the provided data

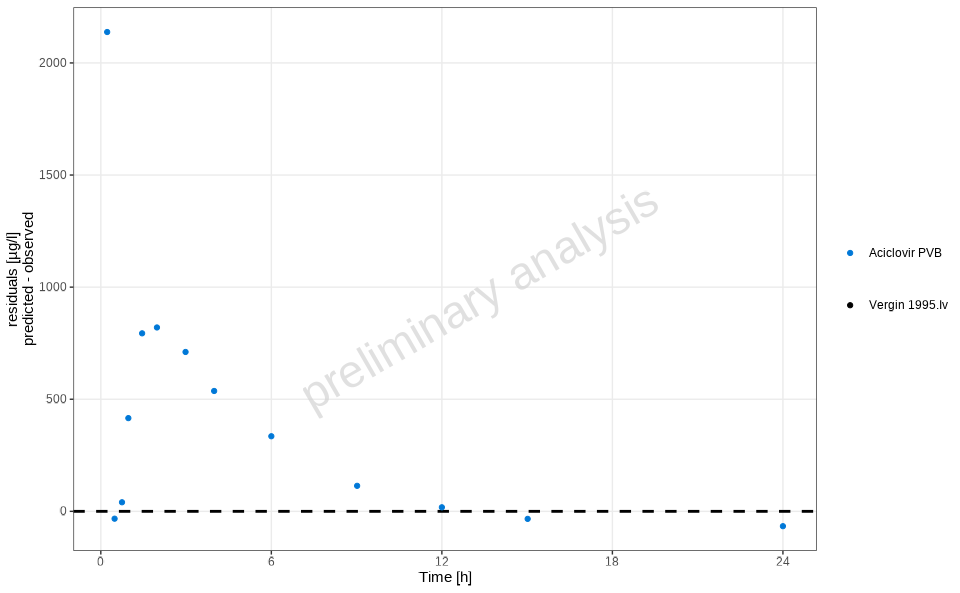

plotResidualsVsCovariate(
  myDataCombined,
  xUnit = ospUnits$Time$h,
  yUnit = ospUnits$`Concentration [mass]`$`µg/l`,
  xAxis = "time",
  residualScale = 'linear'
)

# Generate a residuals vs predicted plot
plotResidualsVsCovariate(myDataCombined, xAxis = "predicted")

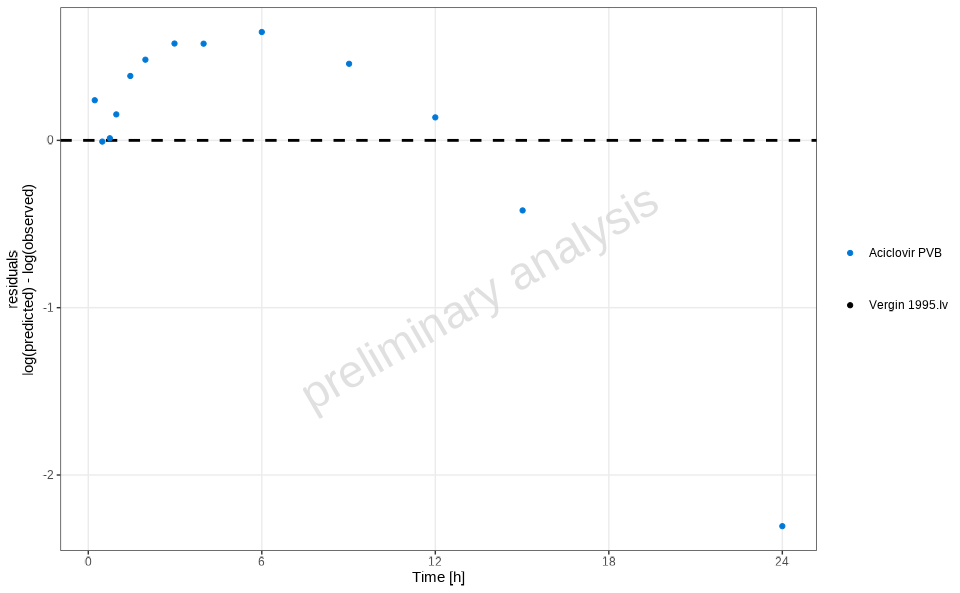

# Generate a residuals vs time plot
plotResidualsVsCovariate(myDataCombined, xAxis = "time")
} # }
