Create Time Profile Plot

Creates a time profile plot for given data.

This function generates a time profile plot using ggplot2, where the data is grouped by a column named "group".

Usage

plotTimeProfile(
  plotData,
  metaData = NULL,
  mapping = ggplot2::aes(),
  observedMapping = NULL,
  xUnit = NULL,
  yUnit = NULL,
  y2Unit = NULL,
  aggregation = "quantiles",
  quantiles =
    ospsuite.plots::getOspsuite.plots.option(ospsuite.plots::OptionKeys$Percentiles)[c(1,
    3, 5)],
  nsd = 1,
  showLegendPerDataset = "none",
  ...
)

Arguments

plotData

An object of class DataCombined or a data.table. If a data.table, it must include the following:

xValues: Numeric time points.
yValues: Observed or simulated values (numeric).
group: Grouping variable (factor or character).
name: Name for the dataset (factor or character).
xUnit: Unit of the x-axis values (character).
yUnit: Unit of the y-axis values (character).
dataType: Specifies data type—either observed or simulated.
Optional:
- yErrorType: Type of y error, relative to ospsuite::DataErrorType.
- yErrorValues: Numeric error values.
- yMin, yMax: Custom ranges for y-axis instead of error types.
- IndividualId: Used for aggregation of simulated population data.

metaData

A list containing metadata for the plot. If NULL, a default list is constructed from the data. Expected structure includes information about dimensions and units for both x and y axes.

mapping

A ggplot2 aesthetic mapping object. Default is ggplot2::aes(). This is added or replaces the default mapping constructed by the data.

observedMapping

A ggplot2 aesthetic mapping for observed data. Default is NULL. Then a copy of mapping without line typical aesthetics like linetype and linewidth is used.

xUnit

A character string specifying the target unit for the x-axis. If NULL (default), the most frequent unit in the data is used. For available units, see ospsuite::ospUnits.

yUnit

A character string specifying the target unit for the primary y-axis. If NULL (default), the most frequent unit in the data is used. For available units, see ospsuite::ospUnits.

y2Unit

A character string specifying the target unit for the secondary y-axis (only applicable when data contains two y-dimensions). If NULL (default), the most frequent unit in the data is used.

aggregation

The type of the aggregation of simulated data. One of quantiles (Default), arithmetic or geometric (full list in ospsuite::DataAggregationMethods). Will replace yValues by the median, arithmetic or geometric average and add a set of upper and lower bounds (yMin and yMax). It is only applied if the simulated data represents a population.

quantiles

A numerical vector with quantile values (Default: c(0.05, 0.50, 0.95)) to be plotted. Ignored if aggregation is not quantiles.

nsd

Optional parameter specifying the number of standard deviations to plot above and below the mean (used for error bars when aggregation is "arithmetic" or "geometric"). Ignored if aggregation is quantiles.

showLegendPerDataset

Controls display of separate legend entries for individual datasets. One of:

"none" (default): No per-dataset differentiation. Only group-level legend.
"all": Differentiate both observed (via shape) and simulated (via linetype).
"observed": Differentiate only observed data via different shapes.
"simulated": Differentiate only simulated data via different line types.

User-provided mapping and observedMapping will override internal settings. A warning is issued if the override removes per-dataset differentiation.

...

Arguments passed on to ospsuite.plots::plotTimeProfile

xScale: either 'linear' then ggplot2::scale_x_continuous() or 'log' then ggplot2::scale_x_log10() is used
xScaleArgs: list of arguments passed to ggplot2::scale_x_continuous() or ggplot2::scale_x_log10()
yScale: either 'linear' then ggplot2::scale_y_continuous() or 'log' then ggplot2::scale_y_log10() is used
y2Scale: either 'linear' the secondary axis is displayed linear, or 'log' secondary axis is displayed with log scale
y2ScaleArgs: list of arguments passed to ggplot2::sec_axis(), trans, break are set by code
plotObject: An optional ggplot object on which to add the plot layers
geomRibbonAttributes: A list with arguments which are passed on to the call ggplot2::geom_ribbon
geomPointAttributes: A list with arguments which are passed on to the call ggplot2::geom_point
geomLLOQAttributes: A list with arguments which are passed on to the call ggplot2::geom_hline
groupAesthetics: vector of aesthetics, which are used for columns mapped with groupby,

Value

A ggplot2 plot object representing the time profile.

Details

Automatic Unit Conversion

When using a DataCombined object, the function automatically converts mixed units to a common unit. The target unit is determined by the most frequently occurring unit in the observed data (or simulated data if no observed data exists). Concentration dimensions (Concentration (mass) and Concentration (molar)) are treated as compatible and can be converted between each other if molecular weight is available.

Mixed Error Types

The function automatically handles data containing different error type specifications:

If all data uses the same error type (ArithmeticStdDev or GeometricStdDev), it is passed directly to the plotting function.
If data contains mixed error types, they are automatically converted to yMin/yMax bounds:
- ArithmeticStdDev: yMin = yValues - yErrorValues, yMax = yValues + yErrorValues
- GeometricStdDev: yMin = yValues / yErrorValues, yMax = yValues * yErrorValues
For custom error types (not ArithmeticStdDev or GeometricStdDev), provide error bounds directly in yMin and yMax columns.

Examples

if (FALSE) { # \dontrun{
# Generate a time profile plot for the provided data

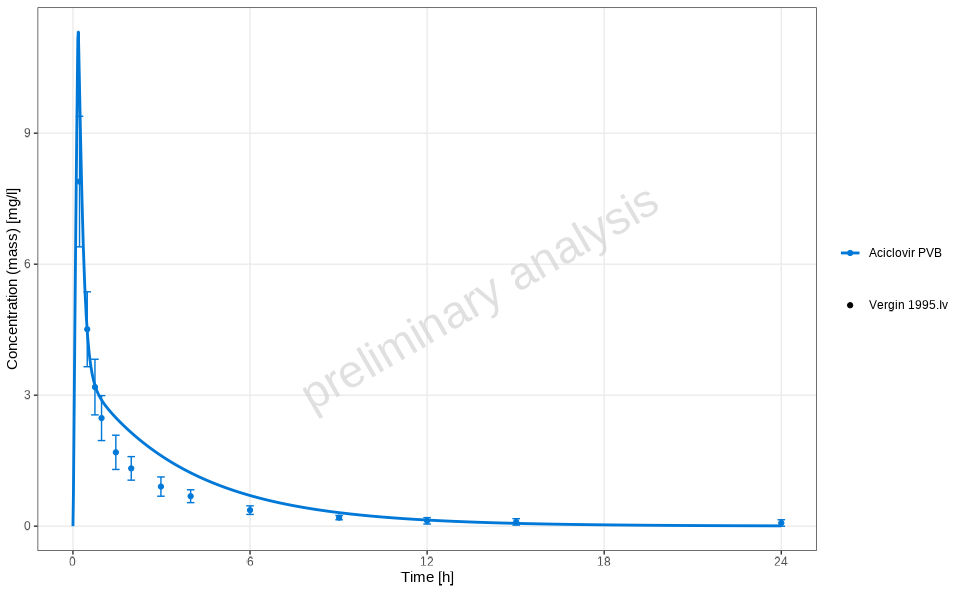

plotTimeProfile(myDataCombined,
  xUnit = ospUnits$Time$h,
  yUnit = ospUnits$`Concentration [mass]`$`mg/l`)

# Show individual dataset names for observed data only

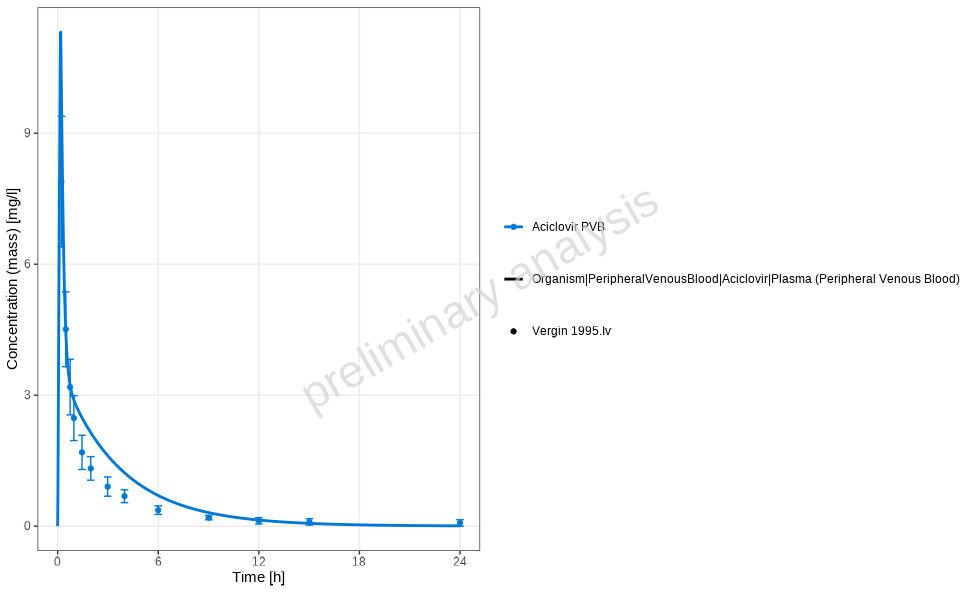

plotTimeProfile(manyObsDC, showLegendPerDataset = "observed")

# Show individual dataset names for simulated data only

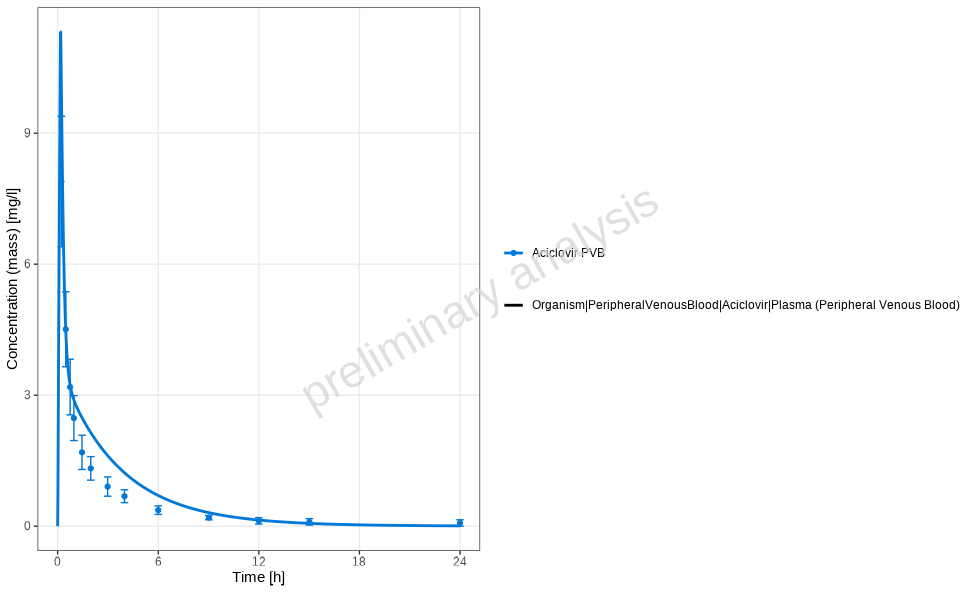

plotTimeProfile(manySimDC, showLegendPerDataset = "simulated")

# Show individual dataset names for both observed and simulated
plotTimeProfile(manyObsSimDC, showLegendPerDataset = "all")
} # }
