Overview

#> Loading required package: ggplot2

1. Introduction

1.1 Objectives of ospsuite.plots

The main purpose of the ospsuite.plots library is to provide standardized plots typically used in the context of PBPK modeling. The library supports plot generation for the packages OSPSuiteR and OSPSuite.ReportingEngine.

The library is based on ggplot2 functionality and also utilizes the ggh4x package.

2. Default Settings for Layout

ospsuite.plots provides default settings for the layout, including theme, geometric aesthetics, colors, and shapes for distinct scales.

Examples within this vignette are plotted using the following test data:

testData <- exampleDataCovariates %>%
  dplyr::filter(SetID == "DataSet1") %>%
  dplyr::select(c("ID", "Age", "Obs", "Pred", "Sex"))

knitr::kable(head(testData), digits = 3)

ID	Age	Obs	Pred	Sex
1	48	4.00	2.90	Male
2	36	4.40	5.75	Male
3	52	2.80	2.70	Male
4	47	3.75	3.05	Male
5	0	1.95	5.25	Male
6	48	2.45	5.30	Male

2.1 Plots with and without Default Layout

2.1.1 Default ggplot Layout

A plot created using the ospsuite.plots function
B customized plot

# ospsuite.plots function
ospsuite.plots::plotHistogram(data = testData, mapping = aes(x = Age)) + labs(tag = "A")

# Customized plot
ggplot(data = testData, mapping = aes(x = Obs, y = Pred, color = Sex, shape = Sex)) +
  geom_point() +
  theme(legend.position = "top") +
  labs(tag = "B")

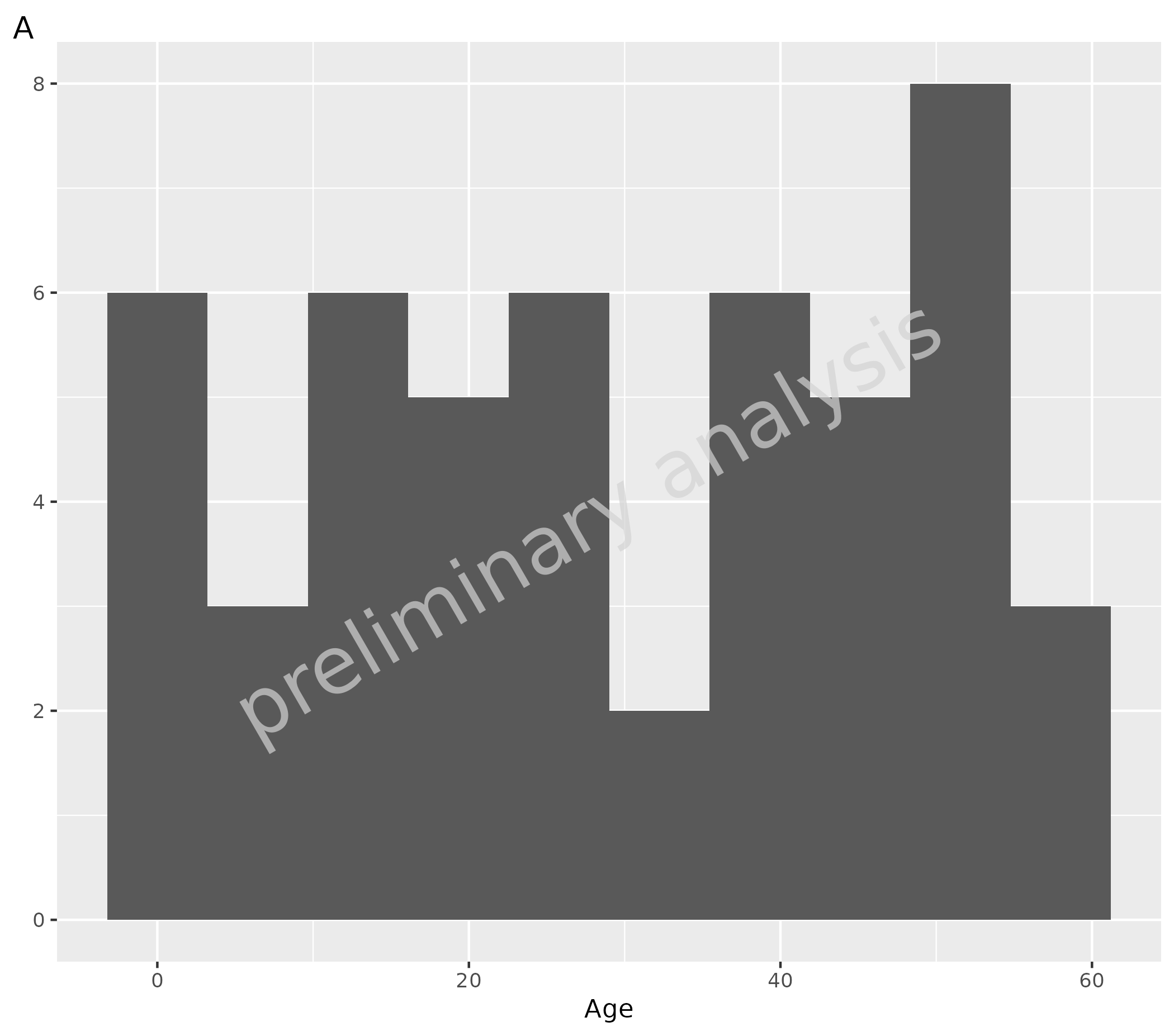

Two plots comparing default ggplot styling (A) versus ospsuite.plots styling (B). Plot A shows a histogram with default ggplot formatting. Plot B shows a scatter plot with customized colors, shapes, and legend positioning demonstrating enhanced styling capabilities.

2.1.2 Set ospsuite.plots Layout

To set the default layout, we use the same logic as in ggplot2::theme_set(). The previous settings are returned invisibly, so you can easily save them and restore them later.

setDefaults() sets the theme, discrete color palette, shapes, and various options. All objects can also be set separately as described below.

# Set default layout and save previous layout in variable oldDefaults
oldDefaults <- ospsuite.plots::setDefaults(defaultOptions = list(), colorMapList = NULL, shapeValues = NULL, pointAsUnicode = FALSE)

# ospsuite.plots function
ospsuite.plots::plotHistogram(data = testData, mapping = aes(x = Age)) + labs(tag = "A")

# Customized plot
ggplot(data = testData, mapping = aes(x = Obs, y = Pred, color = Sex, fill = Sex, shape = Sex)) +
  geom_point() +
  theme(legend.position = "top") +
  labs(tag = "B")

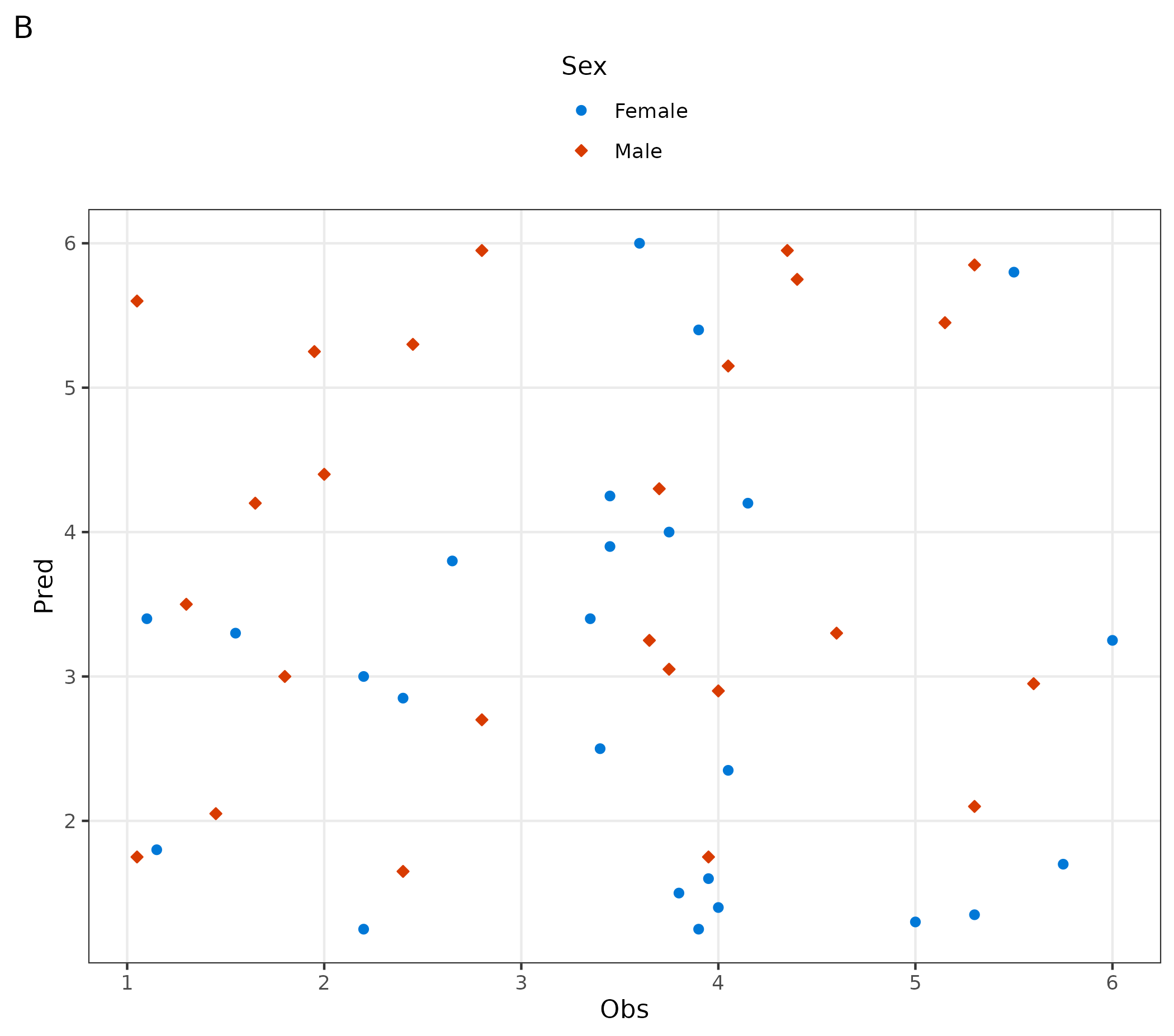

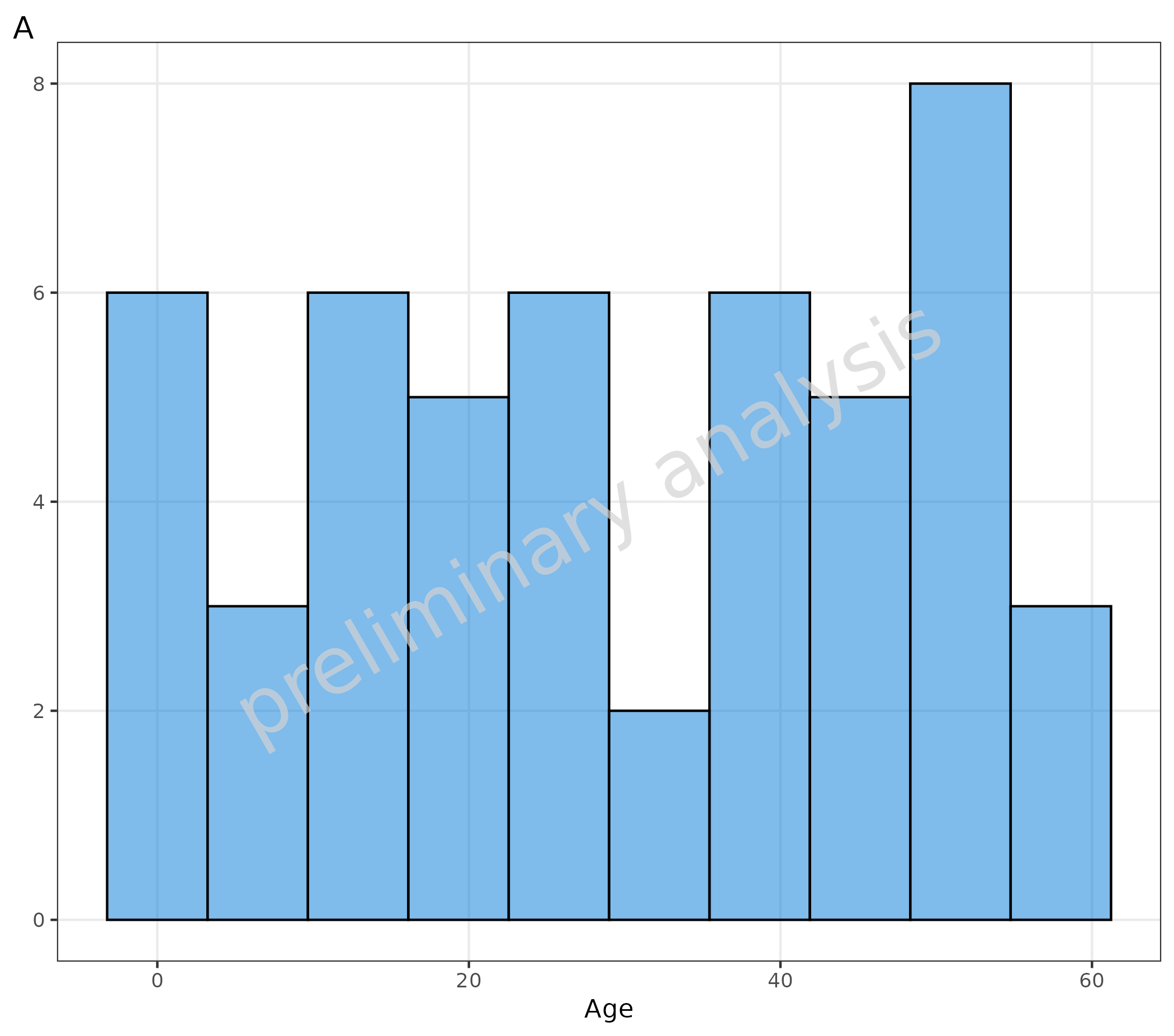

Two plots showing the effect of setting ospsuite.plots defaults. Plot A shows a histogram with ospsuite.plots styling applied. Plot B shows a scatter plot that now automatically adopts the ospsuite.plots theme, colors, shapes, and formatting after setDefaults() is called.

2.1.3 Reset to Previously Saved Layout

# Reset to previously saved layout options
ospsuite.plots::resetDefaults(oldDefaults = oldDefaults)

# ospsuite.plots function
ospsuite.plots::plotHistogram(data = testData, mapping = aes(x = Age)) + labs(tag = "A")

# Customized plot
ggplot(data = testData, mapping = aes(x = Obs, y = Pred, color = Sex, shape = Sex)) +
  geom_point() +
  theme(legend.position = "top") +
  labs(tag = "B")

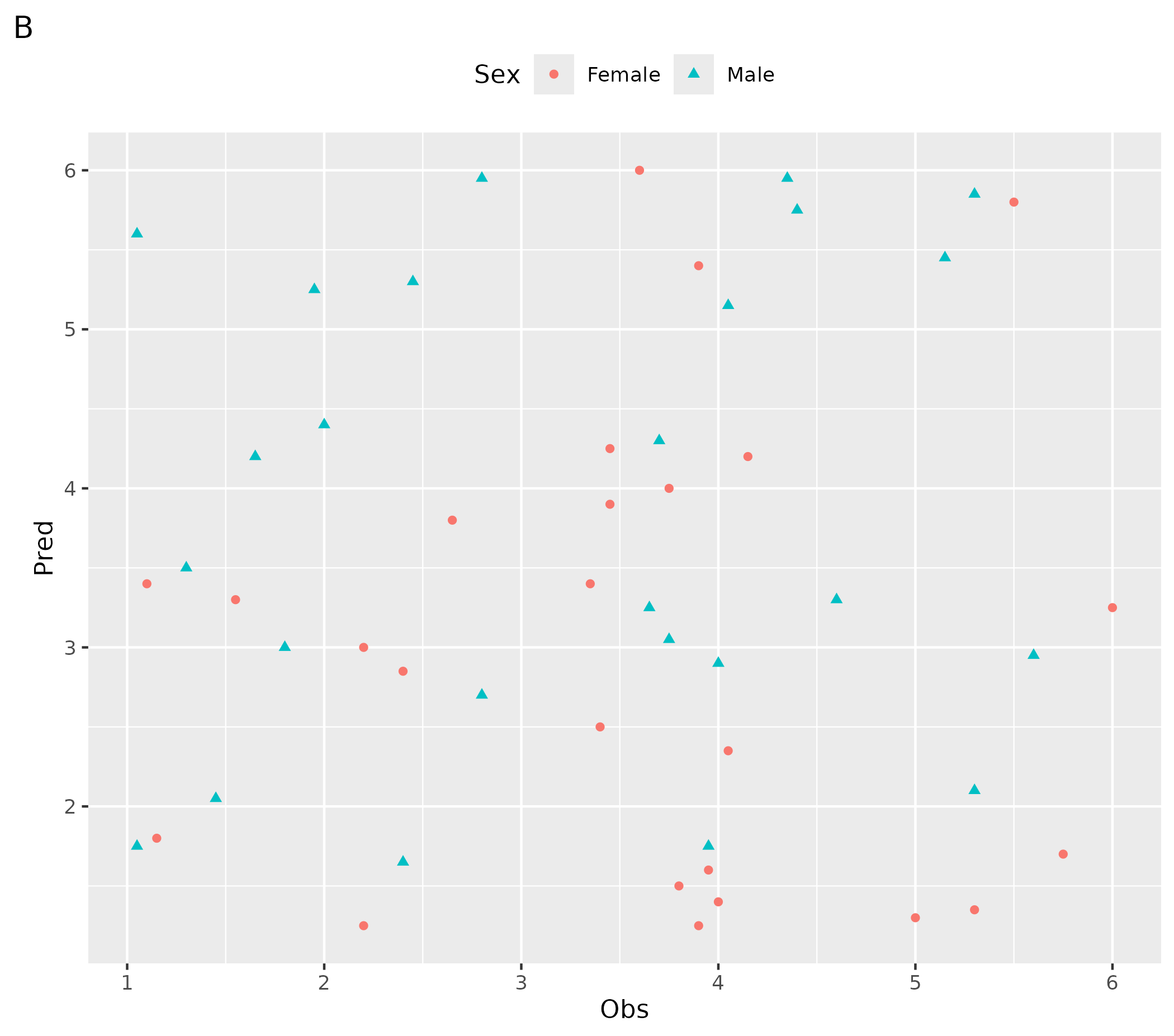

Two plots demonstrating resetting to previously saved layout defaults. Plot A shows the histogram reverting to original default styling after resetDefaults() is called. Plot B shows the scatter plot also returning to the original ggplot defaults, confirming that the layout reset worked correctly.

2.2 Default Theme

Functions to set the ospsuite.plots default theme only are setDefaultTheme() and resetDefaultTheme(). These functions are called by setDefaults() and resetDefaults().

# Set ospsuite.plots Default Theme
oldTheme <- ospsuite.plots::setDefaultTheme()

# Customize theme using ggplot functionalities
theme_update(legend.position = "top")
theme_update(legend.title = element_blank())

# Reset to the previously saved theme
ospsuite.plots::resetDefaultTheme(oldTheme)

2.3 Default Color

Functions to set the ospsuite.plots default color only are setDefaultColorMapDistinct() and resetDefaultColorMapDistinct(). These functions are called by setDefaults() and resetDefaults().

Colors are set to discrete and ordinal scales for fill and colour.

The package provides some color palettes in the object colorMaps (see ?colorMaps).

The example below shows plots with:

A plot with default settings for up to 6 different colors
B plot with default settings for more than 6 different colors
C customized settings for all following plots using the colorMaps[["grays"]]
D customized plot: set gray scale for this plot only using function scale_fill_grey()
E customized settings for all following plots using ggsci::pal_lancet()(9)
F customized plots: set gray scale for this plot only using function ggsci::scale_color_lancet()

# Set ospsuite.plots Default Color
oldColors <- ospsuite.plots::setDefaultColorMapDistinct()

ggplot() +
  geom_tile(aes(x = rep(seq(1, 3), 2), y = rep(seq(1, 2), each = 3), fill = as.factor(seq(1, 6)))) +
  labs(title = "Default settings for up to 6 different colors", tag = "A") +
  theme(legend.position = "none", axis.title = element_blank())

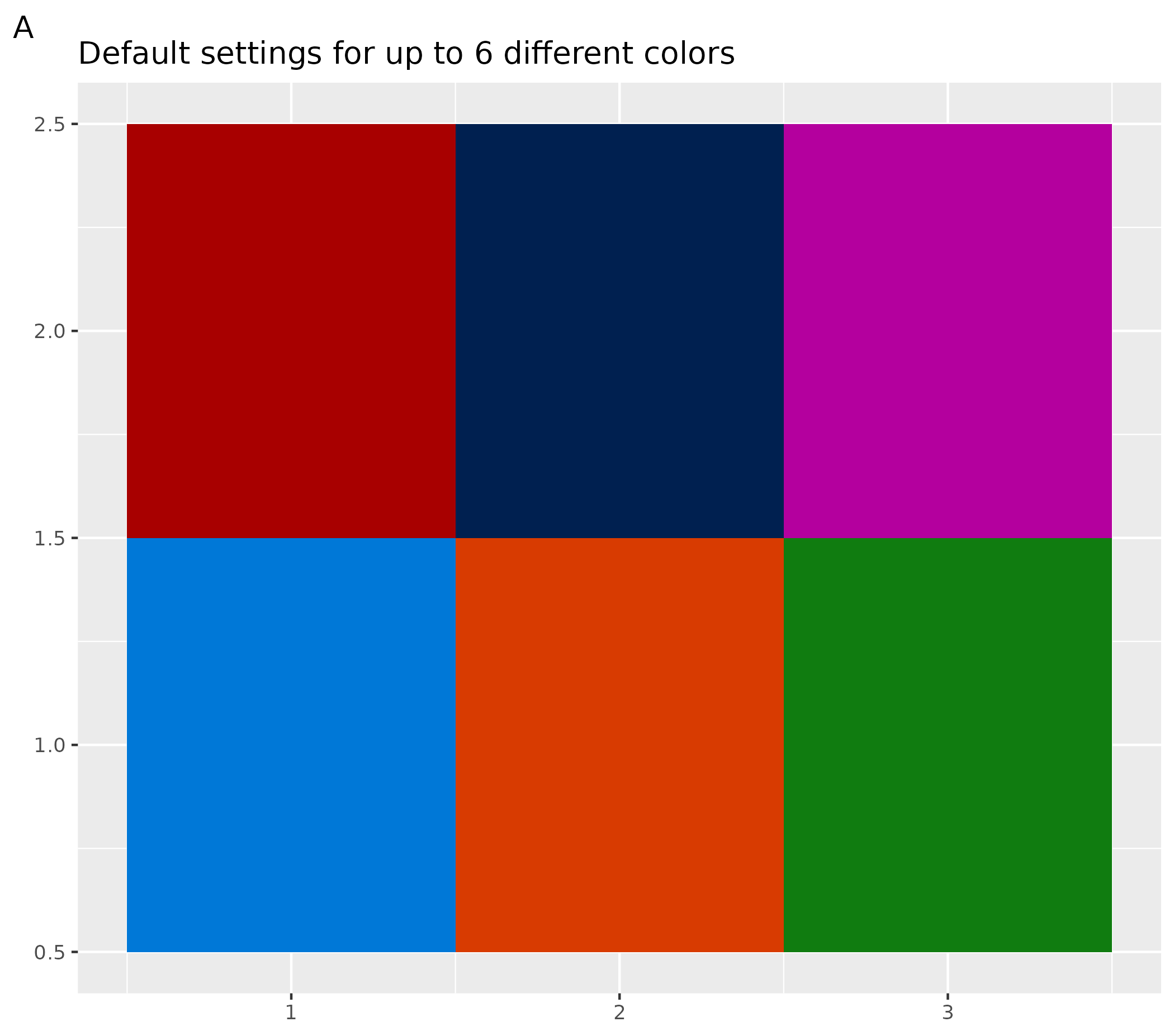

Tile plot demonstrating default color settings for up to 6 different colors. The plot shows a 3x2 grid of colored tiles, each representing a different discrete color from the default ospsuite.plots color palette for small categorical datasets.

ggplot() +
  geom_tile(aes(x = c(rep(seq(1, 7), 7), 1, 2), y = c(rep(seq(1, 7), each = 7), 8, 8), fill = as.factor(seq(1, 51)))) +
  labs(title = "Default settings for more than 6 different colors") +
  theme(legend.position = "none", axis.title = element_blank())

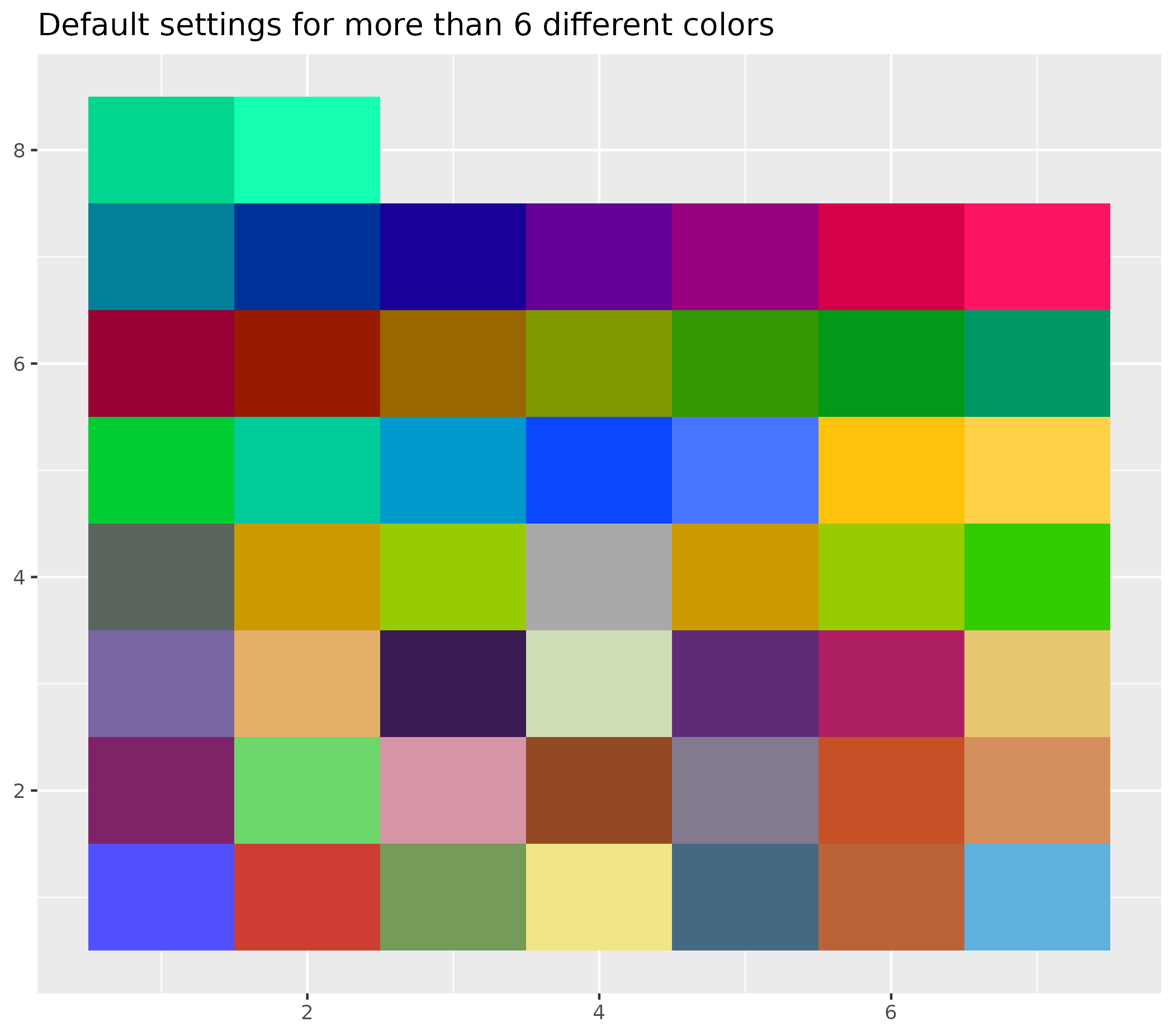

Tile plot demonstrating default color settings for more than 6 different colors. The plot shows a 7x7 grid plus 2 additional tiles (51 total), illustrating how ospsuite.plots handles large categorical datasets by cycling through and extending the color palette.

# Customize colors: set to gray colors
ospsuite.plots::setDefaultColorMapDistinct(colorMaps[["grays"]])

ggplot() +
  geom_tile(aes(x = rep(seq(1, 3), 3), y = rep(seq(1, 3), each = 3), fill = as.factor(seq(1, 9)))) +
  theme(legend.position = "none", axis.title = element_blank()) +
  labs(title = "colorMaps gray", tag = "C")

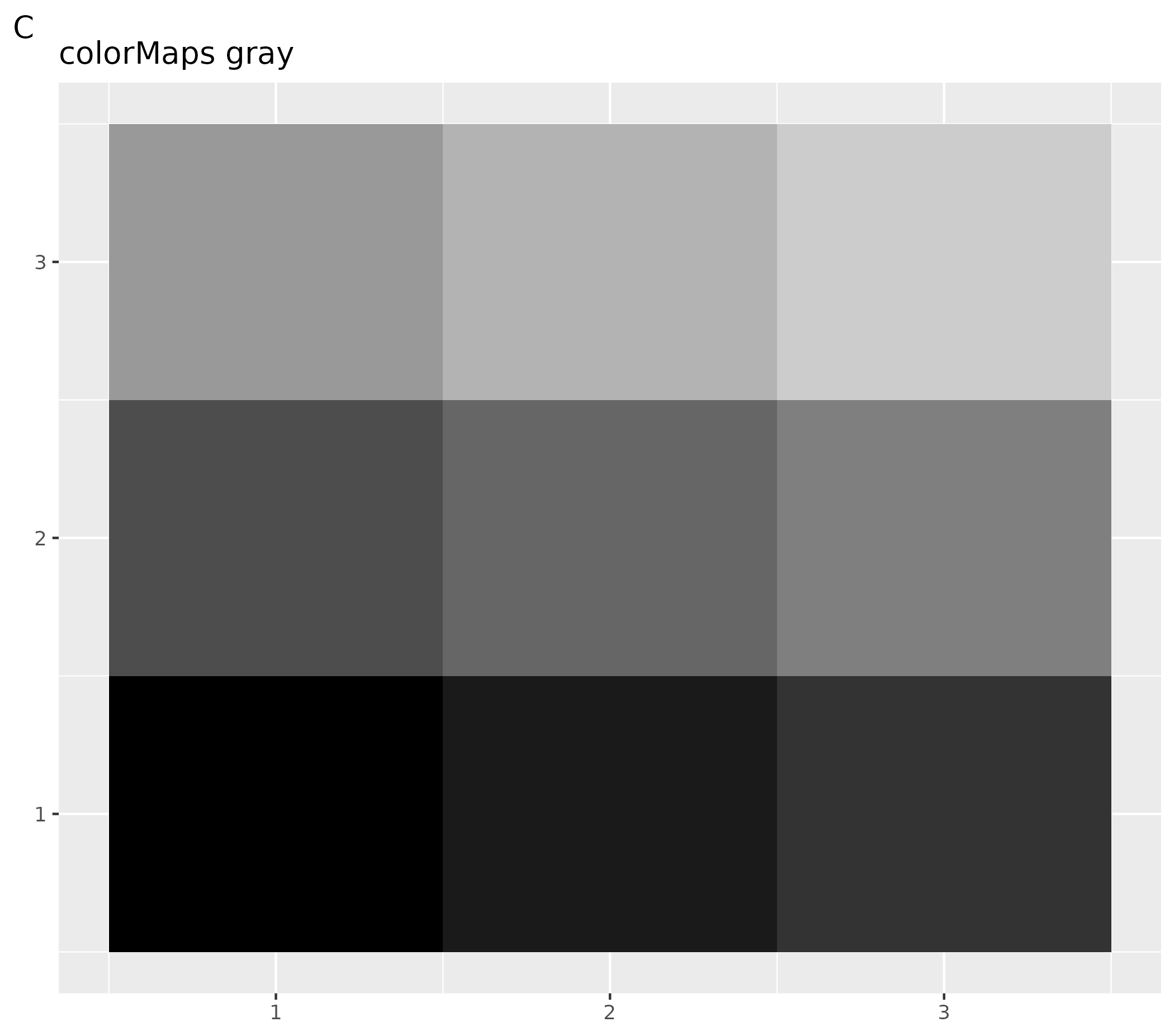

Tile plot demonstrating customized gray color palette. The plot shows a 3x3 grid of tiles using grayscale colors from the ospsuite.plots colorMaps gray palette, illustrating how to apply monochromatic color schemes for accessibility or publication requirements.

ggplot() +
  geom_tile(aes(x = rep(seq(1, 3), 3), y = rep(seq(1, 3), each = 3), fill = as.factor(seq(1, 9)))) +
  theme(legend.position = "none", axis.title = element_blank()) +
  scale_fill_grey() +
  labs(title = "scale_fill_grey", tag = "D")

Tile plot using ggplot2's built-in scale_fill_grey() function. The plot shows a 3x3 grid of tiles demonstrating how to override ospsuite.plots defaults with standard ggplot2 gray scale functions for individual plots.

# Set to color palettes inspired by plots in Lancet journals
ospsuite.plots::setDefaultColorMapDistinct(ggsci::pal_lancet()(9))

ggplot() +
  geom_tile(aes(x = rep(seq(1, 3), 3), y = rep(seq(1, 3), each = 3), fill = as.factor(seq(1, 9)))) +
  theme(legend.position = "none", axis.title = element_blank()) +
  labs(title = "ggsci::pal_lancet", tag = "E")

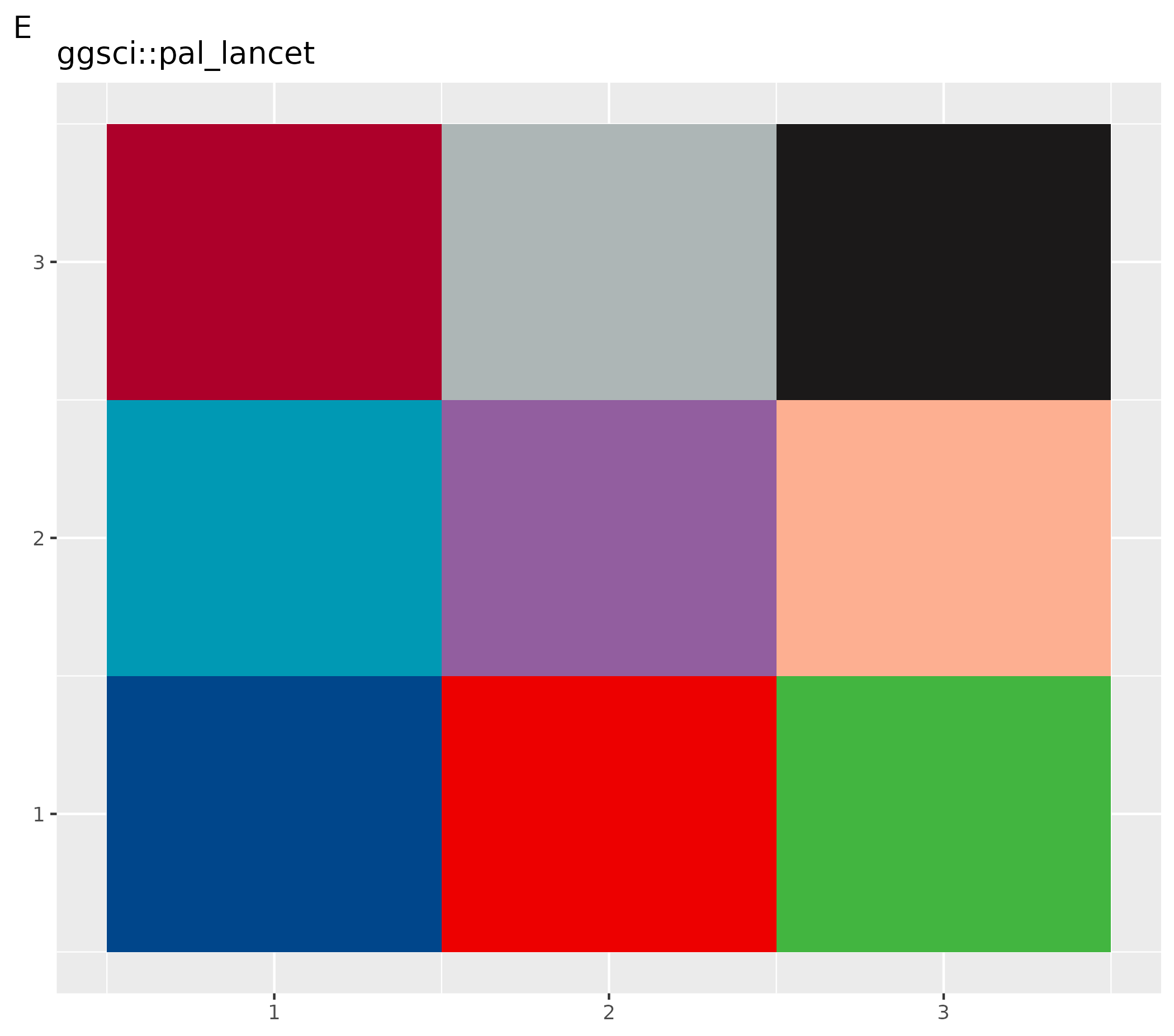

Tile plot using ggsci Lancet journal color palette. The plot shows a 3x3 grid of tiles demonstrating how to set ospsuite.plots defaults to use professional journal color schemes inspired by The Lancet publication style.

# Set to color palettes inspired by plots in Lancet journals
ospsuite.plots::setDefaultColorMapDistinct(ggsci::pal_lancet()(9))

ggplot() +
  geom_tile(aes(x = rep(seq(1, 3), 3), y = rep(seq(1, 3), each = 3), fill = as.factor(seq(1, 9)))) +
  theme(legend.position = "none", axis.title = element_blank()) +
  ggsci::scale_color_lancet() +
  labs(title = "ggsci::scale_color_lancet", tag = "F")

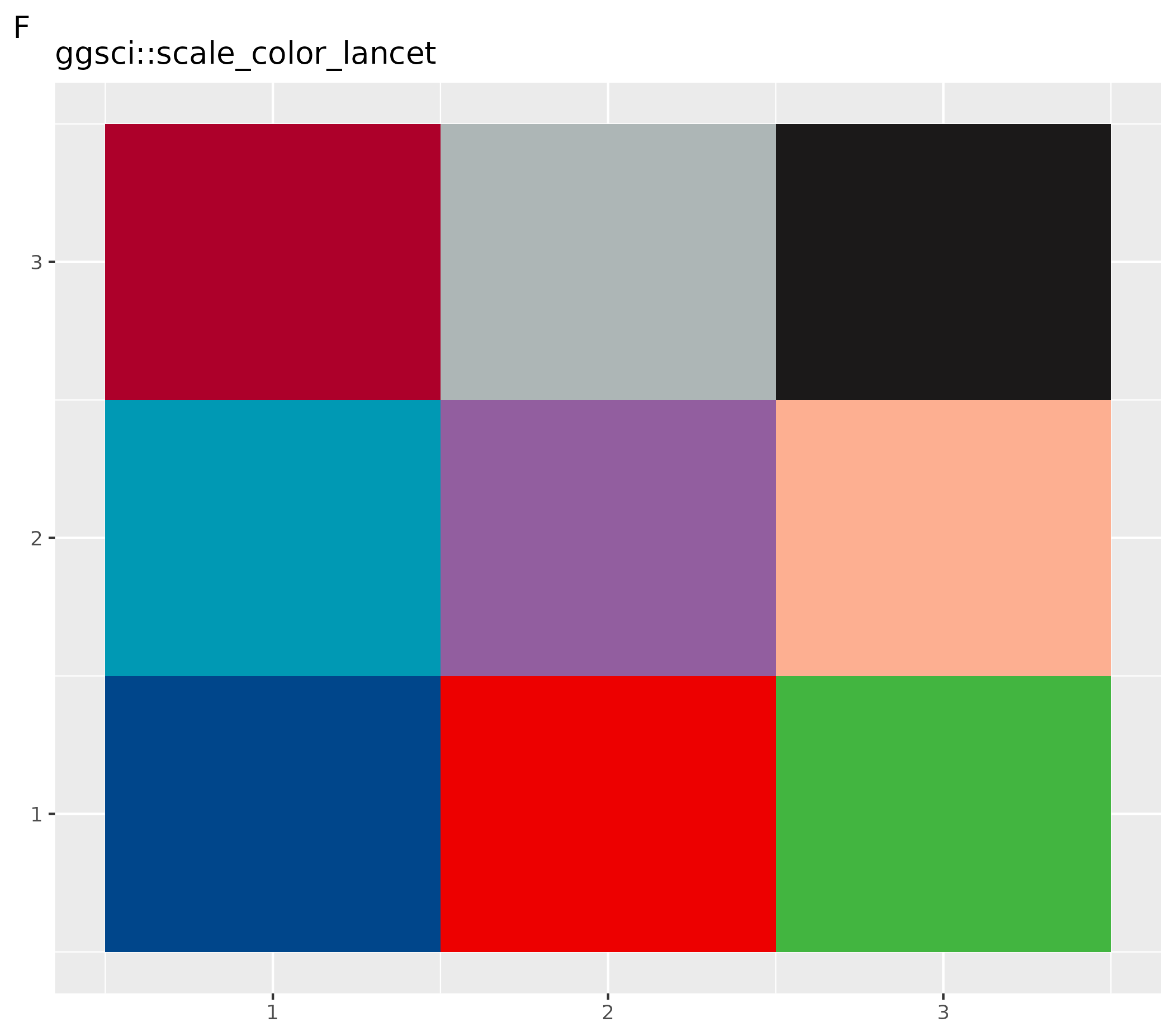

Tile plot using ggsci Lancet color palette with scale override. The plot shows a 3x3 grid of tiles demonstrating how to use ggsci::scale_color_lancet() to override the default color mapping for individual plots while maintaining the Lancet color scheme.

Reset to Previously Saved Color Map

# Reset to the previously saved color map
ospsuite.plots::resetDefaultColorMapDistinct(oldColorMaps = oldColors)

2.4 Default Shapes

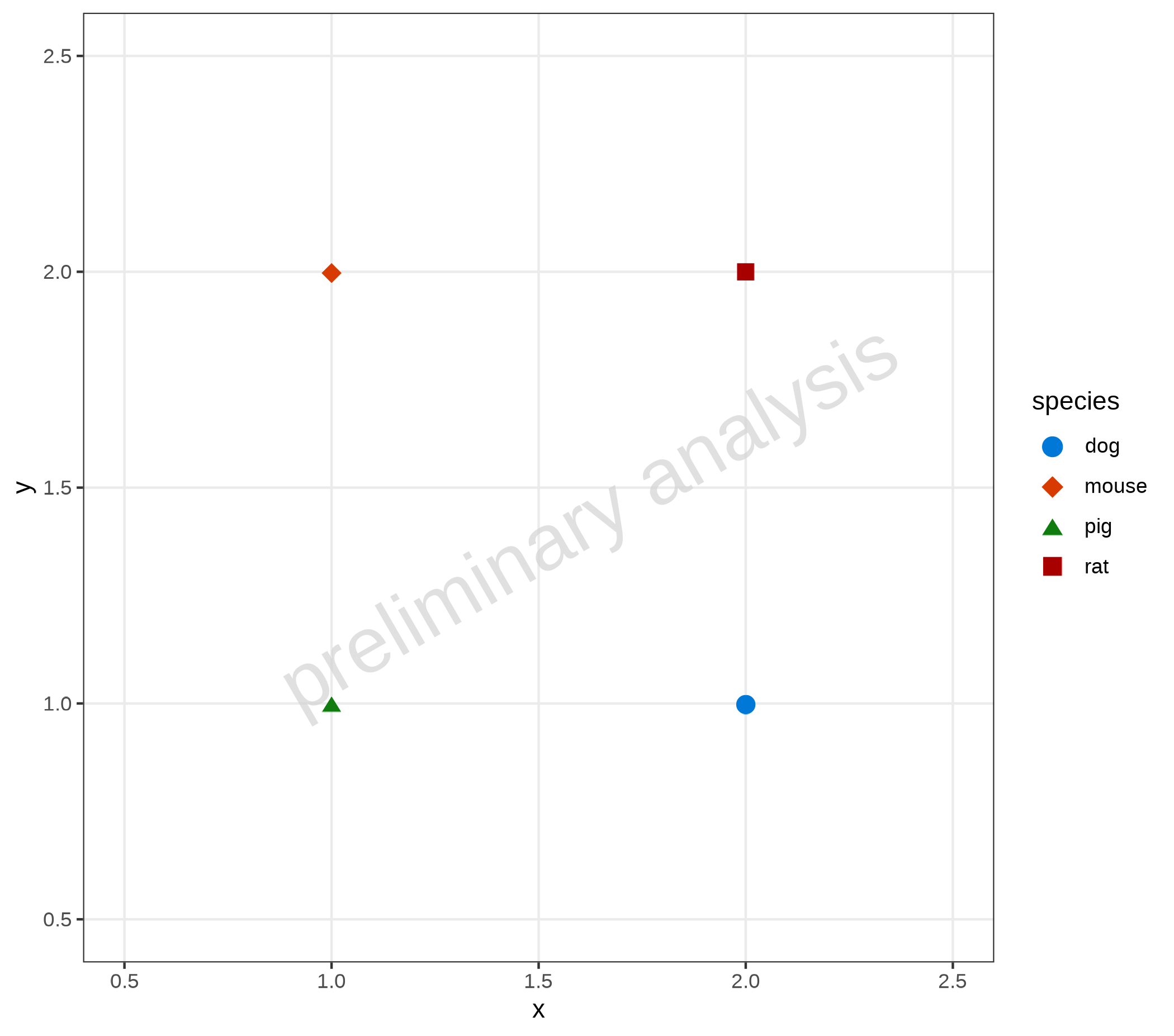

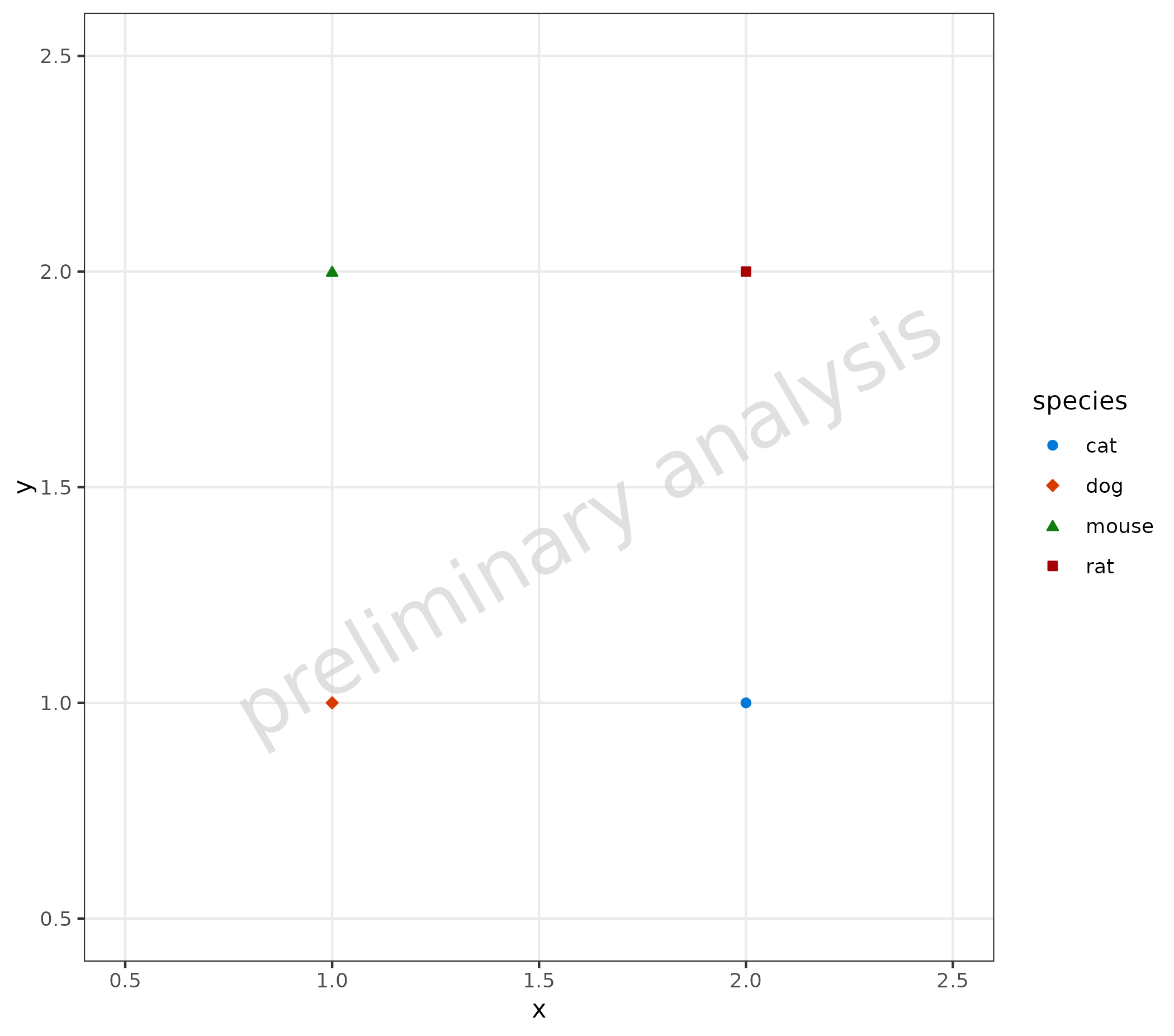

Functions to set the ospsuite.plots default shapes only are setDefaultShapeDistinct(shapeValues) and resetDefaultShapeDistinct(oldShapeValue). These functions are called by setDefaults() and resetDefaults(). The scales are set to the option ospsuite.plots.shapeValues, which is then used to set the discrete scale of shapes for all ospsuite.plots functions. For customized functions, add scale_shape_manual(values = getOspsuite.plots.option(optionKey = OptionKeys$ospsuite.plots.shapeValues)).

2.5 Default Options

getDefaultOptions() returns a list of options used in this package. These options are set by the function setDefaults() via the variable defaultOptions.

ospsuite.plots::setDefaults(defaultOptions = ospsuite.plots::getDefaultOptions())

The names of all options defined by this package start with the package name ospsuite.plots as a prefix and a suffix. The suffixes are listed in the enumeration OptionKeys. There are two helper functions (setOspsuite.plots.option and getOspsuite.plots.option) to set and get these options.

2.5.1 Options to Customize Watermark

All plots in this packages are created with the function ggplotWithWatermark() instead of ggplot(). This function creates a normal ggplot object only if printed, a watermark is added.

Attention! If you combine plots e.g. with cowplot:plot_grid the default print function without watermark is called. In this case you have to add the watermark with the function addwatermark(plotObject) before the print.

The watermark can by customized by this options:

Switch the watermark on and off (option key = watermark_enabled, default = TRUE)
Select the label (option key = watermark_label, default = “preliminary analysis”)
Customize format (option key = watermark_format, default = list(x = 0.5, y = 0.5, color = "grey20", angle = 30, fontsize = 12, alpha = 0.7))

Examples to Customize Watermark

A: Change format of watermark
B: Disable watermark
C: Reset to default

# Change format and label of watermark
setOspsuite.plots.option(optionKey = OptionKeys$watermark_format, value = list(x = 0.2, y = 0.6, color = "red", angle = 90, fontsize = 24, alpha = 0.2))
setOspsuite.plots.option(optionKey = OptionKeys$watermark_label, value = "NEW")

# Initialize plot
ggplotWithWatermark() + labs(title = "Changed Watermark", tag = "A")

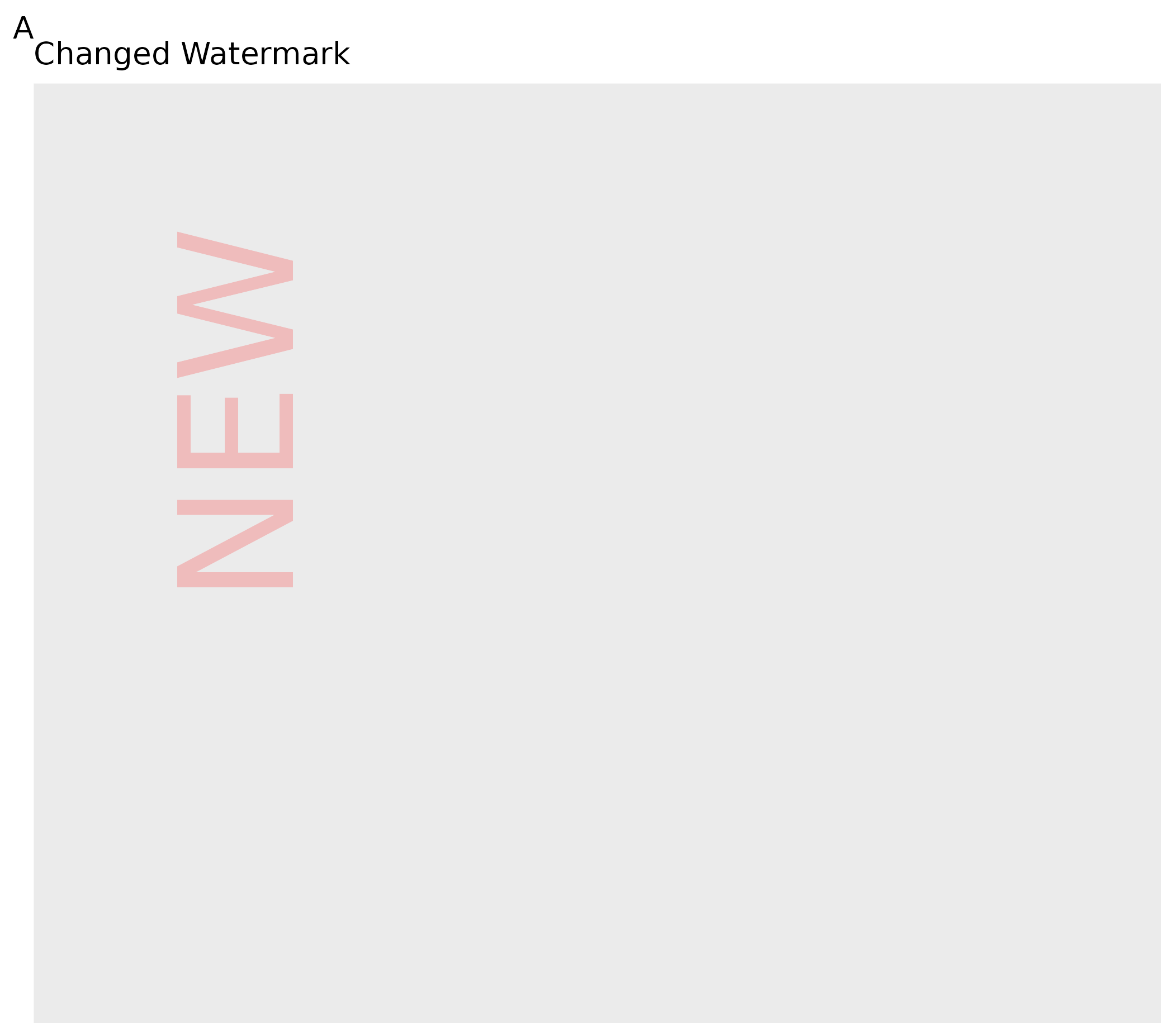

Plot demonstrating customized watermark formatting. The plot shows a blank coordinate system with a red watermark rotated 90 degrees, positioned at specific coordinates with increased font size and reduced transparency, labeled 'NEW' instead of the default text.

# Disable watermark
setOspsuite.plots.option(optionKey = OptionKeys$watermark_enabled, value = FALSE)

# Initialize plot
ggplotWithWatermark() + labs(title = "No Watermark", tag = "B")

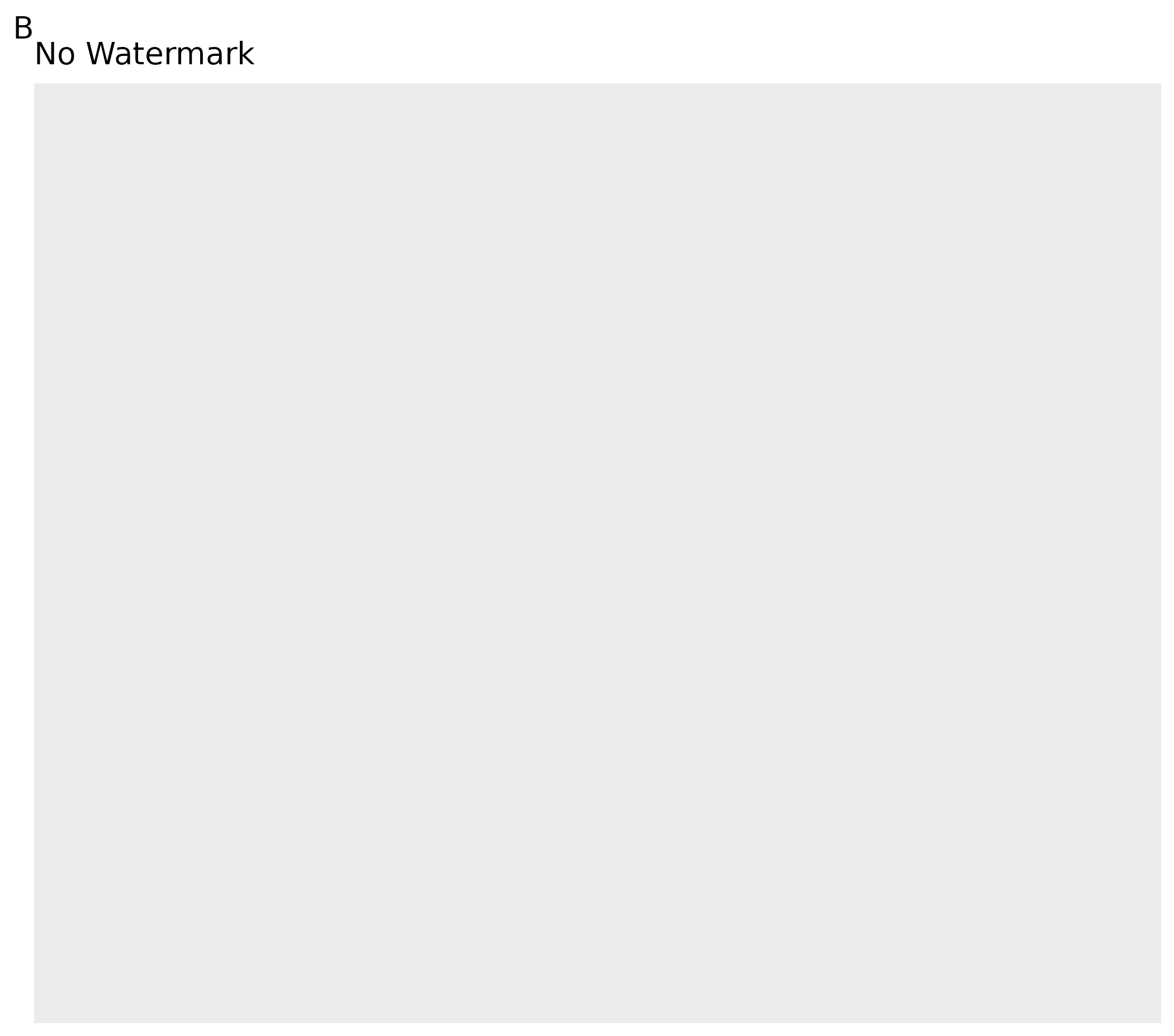

Plot demonstrating disabled watermark functionality. The plot shows a clean blank coordinate system with no watermark text overlay, illustrating how the watermark_enabled option can be set to FALSE for clean publication-ready plots.

# Reset to default
setOspsuite.plots.option(optionKey = OptionKeys$watermark_format, value = NULL)
setOspsuite.plots.option(optionKey = OptionKeys$watermark_label, value = NULL)
setOspsuite.plots.option(optionKey = OptionKeys$watermark_enabled, value = NULL)

# Initialize plot
ggplotWithWatermark() + labs(title = "Default Watermark", tag = "C")

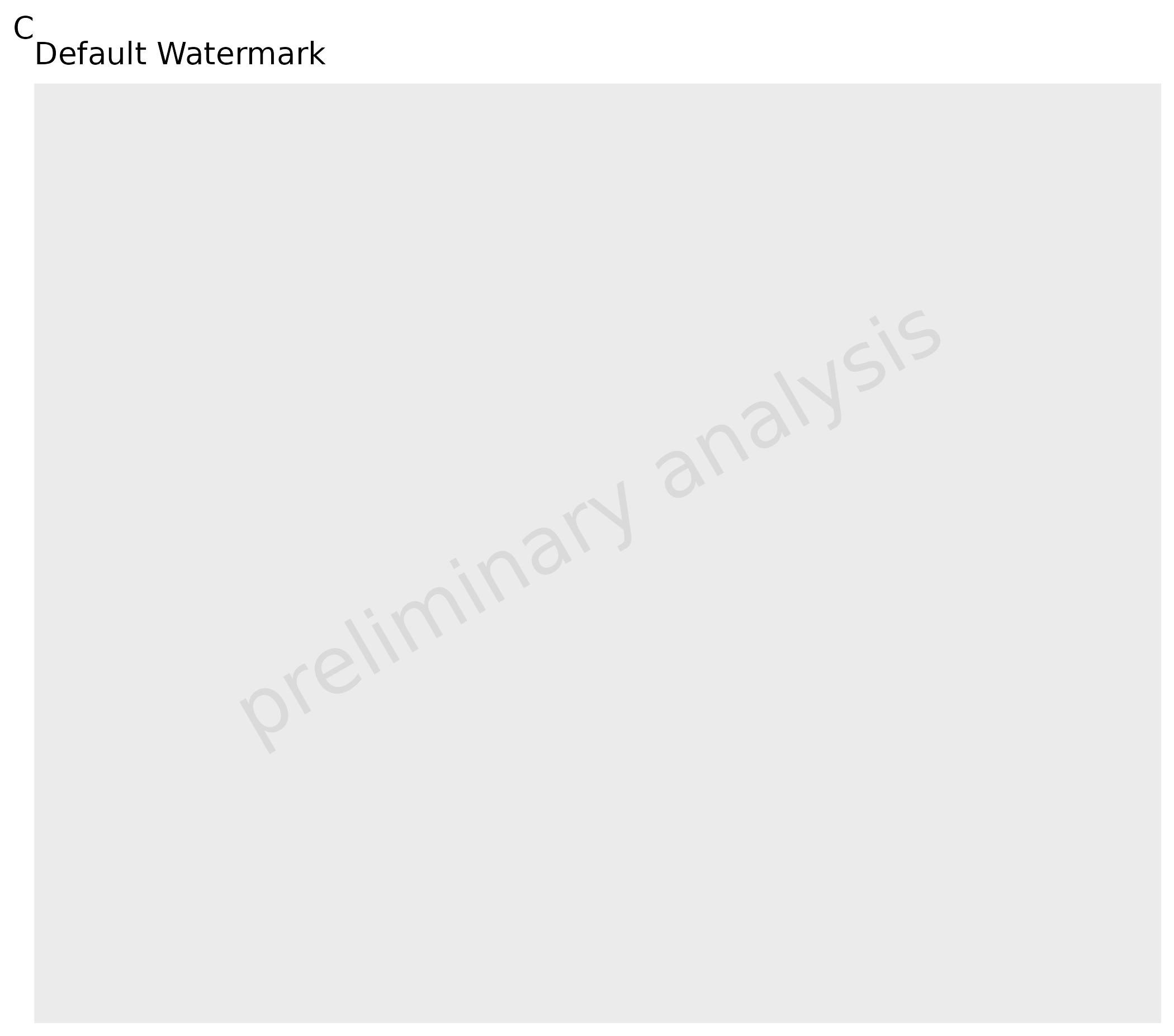

Plot demonstrating reset watermark to default settings. The plot shows a blank coordinate system with the default watermark restored - gray text reading 'preliminary analysis' at 30-degree angle in the center with standard transparency and font size.

2.5.2 Options to Set the Defaults for Geom Layer Attributes

All plot functions have input variables geom*Attributes which are passed as variables to the corresponding ggplot layer. The defaults of the input variables can be set by options.

Usage of options for geom attributes
functions	Line	Ribbon	Point	Errorbar	LLOQ	Hist	Boxplot	ComparisonLine	GuestLine
plotTimeProfile()	geomLineAttributes	geomRibbonAttributes	geomPointAttributes	geomErrorbarAttributes	geomLLOQAttributes
plotResVsCov()			geomPointAttributes	geomErrorbarAttributes	geomLLOQAttributes			geomComparisonLineAttributes	geomGuestLineAttributes
plotRatioVsCov()			geomPointAttributes	geomErrorbarAttributes	geomLLOQAttributes			geomComparisonLineAttributes	geomGuestLineAttributes
plotPredVsObs()			geomPointAttributes	geomErrorbarAttributes	geomLLOQAttributes			geomComparisonLineAttributes	geomGuestLineAttributes
plotHistogram()						geomHistAttributes
plotBoxWhisker()							geomBoxplotAttributes, geomPointAttributes

With default options:

LineAttributes = list()
Ribbon = list(color = NA)
PointAttributes = list()
ErrorbarAttributes = list(width = 0)
LLOQAttributes = list()
ComparisonLineAttributes = list(linetype = "dashed")
GuestLineAttributes = list(linetype = "dashed")
BoxplotAttributes = list(position = position_dodge(width = 1), color = "black")
HistAttributes = list(bins = 10, position = ggplot2::position_nudge())

2.5.3 Options to Set Defaults for Aesthetics

Options to set the face alpha of ribbons filled points and options to set the filled points for values below and above LLOQ.

# Default alpha = 0.5
getOspsuite.plots.option(optionKey = "Alpha")

# Alpha of LLOQ values
c("TRUE" = 0.3, "FALSE" = 1)
getOspsuite.plots.option(optionKey = "LLOQAlphaVector")

# Linetype LLOQ comparison lines
"dashed"
getOspsuite.plots.option(optionKey = "LLOQLineType")

2.5.4 Options to Define Export Format

There are options to define the export format using the function exportPlot (see details below):

export.width: Width of the exported file
export.units: Units for width and height
export.device: Device for plot export
export.dpi: Plot resolution

The latter options are used directly as input for ggplot2::ggsave, so check the help for available values.

3. Plot Functions

All plot functions listed below call internally the function initializePlot(). This function constructs labels from the metadata and adds a watermark layer. It can also be used to create a customized ggplot.

4. Additional Aesthetics

This package provides some additional aesthetics.

For more details, see the examples within the vignettes for the respective functions.

groupby: Shortcut to use different aesthetics to group. All functions where this aesthetic is used have also a variable groupAesthetics. The mapping groupby is copied to all aesthetics listed within this variable and to the aesthetic group.
lloq: Mapped to a column with values indicating the lower limit of quantification, adds horizontal (or vertical) lines to the plot. All observed values below the “lloq” are plotted with a lighter alpha. As values are compared row by row, it is possible to have more than one LLOQ.
error: Mapped to a column with additive error (e.g., standard deviation); error bars are plotted. This is a shortcut to map ymin and ymax directly (ymin = y - error and ymax = y + error). Additionally, if yscale is set, ymin values below 0 are set to y.
error_relative: Mapped to a column with relative error (e.g., geometric standard deviation); error bars are plotted. This is a shortcut to map ymin and ymax directly (ymin = y / error_relative and ymax = y * error_relative).
y2axis: Creates a plot with 2 y axes. It is used to map to a column with a logical value. Values where this column has a TRUE entry will be displayed with a secondary axis.
mdv: Mapped to a logical column. Rows where this column has entries set to TRUE are not plotted (MDV = missing data value, taken from NONMEM notation).
observed / predicted: For the function plotPredVsObs(), observed is mapped to x and predicted is mapped to y. For all other functions, residuals are calculated if both aesthetics are mapped. The variable residualScale defines the calculation method:
- residualScale = "log": $log(observed) - log(predicted)$ ,
- residualScale = "linear": $observed - predicted$ ,
- residualScale = "ratio": $observed / predicted$ .

See vignette("Goodness of Fit", package = "ospsuite.plots") for examples.

Applicability of additional aesthetics in functions
functions	`groupby`	`lloq`	`error`	`error_relative`	`y2axis`	`mdv`	`observed` / `predicted`
plotTimeProfile()	X	X	X	X	X	X
plotHistogram()	X					X	X
plotPredVsObs()	X	X	X	X		X	X
plotResVsCov()	X		X	X		X	X
plotRatioVsCov()	X		X	X		X	X
plotQQ()	X					X	X
plotBoxWhisker()						X	X

5. Plot Export

This section demonstrates how to use the exportPlot function to save ggplot objects to files, adjusting the width and height of the exported plots as necessary. This function is part of the ospsuite.plots package and simplifies the process of exporting plots for various purposes, such as publication or presentation.

5.1 Basic Usage

To export a plot, you need a ggplot object. Here’s a basic example:

Create a simple ggplot object:

plotObject <- ospsuite.plots::plotHistogram(data = testData, mapping = aes(x = Age))

Exporting the Plot: Using the exportPlot function, you can easily save this plot to a file:

Replace “path/to/save” with the actual directory path where you want to save the plot, and adjust the width and height parameters as needed.

exportPlot(plotObject = plotObject, filepath = "path/to/save", filename = "myplot", width = 10, height = 8)

5.2 Advanced Usage

Adjusting Plot Dimensions Based on Content

The exportPlot function can automatically adjust the plot dimensions based on its content, such as the presence of a legend or the aspect ratio.

Assuming plotObject is your ggplot object:

exportPlot(plotObject = plotObject, filepath = "path/to/save", filename = "adjusted_plot.png")

In this case, you don’t need to specify the width and height explicitly; the function calculates them for you. The default width value saved in the ospsuite.plots option export.width is used. If an aspect ratio is defined in the theme of the plot, height will be adjusted accordingly; otherwise, the function exports square figures.

6. Shapes

6.1 Default Shapes

shapeNames <- c("circle", paste("circle", c("open", "filled", "cross", "plus", "small")), "bullet", "square", paste("square", c("open", "filled", "cross", "plus", "triangle")), "diamond", paste("diamond", c("open", "filled", "plus")), "triangle", paste("triangle", c("open", "filled", "square")), paste("triangle down", c("open", "filled")), "plus", "cross", "asterisk")

shapes <- data.frame(shapeNames = shapeNames, x = c(1:7, 1:6, 1:3, 5, 1:3, 6, 2:3, 1:3), y = -rep(1:6, c(7, 6, 4, 4, 2, 3)))

ggplot(shapes, aes(x, y)) +
  geom_point(aes(shape = shapeNames), color = "blue", fill = "red", size = 5, stroke = 1) +
  geom_text(aes(label = shapeNames), nudge_y = -0.3, size = 3.5) +
  scale_shape_identity() +
  theme_void()

Chart displaying all default shape types available in ospsuite.plots. Shows various point shapes including circles, squares, diamonds, triangles in different styles (open, filled, cross, plus) arranged in a grid with labels, demonstrating the visual appearance of each shape option.

6.2 Use Unicode Symbols with `{showtext}`

Attention: The use of showtext has side effects - a customized geom_Point function geomPointUnicode has to be used.

shapes <- data.frame(shapeNames = names(Shapes), shape_symbols = unlist(unname(Shapes)), x = rep(c(1:5), 8), y = rep(-c(1:8), each = 5))

showtext::showtext_auto()
ggplot(shapes, aes(x, y)) +
  geomPointUnicode(aes(shape = shape_symbols), color = "blue", fill = "red", size = 5) +
  geom_text(aes(label = shapeNames), nudge_y = -0.3, size = 3.5) +
  scale_shape_identity() +
  theme_void()
showtext::showtext_auto(enable = "off")

Chart displaying Unicode symbol shapes available in ospsuite.plots with showtext package. Shows various Unicode symbols arranged in a grid with their corresponding shape names, demonstrating enhanced typography options for point symbols in plots.

6.3 Switch Between Modes

To switch to the Unicode mode, call setDefaults with the input variable pointAsUnicode = TRUE. To switch back, use setDefaults(pointAsUnicode = FALSE) or resetDefaults(oldDefaults). However, it is recommended to produce all plots of one workflow either with Unicode mode or without. Otherwise, the plots may have different fonts.

oldDefaults <- ospsuite.plots::setDefaults(pointAsUnicode = TRUE)

dt <- data.frame(x = c(1, 2, 1, 2), y = c(1, 1, 2, 2), species = c("pig", "dog", "mouse", "rat"))

plotObject <- plotYVsX(data = dt, mapping = aes(x = x, y = y, groupby = species), xscale = "linear", xscale.args = list(limits = c(0.5, 2.5)), yscale = "linear", yscale.args = list(limits = c(0.5, 2.5)))

plot(plotObject)

Scatter plot demonstrating Unicode point symbols in ospsuite.plots. Shows four data points representing different species (pig, dog, mouse, rat) using Unicode symbols instead of standard ggplot shapes, with each species having a distinct symbol and color.

Use Non-Default Icons

plot(plotObject +
  scale_shape_manual(values = c(pig = "pig", dog = "dog", mouse = "mouse", rat = "rat")))

Scatter plot demonstrating the use of non-default icons in ospsuite.plots. The plot displays four data points representing different species (pig, dog, mouse, rat) using custom shapes for each species instead of standard ggplot shapes, showcasing the ability to personalize plot aesthetics with unique icons.

```

1. Introduction

1.1 Objectives of ospsuite.plots

2. Default Settings for Layout

2.1 Plots with and without Default Layout

2.1.1 Default ggplot Layout

2.1.2 Set ospsuite.plots Layout

2.1.3 Reset to Previously Saved Layout

2.2 Default Theme

2.3 Default Color

Reset to Previously Saved Color Map

2.4 Default Shapes

2.5 Default Options

2.5.1 Options to Customize Watermark

Examples to Customize Watermark

2.5.2 Options to Set the Defaults for Geom Layer Attributes

2.5.3 Options to Set Defaults for Aesthetics

2.5.4 Options to Define Export Format

3. Plot Functions

3.1 plotTimeProfile()

3.2 plotBoxWhisker()

3.3 plotHistogram()

3.4 plotPredVsObs()

3.5 plotResVsCov()

3.6 plotRatioVsCov()

3.7 plotQQ()

4. Additional Aesthetics

5. Plot Export

5.1 Basic Usage

5.2 Advanced Usage

Adjusting Plot Dimensions Based on Content

6. Shapes

6.1 Default Shapes

6.2 Use Unicode Symbols with {showtext}

6.3 Switch Between Modes

Use Non-Default Icons

3.1 `plotTimeProfile()`

3.2 `plotBoxWhisker()`

3.3 `plotHistogram()`

3.4 `plotPredVsObs()`

3.5 `plotResVsCov()`

3.6 `plotRatioVsCov()`

3.7 `plotQQ()`

6.2 Use Unicode Symbols with `{showtext}`
