Tutorial: Time Profile Plotting

Introduction

Welcome to the Time Profile Plotting Tutorial! This guide will walk you through the process of generating time profile plots using the ospsuite.reportingframework package.

In this tutorial, we will focus on manually editing the Excel (xlsx) configuration tables to customize your plots effectively. By following the outlined steps, you will learn how to set up your project, import data, create simulations, and visualize results through various plotting techniques.

Prerequisites

Before you begin, ensure you have installed the ospsuite.reportingframework package. Familiarity with R, RStudio, and basic Excel operations will be beneficial as you navigate through the tutorial.

Package Materials

The package contains the following materials used for the tutorial:

• Data files used for the tutorial: timeprofiles_study1234_iv.csv, timeprofiles_study1234_po.csv
• Final configuration tables: DataImportConfiguration.xlsx, Individuals.xlsx, Populations.xlsx, Scenario.xlsx, Plots.xlsx
• The final workflow: workflow.R
• The final Word document containing all plots generated during this tutorial: TutorialPlots.docx

You can access the folder containing this material using the command below:

print(system.file(
  "extdata", "Tutorial",
  package = "ospsuite.reportingframework",
  mustWork = TRUE
))

You can access the folder containing the models used in the tutorial (“iv_1_mg_5_min.pkml” and “po_3_mg_solution.pkml”) using the command below:

print(system.file(
  "extdata", "Models",
  package = "ospsuite.reportingframework",
  mustWork = TRUE
))
#> [1] "/home/runner/work/_temp/Library/ospsuite.reportingframework/extdata/Models"

Table of Contents

1. Setting Up the Project and Basic Simulations
   Learn how to set up your project, save a template workflow, and initialize the project structure for time profile plotting.

2. Adding virtual twin populations
   Discover how to define and export virtual twin populations for more refined simulations.

3. Adding random populations and Use of aggregated data
   Understand how to aggregate individual data and work with aggregated random populations for comparative analysis.

4. Adding reference populations
   Learn how to Display reference scenarios by modifying parameters in existing random population scenarios.

5. Adding plots with different time ranges
   Explore how to visualize pharmacokinetic data across various time ranges to reveal different drug behavior aspects.

6. Report Creation
   Explore how to visualize pharmacokinetic data across various time ranges to reveal different drug behavior aspects.

1) Setting Up the Project and Basic Simulations

Step 1: Save Template Workflow

• Select your project directory (<rootDirectory>). In this directory the reporting framework folder structure will be established (if not already existing).
• Check if the subfolder <rootDirectory>/Scripts/ReportingFramework exist, and if not create it. (<configurationDirectory>).
• Open RStudio and navigate to the Addins menu.
• Select “Open Template Workflow” to create a new workflow file. Save the template in the <configurationDirectory> as workflow.R. At the top of the workflow file, you can add a description of the purpose of your workflow.

Step 2: Initialize Project Structure

Execute the first lines (listed below) of your workflow. This will:

Change the working directory to the workflow file location. - Set some graphic defaults. - Set some options to switch between final valid runs and preliminary runs, such as watermarks. - Initialize the project directory. - Load the project configuration. - Set up a logfile to catch messages.

# Initialization  ----------------------------------------------------------
# Load necessary libraries and source project-specific code
library(ospsuite.reportingframework)

# Set graphic defaults
# (see vignette(package = 'ospsuite.plots', topic = 'ospsuite_plots'))
ospsuite.plots::setDefaults()
theme_update(legend.position = "top")
options(knitr.kable.NA = "")

# Set this to TRUE if you want to execute the workflow as a final valid run.
# (see ?setWorkflowOptions)
setWorkflowOptions(isValidRun = FALSE)

# Setup project structure -------------------------------------------------
# Create project directory and initialize the structure
# (see ?initProject and https://esqlabs.github.io/esqlabsR/articles/esqlabsR.html)
initProject()

# Get paths of all relevant project files and folders
projectConfiguration <- ospsuite.reportingframework::createProjectConfiguration(
  path = file.path("ProjectConfiguration.xlsx")
)

# Initialize log file
initLogfunction(projectConfiguration)

Step 3: Copy the Sample Data to Your Project Structure

You have now the complete project structure with all configuration files. Copy the model files to the folder <rootDirectory>/Models and the data files to <rootDirectory>/Data.

Step 4: Read Observed Data

(See Data Import by Dictionary)

Open the <configurationDirectory>/DataImportConfiguration.xlsx.

• List in the sheet DataFiles your available data. The paths should be relative to the configuration table which is in <rootDirectory>/Scripts/ReportingFramework, the data are saved in <rootDirectory>/Data, so the correct path is ../../Data.
• Each file gets a file identifier, which can be used as a filter in the readDataByDictionary function.
• As dictionary, select tpDictionary.
• We do not need a filter, so ensure the column DataFilter is empty.
• The data is of class tp Individual (individual time profile data).

FileIdentifier	DataFile	Dictionary	DataFilter	DataClass
tp_iv	../../Data/timeprofiles_study1234_iv.csv	tpDictionary	NA	tp Individual
tp_po	../../Data/timeprofiles_study1234_po.csv	tpDictionary	NA	tp Individual

• Match existing columns of the datasets when available.
• For individualId and group, concatenate existing columns using the columns Filter and FilterValue.
• For the ‘time profile’ columns, use the source columns Time, DV, DVUNIT, and LLOQ.
• For biometrics columns, use the source columns Age, WGHT0, HGHT0, and SEX.
• Set population to European_ICRP_2002 by the filter option.
• Metadata route is available, and dose is set via the filter option like the outputPathId in two lines.

TargetColumn	Type	SourceColumn	SourceUnit	Filter	FilterValue	Description
studyId	identifier	STUD				character, study ID
subjectId	identifier	SID				character, subject ID
individualId	identifier			TRUE	paste0(“I”,STUD,SID)	character, unique over all studies, ignored by aggregated Data
group	identifier			TRUE	paste(STUD,route,sep = ’_’)	Must be unique over studies and dataclasses
outputPathId	identifier	outputPathId				character, output ID
xValues	timeprofile	TIME	h			Time (0 = start of simulation in PK-Sim/Mobi)
yValues	timeprofile	DV				Units is coded in column “dvUnit”
yUnit	timeprofile	DVUNIT				character, dv Unit must be valid PK-Sim unit
lloq	timeprofile	LLOQ				for values below lloq set dv to lloq/2, if not available set to NA
age	biometrics	AGE	year(s)			character, age BI
weight	biometrics	WGHT0	kg			character, weight BI
height	biometrics	HGHT0	cm			character, height BI
gender	biometrics	SEX				Use characters Male Female (case insensitive) or numeric coding 1=male 2= female
population	biometrics			TRUE	“European_ICRP_2002”	character, PK Sim population name (get available list by calling ospsuite::HumanPopulation)
species	biometrics			TRUE	“Human”	character, PK-Sim Species name (ospsuite::Species)
route	metadata	route				meta data used for PK-Sim import, if not available, delete row or set all values to NA

Now you can execute the next workflow line:

# Read data as data.table
dataObserved <- readObservedDataByDictionary(projectConfiguration = projectConfiguration)

This will return a data.table with the observed data and add data to the configuration tables.

• The biometrics of the individuals in the observed data are added to the Individuals.xlsx. Information not in the observed data, like ontogeny, must be added manually.

IndividualId	Species	Population	Gender	Weight [kg]	Height [cm]	Age [year(s)]	Protein Ontogenies
I123413	Human	European_ICRP_2002	MALE	58.8	161	21	CYP3A4:CYP3A4, UGT1A4:UGT1A4
I123430	Human	European_ICRP_2002	MALE	64.0	164	33	CYP3A4:CYP3A4, UGT1A4:UGT1A4
I123441	Human	European_ICRP_2002	MALE	61.8	158	36	CYP3A4:CYP3A4, UGT1A4:UGT1A4
I123450	Human	European_ICRP_2002	FEMALE	58.8	158	20	CYP3A4:CYP3A4, UGT1A4:UGT1A4
I123466	Human	European_ICRP_2002	FEMALE	64.3	176	22	CYP3A4:CYP3A4, UGT1A4:UGT1A4
I123478	Human	European_ICRP_2002	FEMALE	64.3	160	33	CYP3A4:CYP3A4, UGT1A4:UGT1A4

• The identifier for the data groups and - The identifier for the data groups and outputs are added to the Plots.xlsx, sheets DataGroups and Outputs. These tables configure properties for output plots such as DisplayName and DisplayUnit. Please add the OutputPaths for the OutputPathsIds.

OutputPathId	OutputPath	DisplayName	DisplayUnit	Color	Fill
Plasma	Organism|PeripheralVenousBlood|DrugX|Plasma (Peripheral Venous Blood)	drugX plasma concentration	µg/L	NA	NA
CYP3A4total	Organism|DrugX-CYP3A4-Optimized Metabolite|Total fraction of dose-DrugX	drugX metabolized by CYP3A4		NA	NA
CYP3A4Liver	Organism|Liver|Periportal|Intracellular|DrugX-CYP3A4-Optimized Metabolite|Fraction of dose-DrugX	drugX metabolized by CYP3A4 in liver		NA	NA

Step 5: Set Up and Run Scenario

We will skip the section on exporting populations and start with a simple scenario to simulate one individual, defined by biometrics, with an iv application.

Open the Scenario.xlsx and edit the sheet ‘Scenarios’. Fill in the columns:

• Scenario_name: identifier of the scenario.
• IndividualId: corresponds to the individual identifier in the configuration table Individuals.xlsx.
• ModelFile: this file must exist in the folder Models

Scenario_name	IndividualId	PopulationId	ReadPopulationFromCSV	ModelFile	ModelParameterSheets	ApplicationProtocol	SimulationTime	SimulationTimeUnit	SteadyState	SteadyStateTime	SteadyStateTimeUnit	OutputPathsIds
one_individual	I123413		NA	iv_1_mg_5_min.pkml	NA	NA	NA	NA	NA	NA	NA

Now we can set up the scenarioList and run the simulation:

scenarioList <-
  createScenarios.wrapped(
    projectConfiguration = projectConfiguration,
    scenarioNames = NULL
  )

scenarioResults <- runAndSaveScenarios(
  projectConfiguration = projectConfiguration,
  scenarioList = scenarioList,
  simulationRunOptions = ospsuite::SimulationRunOptions$new(
    showProgress = TRUE
  )
)

The results are saved in <rootDirectory>/Outputs/ReportingFramework/SimulationResults.

Step 6: Configure and Generate Plots

For the plot configuration, call a helper function that adds all defined scenarios with default settings to the plot configuration table. This helper function changes the input configuration of a workflow and is not intended to be part of a final workflow.

addDefaultConfigForTimeProfilePlots(
  projectConfiguration = projectConfiguration,
  sheetName = "TimeProfiles",
  overwrite = FALSE
)

Then we open the Plots.xlsx sheet TimeProfiles. It starts with a header line and one line for the previously defined scenario.

• Add another sub-header for this tutorial section with level 2.

• Edit the columns:

  • PlotName: The plot name should be meaningful as it is also used for the exported figure names.
  • PlotCaptionAddon: Add-on for the caption used for all scenarios in this plot.
  • DataGroupIds: Data group identifier corresponding to this scenario, must be available in dataObserved$group.
  • IndividualIds: Identifier of the individual, should correspond to the IndividualId of the scenario and the individualId in the observed data.
  • TimeRange_firstApplication and TimeRange_lastApplication: Set to empty, as we have a single dose.

This line will create a time-profile plot that compares the simulated data to the observed data.

We also want to add goodness of fit plots. Since we have selected two outputs with different dimensions, the goodness of fit plots cannot handle more than one dimension. We do this in an extra line:

• Copy the plot line and edit the columns:
  • PlotName: each plot must have a unique Plot identifier.
  • OutputPathIds: ensure we have only outputs of one dimension selected.
  • Deselect Plot_TimeProfiles.
  • Select Plot_PredictedVsObserved, Plot_ResidualsAsHistogram, Plot_ResidualsVsTime, Plot_ResidualsVsObserved, and Plot_QQ.

Check also the sheet Scenarios. Here you can define for each scenario a Longname that will be used in captions as scenario descriptions.

Level	Header	PlotName	Scenario	DataGroupIds	OutputPathIds	IndividualIds	ScenarioName	plotCaptionAddon	TimeUnit	TimeOffset	ReferenceScenario	TimeOffset_Reference	ColorLegend	TimeRange_total	TimeRange_firstApplication	TimeRange_lastApplication	yScale	SplitPlotsPerTimeRange	nFacetColumns	FacetScale	Plot_TimeProfiles	ylimit_linear	ylimit_log	Plot_PredictedVsObserved	FoldDistance_PvO	Plot_ResidualsAsHistogram	Plot_ResidualsVsTime	Plot_ResidualsVsObserved	Plot_QQ
1	Concentration time profiles									NA		NA			NA	NA		NA	NA		NA	NA	NA	NA	NA	NA	NA	NA	NA
2	Setting Up the Project and Basic Simulations									NA		NA			NA	NA		NA	NA		NA	NA	NA	NA	NA	NA	NA	NA	NA
NA		one_individual	one_individual	1234_iv	Plasma, CYP3A4total, CYP3A4Liver	I123413		DrugX was administered as a 1mg Iv application with an infusion time of 5 minutes.	h	0		0		total	NA	NA	linear, log	1	3	fixed	1	NA	NA	0	NA	0	0	0	0
NA		one_individual-gof	one_individual	1234_iv	Plasma	I123413		DrugX was administered as a 1mg Iv application with an infusion time of 5 minutes.	h	0		0		total	NA	NA	linear, log	1	3	fixed	0	NA	NA	1	NA	1	1	1	1

Now we can execute the runPlot call to generate the plots. For now, we suppress the export of the figures by setting the input parameter plotNames = c('one_individual', 'one_individual-gof'). runPlot returns a list of ggplot objects. The caption is added as an attribute to each plot.

plotList <- runPlot(
  nameOfplotFunction = "plotTimeProfiles",
  projectConfiguration = projectConfiguration,
  configTableSheet = "TimeProfiles",
  plotNames = c("one_individual", "one_individual-gof"),
  inputs = list(
    dataObserved = dataObserved,
    scenarioResults = scenarioResults
  )
)

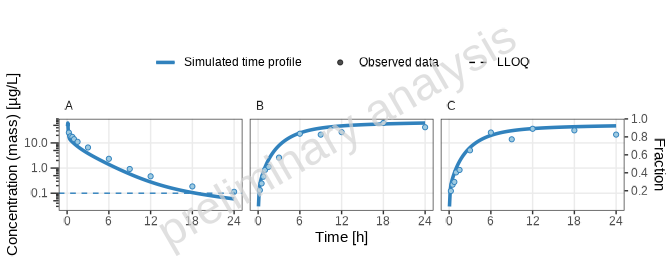

Below the logarithmic time-profile is displayed. See the Word document for the other plots.

print(plotList[["one_individual-TP-log-total"]])

print(attr(plotList[["one_individual-TP-log-total"]], "caption"))

[1] “Concentration-time profiles for drugX plasma concentration (A), drugX metabolized by CYP3A4 (B) and drugX metabolized by CYP3A4 in liver (C) for simulation of an 1mg iv application for individual id 13 study 1234 on a logarithmic y-scale. DrugX was administered as a 1mg Iv application with an infusion time of 5 minutes.”

2) Adding Virtual Twin Populations

(See Population).

Step 1: Edit Population Configuration

Manually adjust your Excel configuration to define virtual twin populations. The VirtualTwinPopulation sheet within the Individuals.xlsx file was created during data import. It contains all data groups with individual data. Since this is a crossover study and the individuals in group ‘IV’ are also in group ‘PO’, only one population is suggested for both data groups.

For now, we will leave the default configuration and only adjust the populationName:

populationName	dataGroups	individualId	modelParameterSheets	applicationProtocol
study_1234_population	1234_adults_iv, 1234_adults_po	I123413	NA	NA
study_1234_population	1234_adults_iv, 1234_adults_po	I123430	NA	NA
study_1234_population	1234_adults_iv, 1234_adults_po	I123441	NA	NA
study_1234_population	1234_adults_iv, 1234_adults_po	I123450	NA	NA
study_1234_population	1234_adults_iv, 1234_adults_po	I123466	NA	NA
study_1234_population	1234_adults_iv, 1234_adults_po	I123478	NA	NA
1234_iv_1234_po	1234_iv, 1234_po	I123413	NA	NA
1234_iv_1234_po	1234_iv, 1234_po	I123430	NA	NA
1234_iv_1234_po	1234_iv, 1234_po	I123441	NA	NA
1234_iv_1234_po	1234_iv, 1234_po	I123450	NA	NA
1234_iv_1234_po	1234_iv, 1234_po	I123466	NA	NA
1234_iv_1234_po	1234_iv, 1234_po	I123478	NA	NA

Step 2: Export Population

• Go to the Export populations section of the workflow and uncomment the lines for the virtualTwin export.
• Adjust the input parameter modelFile. The model file is used for unit conversions. As our population contains only parameters not related to the application, we can use both available model files, the one for oral administration and the iv administration file.

Now you can execute the following lines:

exportVirtualTwinPopulations(
  projectConfiguration = projectConfiguration,
  populationNames = NULL,
  modelFile = "po 3 mg solution.pkml",
  overwrite = FALSE
)

This will create a population based on the configuration table from Step 1. It is saved as a CSV file in Models/Populations.

Step 3: Set Up and Run Scenario

We open again the Scenario.xlsx and add a new scenario to the sheet ‘Scenarios’. Instead of the IndividualId, we will now fill the PopulationId with the name of our newly created population and set a 1 (TRUE) in the column ReadPopulationFromCSV.

Scenario_name	IndividualId	PopulationId	ReadPopulationFromCSV	ModelFile	ModelParameterSheets	ApplicationProtocol	SimulationTime	SimulationTimeUnit	SteadyState	SteadyStateTime	SteadyStateTimeUnit	OutputPathsIds
one_individual	I123413		NA	iv_1_mg_5_min.pkml	NA	NA	NA	NA	NA	NA	NA
virtual_twin_population		study_1234_population	1	iv_1_mg_5_min.pkml	NA	NA	NA	NA	NA	NA	NA

To omit a rerun from previously defined scenarios, we change the scenarioNames parameter in the scenarioList initialization from NULL to the names of the newly created scenarios.

scenarioList <-
  createScenarios.wrapped(
    projectConfiguration = projectConfiguration,
    scenarioNames = "dtScenarios"
  )

scenarioResults <- runAndSaveScenarios(
  projectConfiguration = projectConfiguration,
  scenarioList = scenarioList,
  simulationRunOptions = ospsuite::SimulationRunOptions$new(
    numberOfCores = NULL,
    checkForNegativeValues = NULL,
    showProgress = TRUE
  )
)

Step 4: Configure and Generate Plots

We will add the new scenario to the plot configuration table using the helper function addDefaultConfigForTimeProfilePlots.

Then we open the configuration table and adjust the plot configurations.

First, we add a plot as an example to filter individuals explicitly:

• Copy the virtual_twin_population line.
• Adjust the column plotName to generate two independent plots.
• Add the DataGroupId and as IndividualId for the first plot the first three IDs of the data set, and for the second plot the last three.
• Set a bracket around the outputs in the column OutputPathIds. This way, both outputs will be plotted in one panel.

Then we add a plot as an example to filter individuals with shortcuts:

• Copy one of the previous plots for the virtual_twin_population scenario.
• As IndividualId, use '*'. Now all available individuals will be plotted. If you have many individuals, this could lead to very large plots with many rows, so the plot is split into different plots. The maximum row number is an input parameter of the plot function.

As we did in Section 1, we will add a line for the goodness of fit plots. Copy the plot line for the last plot and edit the columns:

• PlotName
• OutputPathIds: ensure we have only outputs of one dimension selected.
• Deselect Plot_TimeProfiles.
• Select Plot_PredictedVsObserved, Plot_ResidualsAsHistogram, Plot_ResidualsVsTime, Plot_ResidualsVsObserved, and Plot_QQ.
• Set IndividualId to '*'. In this way, all individuals are plotted in one panel. This is only available for goodness of fit plots, not for the time profile plots.

Do not forget to edit the columns PlotCaptionAddon, TimeRange_firstApplication, and TimeRange_lastApplication.

Add subsections.

Level	Header	PlotName	Scenario	DataGroupIds	OutputPathIds	IndividualIds	ScenarioName	plotCaptionAddon	TimeUnit	TimeOffset	ReferenceScenario	TimeOffset_Reference	ColorLegend	TimeRange_total	TimeRange_firstApplication	TimeRange_lastApplication	yScale	SplitPlotsPerTimeRange	nFacetColumns	FacetScale	Plot_TimeProfiles	ylimit_linear	ylimit_log	Plot_PredictedVsObserved	FoldDistance_PvO	Plot_ResidualsAsHistogram	Plot_ResidualsVsTime	Plot_ResidualsVsObserved	Plot_QQ
2	Adding Virtual Twin Populations									NA		NA			NA	NA		NA	NA		NA	NA	NA	NA	NA	NA	NA	NA	NA
3	filtered individual									NA		NA			NA	NA		NA	NA		NA	NA	NA	NA	NA	NA	NA	NA	NA
NA		selected_individuals-1	virtual_twin_population	1234_iv	(Plasma, CYP3A4total)	I123413, I123430, I123441		DrugX was administered as a 1mg Iv application with an infusion time of 5 minutes.	h	0		0		total	NA	NA	linear, log	1	3	fixed	1	NA	NA	0	NA	0	0	0	0
NA		selected_individuals-2	virtual_twin_population	1234_iv	(Plasma, CYP3A4total)	I123450, I123466, I123478		DrugX was administered as a 1mg Iv application with an infusion time of 5 minutes.	h	0		0		total	NA	NA	linear, log	1	3	fixed	1	NA	NA	0	NA	0	0	0	0
3	shortcut for individual filter									NA		NA			NA	NA		NA	NA		NA	NA	NA	NA	NA	NA	NA	NA	NA
NA		all_individuals	virtual_twin_population	1234_iv	(Plasma, CYP3A4total)	*		DrugX was administered as a 1mg Iv application with an infusion time of 5 minutes.	h	0		0		total	NA	NA	linear, log	1	3	fixed	1	NA	NA	0	NA	0	0	0	0
NA		all_individuals-gof	virtual_twin_population	1234_iv	Plasma	(*)		DrugX was administered as a 1mg Iv application with an infusion time of 5 minutes.	h	0		0		total	NA	NA	linear, log	1	3	fixed	0	NA	NA	1	NA	1	1	1	1

Execute the runPlot call again to generate the plots. We take the newly generated plot names. The variable plotList contains all generated plots.

plotList <- runPlot(
  nameOfplotFunction = "plotTimeProfiles",
  projectConfiguration = projectConfiguration,
  configTableSheet = "TimeProfiles",
  plotNames = c("selected_individuals-1", "selected_individuals-2", "all_individuals", "all_individuals-gof"),
  inputs = list(
    dataObserved = dataObserved,
    scenarioResults = scenarioResults
  )
)

Below the logarithmic time-profile for all individuals is displayed. See the Word document for the other plots.

print(plotList[["all_individuals-TP-log-total"]])

print(attr(plotList[["all_individuals-TP-log-total"]], "caption"))

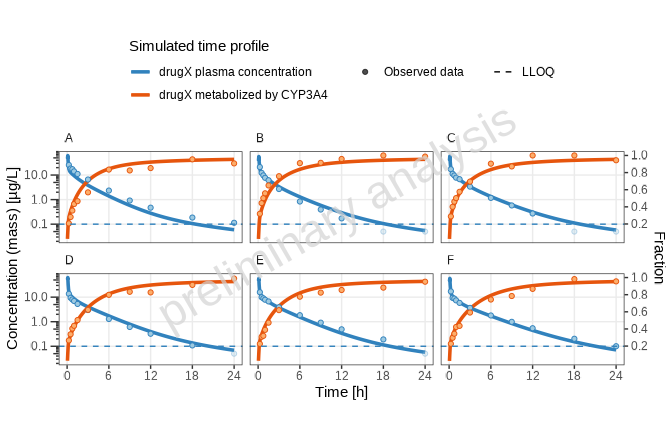

[1] “Concentration-time profiles for drugX metabolized by CYP3A4 and drugX plasma concentration for simulation of an 1mg iv application for individuals of study 1234 for subject I123413 (A), I123430 (B), I123441 (C), I123450 (D), I123466 (E) and I123478 (F) on a logarithmic y-scale. DrugX was administered as a 1mg Iv application with an infusion time of 5 minutes.”

3) Adding Random Populations and Use of Aggregated Data

In this section, we want to plot aggregated data vs aggregated random populations..

Step 1: Data Aggregation

Since our data set contains only individual data, we will aggregate the data as a first step. Adjust your data import in this way:

To learn more about the aggregation possibilities, check the help of the function aggregateObservedDataGroups.

dataObserved <- readObservedDataByDictionary(projectConfiguration = projectConfiguration)

# add aggregated  groups of data
dataObserved <- rbind(dataObserved,
  aggregateObservedDataGroups(
    dataObserved = dataObserved,
    groups = c("1234_iv", "1234_po")
  ),
  fill = TRUE
)
# For the manually added groups, the configuration sheet in Plot.xlsx has to be updated
updateDataGroupId(projectConfiguration, dataObserved)

Step 2: Edit Population Configuration

Open the sheet Demographics in the Populations.xlsx.

In the example below, the population ‘adults’ is defined. As ontogeny, “CYP3A4” and “UGT1A4” are added.

PopulationName	species	population	numberOfIndividuals	proportionOfFemales	weightMin	weightMax	weightUnit	heightMin	heightMax	heightUnit	ageMin	ageMax	BMIMin	BMIMax	BMIUnit	Protein Ontogenies
random_population	Human	European_ICRP_2002	100	50	NA	NA	kg	NA	NA	cm	20	40	NA	NA	kg/m²	CYP3A4:CYP3A4, UGT1A4:UGT1A4

Step 3: Export Population

Go to the Export populations section of the workflow and uncomment lines to export random populations:

exportRandomPopulations(
  projectConfiguration = projectConfiguration,
  populationNames = NULL,
  overwrite = FALSE
)

This will create a population based on the configuration table from the previous section. It is saved as a CSV file in Models/Poulations.

Step 4: Set Up and Run Scenario

Add two more scenarios to the Scenarios sheet:

Scenario_name	IndividualId	PopulationId	ReadPopulationFromCSV	ModelFile	ModelParameterSheets	ApplicationProtocol	SimulationTime	SimulationTimeUnit	SteadyState	SteadyStateTime	SteadyStateTimeUnit	OutputPathsIds
one_individual	I123413		NA	iv_1_mg_5_min.pkml	NA	NA	NA	NA	NA	NA	NA
virtual_twin_population		study_1234_population	1	iv_1_mg_5_min.pkml	NA	NA	NA	NA	NA	NA	NA
random_population_iv		random_population	1	po_3_mg_solution.pkml	NA	NA	NA	NA	NA	NA	NA
random_population_po		random_population	1	iv_1_mg_5_min.pkml	NA	NA	NA	NA	NA	NA	NA

Reload all scenarios

scenarioList <-
  createScenarios.wrapped(
    projectConfiguration = projectConfiguration,
    scenarioNames = NULL
  )

scenarioResults <- runAndSaveScenarios(
  projectConfiguration = projectConfiguration,
  scenarioList = scenarioList,
  simulationRunOptions = ospsuite::SimulationRunOptions$new(
    numberOfCores = NULL,
    checkForNegativeValues = NULL,
    showProgress = TRUE
  )
)

Step 5: Configure and Generate Plots

We will add the new scenarios to the plot configuration table using the helper function addDefaultConfigForTimeProfilePlots.

Then we open the configuration table and adjust the plot configurations.

In this example, we want both scenarios in one plot:

• Update the PlotName for both newly added scenarios to ‘random_population’.
• As DataGroupIds, we can now use the groups added in Step 1: Data Aggregation.

Do not forget to edit the columns TimeRange_firstApplication, TimeRange_lastApplication, and add longNames in the sheet Scenario.

Add subsections.

Level	Header	PlotName	Scenario	DataGroupIds	OutputPathIds	IndividualIds	ScenarioName	plotCaptionAddon	TimeUnit	TimeOffset	ReferenceScenario	TimeOffset_Reference	ColorLegend	TimeRange_total	TimeRange_firstApplication	TimeRange_lastApplication	yScale	SplitPlotsPerTimeRange	nFacetColumns	FacetScale	Plot_TimeProfiles	ylimit_linear	ylimit_log	Plot_PredictedVsObserved	FoldDistance_PvO	Plot_ResidualsAsHistogram	Plot_ResidualsVsTime	Plot_ResidualsVsObserved	Plot_QQ
2	Adding Random Populations and use of aggregated data									NA		NA			NA	NA		NA	NA		NA	NA	NA	NA	NA	NA	NA	NA	NA
NA		random_population	random_population_iv	1234_iv_aggregated	Plasma, CYP3A4total, CYP3A4Liver				h	0		0		total	NA	NA	linear, log	1	3	fixed	1	NA	NA	0	NA	0	0	0	0
NA		random_population	random_population_po	1234_po_aggregated	Plasma, CYP3A4total, CYP3A4Liver				h	0		0		total	NA	NA	linear, log	1	3	fixed	1	NA	NA	0	NA	0	0	0	0

Execute the runPlot call again to generate the plots..

plotList <- runPlot(
  nameOfplotFunction = "plotTimeProfiles",
  projectConfiguration = projectConfiguration,
  configTableSheet = "TimeProfiles",
  plotNames = c("random_population"),
  inputs = list(
    dataObserved = dataObserved,
    scenarioResults = scenarioResults
  )
)

Below the logarithmic time-profile is displayed. See the Word document for the other plots.

print(plotList[["random_population-TP-log-total"]])

print(attr(plotList[["random_population-TP-log-total"]], "caption"))

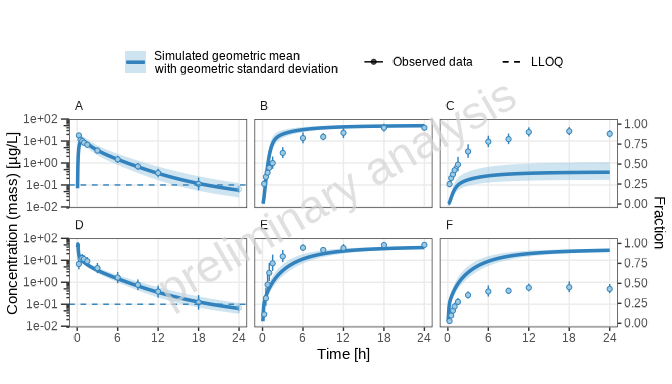

[1] “Concentration-time profiles for drugX plasma concentration (A, D), drugX metabolized by CYP3A4 (B, E) and drugX metabolized by CYP3A4 in liver (C, F) for simulation of an 1mg iv application for an adult population (A, B, C) and simulation of an 5mg oral application for an adult population (D, E, F) on a logarithmic y-scale.”

4) Adding Reference Populations

In this section, we will compare a scenario to a reference scenario. We select as the base scenario the adults_po and as a reference the adults_iv and compare the metabolization rates.

Step 1: Configure and Generate Plots

• Copy the line with the adults_po scenario and adjust plotName.
• Set as ReferenceScenario adults_iv.
• Add the legend labels for the two populations in the columns ColorLegend.
• Use the columns ScenarioName for a common name for both scenarios (it will overwrite the default LongName saved in the sheet Scenarios).

Do not forget to edit the columns DataGroupIds, PlotCaptionAddon, TimeRange_firstApplication, and TimeRange_lastApplication.

Add subsections.

Level	Header	PlotName	Scenario	DataGroupIds	OutputPathIds	IndividualIds	ScenarioName	plotCaptionAddon	TimeUnit	TimeOffset	ReferenceScenario	TimeOffset_Reference	ColorLegend	TimeRange_total	TimeRange_firstApplication	TimeRange_lastApplication	TimeRange_h0_6	TimeRange_h6_24	yScale	SplitPlotsPerTimeRange	nFacetColumns	FacetScale	Plot_TimeProfiles	ylimit_linear	ylimit_log	Plot_PredictedVsObserved	FoldDistance_PvO	Plot_ResidualsAsHistogram	Plot_ResidualsVsTime	Plot_ResidualsVsObserved	Plot_QQ
2	Adding Reference Populations									NA		NA			NA	NA				NA	NA		NA	NA	NA	NA	NA	NA	NA	NA	NA
NA		reference	random_population_po	1234_po_aggregated	Plasma, CYP3A4total, CYP3A4Liver		simulation of a 5mg oral administration vs 1mg iv simulation		h	0	random_population_iv	0	5mg oral administration|1mg iv simulation	total	NA	NA			linear, log	1	3	fixed	1	NA	NA	0	NA	0	0	0	0

Create the figures as before. If you want to adjust the colors, use the input variable referenceScaleVector using the labels from the column colorLegend in the config table.

plotList <- runPlot(
  nameOfplotFunction = "plotTimeProfiles",
  projectConfiguration = projectConfiguration,
  configTableSheet = "TimeProfiles",
  plotNames = c("reference"),
  inputs = list(
    dataObserved = dataObserved,
    scenarioResults = scenarioResults,
    referenceScaleVector = list("1mg iv simulation" = "grey")
  )
)

Below the logarithmic time-profile is displayed. See the Word document for the other plot.

print(plotList[["reference-TP-log-total"]])

print(attr(plotList[["reference-TP-log-total"]], "caption"))

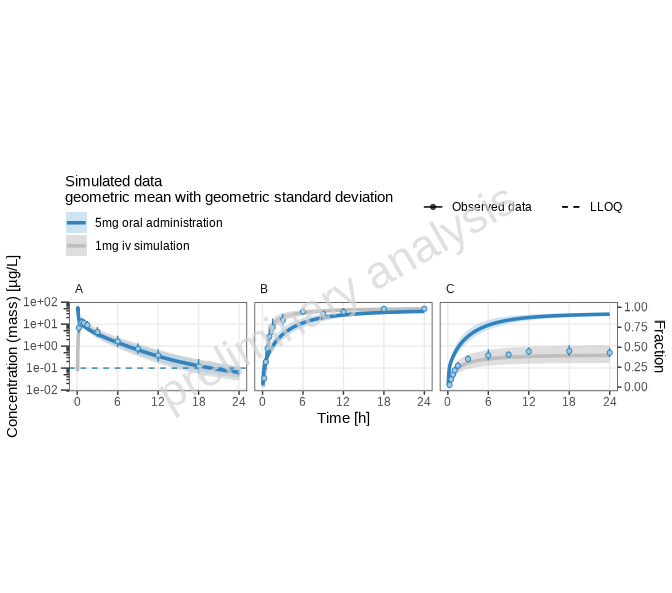

[1] “Concentration-time profiles for drugX plasma concentration (A), drugX metabolized by CYP3A4 (B) and drugX metabolized by CYP3A4 in liver (C) for simulation of a 5mg oral administration vs 1mg iv simulation on a logarithmic y-scale.”

5) Adding Plots with different Time Ranges

5) Adding Plots with Different Time Ranges

Visualizing pharmacokinetic data across various time ranges can reveal different aspects of drug behavior. A typical example would be to show the first and last application in a multi-dosing simulation. As we have only a single dose in our example, we show the principle by splitting the time range into two slots: 0 - 6 hours and 6 to 24 hours.

Step 1: Configure Time Ranges

In your plot configuration Excel file, in the sheet TimeRange, specify different time ranges for which you’d like to generate plots. This might involve adding new rows or adjusting existing settings in the Plot.xlsx file.

The TimeRange has the columns:

• Tag: identifier corresponds to the columns in the plot configuration sheet beginning with TimeRange_.
• CaptionText: Text added to the plot caption.
• TimeLabel: Label of the x-axis.
• TimeShift: An offset used to shift the time axis. If you want to display time after the last dose, your timeshift would be the time of the last dosing. (This is set for the tags firstApplication and lastApplication if Timeshift is empty).

In the example below, a new row for the range between 0 and 6 hours and a row for the range between 6 and 24 hours have been added.

Tag	CaptionText	TimeLabel	TimeShift
total		Time	0
firstApplication	Zoom on the first dose	Time	NA
lastApplication	Zoom on steady state dose	Time after dose	NA
h0_6	Zoom on first 6 hours	Time	0
h6_24	Zoom on time range 6 to 24 hours	Time after dose	0

Step 2: Configure and Generate Plots

Open the plot configuration table and adjust the plot configurations.

• Copy the plot line for the one_individual plot name to the end of the table and adjust PlotName for this line.
• Add new columns TimeRange_h0_6 and TimeRange_h6_24 for the newly created time ranges.
• Set the TimeRange_h0_6 column to c(0, 6) and the TimeRange_h6_24 column to c(6, 24).
• Set the TimeRange_total column to ''.

This configuration will produce one plot for each of the newly created time ranges.

We add another example where we display the time ranges in one plot:

• Copy the previous plot line and adjust the PlotName.
• Set the column SplitPlotsPerTimeRange to FALSE (0).
• Set the column nFacetColumns to 2. This way, in the final plot, we will have two columns for time ranges and three rows for outputs.
• Set the column FacetScale to free_x. All plots will have the same y-axis but different x-axes.

Level	Header	PlotName	Scenario	DataGroupIds	OutputPathIds	IndividualIds	ScenarioName	plotCaptionAddon	TimeUnit	TimeOffset	ReferenceScenario	TimeOffset_Reference	ColorLegend	TimeRange_total	TimeRange_firstApplication	TimeRange_lastApplication	TimeRange_h0_6	TimeRange_h6_24	yScale	SplitPlotsPerTimeRange	nFacetColumns	FacetScale	Plot_TimeProfiles	ylimit_linear	ylimit_log	Plot_PredictedVsObserved	FoldDistance_PvO	Plot_ResidualsAsHistogram	Plot_ResidualsVsTime	Plot_ResidualsVsObserved	Plot_QQ
2	Adding Plots with different Time Ranges									NA		NA			NA	NA				NA	NA		NA	NA	NA	NA	NA	NA	NA	NA	NA
NA		timeranges	one_individual	1234_iv	Plasma, CYP3A4total, CYP3A4Liver	I123413		DrugX was administered as a 1mg Iv application with an infusion time of 5 minutes.	h	0		0			NA	NA	c(0,6)	c(6,24)	linear, log	1	3	fixed	1	NA	NA	0	NA	0	0	0	0
NA		timeranges-split	one_individual	1234_iv	Plasma, CYP3A4total, CYP3A4Liver	I123413		DrugX was administered as a 1mg Iv application with an infusion time of 5 minutes.	h	0		0			NA	NA	c(0,6)	c(6,24)	linear, log	0	2	free_x	1	NA	NA	0	NA	0	0	0	0

Execute the runPlot call again to generate the plots. The variable plotList contains all generated plots. In the example below, the input argument xscale.args = c(NA, NA) is added. This argument is passed to the function ospsuite.plots::plotTimeprofile and overwrites the default time-profile x-limits, which is c(0, NA).

plotList <- runPlot(
  nameOfplotFunction = "plotTimeProfiles",
  projectConfiguration = projectConfiguration,
  configTableSheet = "TimeProfiles",
  plotNames = c("timeranges", "timeranges-split"),
  inputs = list(
    dataObserved = dataObserved,
    scenarioResults = scenarioResults,
    xscale.args = list(limits = c(NA, NA))
  )
)

Below the logarithmic time-profile for the plot that combines the time profiles is displayed. See the Word document for the other plots.

print(plotList[["timeranges-split-TP-log-allTimeRanges"]])

print(attr(plotList[["timeranges-split-TP-log-allTimeRanges"]], "caption"))

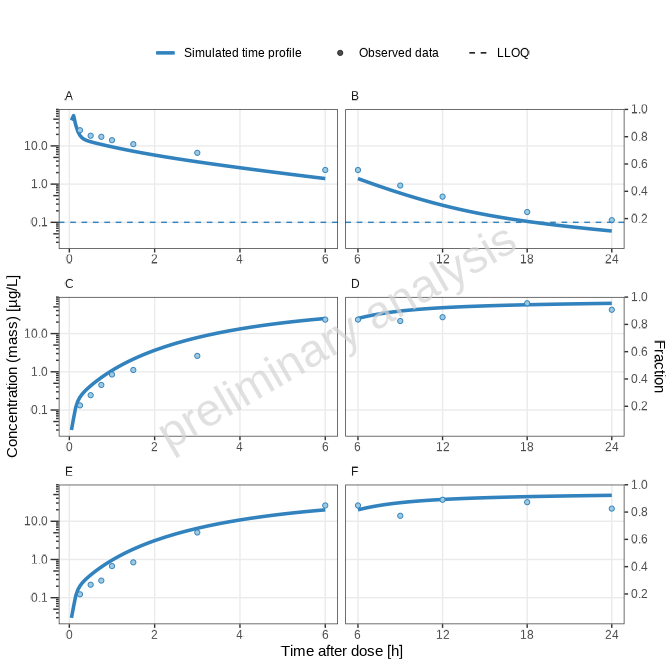

[1] “Concentration-time profiles for drugX plasma concentration (A, B), drugX metabolized by CYP3A4 (C, D) and drugX metabolized by CYP3A4 in liver (E, F) for simulation of an 1mg iv application for individual id 13 study 1234 on a logarithmic y-scale. Zoom on first 6 hours (A, C, E) and Zoom on time range 6 to 24 hours (B, D, F). DrugX was administered as a 1mg Iv application with an infusion time of 5 minutes.”

6) Report creation

In this section, we create a report containing all plots previously defined.

When plotNames is not set, the plots are exported.

runPlot(
  nameOfplotFunction = "plotTimeProfiles",
  projectConfiguration = projectConfiguration,
  configTableSheet = "TimeProfiles",
  inputs = list(
    dataObserved = dataObserved,
    scenarioResults = scenarioResults,
    referenceScaleVector = list("1mg iv simulation" = "grey"),
    xscale.args = list(limits = c(NA, NA))
  )
)

The first step in report creation is to merge all available markdown files. As we have only created the Time Profile plots, we will edit the workflow accordingly. The resulting appendix.Rmd is rendered to a Word document.

mergeRmds(
  projectConfiguration = projectConfiguration,
  newName = "TutorialPlots",
  title = "Plots generated by tutorial",
  sourceRmds = c("TimeProfiles")
)

renderWord(fileName = file.path(projectConfiguration$outputFolder, "TutorialPlots.Rmd"))

Conclusion

We are now at the end of the tutorial.

You have learned how to generate time profile plots using the ospsuite.reportingframework package.

We encourage you to experiment further with the ospsuite.reportingframework package and explore its extensive capabilities. Happy plotting!
