Overview

This vignette provides a detailed guide to the data import process within the OSPSuite Reporting Framework package. The key aspects of the data import functionality are as follows:

  • Data Types: The package supports importing both observed time profiles and pharmacokinetic (PK) parameters, which can be processed as either aggregated or individual datasets.

  • File Format: Source files must be formatted as CSV tables.

  • Import Function: The primary function used for data import is readObservedDataByDictionary.

  • Configuration File: Data import configuration is managed through the “DataImportConfiguration.xlsx” file, which consists of:

    • A DataFiles sheet listing all files to be imported.
    • Dictionary sheets that outline the import specifications and rules.

  • Output: The import process generates two data.tables:

    • dataObserved: Contains time profile data.
    • dataObservedPK: Contains PK parameter data.

  • Data Transfer: The import function also facilitates the transfer of additional data to other configuration sheets:

    • It populates the IndividualBiometrics sheet in Individuals.xlsx with all available data.
    • It creates a new sheet, VirtualTwinPopulation, in Individuals.xlsx that includes individual data suitable for generating a virtual twin population (refer to the Population vignette for more details).
    • It appends the output identifier and data group identifier, along with all available data, to the corresponding sheets in Plot.xlsx and Scenario.xlsx.

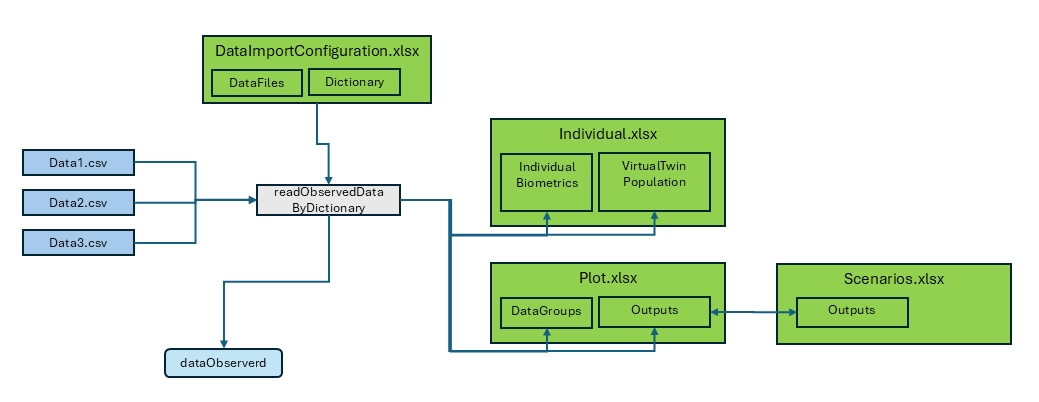

Overview of Data Import
Overview of Data Import

Using the readObservedDataByDictionary Function

The readObservedDataByDictionary function plays a pivotal role in the data import process within our package. It is designed to read and process observed data based on the provided project configuration and the data dictionary defined in an Excel template. Here’s how to use the function and fill the Excel table for effective data import:

  1. Provide Project Configuration: The function requires the project configuration data to be passed as an argument. This configuration should include the necessary information for data import, such as the data importer configuration file and project configuration directory path.

  2. Data Importer Configuration File: Ensure that the Excel template containing the data dictionary and data file information is available and accessible to the function. The data dictionary in the Excel template defines the mapping and conversion rules for the observed data.

  3. Invoke the Function: Call the readObservedDataByDictionary function, passing the project configuration as an argument. The function will read the data files and process the observed data based on the provided dictionary and configuration. It will return the observed data as a data.table, ready for further analysis.

# Call the readObservedDataByDictionary function
observedData <- readObservedDataByDictionary(projectConfiguration)

Filling the Excel Table

To effectively fill the Excel table for use with the readObservedDataByDictionary function, follow these guidelines:

DataFiles Sheet:

In the “DataFiles” sheet of the Excel template, provide the following information:

  • FileIdentifier : An identifier that can be used for filtering the file.
  • DataFile: The path of the CSV file relative to the configuration Excel.
  • Dictionary: The sheet name for the data dictionary.
  • DataFilter: An R executable expression that filters relevant data for the study. If empty, no filter is applied.
  • DataClass: Differentiate between time profiles and PK parameters, as well as aggregated and individual data.

Example

In the example below, we want to read data from three source files. “data1” and “data2” have the same format and use the same dictionary for the import, while “data3” uses the dictionary “tpDictionaryAggregated”. All used dictionaries must be part of the “DataImportConfiguration.xlsx.”

For data1, we need all rows; for the other two files, we have defined filters. In data2, we want to exclude all flagged with PKFLAG > 0, and in data3, we want to exclude data from study 1234.

FileIdentifier DataFile Dictionary DataFilter DataClass
data1 relative/path/to/data1.csv tpDictionary tp Individual
data2 relative/path/to/data2.csv tpDictionary PKValue == 1 tp Individual
data3 relative/path/to/data3.csv tpDictionaryAggregated STUD != 1234 tp Aggregated

The first line of the sheet is not shown above; it contains descriptions for the columns. The information for the data import starts at line 2.

“tpDictionary” Sheet:

The configuration sheet provides two templates for dictionaries: “tpDictionary” and “pkDictionary”. They have the following columns:

  • targetColumn: Internal column name of the package.

  • type: Type of parameter used by the package. The following types exist:

    • identifier:

      • studyId: ID of the study.
      • studyArm: Study arm.
      • subjectId: ID of the subject within the study (not needed for aggregated data).
      • individualId: Unique individual ID across all studies (not needed for aggregated data).
      • group: Identifier for the data group, unique across all studies and data classes.
      • outputPathId: Identifier for the output.

    • timeprofile (columns used to process time profiles): The columns xValues, yValues, yUnit, and lloq are always mandatory. For aggregated data, the columns yErrorValues, yErrorType, yMin, yMax, numberOfIndividuals, and nBelowLLOQ are also available.

      • time: Time values (unit specified in dictionary).
      • yValues: Data value.
      • yUnit: Unit of data value (also valid for all corresponding columns like lloq, yErrorValues).
      • lloq: Lower limit for quantification. For values below lloq, set yValues to lloq/2; if not available, set to NA.
      • yErrorType: Type of aggregation range. There are two defaults for yErrorType:
        • ArithmeticStdDev: Interprets yValues as mean and yErrorValues as standard deviation.
        • GeometricStdDev: Interprets yValues as geometric mean and yErrorValues as geometric standard deviation.
        For the defaults, the legend is automatically generated, and yMin and yMax are ignored. For non-defaults, yErrorType is interpreted as legend; it should contain the description of the mean and the range, separated by a “|”. yErrorValues are ignored, and yMin and yMax are used. This can be used for median and percentiles.
      • yErrorValues: Value of aggregation range.
      • yMin: Lower range of aggregation range.
      • yMax: Upper range of aggregation range.
      • nBelowLLOQ: Number of values below lloq.
      • numberOfIndividuals: Number of values.

    • pkParameter (columns used to process PK parameters): The columns values and Unit are always mandatory. For aggregated data, the columns errorValues, errorType, minValue, maxValue, and numberOfIndividuals are also available.

      • values: Data value.
      • unit: Unit of data value (also valid for all corresponding columns like errorValues).
      • errorType: Type of aggregation range. The same defaults exist as for yErrorType of time profiles.
      • errorValues: Value of aggregation range.
      • minValue: Lower range of aggregation range.
      • maxValue: Upper range of aggregation range.
      • nBelowLLOQ: Number of values below lloq.

    • biometrics: Columns used to create individuals; can also be used for covariate analysis. All columns are optional. The values are transferred to the ‘Individual.xlsx’ for further use. Available columns are:

      • age: Age.
      • weight: Body weight.
      • height: Body height.
      • gender: Gender data should be coded as characters “Male” or “Female” (case insensitive) or numeric coding (1 = male, 2 = female).
      • population: Population. Ensure to translate to one of the available PK-Sim populations (see ospsuite::HumanPopulation).

    • covariate: Columns used for covariate analysis. This is the only column type where the name of the target column can be freely assigned by the user. Covariates are optional rows.

    • metadata: Columns used to add information in the DataGroup sheet in the plot configuration table. The information is used to generate the data import for PK-Sim.

  • sourceColumn: Name of the column in the source CSV.

  • sourceUnit: Unit of the column in the source CSV.

  • filter: An R executable expression that filters the source rows. Filters are executed in the order of this table.

  • filterValue: An R executable expression to set a value for the filtered rows.

By filling out the Excel table with the required information, you can ensure that the readObservedDataByDictionary function can effectively read and process the observed data based on the provided data dictionary and configuration.

!!! ATTENTION: Do not use single quotes (’ ’) to capture strings. At the beginning of an Excel cell, single quotes will be ignored. Use double quotes (” “).

Example

This sheet is used for individual data.

The individualId is constructed as a concatenation of study ID and individual ID. As we want to do this for all rows, the filter is set to TRUE, and the R expression that performs the concatenation is placed in the column filterValue.

The dictionary contains two rows for the target column population. For the first entry, all data rows where the source column RACENAME is “White” are set to “European_ICRP_2002”, while for the second entry, individuals identified as “Asian” are set to “Asian_Tanaka_1996”.

Values defined by filters are set sequentially in the order of the dictionary, so if a data row is selected by different filter conditions, the filter value at the bottom will define the final value.

The data contains the covariate country in the column “COUNTRY”. Additionally, the metadata dose is available.

TargetColumn Type SourceColumn SourceUnit Filter FilterValue Description
studyId identifier STUD character, study ID
studyArm metadata GRPNAME character, unique over study, typically study arm
subjectId identifier SID character, subject ID
individualId identifier TRUE paste0(“I”,STUD,SID) character, unique over all studies, ignored by aggregated Data
group identifier TRUE paste(STUD, GRPNAME, “individual”, sep = “_“) Must be unique over studies and dataclasses
outputPathId identifier MOLECULE character, output ID
xValues timeprofile TIME h Time (0 = start of simulation in PK-Sim/Mobi)
yValues timeprofile DV Units is coded in column “dvUnit”
yUnit timeprofile DVUNIT character, dv Unit must be valid PK-Sim unit
lloq timeprofile LLOQ for values below lloq set dv to lloq/2, if not available set to NA
age biometrics AGE year(s) optional, please provide source unit
weight biometrics WGHT0 kg optional, please provide source unit
height biometrics HGHT0 cm optional, please provide source unit
gender biometrics SEX Use characters Male Female (case insensitive) or numeric coding 1=male 2= female
population biometrics RACENAME == “White” “European_ICRP_2002” character, PK Sim population name (get available list by calling ospsuite::HumanPopulation)
population biometrics RACENAME == “Asian” “Asian_Tanaka_1996” character, PK Sim population name (get available list by calling ospsuite::HumanPopulation)
species biometrics TRUE “Human” character, PK-Sim Species name (ospsuite::Species)
country covariate COUNTRY example for covariate, please delete if not used
dose metadata DOSE NA meta data used for PK-Sim import, if not available, delete row or set all values to NA
molecule metadata TRUE meta data used for PK-Sim import, if not available, delete row or set all values to NA
organ metadata TRUE meta data used for PK-Sim import, if not available, delete row or set all values to NA
compartment metadata TRUE meta data used for PK-Sim import, if not available, delete row or set all values to NA

Other Data Formats

The plot functions in the package workflow for time profile plots accept observed data in two formats: the data.table format generated by the readObservedDataByDictionary function and the DataCombined class format from the ospsuite-R package.

The package also provides two functions to convert the data.table format to DataCombined and vice versa:

# Convert DataCombined back to data.table format
dataDT <- convertDataCombinedToDataTable(dataCombined)

# Convert data.table to DataCombined format
dataCombined <- convertDataTableToDataCombined(observedData)

```
