P-gp DDI Qualification

Version 1.2-OSP12.3
Qualification Plan Release https://github.com/Open-Systems-Pharmacology/Qualification-DDI-P-gp/releases/tag/v1.2
OSP Version 12.3
Qualification Framework Version 3.6

This qualification report is filed at:

https://github.com/Open-Systems-Pharmacology/OSP-Qualification-Reports

Table of Contents

1 Introduction

1.1 Objective

This qualification report evaluates for the PBPK platform PK-Sim (as part of the open systems pharmacology (OSP) suite) the ability to perform simulations with the intended purpose to predict Permeability-glycoprotein (P-gp)-mediated drug-drug interactions (DDI).

To demonstrate the level of confidence, the predictive performance of the platform for this indented purpose is assessed via a network of PBPK models of selected P-gp DDI perpetrators, and a respective sensitive P-gp victim drug (digoxin) and a comprehensive dataset from published clinical DDI studies. All PBPK models represent whole-body PBPK models, which allow dynamic DDI simulations in organs expressing P-gp.

The respective qualification plan to produce this qualification report is transparently provided open-source (https://github.com/Open-Systems-Pharmacology/Qualification-DDI-P-gp). The same applies for all presented PBPK models including evaluation reports on model building and evaluation of each model (https://github.com/Open-Systems-Pharmacology/OSP-PBPK-Model-Library).

Evaluation reports including descriptions on model building and detailed evaluations of the included models are documented separately (see Section 1.2).

Please refer to the Appendix to learn more details:

  • An overview over the Open Systems Pharmacology Suite is given in chapter Section 5.1

  • Section 5.2 shows the implementation of the underlying mathematical equations for drug-drug interactions in the OSP suite.

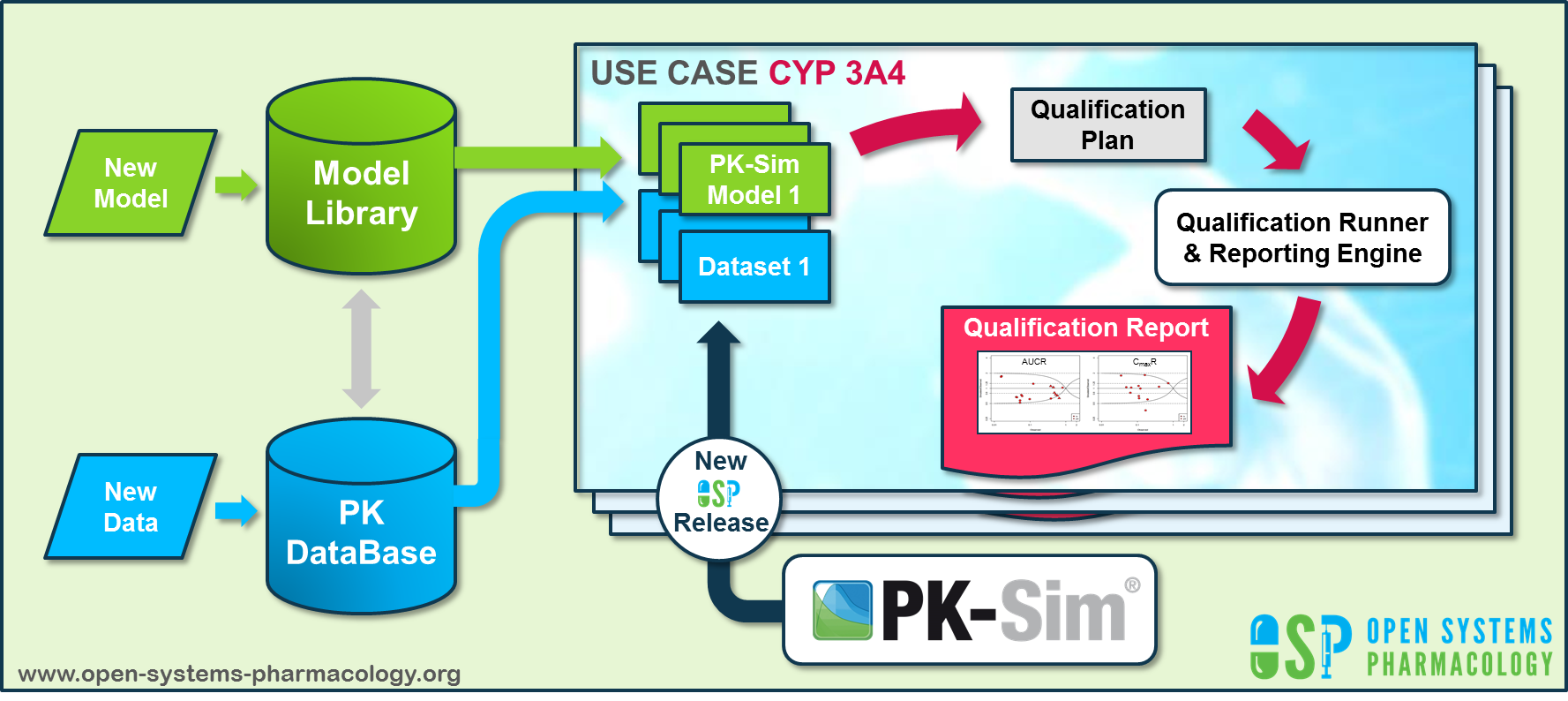

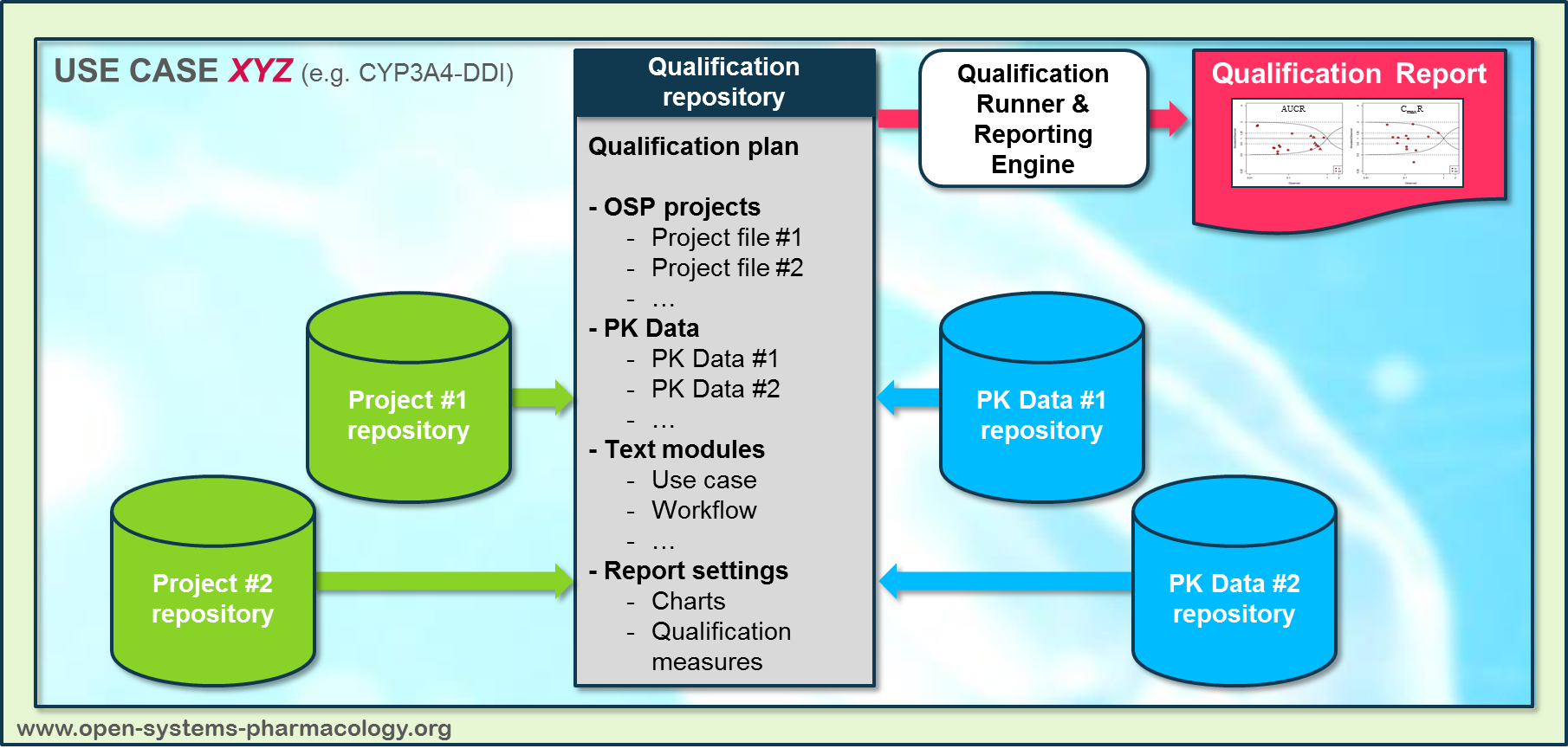

  • A detailed general description of the performed qualification workflow (qualification plan, qualification report, etc.) can be found in chapter Section 5.3.

1.2 Pgp DDI Network

To qualify the OSP suite for the prediction of the P-gp DDI potential of new drugs, a set of verified PBPK models of perpetrators, and respective P-gp DDI victim drugs is specified to set up a P-gp-mediated DDI modeling network.

The following perpetrator compounds were selected:

The following sensitive P-gp substrates as victim drugs were selected:

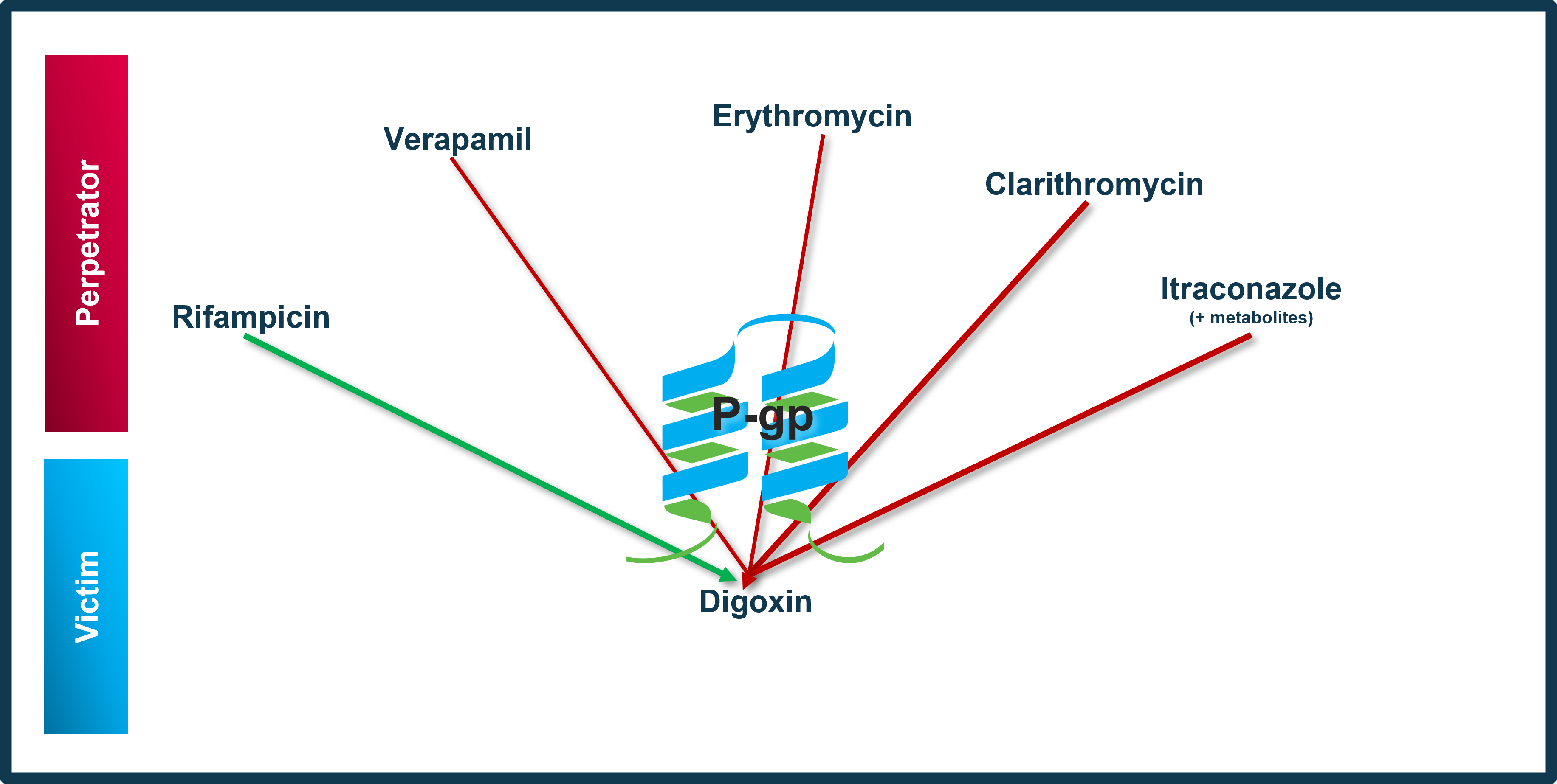

Figure 1 shows the prespecified and developed DDI modeling network of interacting perpetrator and victim drugs for the OSP suite qualification of predicting P-gp-mediated DDI.

Figure 1: P-gp DDI modeling network

DDI P-gp network

The arrows indicate where at least one clinical DDI study between the two connected substances was available and included in the model network. Red indicates inhibition and green indicates induction as the primary type of interaction. Thin arrows indicate weak, mid-thick arrows moderate and thick arrows strong P-gp modulation by the perpetrator.

The published DDI studies between the respective perpetrators and victim drugs were simulated and compared to observed data. The following sections give an overview of the clinical studies being part of this qualification report. The respective data identifier (DataID) refers to the ID of the dataset in the OSP PK database, version 1.7 (https://github.com/Open-Systems-Pharmacology/Database-for-observed-data/releases/tag/v1.7).

1.2.1 Clarithromycin - Digoxin DDI

The release of the snapshot containing the respective simulations can be found here: https://github.com/Open-Systems-Pharmacology/Clarithromycin-Digoxin-DDI/releases/tag/v1.0

The Clarithromycin / digoxin interaction was evaluated using 6 clinical DDI studies including 21 different clinical settings (Gurley 2006, Gurley 2007, Gurley 2008b, Kurata 2002, Rengelshausen 2003, Tsutsumi 2002).

DataID Enzyme Perpetrator / victim Study design Comment Clinical study
16324 P-gp Clarithromycin / digoxin Clarithromycin: 500 mg po twice daily (14 doses)

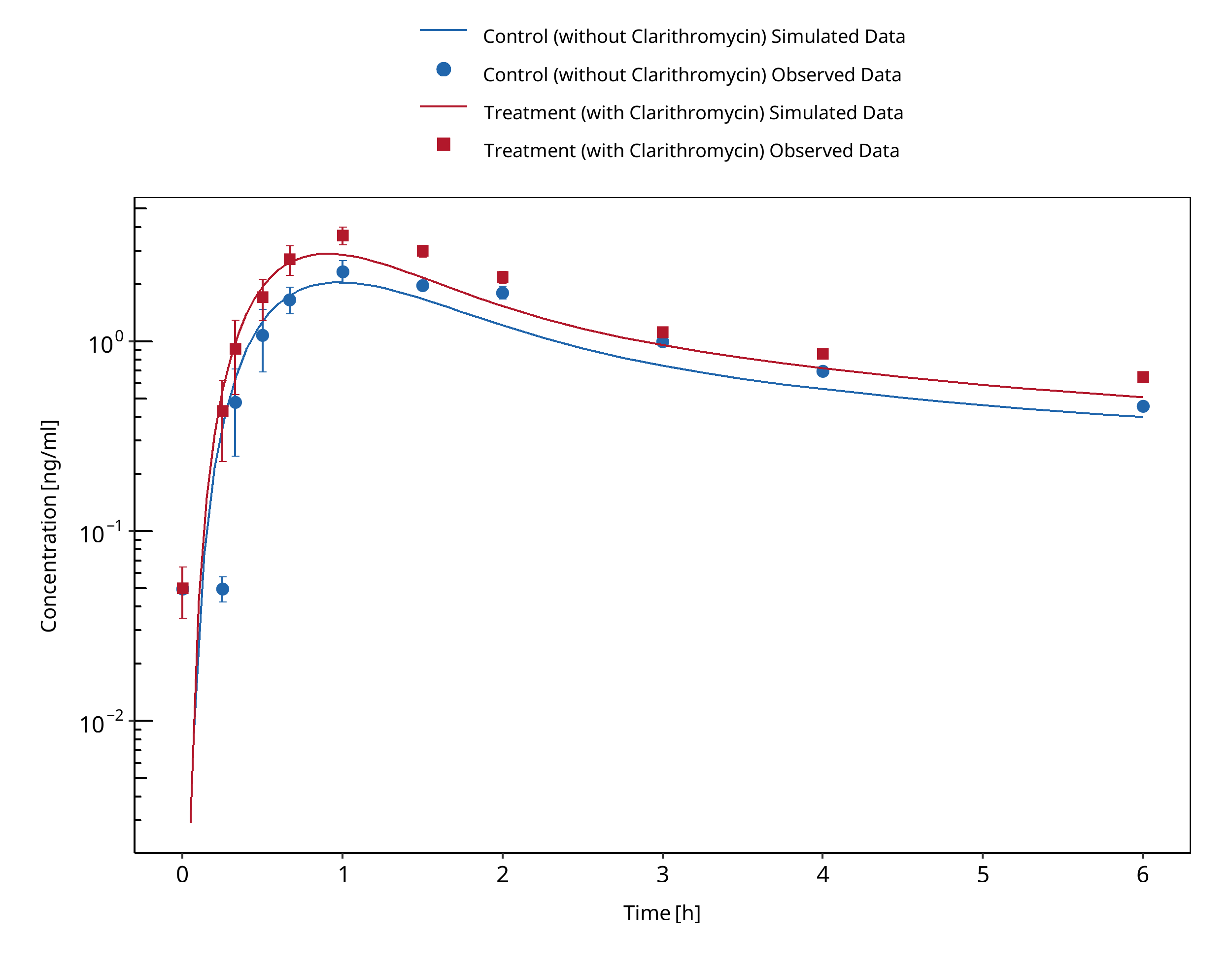

Digoxin: 0.4 mg po single dose, simultaneous with 12th clarithromycin dose		 Gurley 2006
16328 P-gp Clarithromycin / digoxin Clarithromycin: 500 mg po twice daily (14 doses)
Digoxin: 0.5 mg po single dose, simultaneous with 12th clarithromycin dose		 Gurley 2007
229 P-gp Clarithromycin / digoxin Clarithromycin: 500 mg po twice daily (14 doses)
Digoxin: 0.25 mg po single dose, 2 hours after 12th clarithromycin dose		 Gurley 2008b
16305 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg po single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
16307 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg iv single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
16309 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg po single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
16311 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg iv single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
16313 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg po single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
16315 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg iv single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
16333 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg po single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
16334 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg iv single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
16335 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg po single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
16336 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg iv single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
16337 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg po single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
16338 P-gp Clarithromycin / digoxin Clarithromycin: 400 mg po twice daily (16 doses)
Digoxin: 0.25 mg iv single dose, simultaneous with 10th clarithromycin dose		 Kurata 2002
3025 P-gp Clarithromycin / digoxin Clarithromycin: 250 mg po twice daily (6 doses)
Digoxin: 0.75 mg po single dose, 0.5 hours after 3rd clarithromycin dose		 Rengelshausen 2003
16409 P-gp Clarithromycin / digoxin Clarithromycin: 250 mg po twice daily (6 doses)
Digoxin: 0.01 mg/kg iv single dose, 2 hours after 3rd clarithromycin dose		 Rengelshausen 2003
16411 P-gp Clarithromycin / digoxin Clarithromycin: 250 mg po twice daily (6 doses)
Digoxin: 0.75 mg po single dose, 0.5 hours after 3rd clarithromycin dose		 Rengelshausen 2003
16413 P-gp Clarithromycin / digoxin Clarithromycin: 250 mg po twice daily (6 doses)
Digoxin: 0.75 mg po single dose, 0.5 hours after 3rd clarithromycin dose		 Rengelshausen 2003
3029 P-gp Clarithromycin / digoxin Clarithromycin: 200 mg po twice daily (10 doses)
Digoxin: 0.5 mg iv single dose, simultaneous with 3rd clarithromycin dose		 Tsutsumi 2002
3032 P-gp Clarithromycin / digoxin Clarithromycin: 200 mg po twice daily (10 doses)
Digoxin: 0.5 mg iv single dose, simultaneous with 3rd clarithromycin dose		 Tsutsumi 2002

1.2.2 Erythromycin - Digoxin DDI

The release of the snapshot containing the respective simulations can be found here: https://github.com/Open-Systems-Pharmacology/Erythromycin-Digoxin-DDI/releases/tag/v1.1

The erythromycin-digoxin interaction was evaluated using one clinical DDI study (Tsutsumi 2002).

DataID Transporter Perpetrator / victim Study design Clinical study
3028 P-gp Erythromycin / digoxin Erythromycin: 200 mg po QID for 5 days

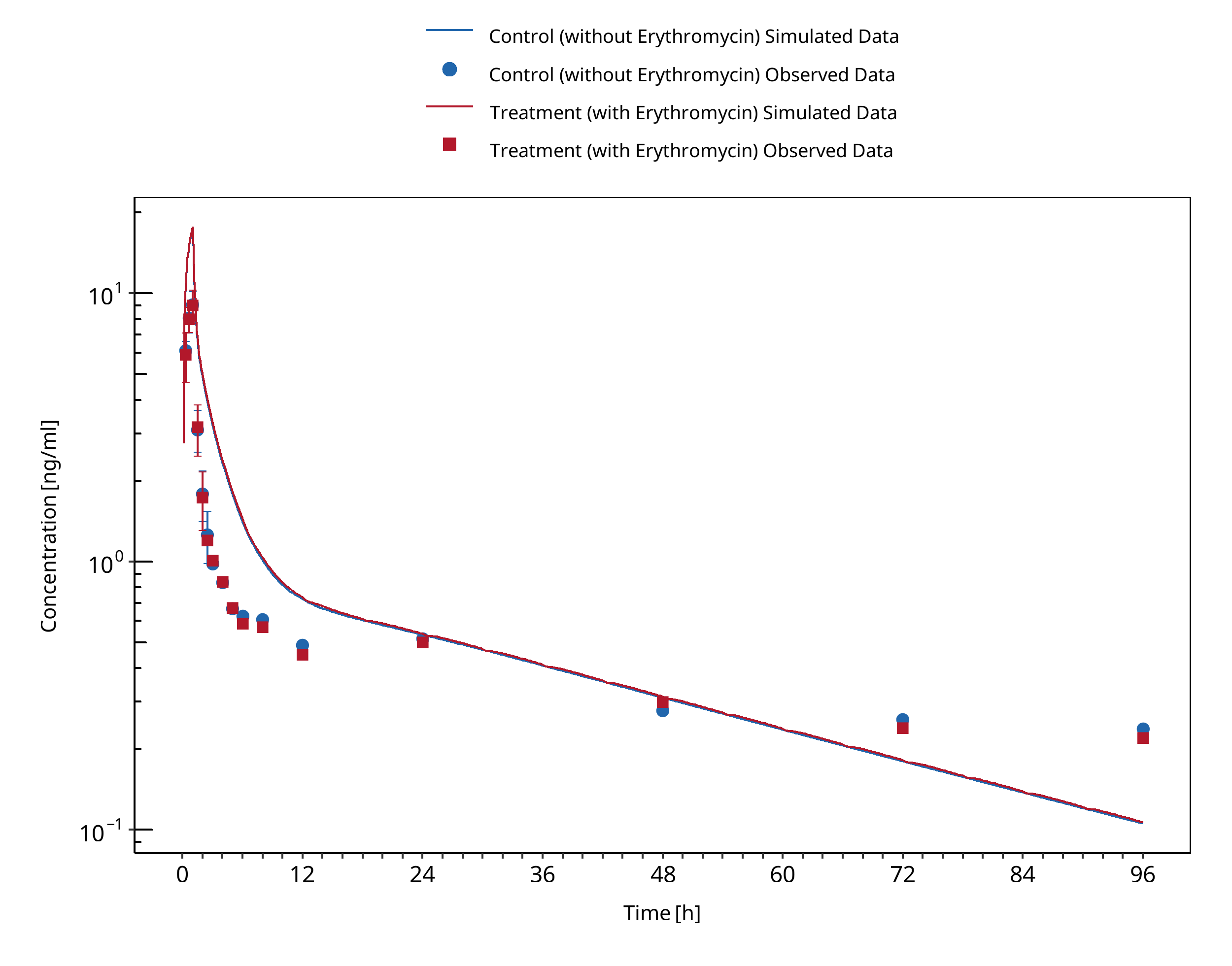

Digoxin: 0.5 mg iv, concomitantly with erythromycin on the 2nd day		 Tsutsumi 2002

1.2.3 Itraconazole - Digoxin DDI

The release of the snapshot containing the respective simulations can be found here: https://github.com/Open-Systems-Pharmacology/Itraconazole-Digoxin-DDI/releases/tag/v1.0

The itraconazole-digoxin interaction was evaluated using 2 clinical DDI studies including 3 different clinical settings (Jalava 1997, Partanen 1995).

DataID Transporter Perpetrator / victim Study design Comment Clinical study
271 P-gp Itraconazole / digoxin Itraconazole: 200 mg po once daily (5 doses)
Digoxin: 0.5 mg po single dose, 1 h after the 3rd itraconazole dose		 Jalava 1997
16329 P-gp Itraconazole / digoxin Itraconazole: 200 mg po once daily (10 doses)
Digoxin: 0.25 mg po once daily (20 doses), 2 hours after 12th itraconazole dose		 Partanen 1995
16330 P-gp Itraconazole / digoxin Itraconazole: 200 mg po once daily (10 doses) starting with the 11th digoxin dose
Digoxin: 0.25 mg po once daily (20 doses), simultaneous with 10th itraconazole dose		 Partanen 1995

1.2.4 Verapamil - Digoxin DDI

The release of the snapshot containing the respective simulations can be found here: https://github.com/Open-Systems-Pharmacology/Verapamil-Digoxin-DDI/releases/tag/v1.1

The verapamil-digoxin interaction was evaluated using a 11 clinical DDI studies including 12 different clinical settings (Belz 1981, Belz 1983, Doering 1983, Johnson 1987, Klein 1982, Pedersen 1981, Pedersen 1982, Pedersen 1983, Rodin 1988, Schwartz 1982, Wiebe 2020).

DataID Transporter Perpetrator / victim Study design Comment Clinical study
16635 P-gp Verapamil / digoxin Verapamil: 80 mg po TID for 14 days
Digoxin: 0.125 mg po TID for 14 days		 Belz 1981
16165 P-gp Verapamil / digoxin Verapamil: 80 mg po TID for 14 days
Digoxin: 0.125 mg po TID for 14 days		 Belz 1983
16167 P-gp Verapamil / digoxin Verapamil: 120 mg po TID for 14 days
Digoxin: 0.125 mg po TID for 14 days		 Belz 1983
16169 P-gp Verapamil / digoxin Verapamil: 80 mg po TID for 14 days
Digoxin: 0.125 mg po TID for 14 days		 Doering 1983
16159 P-gp Verapamil / digoxin Verapamil: 80 mg po BID for 4 days followed by TID for 10 days

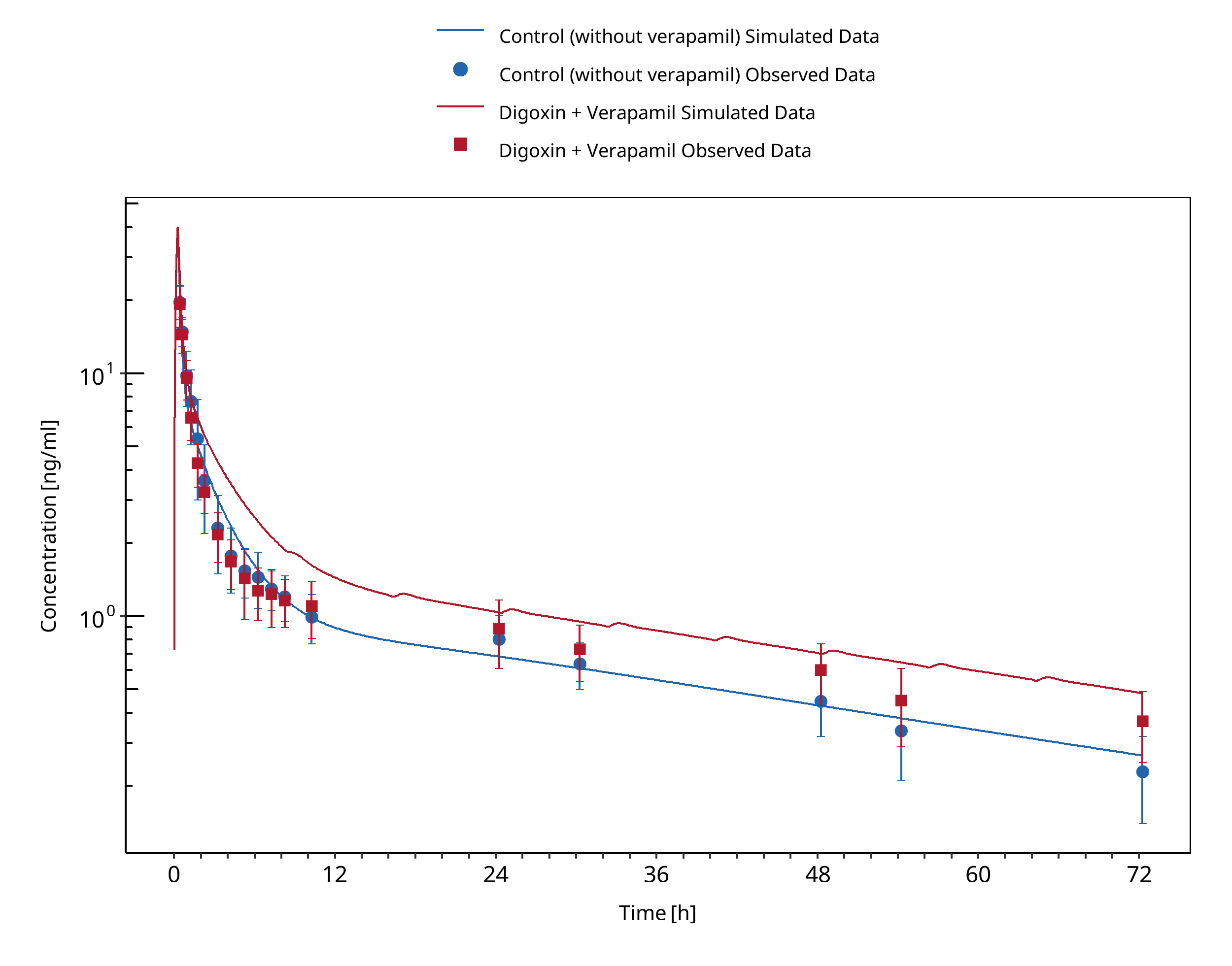

Digoxin: 1.0 mg iv (15 min) on day 13		 Johnson 1987
16174 P-gp Verapamil / digoxin Verapamil: 80 mg po TID for 14 days
Digoxin: 0.25 mg PO OD for 28 days		 Klein 1982
16638 P-gp Verapamil / digoxin Verapamil: 80 mg po TID for 10 days
Digoxin: 0.75 mg IV SD at day 10		 Pedersen 1981
16163 P-gp Verapamil / digoxin Verapamil: 80 mg po TID followed by 120mg TID
Digoxin: initial dose of 1mg PO followed by 0.0625 mg po BID followed by 0.125mg BID		 Pedersen 1982
16162 P-gp Verapamil / digoxin Verapamil: 120 mg po TID for 12 days
Digoxin: 1.0 mg iv (bolus) on day 8		 Pedersen 1983
3063 P-gp Verapamil / digoxin Verapamil: 80mg BID for 4 days followed by 80mg TID for 10 days
Digoxin: 0.25 mg PO BID for 14 days		 Rodin 1988
16175 P-gp Verapamil / digoxin Verapamil: 80 mg po QID for 70 days
Digoxin: 0.46 mg PO OD for 85 days		 Daily dose of digoxin varied between patients between 0.25 and 1 mg/day. 0.46 is the arith. mean of all dose levels. Schwartz 1982
16172 P-gp Verapamil / digoxin Verapamil: 120 mg po SD

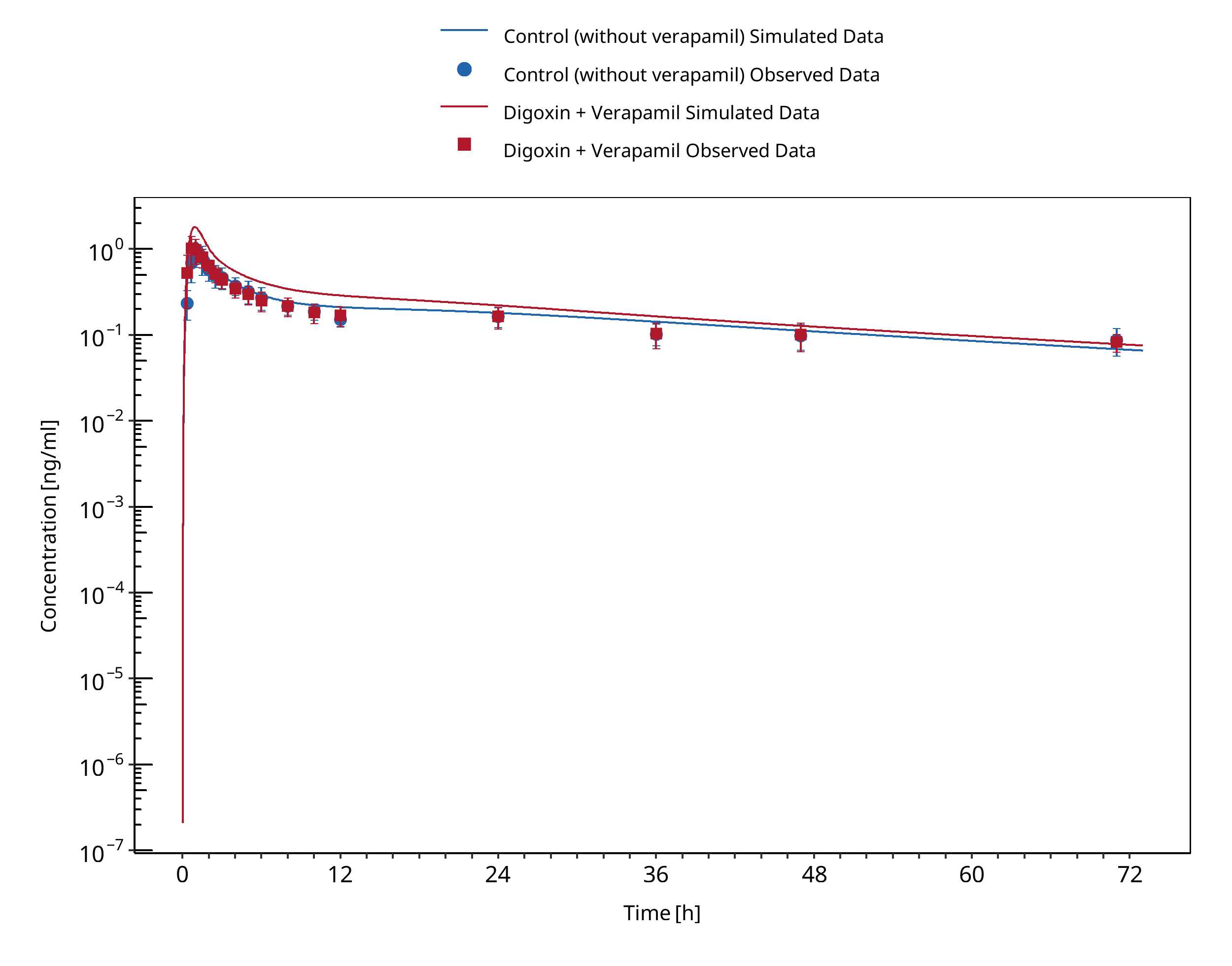

Digoxin: 0.25 mg PO SD 1h after verapamil dosing		 Wiebe 2020

1.2.5 Rifampicin - Digoxin DDI

The release of the snapshot containing the respective simulations can be found here: https://github.com/Open-Systems-Pharmacology/Rifampicin-Digoxin-DDI/releases/tag/v1.0

The rifampicin-digoxin interaction was evaluated using 9 clinical DDI studies including 11 different clinical settings (Drescher 2003, Gurley 2006, Gurley 2007, Gurley 2008b, Greiner 1999, Kirby 2012, Larsen 2007, Reitmann 2011, Wiebe 2020).

DataID Transporter Perpetrator / victim Study design Comment Clinical study
191 P-gp Rifampicin / digoxin Rifampicin: 600 mg po once daily (16 doses)
Digoxin: 1 mg po single dose, simultaneous with 11th rifampicin dose		 Greiner 1999
193 P-gp Rifampicin / digoxin Rifampicin: 600 mg po once daily (16 doses)
Digoxin: 1 mg iv single dose, simultaneous with 11th rifampicin dose		 Greiner 1999
227 P-gp Rifampicin / digoxin Rifampicin: 300 mg po twice daily (16 doses)
Digoxin: 0.25 mg po single dose, 2 hours after 13th rifampicin dose		 Gurley 2008b
314 P-gp Rifampicin / digoxin Rifampicin: 600 mg po once daily (14 doses)
Digoxin: 0.5 mg po single dose, 12 hours after 14th rifampicin dose		 Kirby 2012
316 P-gp Rifampicin / digoxin Rifampicin: 600 mg po once daily (14 doses)
Digoxin: 0.5 mg iv single dose, 12 hours after 14th rifampicin dose		 Kirby 2012
337 P-gp Rifampicin / digoxin Rifampicin: 600 mg po once daily (6 doses)
Digoxin: 0.5 mg po single dose, simultaneous with 7th rifampicin dose		 Larsen 2007
396 P-gp Rifampicin / digoxin Rifampicin: 600 mg po once daily (28 doses)
Digoxin: 0.5 mg po single dose, 1 h after the 28th (last) rifampicin dose		 Reitmann 2011
397 P-gp Rifampicin / digoxin Rifampicin: 600 mg po once daily (28 doses)
Digoxin: 0.5 mg po single dose, 169 h (1 week +1 h) after the 28th (last) rifampicin dose		 Reitmann 2011
398 P-gp Rifampicin / digoxin Rifampicin: 600 mg po once daily (28 doses)
Digoxin: 0.5 mg po single dose, 337 h (2 weeks +1 h) after the 28th (last) rifampicin dose		 Reitmann 2011
16301 P-gp Rifampicin / digoxin Rifampicin: 600 mg po single dose
Digoxin: 0.25 mg po single dose, simultaneous with rifampicin dose		 Wiebe 2020
16319 P-gp Rifampicin / digoxin Rifampicin: 600 mg po once daily (14 doses)
Digoxin: 1 mg iv single dose, 12 h after the 10th rifampicin dose		 Drescher 2003
16322 P-gp Rifampicin / digoxin Rifampicin: 600 mg po once daily (14 doses)
Digoxin: 0.4 mg po single dose, simultaneous with 7th rifampicin dose		 Gurley 2006
16326 P-gp Rifampicin / digoxin Rifampicin: 600 mg po once daily (14 doses)
Digoxin: 0.5 mg iv single dose, simultaneous with 7th rifampicin dose		 Gurley 2007

2 Qualification of Use Case Pgp-mediated DDI

The following section shows the correlations between observed and model-predicted AUC and Cmax ratios, respectively.

Specifically, the PBPK model performance for the PK parameters AUC ratio (AUCR) and Cmax ratio (CMAXR) is assessed via:

  • predicted (Pred) vs. observed (Obs) plots

  • Pred/Obs vs. Obs plots

  • geometric mean fold error (GMFE):

GMFE equation

  • number of AUCR and CMAXR falling within 2-fold error range and within the limits as suggested by Guest et al. 2011

  • detailed table of results for each study

In the plots,

  • the dotted lines denote 0.50–2.00 (2-fold) criterion,

  • the solid lines denote the limits as suggested by Guest et al. 2011,

  • the bold solid line denotes the unity line,

  • each color represents one combination of drugs,

  • squares represent studies with intravenous administration of the victim drug and circles represent studies with oral administration of the victim drug.

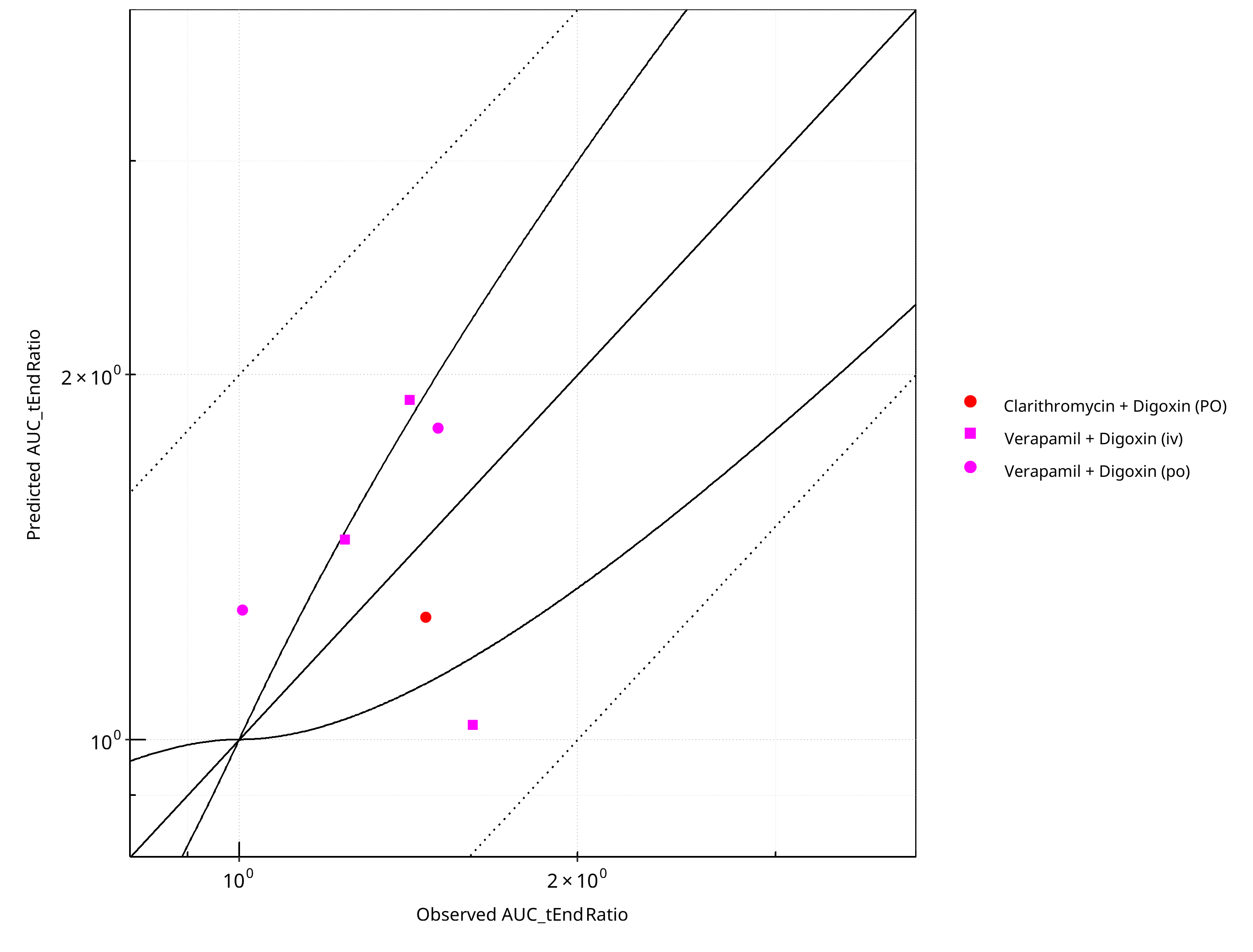

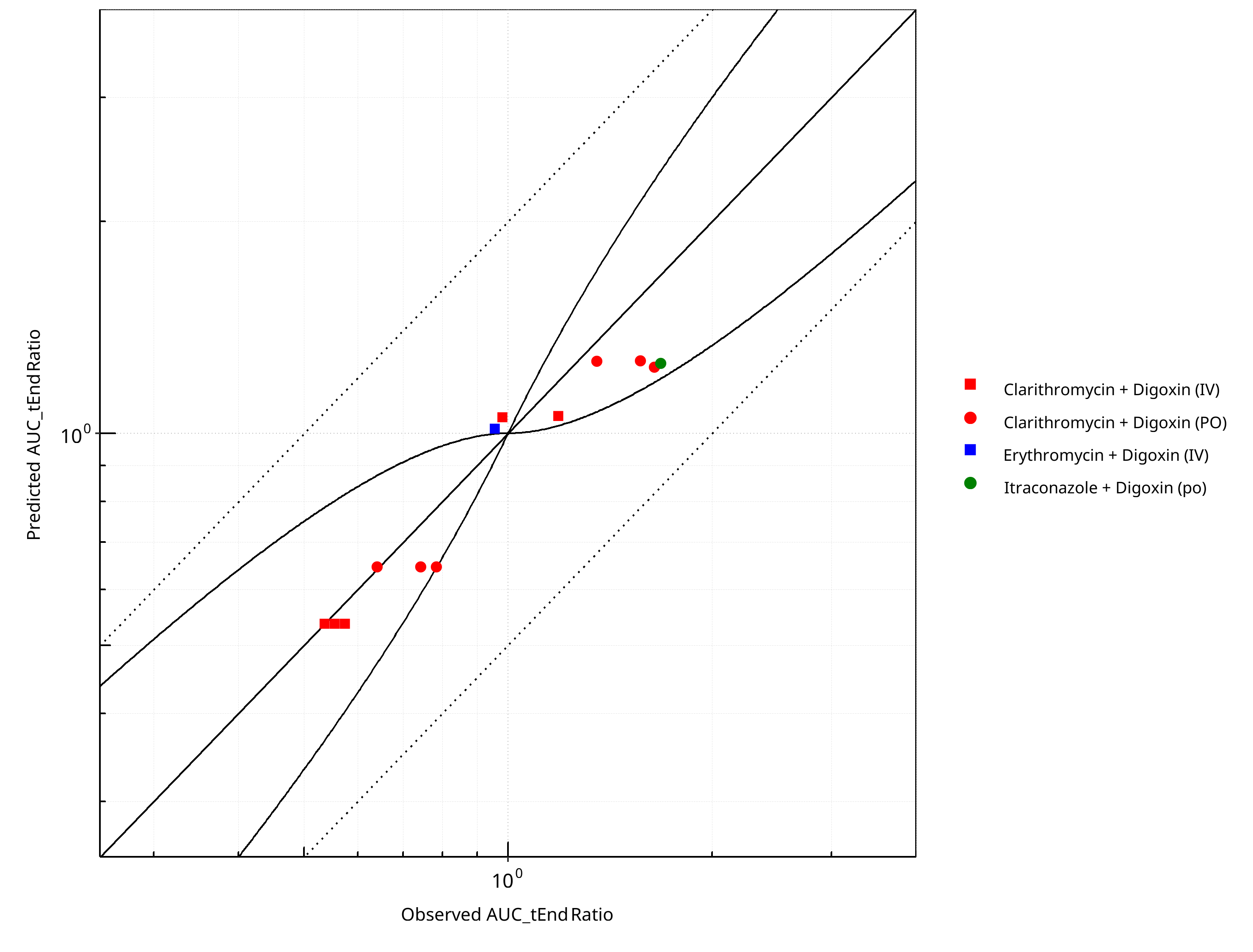

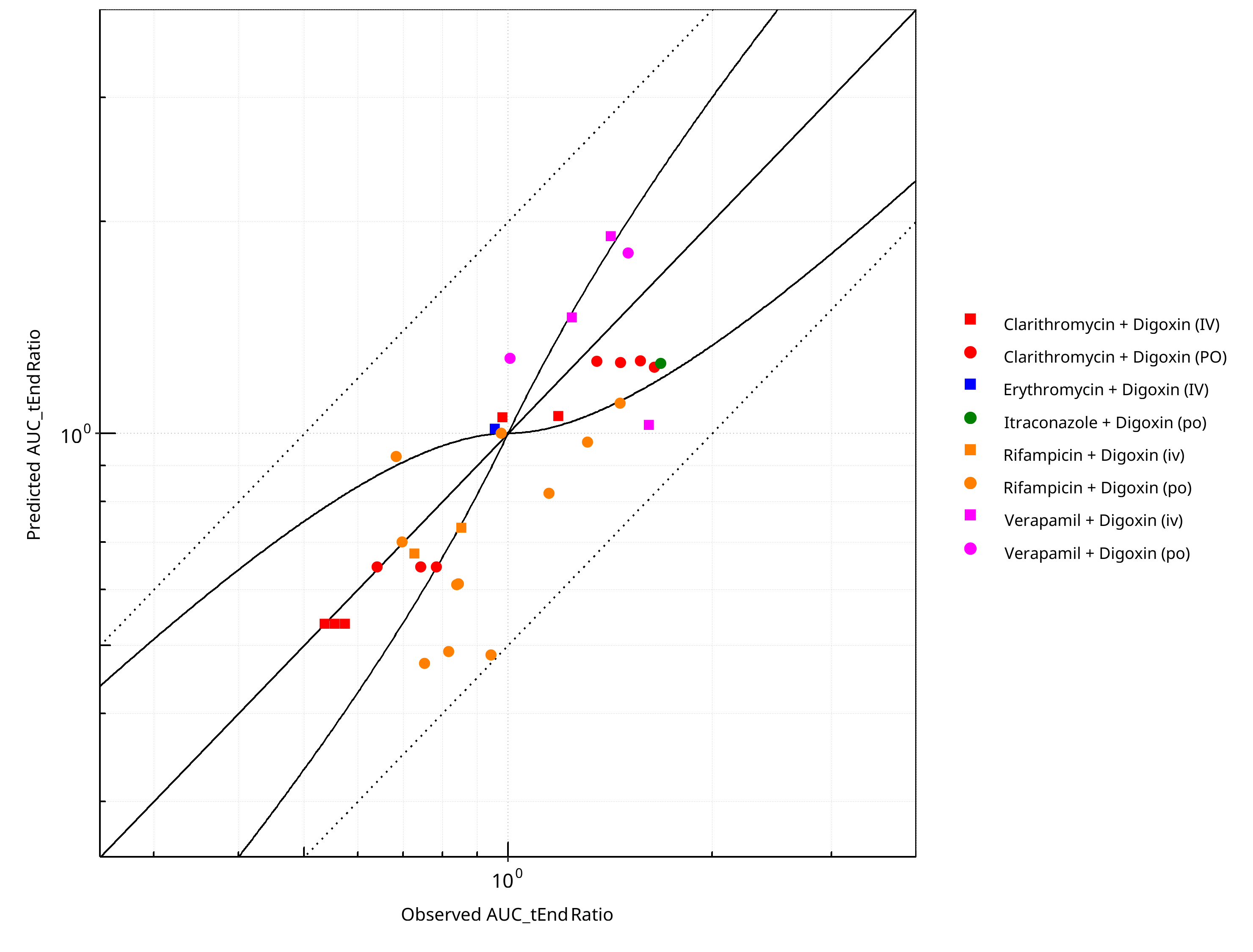

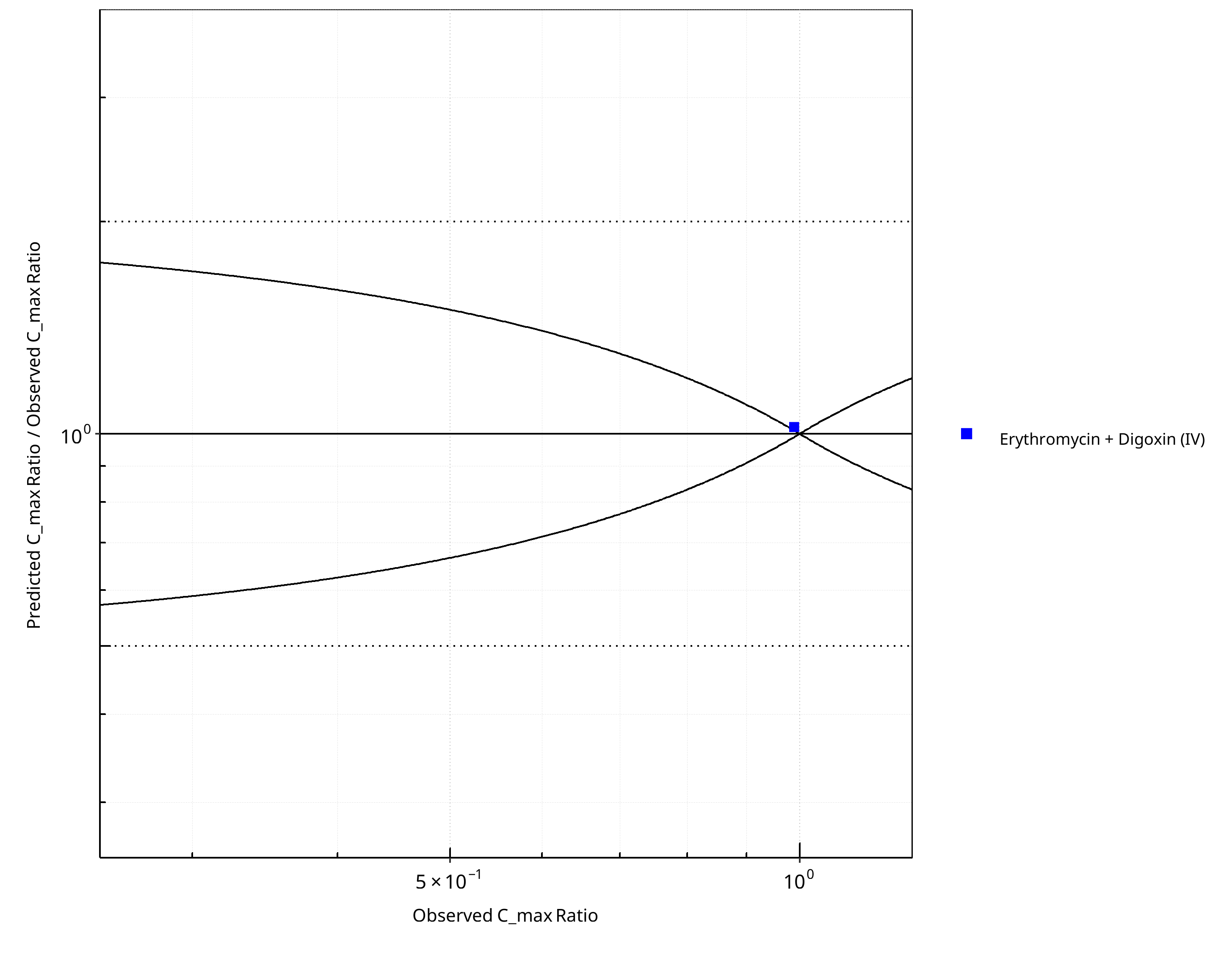

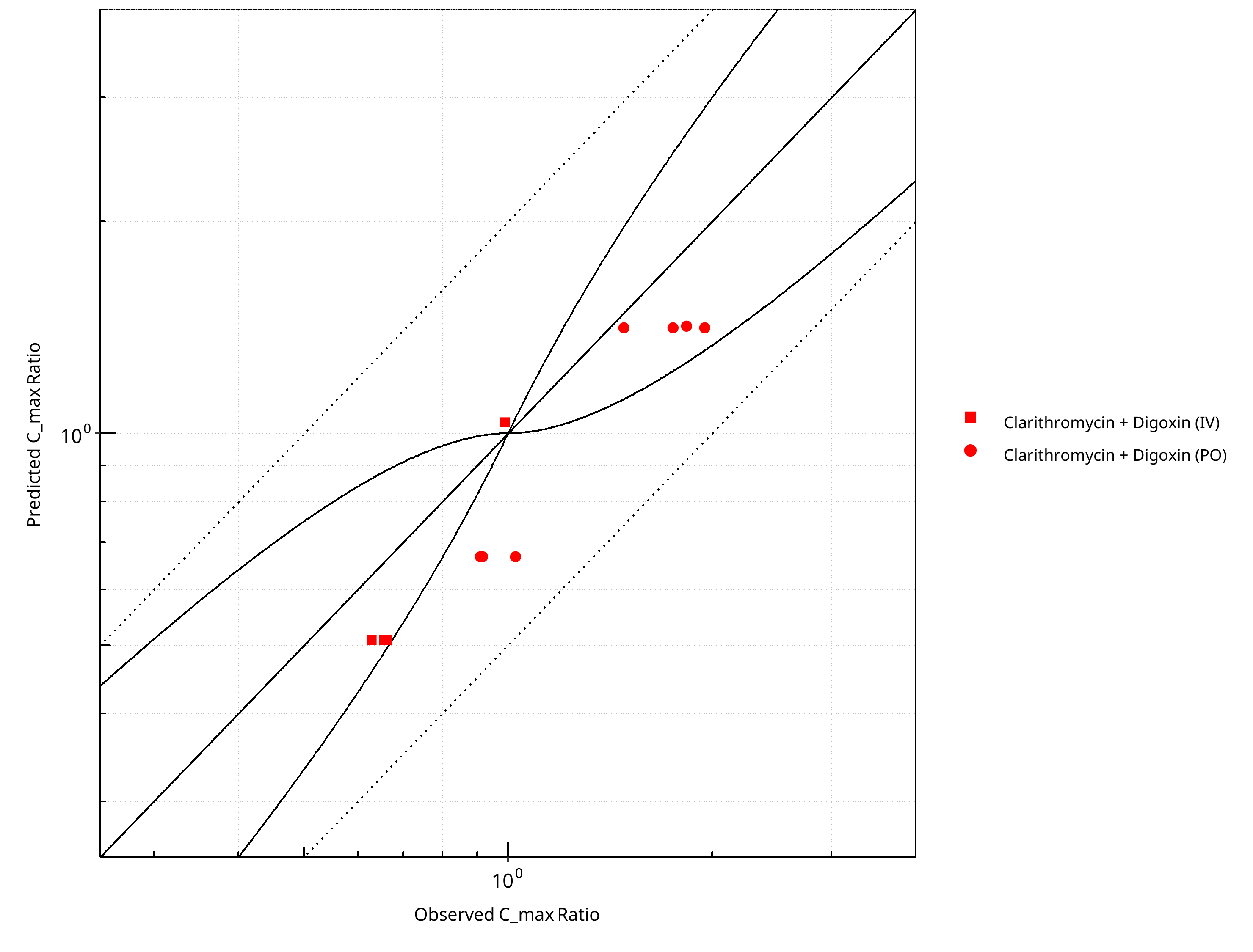

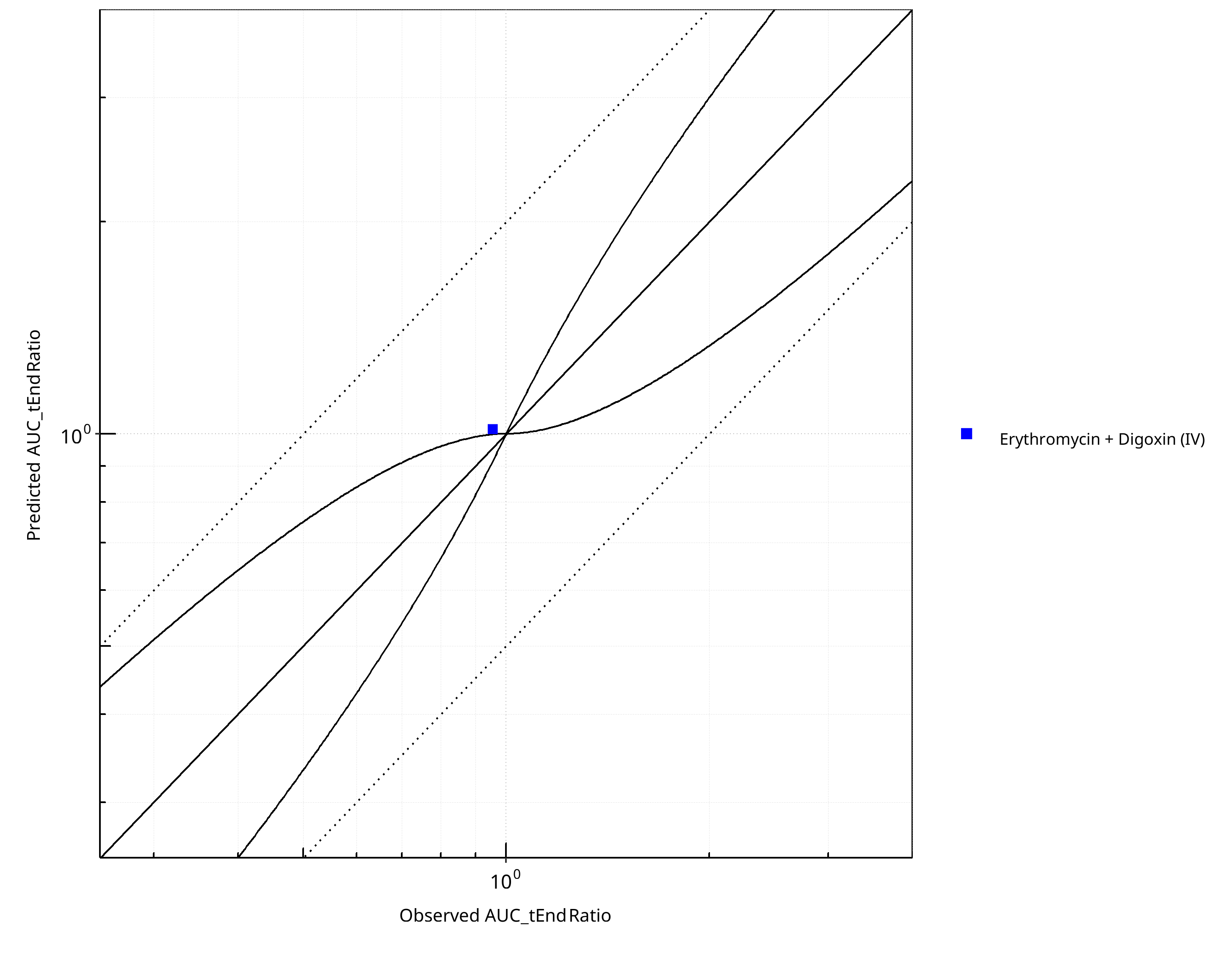

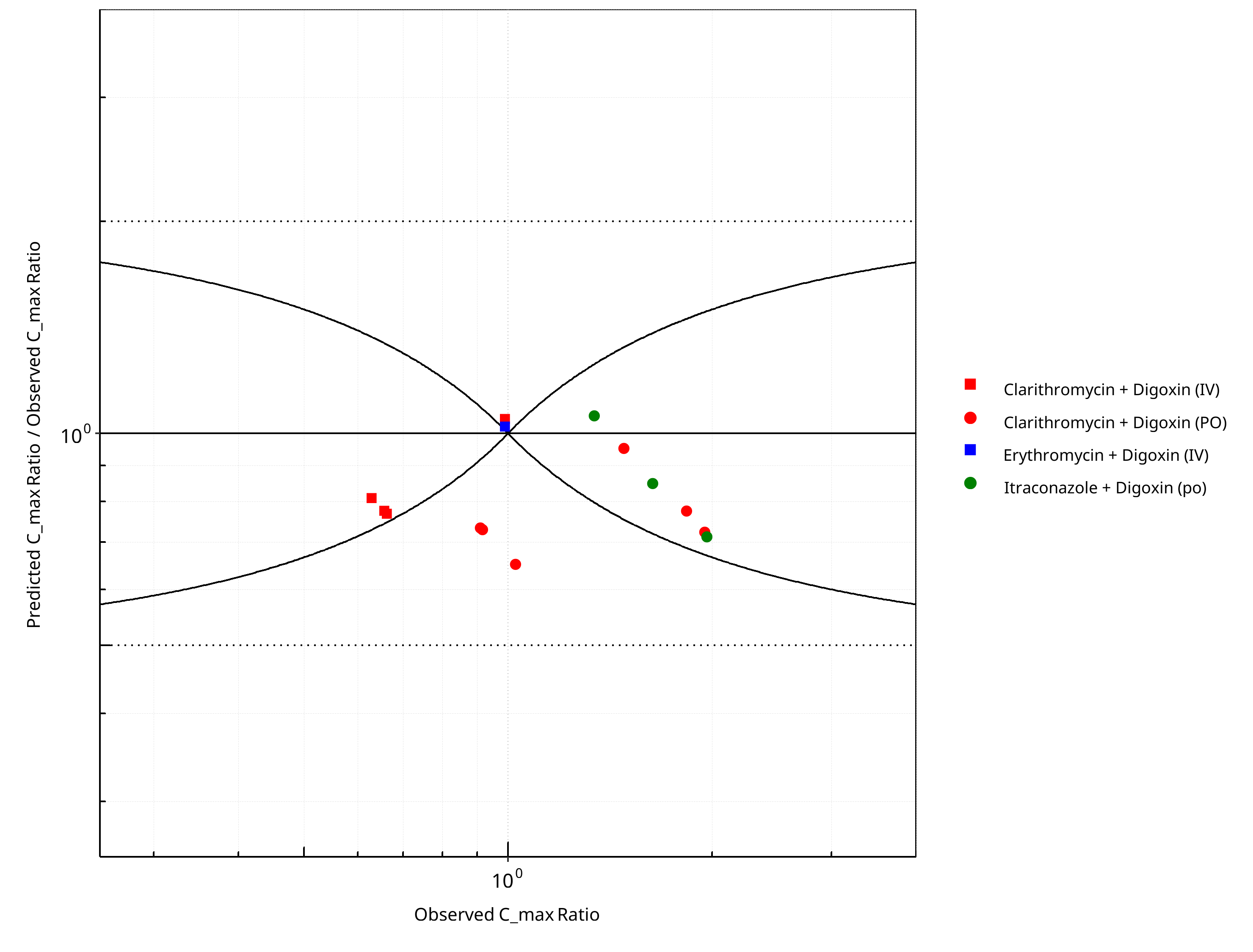

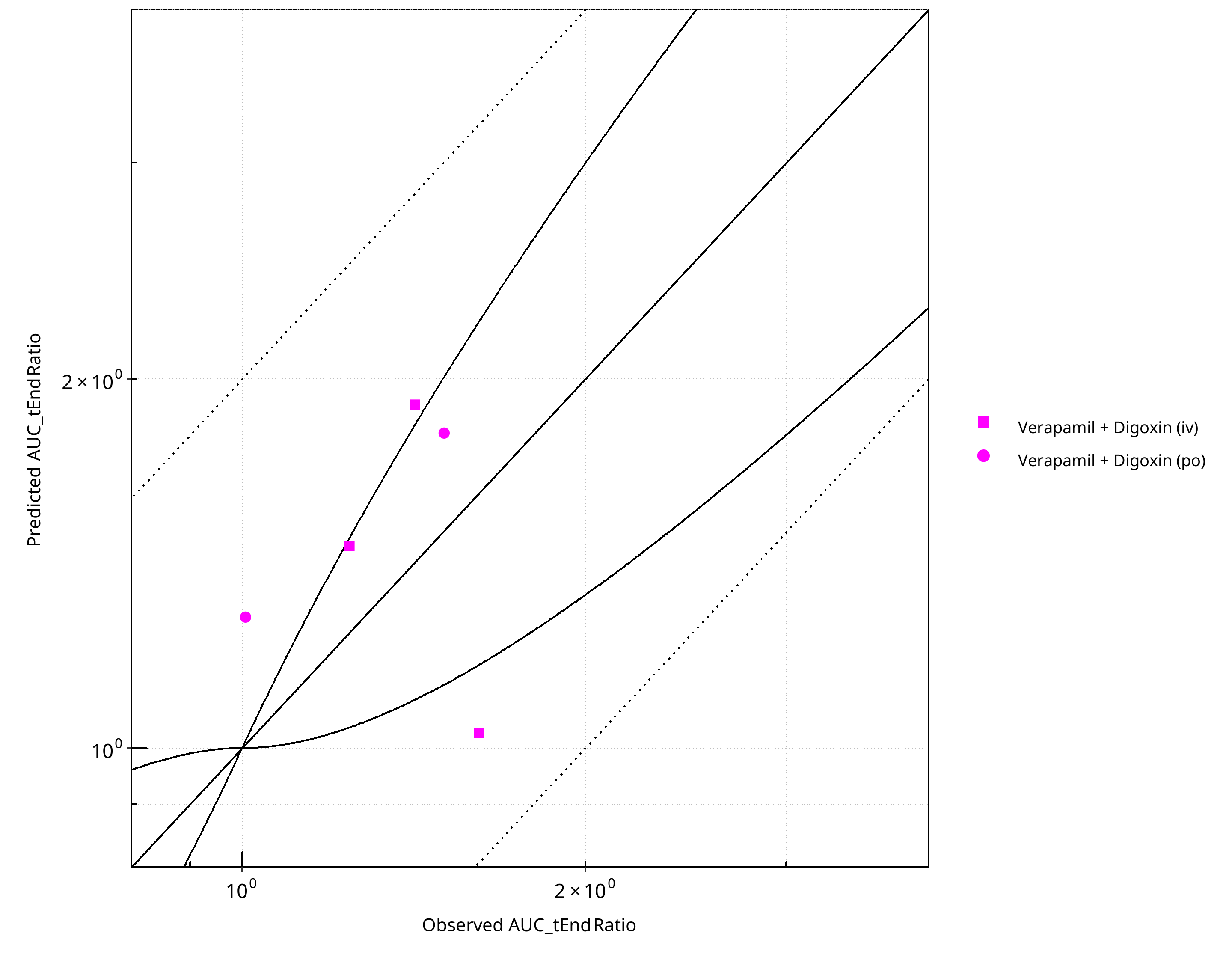

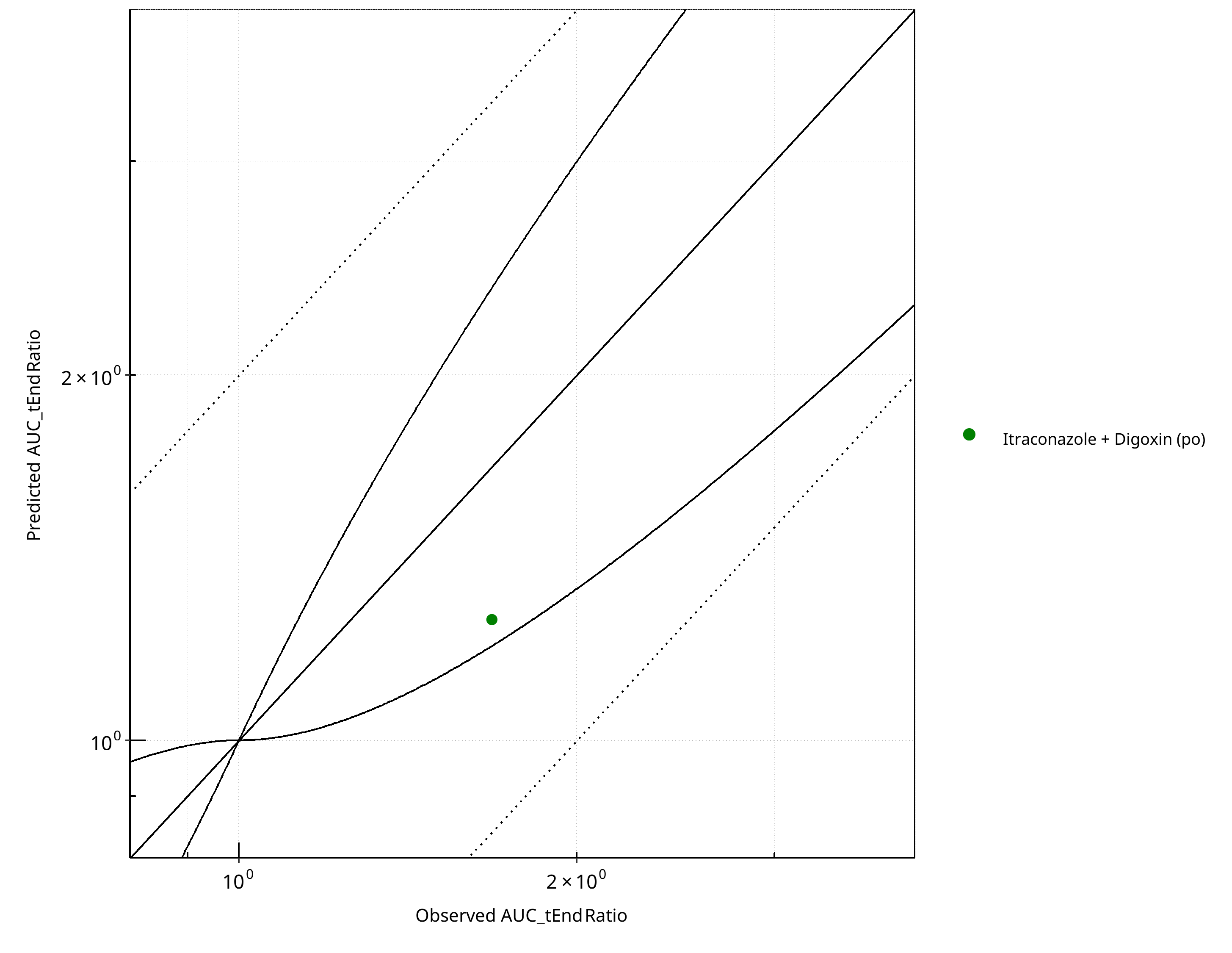

Figure 2-1: Pgp DDI. Predicted vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

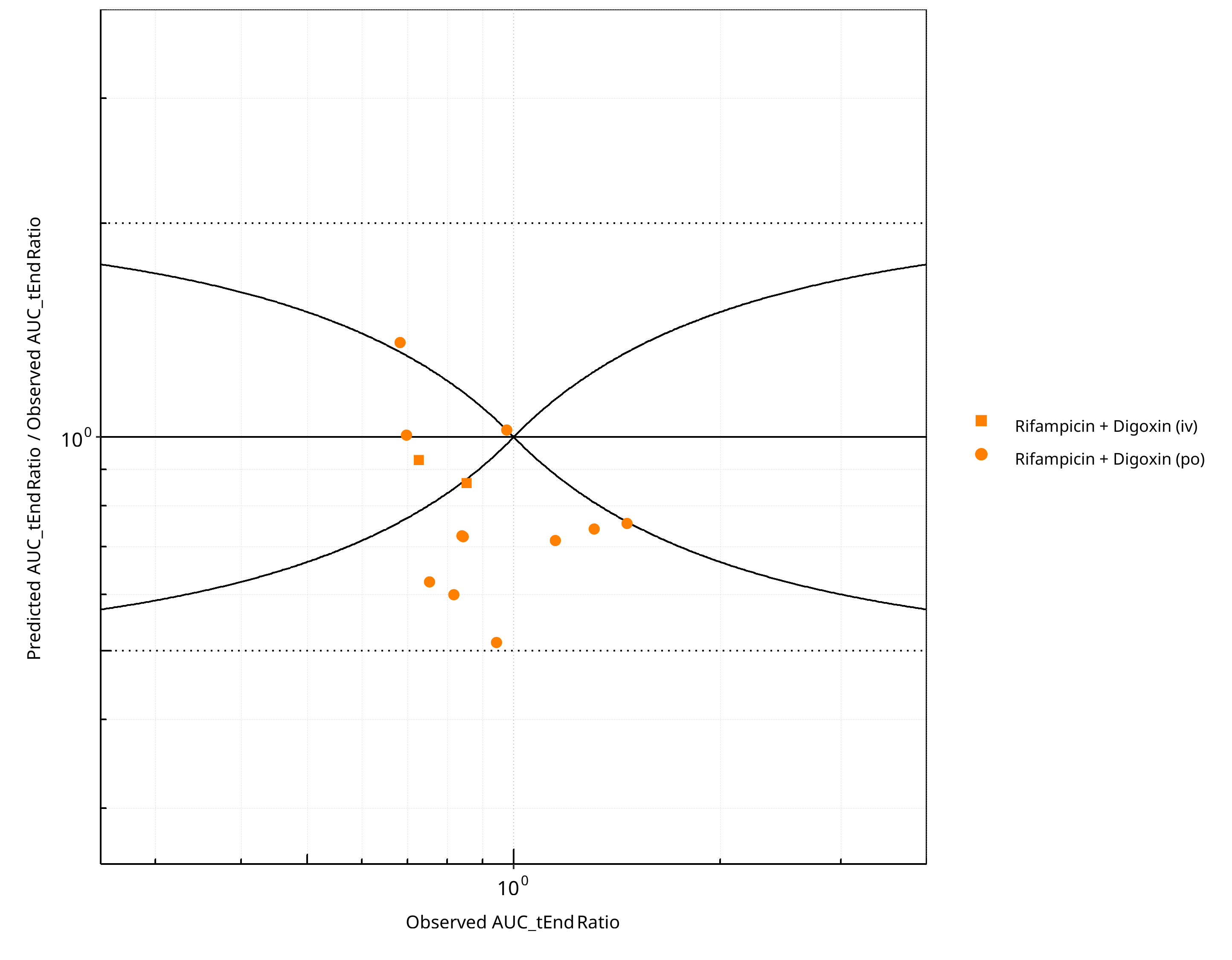

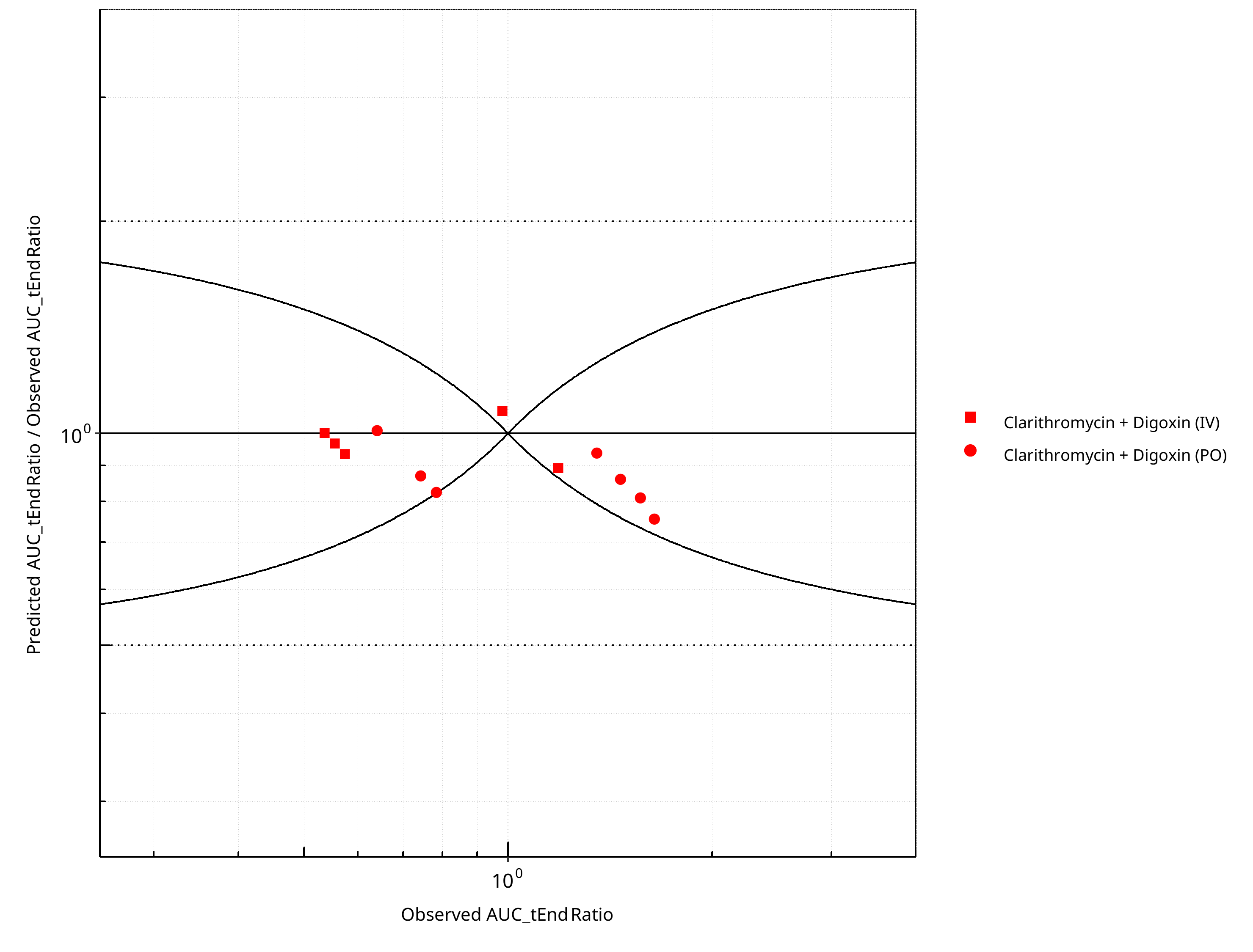

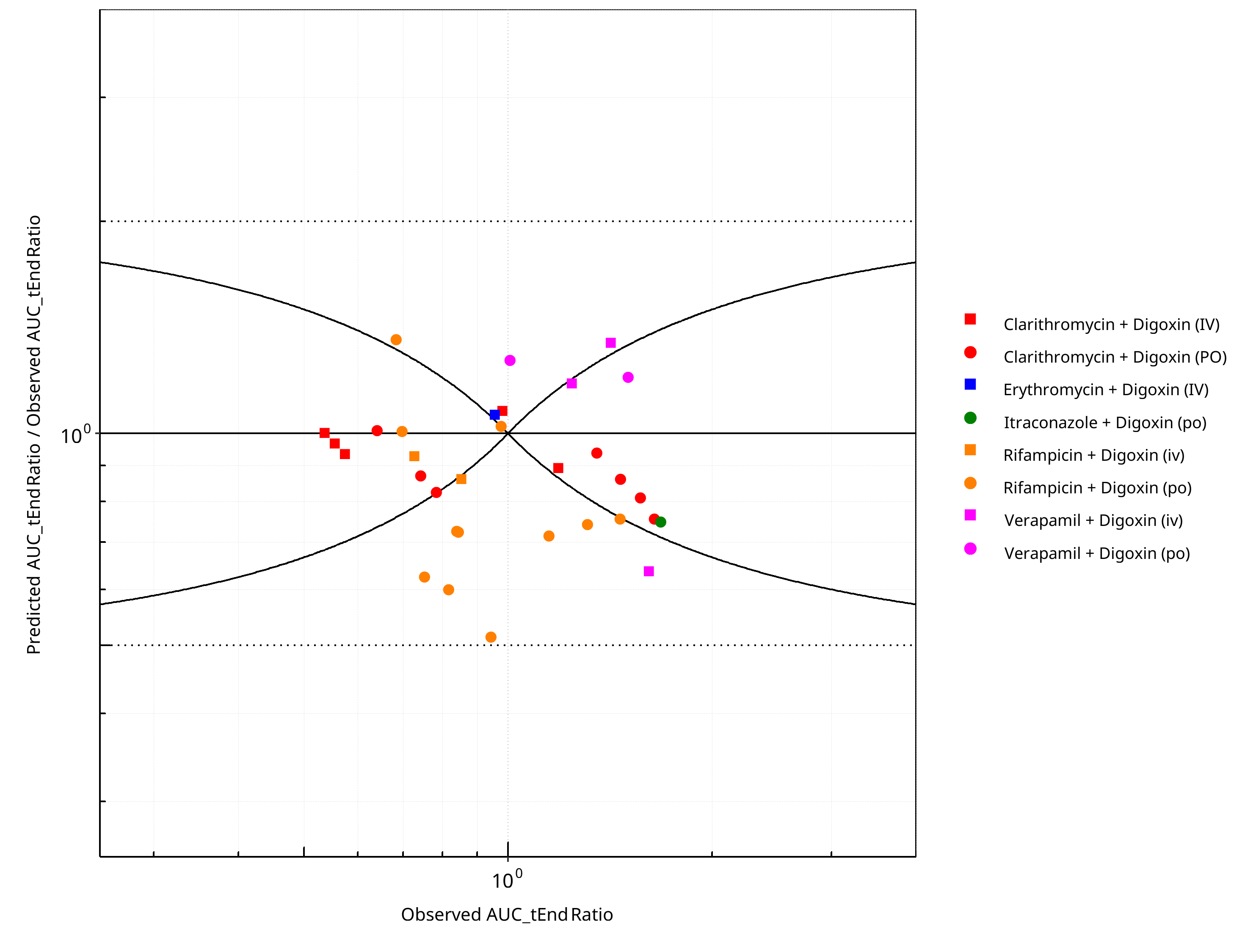

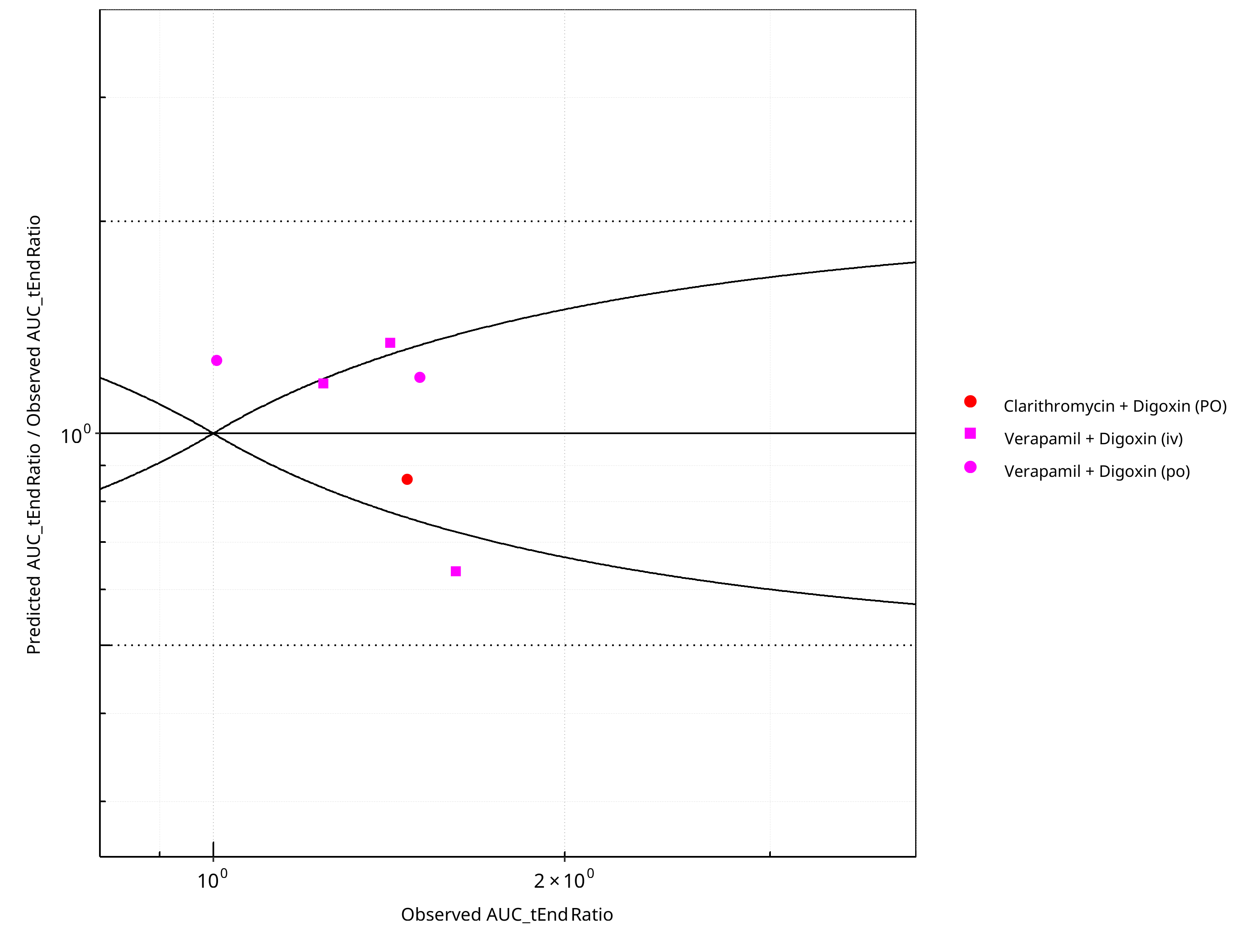

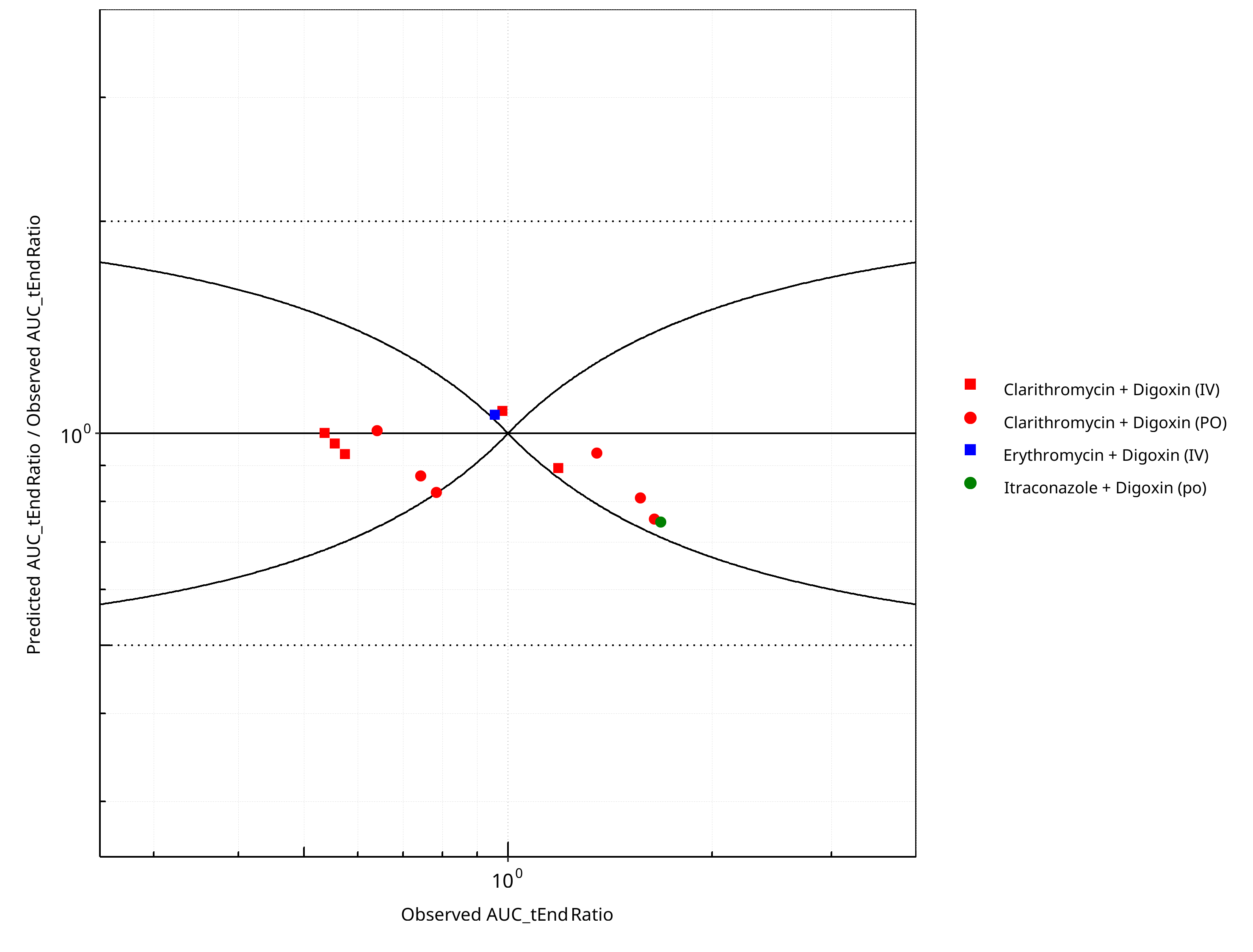

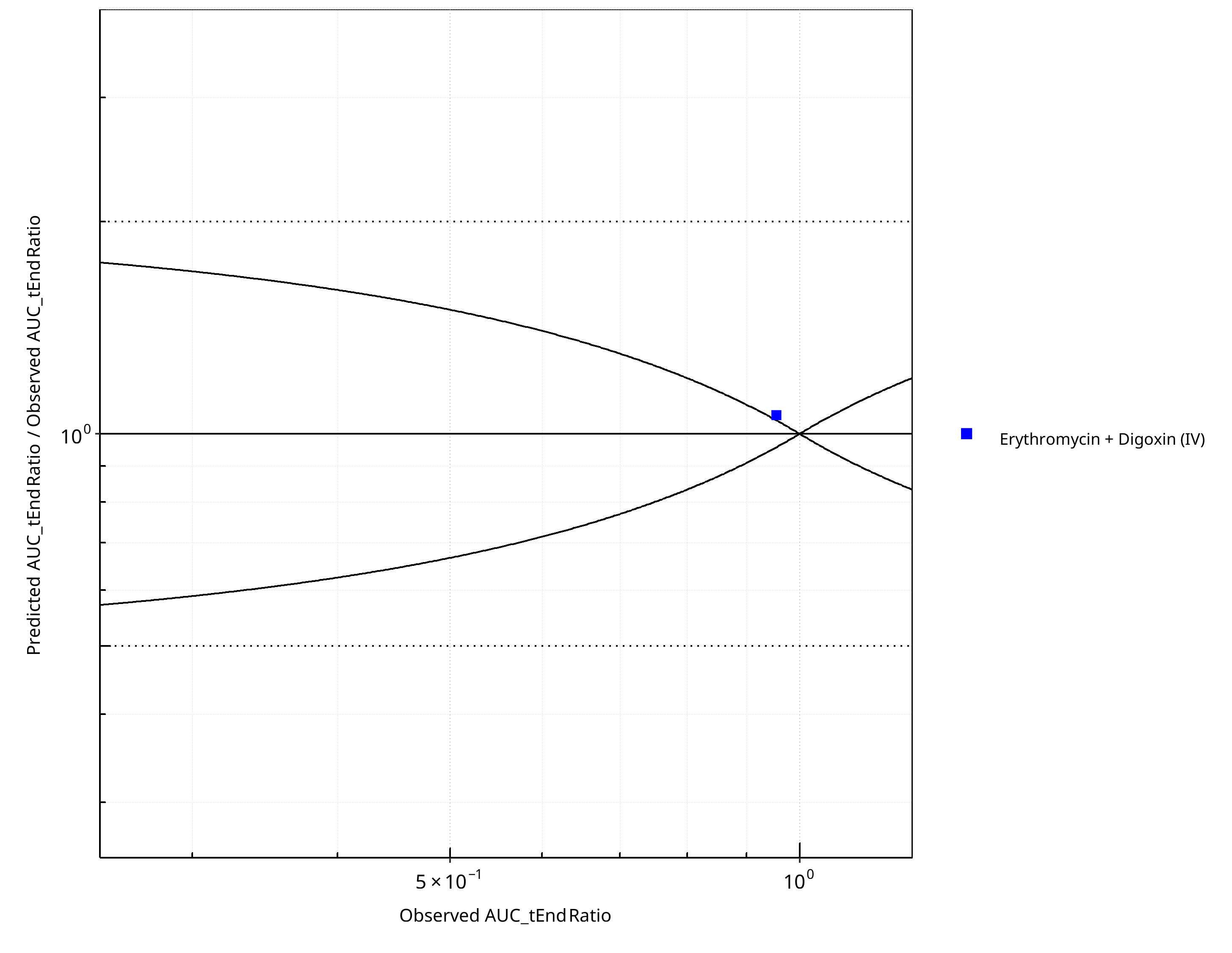

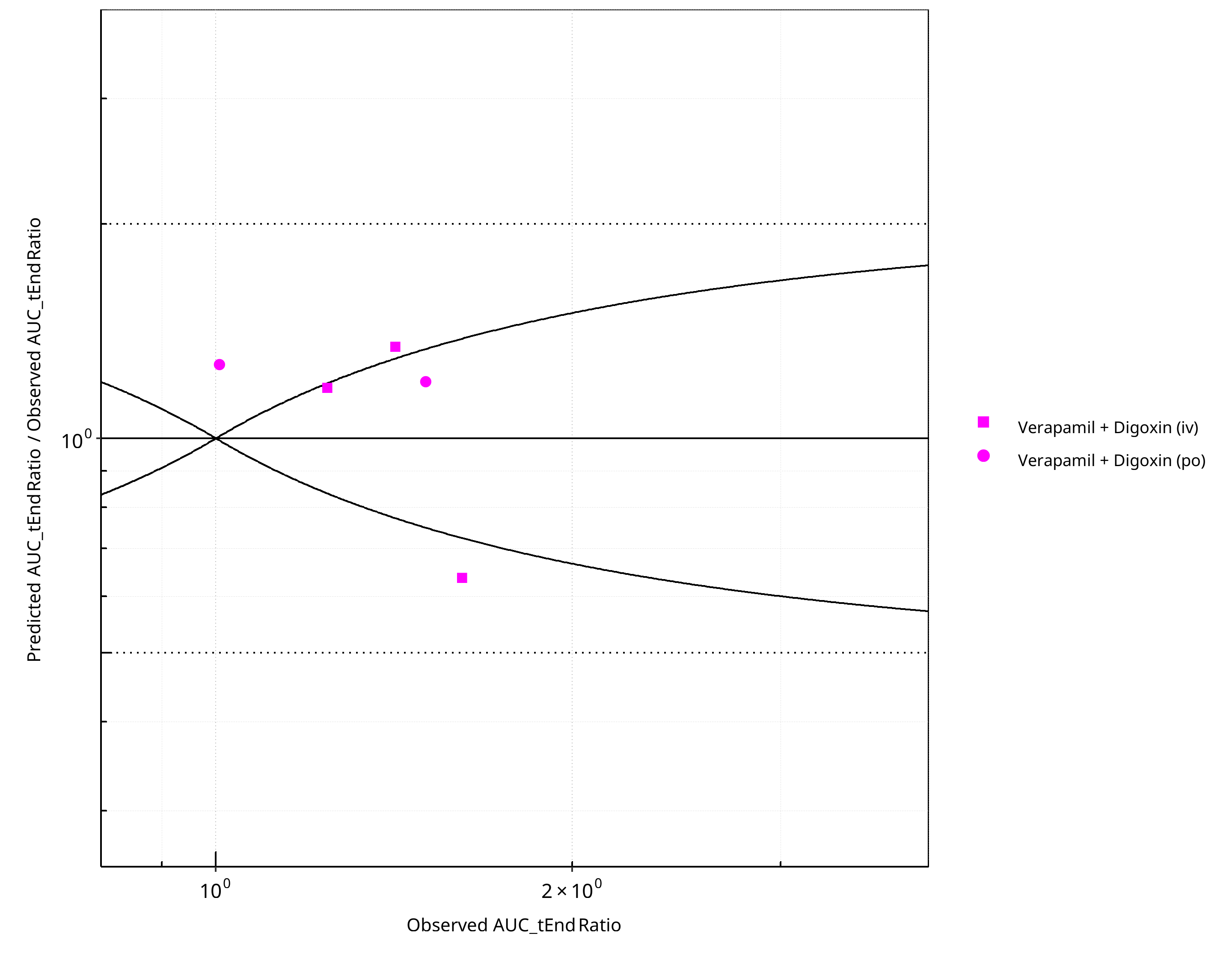

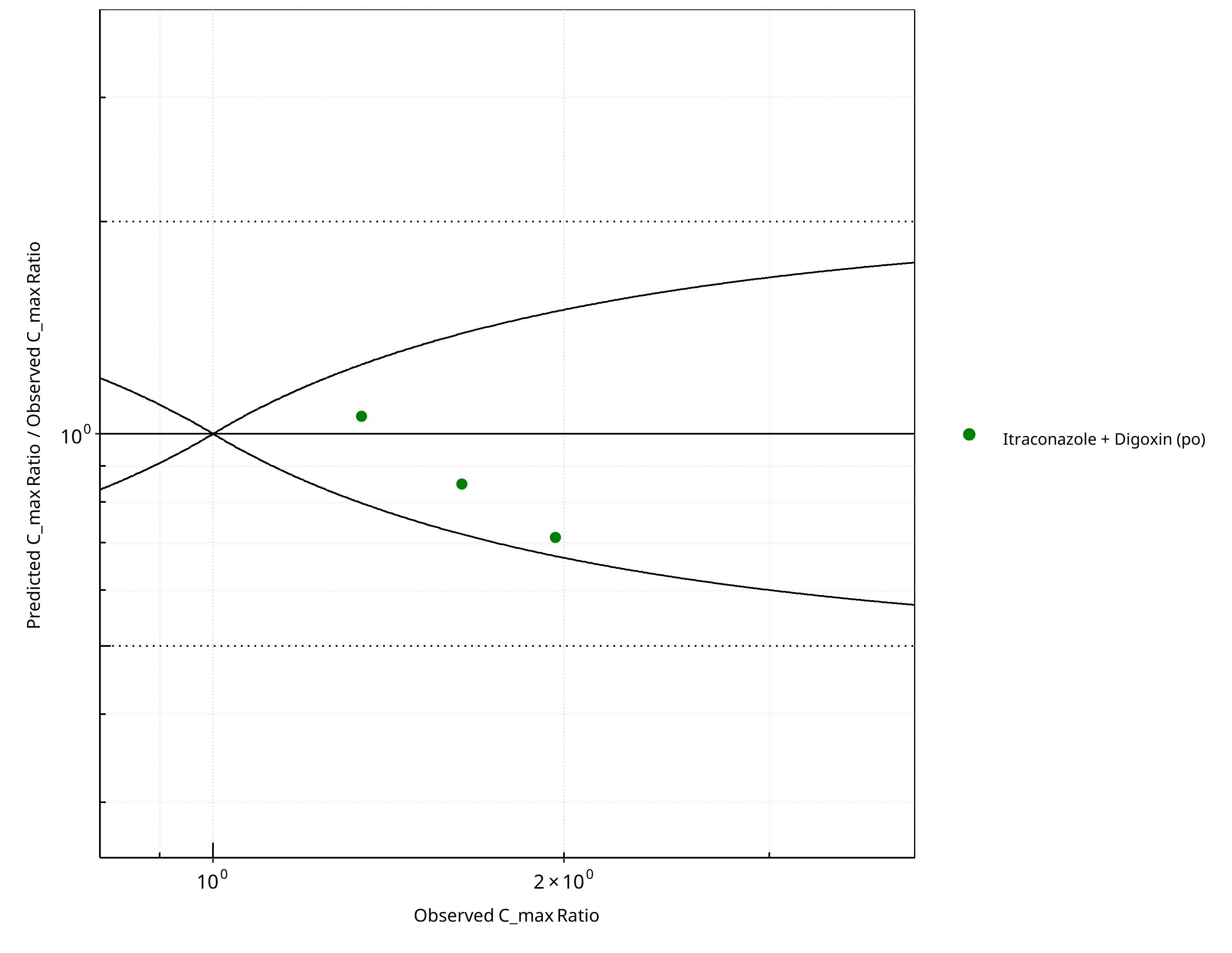

Figure 2-2: Pgp DDI. Predicted/Observed vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

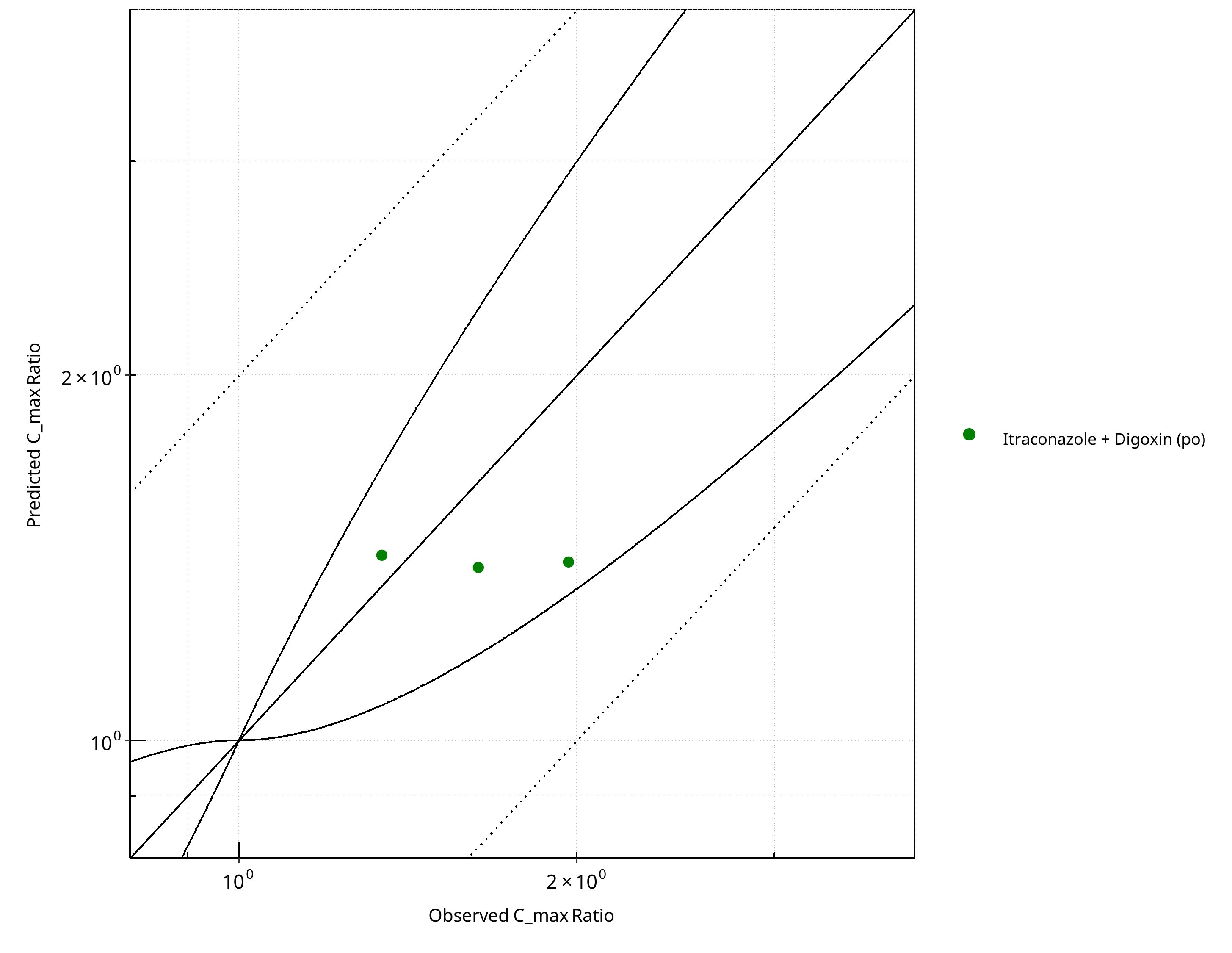

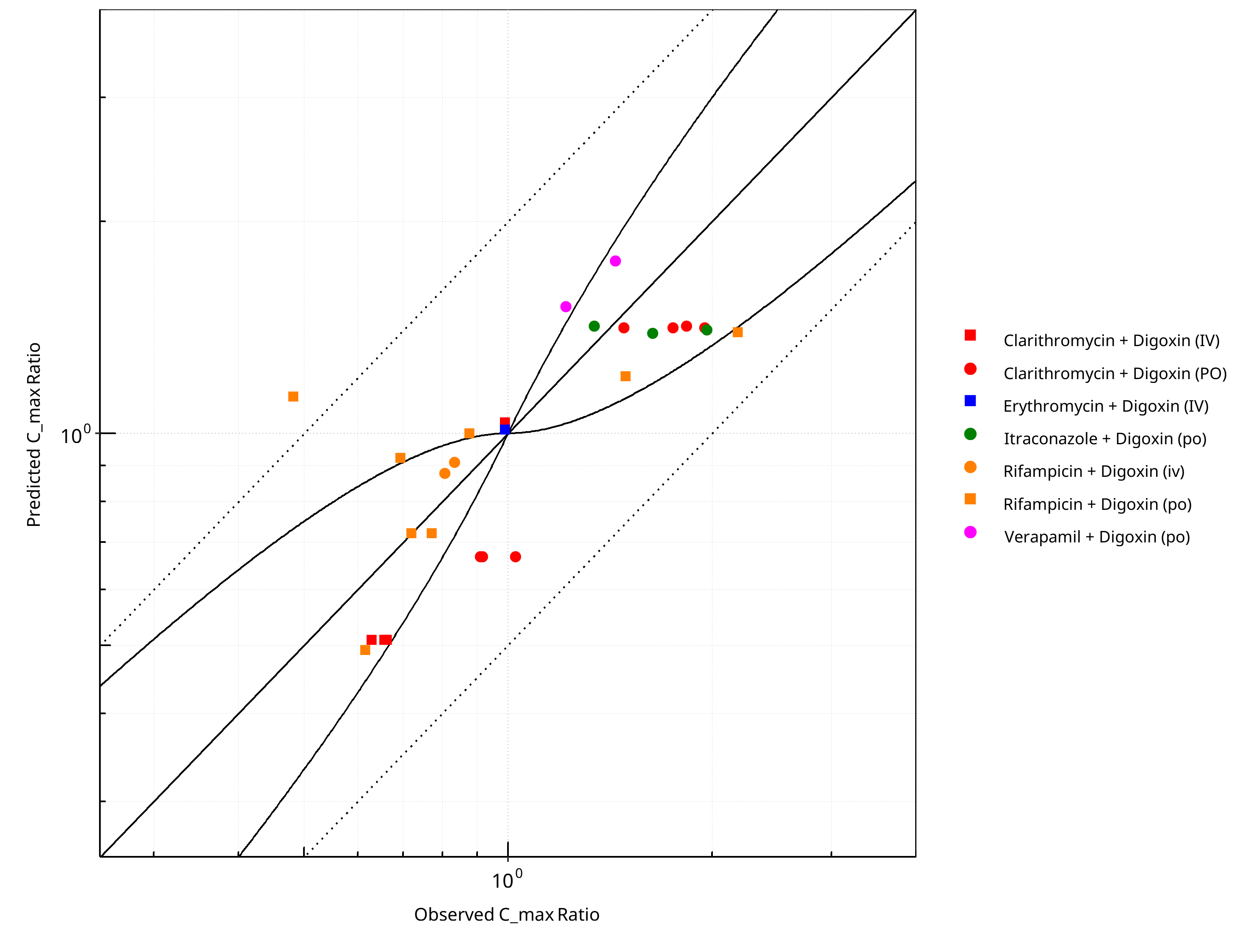

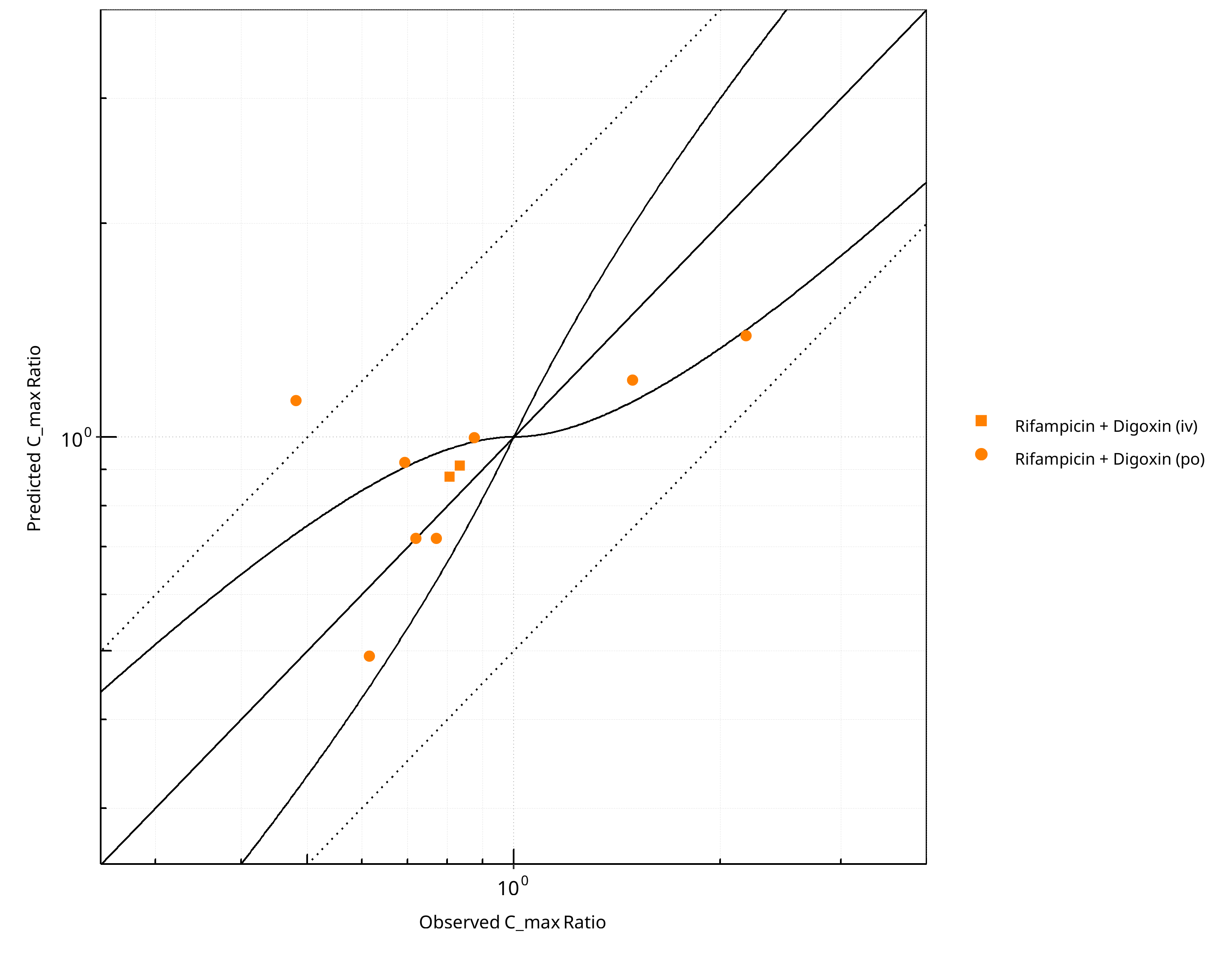

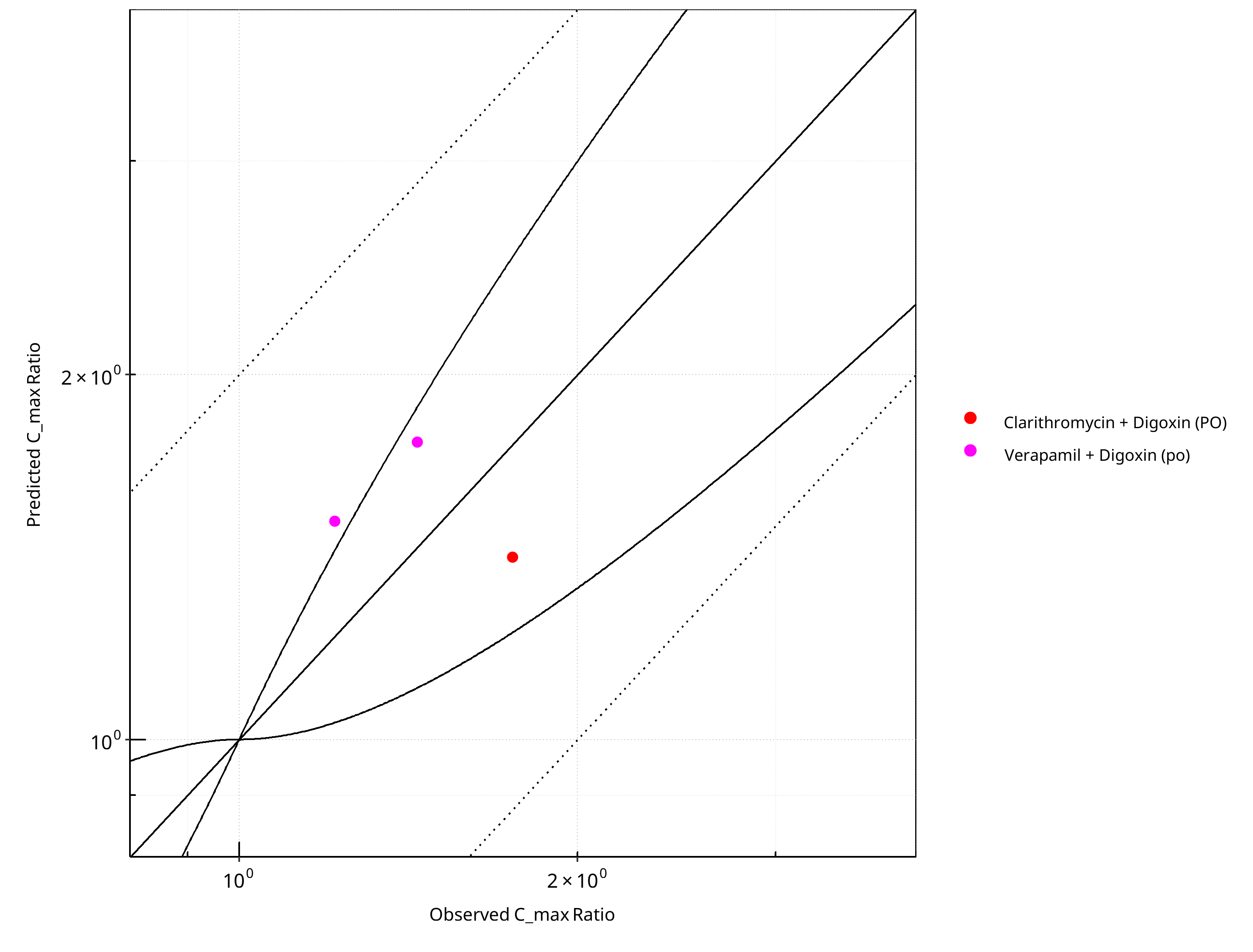

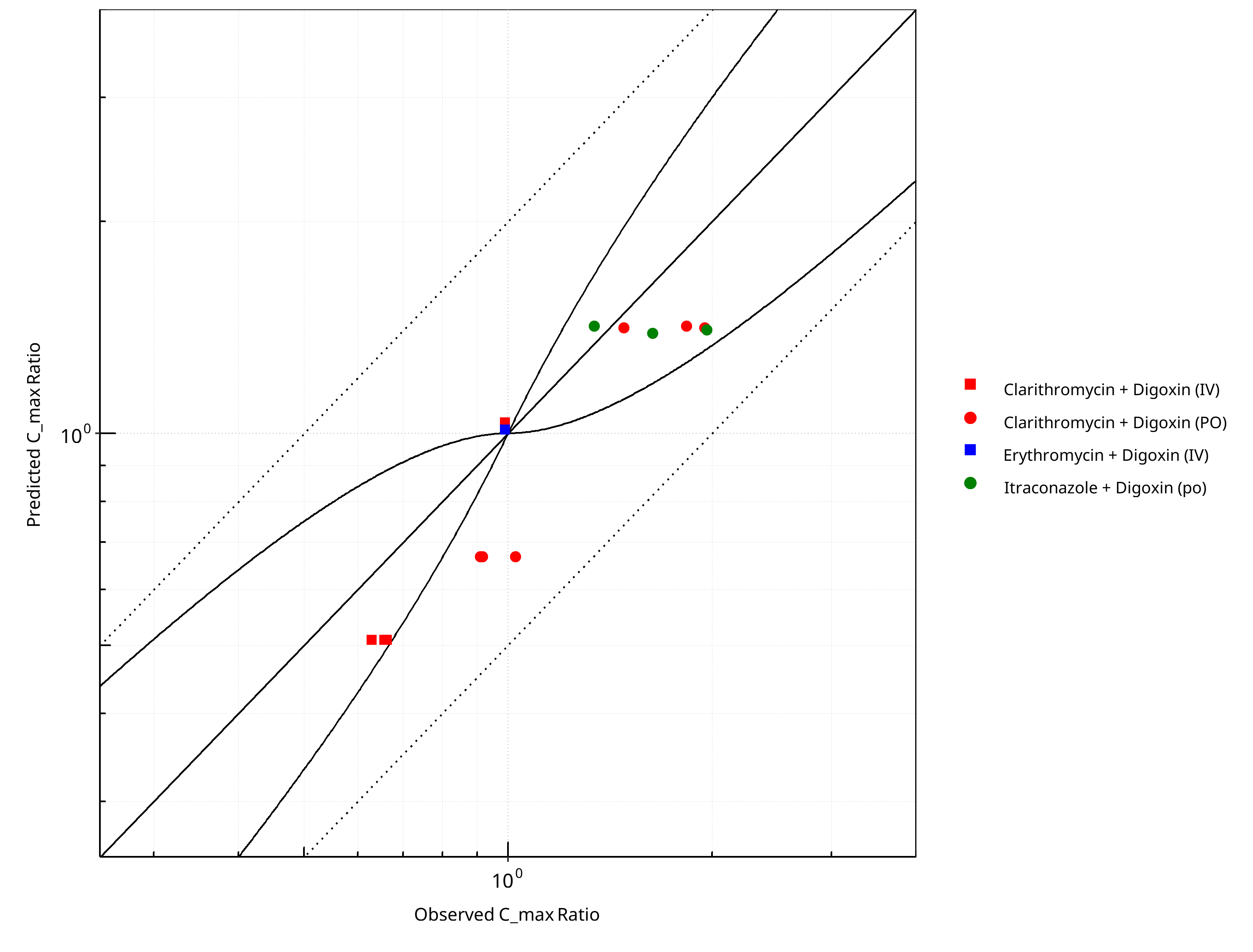

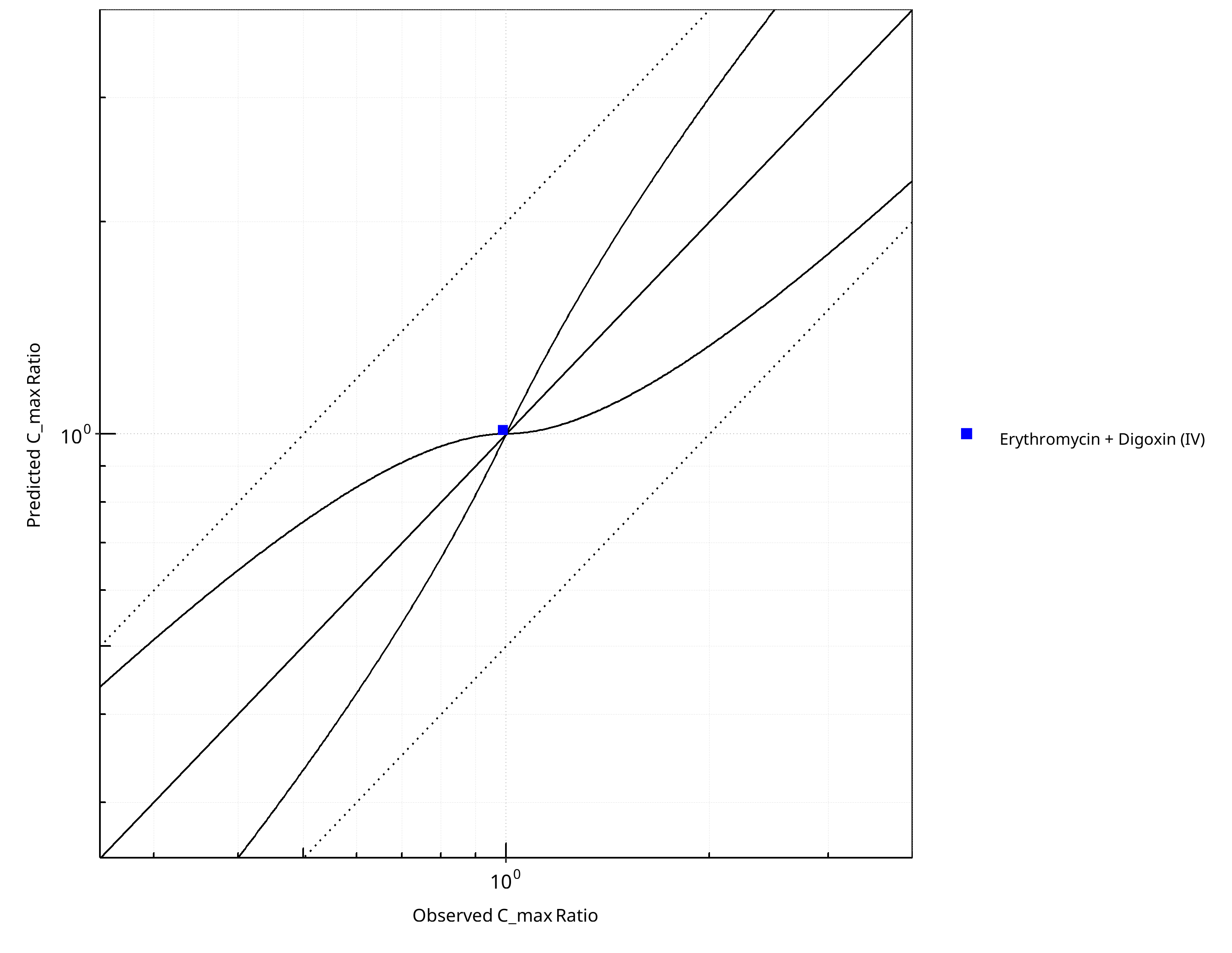

Figure 2-3: Pgp DDI. Predicted vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)

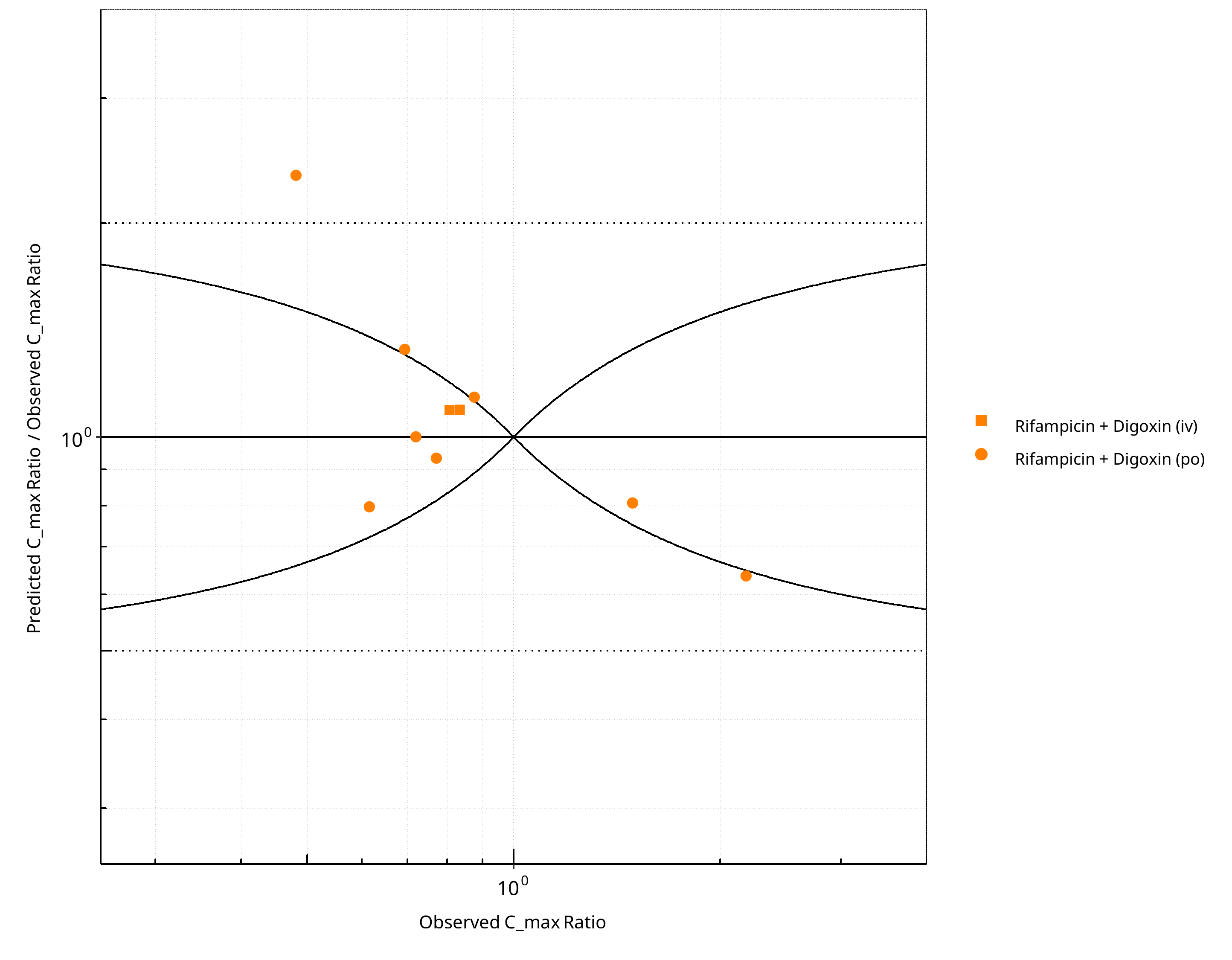

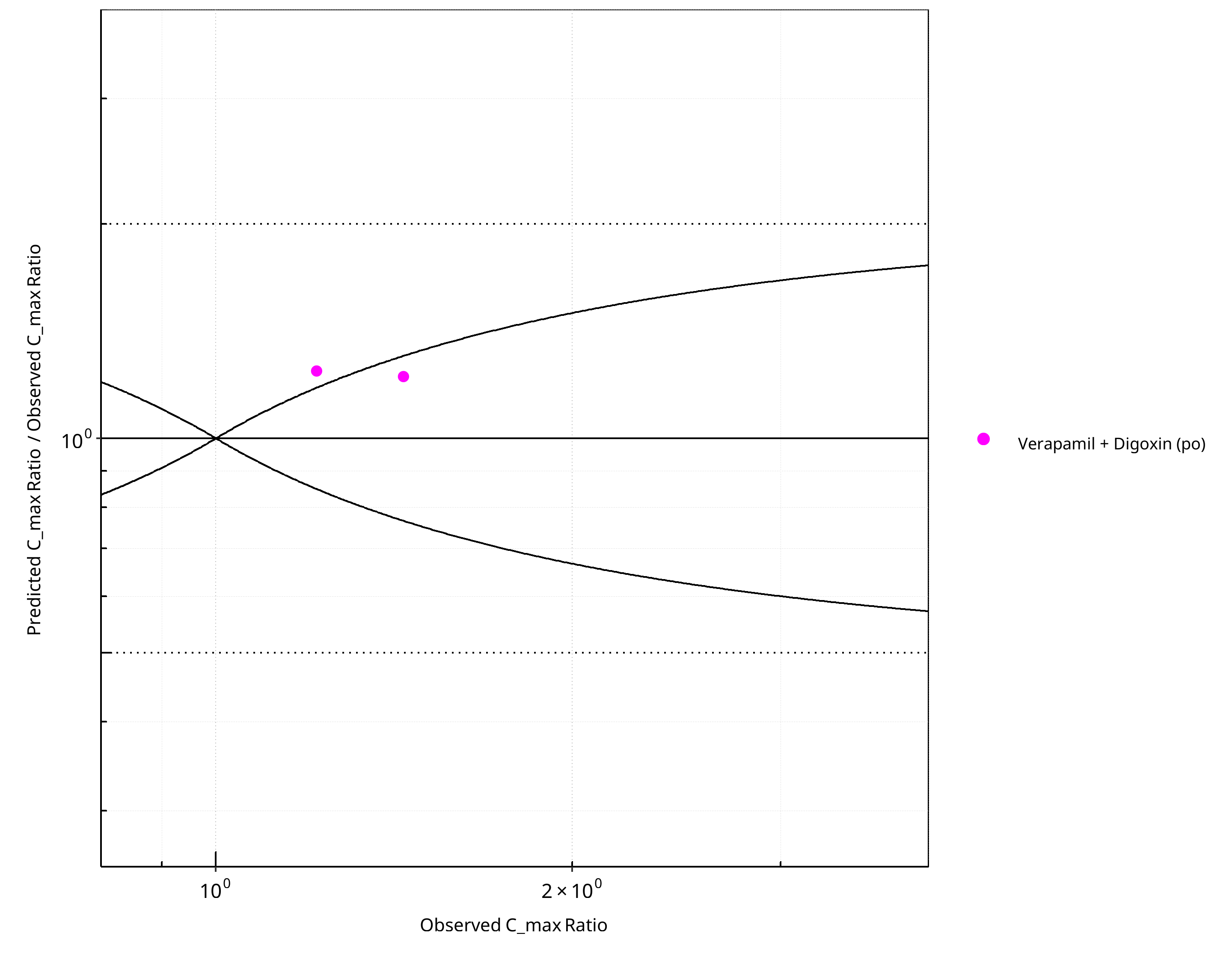

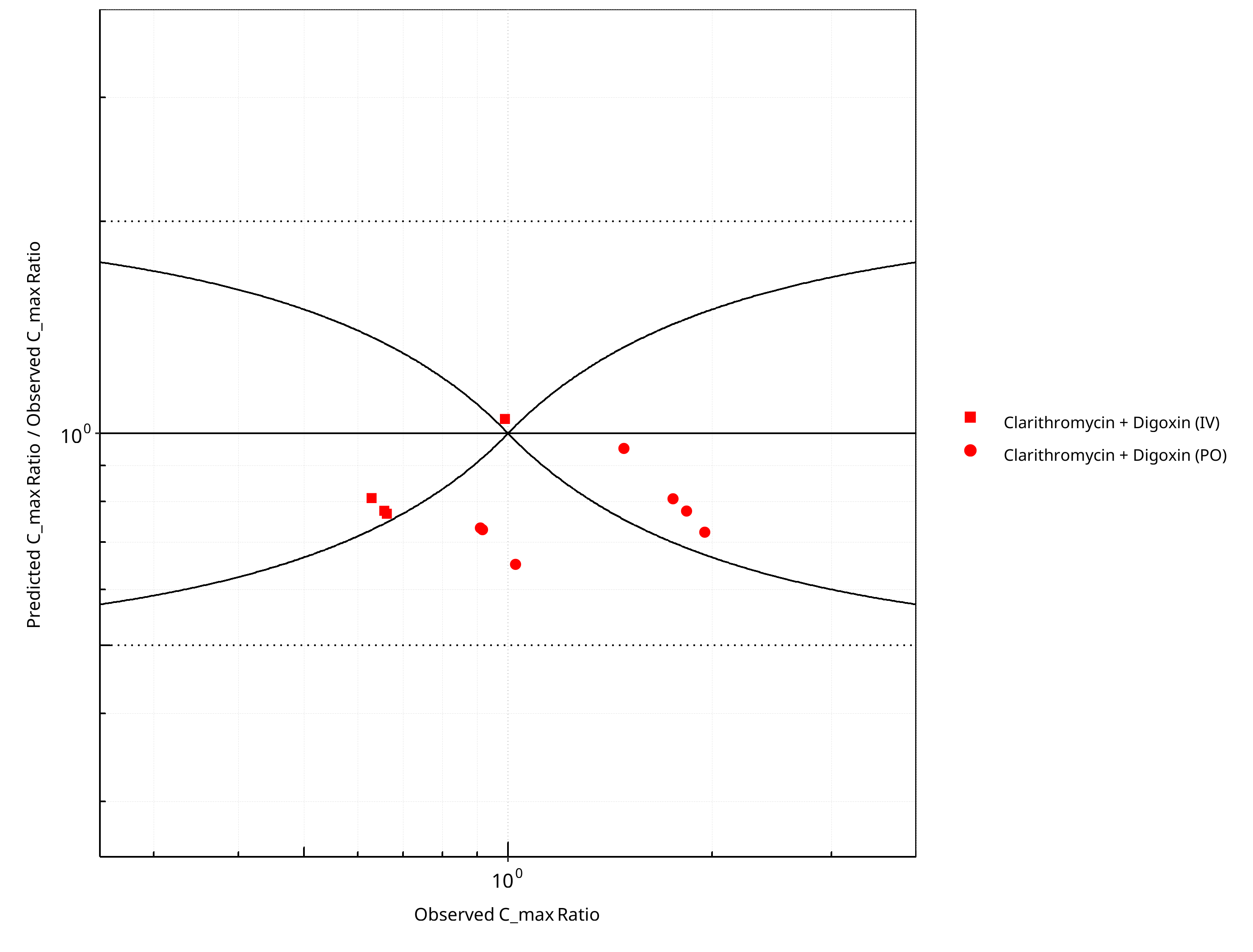

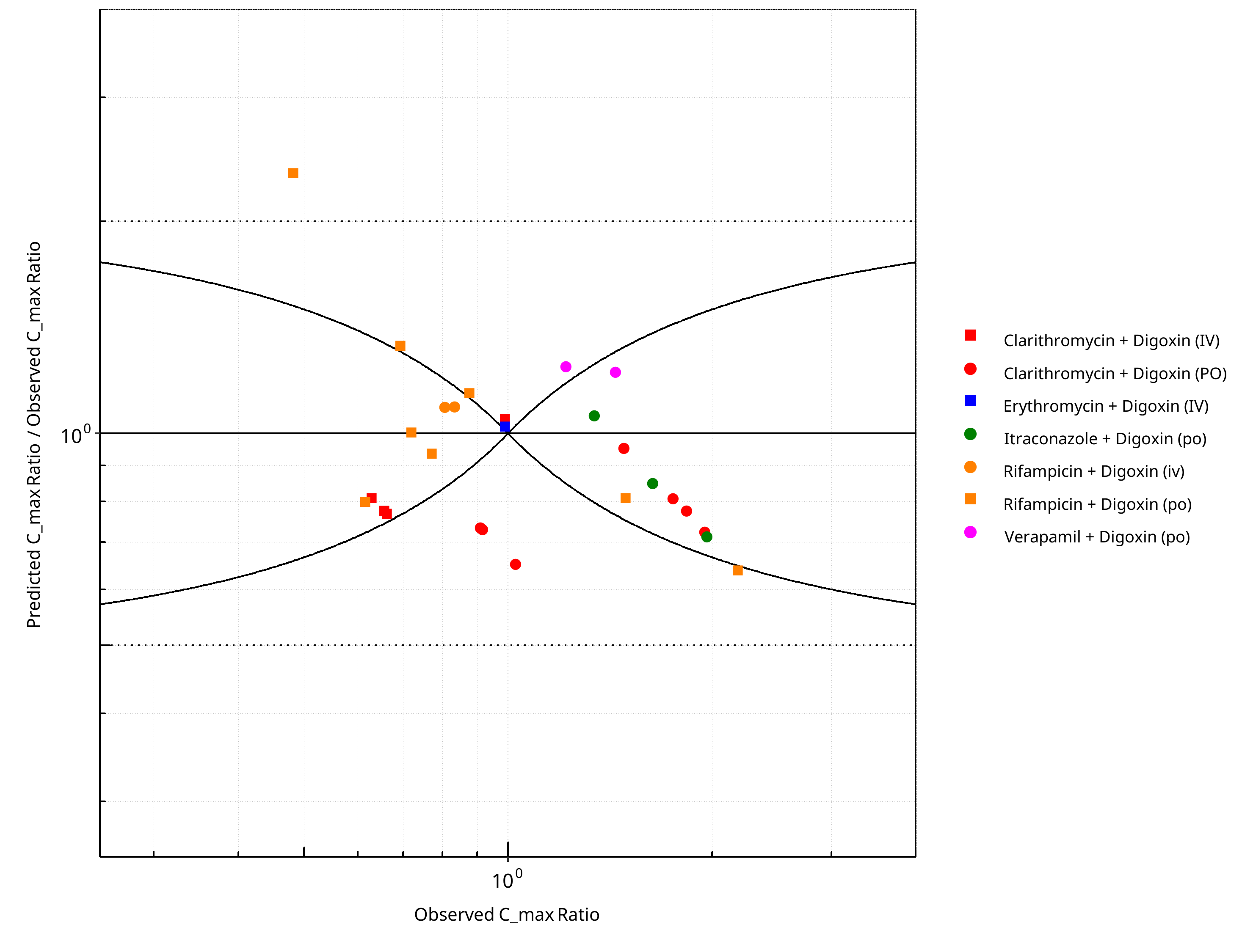

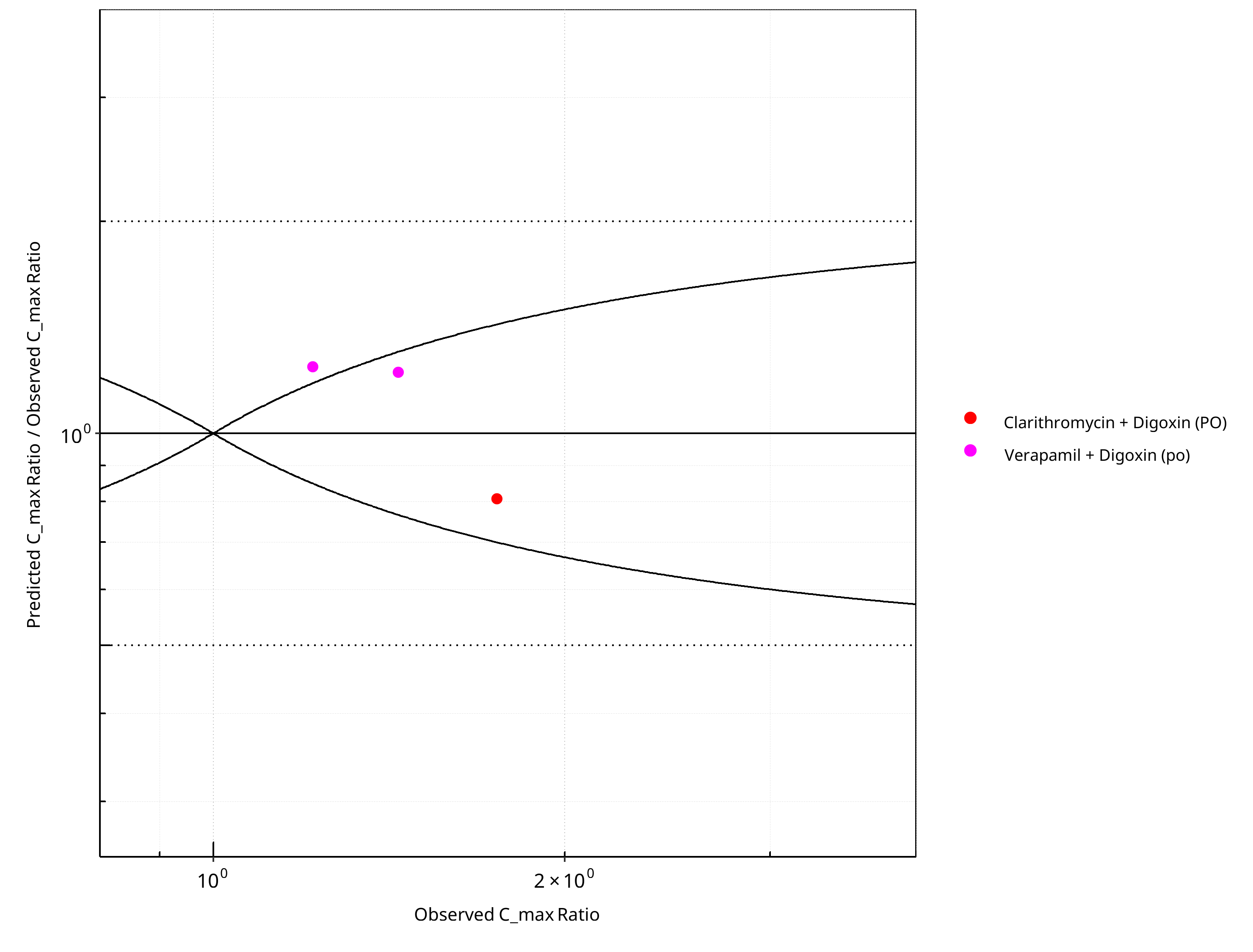

Figure 2-4: Pgp DDI. Predicted/Observed vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Table 2-1: GMFE for Pgp DDI Ratio

PK parameter GMFE
AUC_tEnd 1.24
C_max 1.25



Table 2-2: Summary table for Pgp DDI - AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

AUC_tEnd Number Ratio [%]
Points total 32 -
Points within Guest et al. 16 50
Points within 2 fold 32 100



Table 2-3: Summary table for Pgp DDI - C_max Ratio. (δ = 1 in Guest et al. formula)

C_max Number Ratio [%]
Points total 27 -
Points within Guest et al. 17 62.96
Points within 2 fold 26 96.30



Table 2-4: Summary table for Pgp DDI

DataID Perpetrator Victim Predicted AUC_tEnd Ratio Observed AUC_tEnd Ratio Pred/Obs AUC_tEnd Ratio Predicted C_max Ratio Observed C_max Ratio Pred/Obs C_max Ratio Reference
191 Rifampicin, 600 mg, PO, MD OD (16 days) Digoxin, PO 0.70 0.70 1.01 1.13 0.48 2.34 Greiner 1999
193 Rifampicin, 600 mg, PO, MD OD (16 days) Digoxin, IV 0.73 0.85 0.86 0.91 0.83 1.09 Greiner 1999
227 Rifampicin, 300 mg, PO, MD BID (7 days) Digoxin, PO 0.47 0.75 0.63 0.49 0.62 0.80 Gurley 2008b
229 Clarithromycin, 500 mg, PO, MD BID (7 days) Digoxin, PO 1.26 1.47 0.86 1.42 1.75 0.81 Gurley 2008b
271 Itraconazole, 200 mg, PO, MD OD (5 days) Digoxin, PO 1.26 1.68 0.75 1.42 1.34 1.06 Jalava 1997
314 Rifampicin, 600 mg, PO, MD OD (14 days) Digoxin, PO 0.49 0.94 0.51 0.52 - - Kirby 2012
316 Rifampicin, 600 mg, PO, MD OD (14 days) Digoxin, PO 0.82 1.15 0.72 1.13 - - Kirby 2012
337 Rifampicin, 600 mg, PO, MD OD (6 days) Digoxin, PO 0.49 0.82 0.60 0.52 - - Larsen 2007
396 Rifampicin, 600 mg, PO, MD OD (28 days) Digoxin, PO 1.11 1.46 0.76 1.21 1.49 0.81 Reitman 2011
397 Rifampicin, 600 mg, PO, MD OD (28 days) Digoxin, PO 0.93 0.68 1.36 0.92 0.69 1.33 Reitman 2011
398 Rifampicin, 600 mg, PO, MD OD (28 days) Digoxin, PO 1.00 0.98 1.03 1.00 0.88 1.14 Reitman 2011
3028 Erythromycin, 200 mg, PO, MD QID (5 days) Digoxin, IV 1.02 0.95 1.06 1.01 0.99 1.02 Tsutsumi 2002
3029 Clarithromycin, 200 mg, PO, MD BID (5 days) Digoxin, IV 1.05 0.98 1.08 1.04 0.99 1.05 Tsutsumi 2002
3063 Verapamil, 80 mg, PO, MD: 80mg BID (4 days), 80mg TID (10 days) Digoxin, PO 1.81 1.50 1.20 1.76 1.44 1.22 Rodin 1988
16159 Verapamil, 80 mg, PO, MD BID 4days, TID 10days Digoxin, IV 1.46 1.24 1.18 1.05 - - Johnson et al. 1987
16162 Verapamil, 120 mg, PO, TID, 7 days pre-treatment Digoxin, IV 1.91 1.42 1.34 1.01 - - Pedersen et al. 1983
16172 Verapamil, 120 mg, PO, SD Digoxin, PO 1.28 1.01 1.27 1.52 1.22 1.25 Wiebe 2020
16301 Rifampicin, 600 mg, PO, SD Digoxin, PO 0.97 1.31 0.74 1.39 2.18 0.64 Wiebe 2020
16305 Clarithromycin, 400 mg, PO, MD Digoxin, PO 0.65 0.74 0.87 0.67 1.02 0.65 Kurata 2002
16307 Clarithromycin, 400 mg, PO, MD Digoxin, IV 0.54 0.57 0.93 0.51 0.66 0.78 Kurata 2002
16309 Clarithromycin, 400 mg, PO, MD Digoxin, PO 0.65 0.64 1.01 0.67 0.91 0.74 Kurata 2002
16311 Clarithromycin, 400 mg, PO, MD Digoxin, IV 0.54 0.54 1.00 0.51 0.66 0.77 Kurata 2002
16313 Clarithromycin, 400 mg, PO, MD Digoxin, PO 0.65 0.78 0.83 0.67 0.92 0.73 Kurata 2002
16315 Clarithromycin, 400 mg, PO, MD Digoxin, IV 0.54 0.56 0.97 0.51 0.63 0.81 Kurata 2002
16319 Rifampicin, 600 mg, PO, MD Digoxin, IV 0.68 0.73 0.93 0.88 0.81 1.09 Drescher 2003
16322 Rifampicin, 300 mg, PO, MD Digoxin, PO 0.61 0.84 0.73 0.72 0.77 0.94 Gurley 2006
16324 Clarithromycin, 500 mg, PO, MD Digoxin, PO 1.27 1.35 0.94 1.42 1.48 0.95 Gurley 2006
16326 Rifampicin, 300 mg, PO, MD Digoxin, PO 0.61 0.84 0.73 0.72 0.72 1.00 Gurley 2007
16328 Clarithromycin, 500 mg, PO, MD Digoxin, PO 1.27 1.57 0.81 1.42 1.95 0.73 Gurley 2007
16329 Itraconazole, 200 mg, PO, MD Digoxin, PO 1.35 - - 1.39 1.63 0.85 Partanen 1996
16330 Itraconazole, 200 mg, PO, MD Digoxin, PO 1.37 - - 1.40 1.97 0.71 Partanen 1996
16409 Clarithromycin, 250 mg, PO, MD BID (3 days) Digoxin, IV 1.06 1.19 0.89 1.00 - - Rengelshausen 2003
16411 Clarithromycin, 250 mg, PO, MD BID (3 days) Digoxin, PO 1.24 1.64 0.76 1.42 1.83 0.78 Rengelshausen 2003
16638 Verapamil, 80 mg, PO, TID Digoxin, IV 1.03 1.61 0.64 0.83 - - Pedersen 1981



2.1 Mechanism

2.1.1 Induction

Figure 2-5: Pgp DDI. Mechanism: Induction. Predicted vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-6: Pgp DDI. Mechanism: Induction. Predicted/Observed vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-7: Pgp DDI. Mechanism: Induction. Predicted vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Figure 2-8: Pgp DDI. Mechanism: Induction. Predicted/Observed vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Table 2-5: GMFE for Pgp DDI Ratio

PK parameter GMFE
AUC_tEnd 1.33
C_max 1.27



Table 2-6: Summary table for Pgp DDI - AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

AUC_tEnd Number Ratio [%]
Points total 13 -
Points within Guest et al. 2 15.38
Points within 2 fold 13 100.00



Table 2-7: Summary table for Pgp DDI - C_max Ratio. (δ = 1 in Guest et al. formula)

C_max Number Ratio [%]
Points total 10 -
Points within Guest et al. 6 60
Points within 2 fold 9 90



2.1.2 Mechanism-based Inactivation

Figure 2-9: Pgp DDI. Mechanism: Mechanism-based Inactivation. Predicted vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-10: Pgp DDI. Mechanism: Mechanism-based Inactivation. Predicted/Observed vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-11: Pgp DDI. Mechanism: Mechanism-based Inactivation. Predicted vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Figure 2-12: Pgp DDI. Mechanism: Mechanism-based Inactivation. Predicted/Observed vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Table 2-8: GMFE for Pgp DDI Ratio

PK parameter GMFE
AUC_tEnd 1.28
C_max 1.24



Table 2-9: Summary table for Pgp DDI - AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

AUC_tEnd Number Ratio [%]
Points total 6 -
Points within Guest et al. 3 50
Points within 2 fold 6 100



Table 2-10: Summary table for Pgp DDI - C_max Ratio. (δ = 1 in Guest et al. formula)

C_max Number Ratio [%]
Points total 3 -
Points within Guest et al. 2 66.67
Points within 2 fold 3 100.00



2.1.3 Reversible Inhibition

Figure 2-13: Pgp DDI. Mechanism: Reversible Inhibition. Predicted vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-14: Pgp DDI. Mechanism: Reversible Inhibition. Predicted/Observed vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-15: Pgp DDI. Mechanism: Reversible Inhibition. Predicted vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Figure 2-16: Pgp DDI. Mechanism: Reversible Inhibition. Predicted/Observed vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Table 2-11: GMFE for Pgp DDI Ratio

PK parameter GMFE
AUC_tEnd 1.12
C_max 1.24



Table 2-12: Summary table for Pgp DDI - AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

AUC_tEnd Number Ratio [%]
Points total 13 -
Points within Guest et al. 11 84.62
Points within 2 fold 13 100.00



Table 2-13: Summary table for Pgp DDI - C_max Ratio. (δ = 1 in Guest et al. formula)

C_max Number Ratio [%]
Points total 14 -
Points within Guest et al. 9 64.29
Points within 2 fold 14 100.00



2.2 Perpetrator

2.2.1 Clarithromycin

Figure 2-17: Pgp DDI. Perpetrator: Clarithromycin. Predicted vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-18: Pgp DDI. Perpetrator: Clarithromycin. Predicted/Observed vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-19: Pgp DDI. Perpetrator: Clarithromycin. Predicted vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Figure 2-20: Pgp DDI. Perpetrator: Clarithromycin. Predicted/Observed vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Table 2-14: GMFE for Pgp DDI Ratio

PK parameter GMFE
AUC_tEnd 1.12
C_max 1.27



Table 2-15: Summary table for Pgp DDI - AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

AUC_tEnd Number Ratio [%]
Points total 12 -
Points within Guest et al. 11 91.67
Points within 2 fold 12 100.00



Table 2-16: Summary table for Pgp DDI - C_max Ratio. (δ = 1 in Guest et al. formula)

C_max Number Ratio [%]
Points total 11 -
Points within Guest et al. 7 63.64
Points within 2 fold 11 100.00



2.2.2 Erythromycin

Figure 2-21: Pgp DDI. Perpetrator: Erythromycin. Predicted vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-22: Pgp DDI. Perpetrator: Erythromycin. Predicted/Observed vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-23: Pgp DDI. Perpetrator: Erythromycin. Predicted vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Figure 2-24: Pgp DDI. Perpetrator: Erythromycin. Predicted/Observed vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Table 2-17: GMFE for Pgp DDI Ratio

PK parameter GMFE
AUC_tEnd 1.06
C_max 1.02



Table 2-18: Summary table for Pgp DDI - AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

AUC_tEnd Number Ratio [%]
Points total 1 -
Points within Guest et al. 0 0
Points within 2 fold 1 100



Table 2-19: Summary table for Pgp DDI - C_max Ratio. (δ = 1 in Guest et al. formula)

C_max Number Ratio [%]
Points total 1 -
Points within Guest et al. 0 0
Points within 2 fold 1 100



2.2.3 Itraconazole

Figure 2-25: Pgp DDI. Perpetrator: Itraconazole. Predicted vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

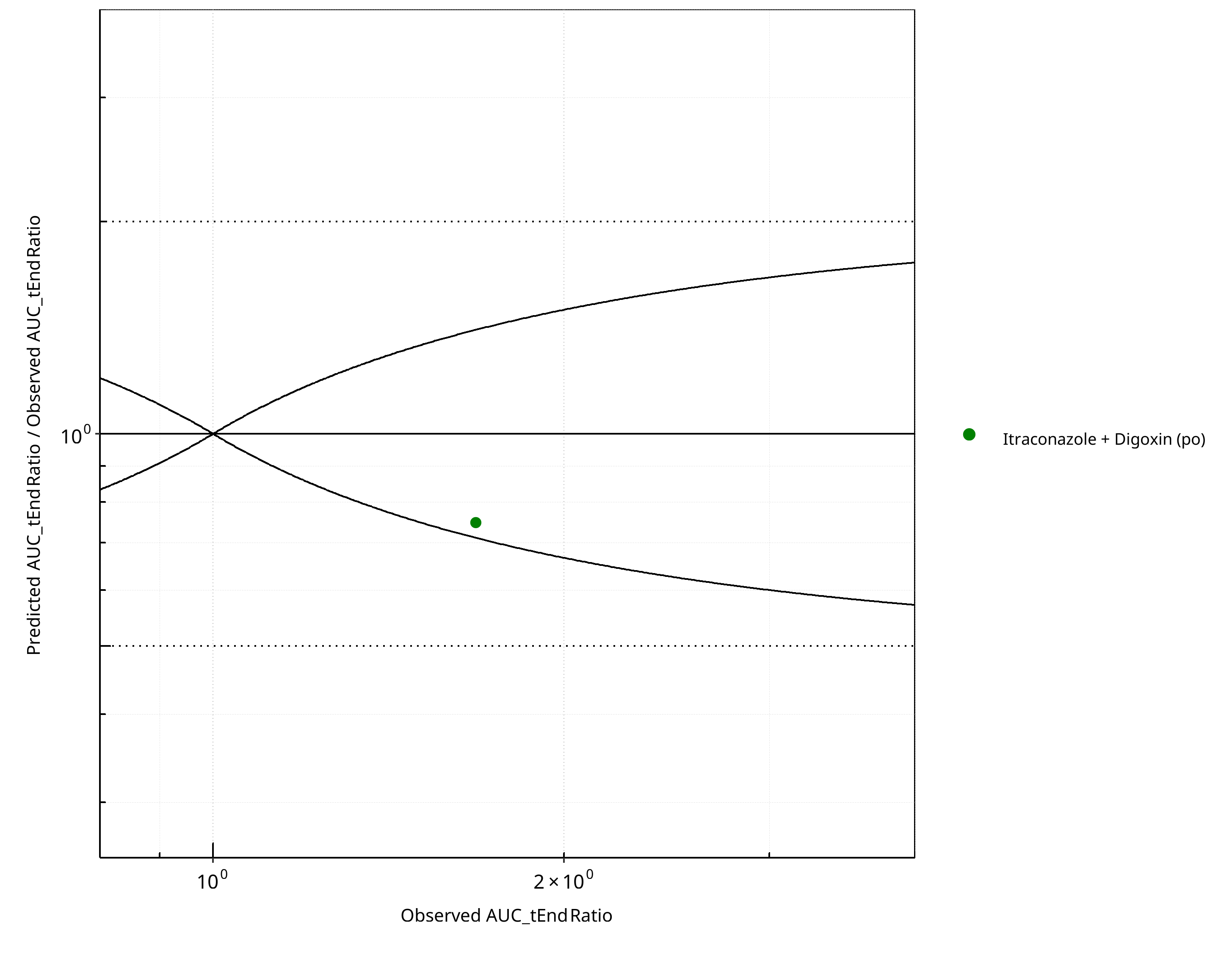

Figure 2-26: Pgp DDI. Perpetrator: Itraconazole. Predicted/Observed vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-27: Pgp DDI. Perpetrator: Itraconazole. Predicted vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Figure 2-28: Pgp DDI. Perpetrator: Itraconazole. Predicted/Observed vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Table 2-20: GMFE for Pgp DDI Ratio

PK parameter GMFE
AUC_tEnd 1.33
C_max 1.20



Table 2-21: Summary table for Pgp DDI - AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

AUC_tEnd Number Ratio [%]
Points total 1 -
Points within Guest et al. 1 100
Points within 2 fold 1 100



Table 2-22: Summary table for Pgp DDI - C_max Ratio. (δ = 1 in Guest et al. formula)

C_max Number Ratio [%]
Points total 3 -
Points within Guest et al. 3 100
Points within 2 fold 3 100



2.2.4 Rifampicin

Figure 2-29: Pgp DDI. Perpetrator: Rifampicin. Predicted vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-30: Pgp DDI. Perpetrator: Rifampicin. Predicted/Observed vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-31: Pgp DDI. Perpetrator: Rifampicin. Predicted vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Figure 2-32: Pgp DDI. Perpetrator: Rifampicin. Predicted/Observed vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Table 2-23: GMFE for Pgp DDI Ratio

PK parameter GMFE
AUC_tEnd 1.33
C_max 1.27



Table 2-24: Summary table for Pgp DDI - AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

AUC_tEnd Number Ratio [%]
Points total 13 -
Points within Guest et al. 2 15.38
Points within 2 fold 13 100.00



Table 2-25: Summary table for Pgp DDI - C_max Ratio. (δ = 1 in Guest et al. formula)

C_max Number Ratio [%]
Points total 10 -
Points within Guest et al. 6 60
Points within 2 fold 9 90



2.2.5 Verapamil

Figure 2-33: Pgp DDI. Perpetrator: Verapamil. Predicted vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-34: Pgp DDI. Perpetrator: Verapamil. Predicted/Observed vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

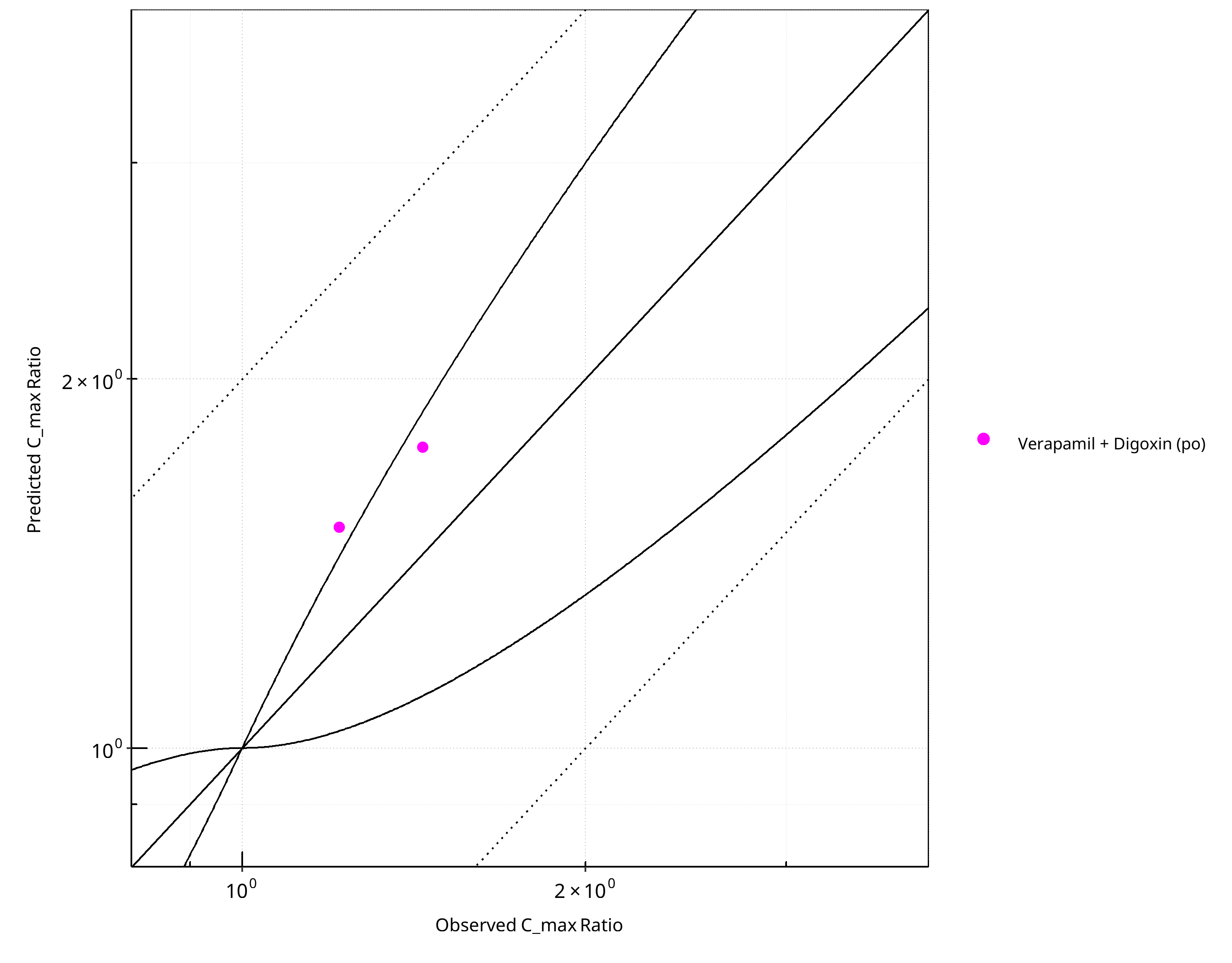

Figure 2-35: Pgp DDI. Perpetrator: Verapamil. Predicted vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Figure 2-36: Pgp DDI. Perpetrator: Verapamil. Predicted/Observed vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Table 2-26: GMFE for Pgp DDI Ratio

PK parameter GMFE
AUC_tEnd 1.31
C_max 1.23



Table 2-27: Summary table for Pgp DDI - AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

AUC_tEnd Number Ratio [%]
Points total 5 -
Points within Guest et al. 2 40
Points within 2 fold 5 100



Table 2-28: Summary table for Pgp DDI - C_max Ratio. (δ = 1 in Guest et al. formula)

C_max Number Ratio [%]
Points total 2 -
Points within Guest et al. 1 50
Points within 2 fold 2 100



2.3 Victim

2.3.1 Digoxin

Figure 2-37: Pgp DDI. Victim: Digoxin. Predicted vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-38: Pgp DDI. Victim: Digoxin. Predicted/Observed vs. Observed AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)



Figure 2-39: Pgp DDI. Victim: Digoxin. Predicted vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Figure 2-40: Pgp DDI. Victim: Digoxin. Predicted/Observed vs. Observed C_max Ratio. (δ = 1 in Guest et al. formula)



Table 2-29: GMFE for Pgp DDI Ratio

PK parameter GMFE
AUC_tEnd 1.24
C_max 1.25



Table 2-30: Summary table for Pgp DDI - AUC_tEnd Ratio. (δ = 1 in Guest et al. formula)

AUC_tEnd Number Ratio [%]
Points total 32 -
Points within Guest et al. 16 50
Points within 2 fold 32 100



Table 2-31: Summary table for Pgp DDI - C_max Ratio. (δ = 1 in Guest et al. formula)

C_max Number Ratio [%]
Points total 27 -
Points within Guest et al. 17 62.96
Points within 2 fold 26 96.30



3 Concentration-Time Profiles

The following section shows concentration time profiles of the victim drugs of the simulated DDI studies in comparison to observed data (if available).

3.1 Clarithromycin - Digoxin DDI

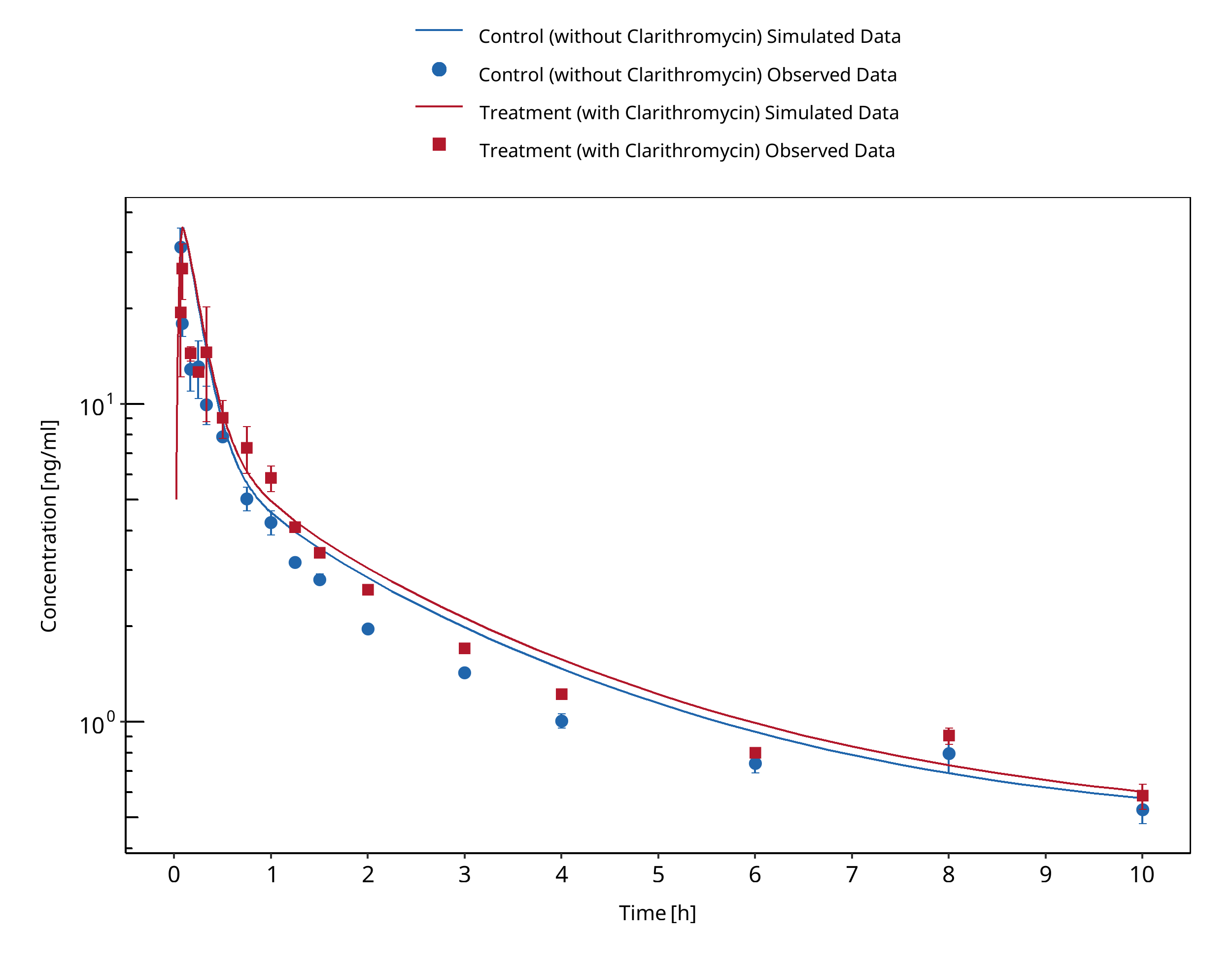

Figure 3-1: Rengelshausen 2003 (0.01 mg/kg IV) - Plasma

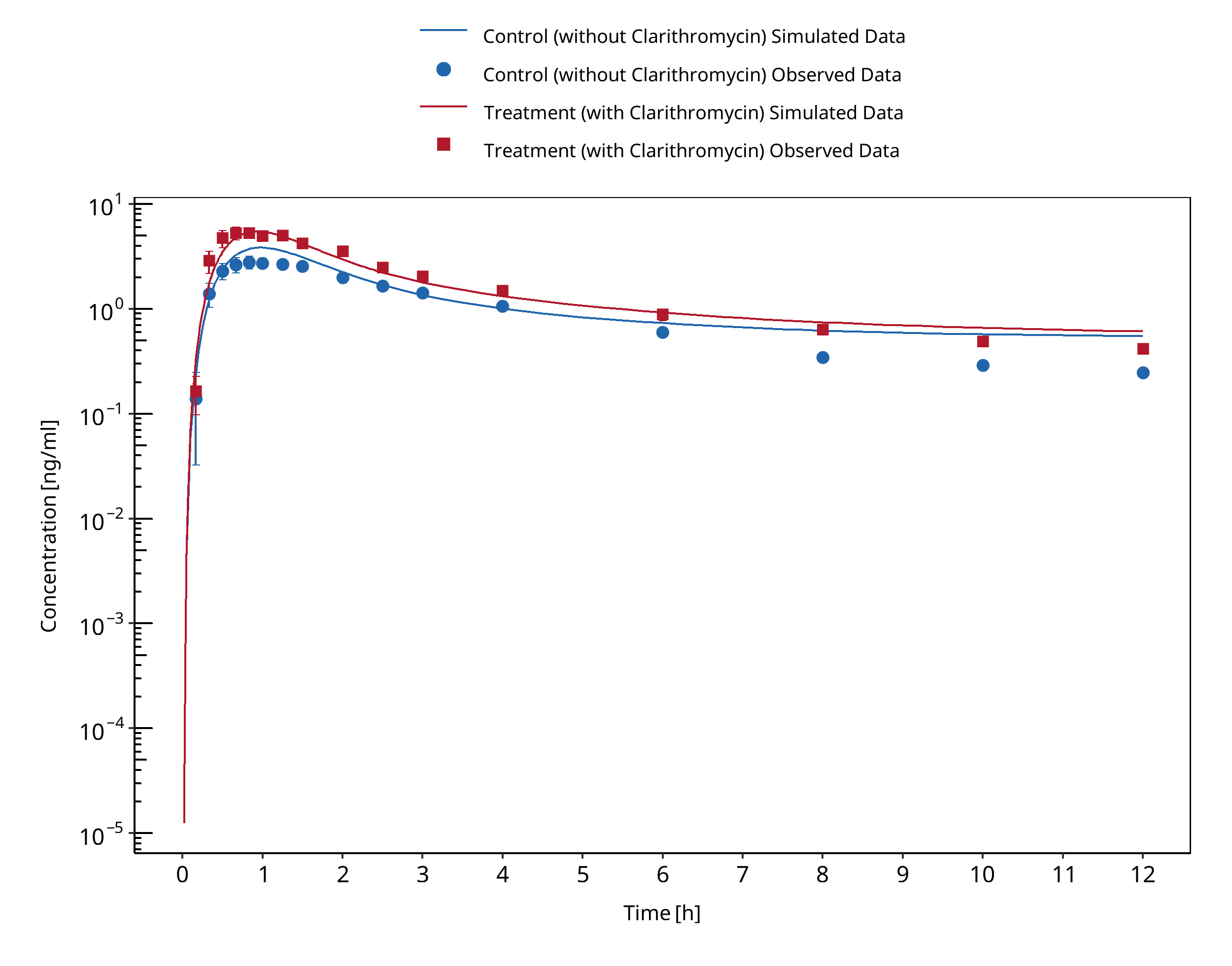

Figure 3-2: Rengelshausen 2003 (0.75 mg PO) - Plasma

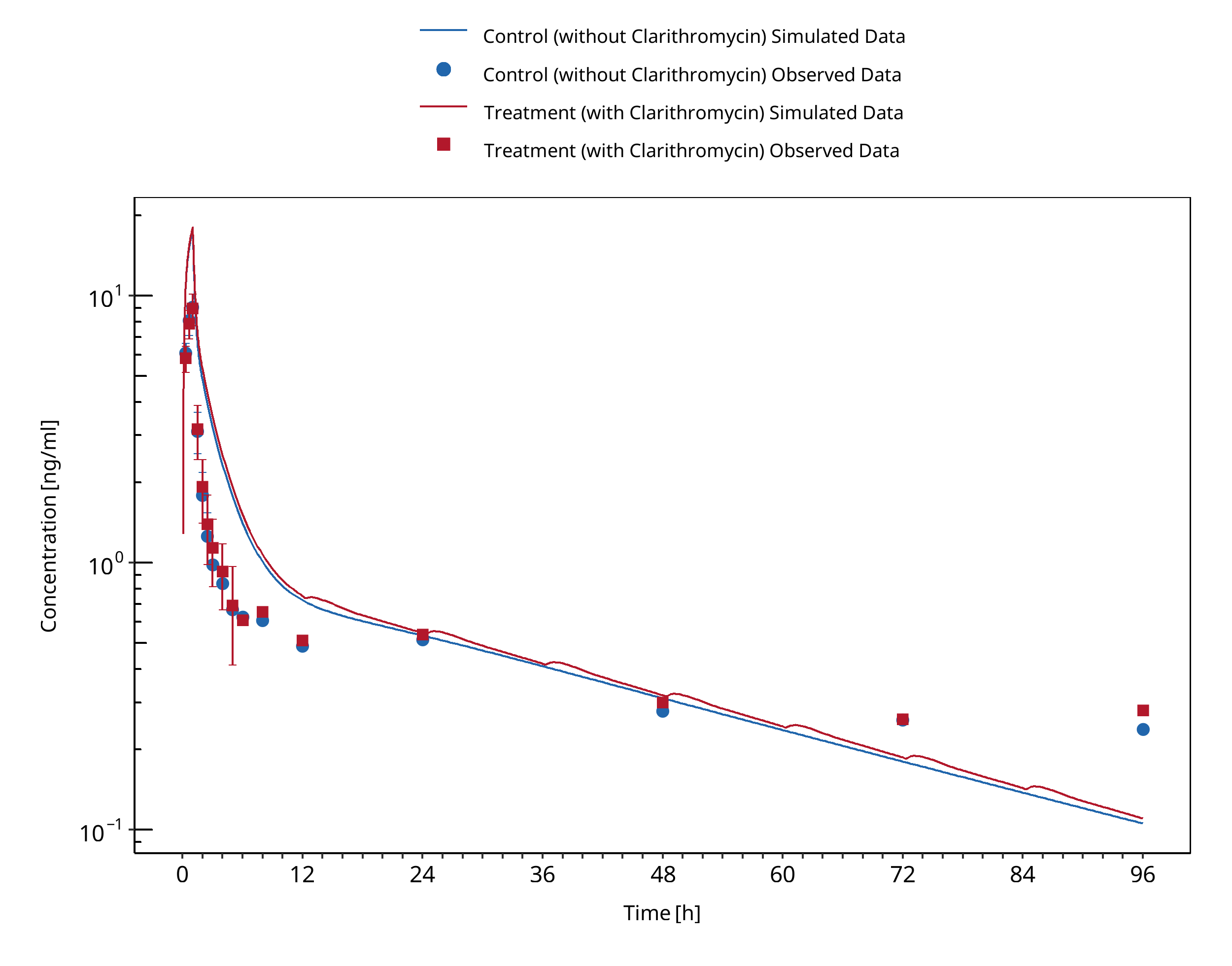

Figure 3-3: Tsutsumi 2002 (0.5mg IV) - Plasma



Figure 3-4: Gurley 2008 (0.25 mg PO) - Plasma



Figure 3-5: Gurley 2006 (0.4 mg PO) - Plasma

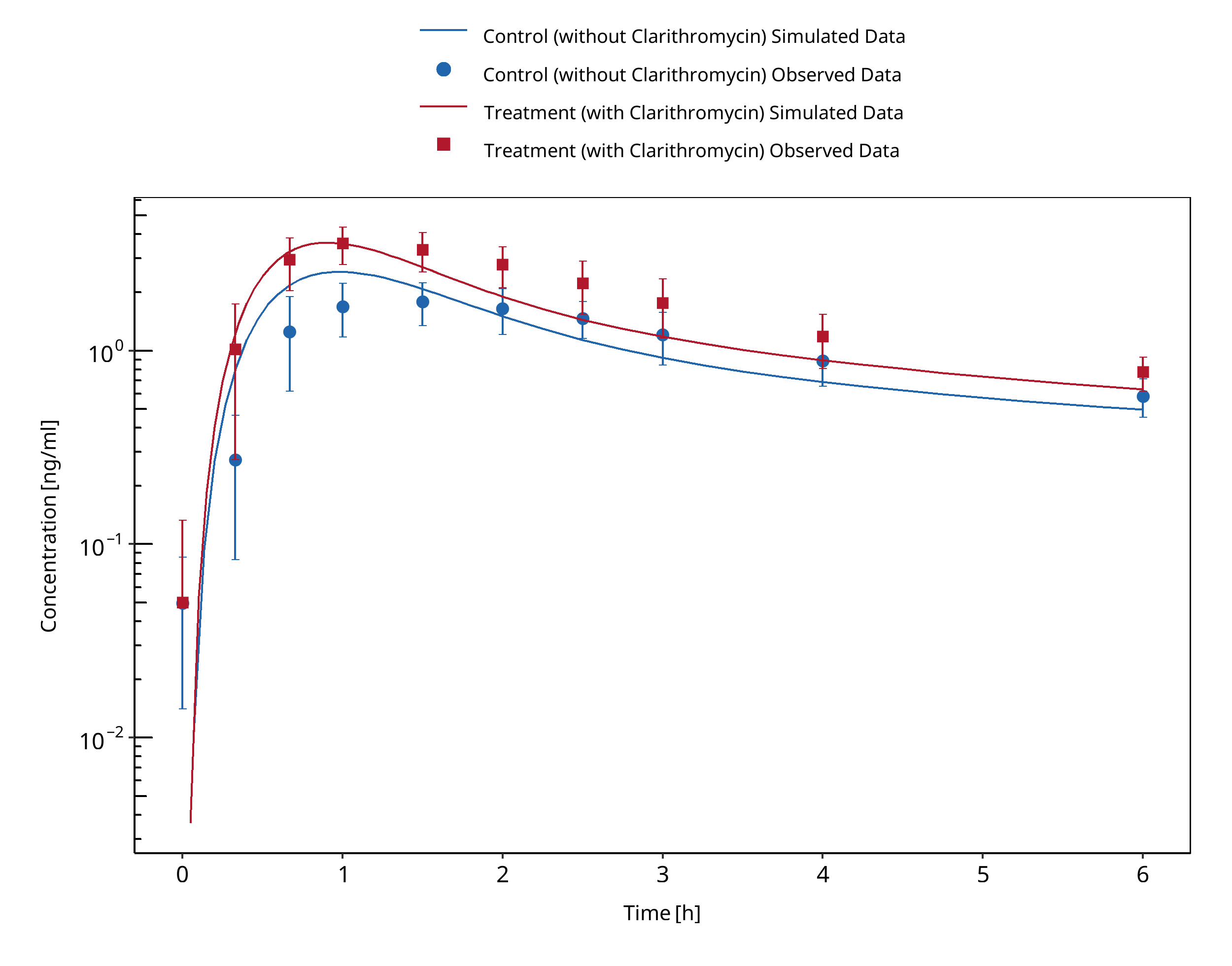

Figure 3-6: Gurley 2007 (0.5 mg PO) - Plasma

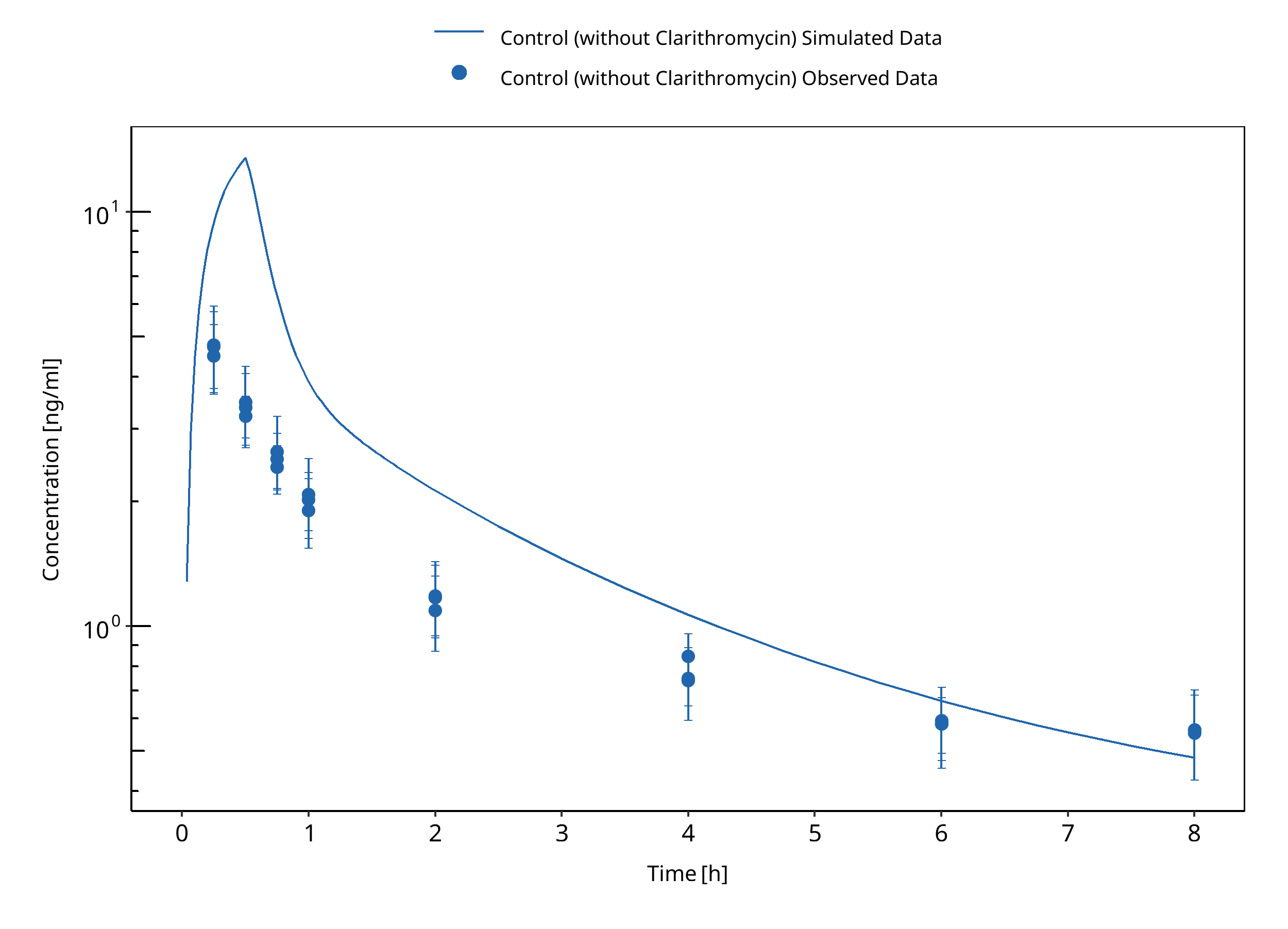

Figure 3-7: Kurata 2002 (0.5 mg IV) - Plasma

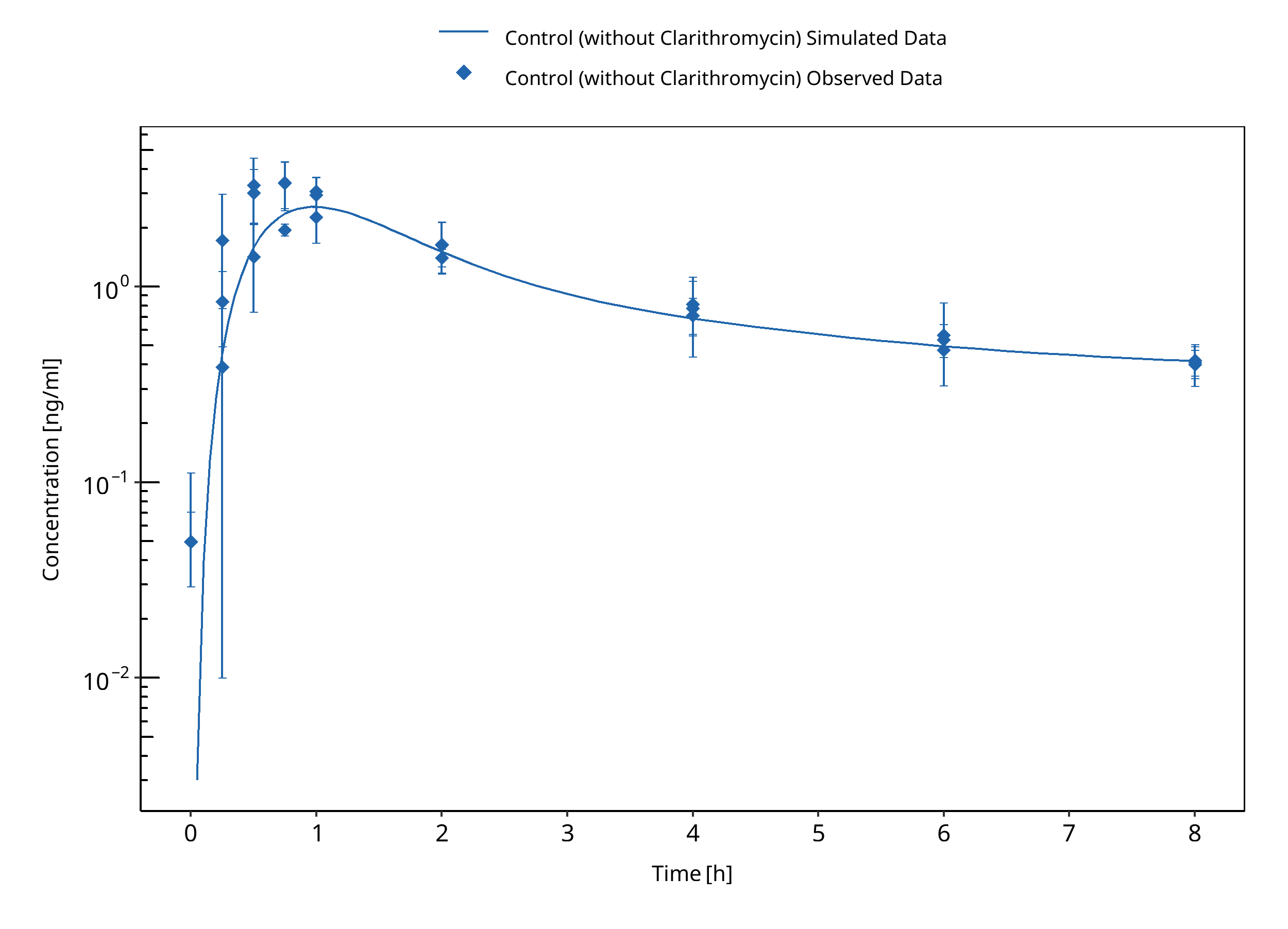

Figure 3-8: Kurata 2002 (0.5 mg PO) - Plasma



Figure 3-9: Kurata 2002 (0.25 mg IV) - Plasma

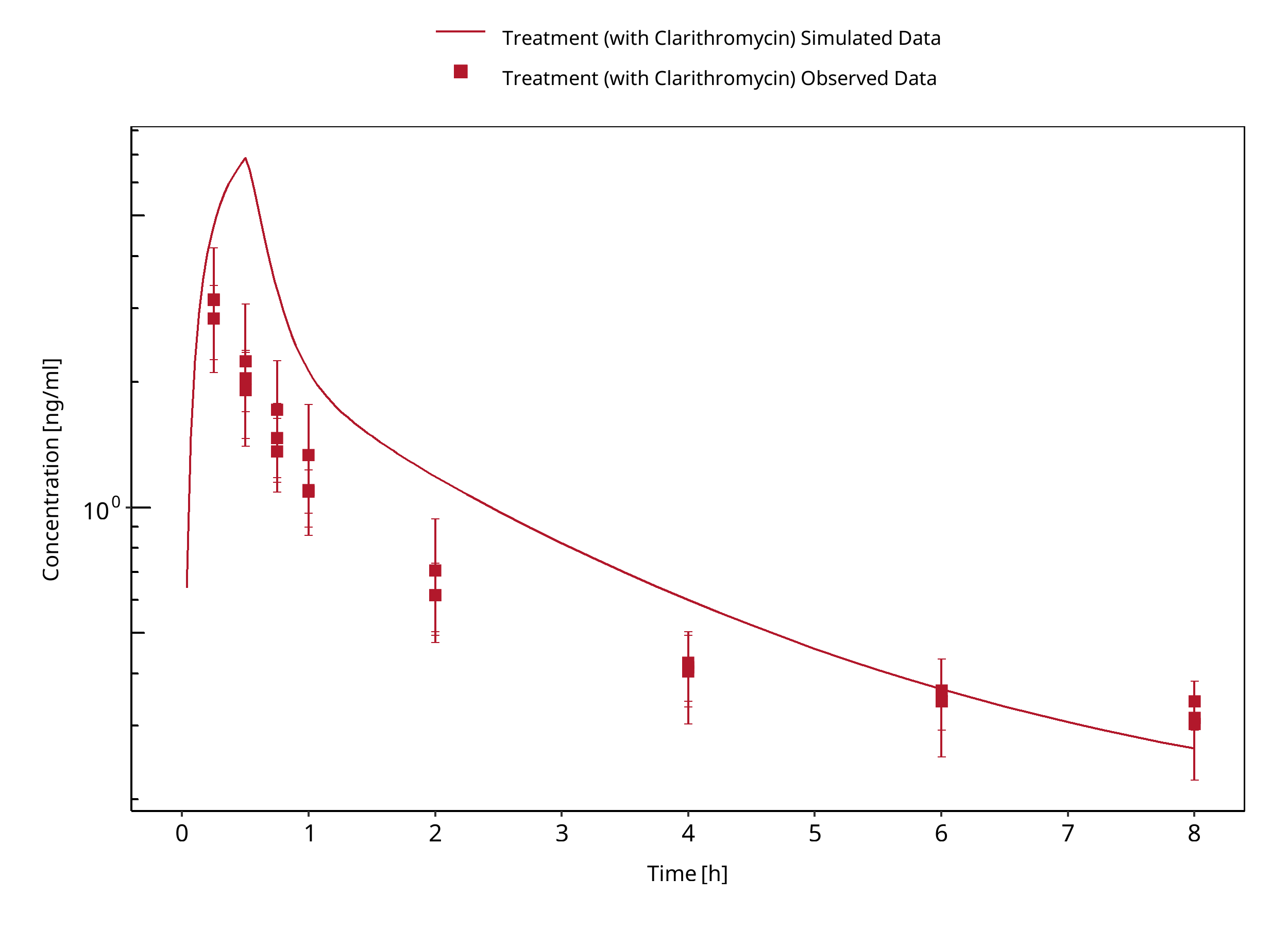

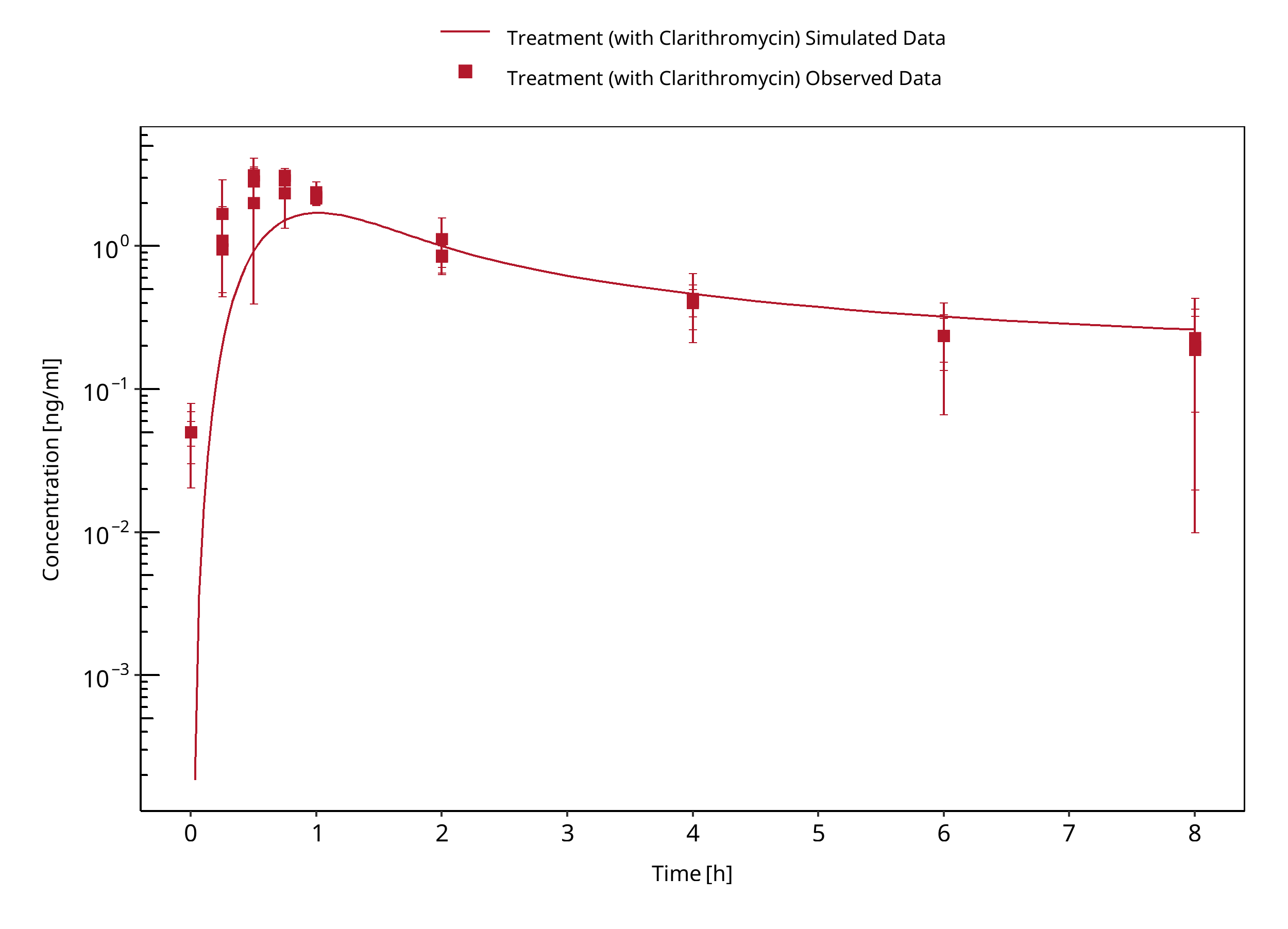

Figure 3-10: Kurata 2002 (0.25 mg PO) - Plasma



3.2 Erythromycin - Digoxin DDI

Figure 3-11: Tsutsumi 2002 - Plasma



3.3 Itraconazole - Digoxin DDI

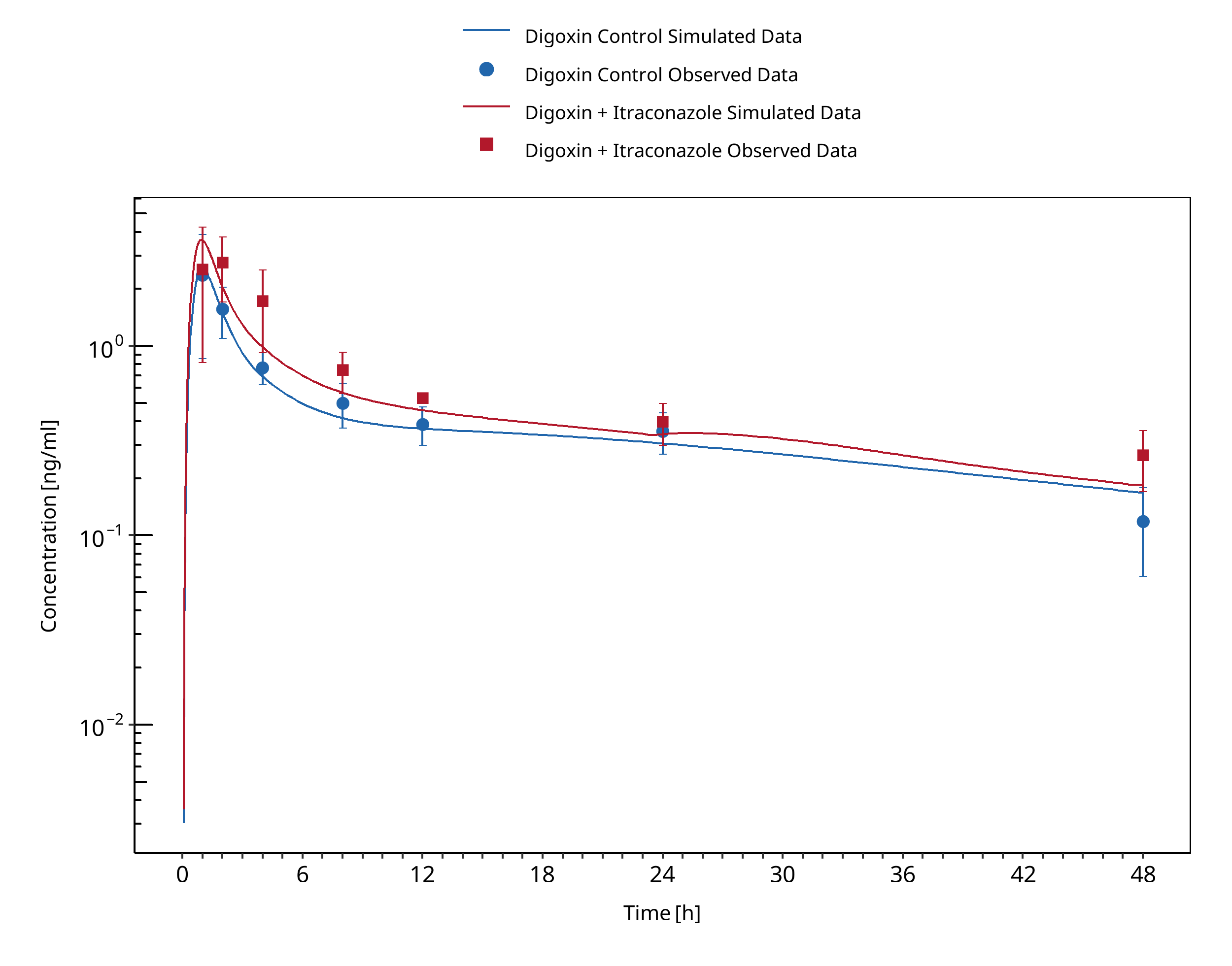

Figure 3-12: Jalava 1997

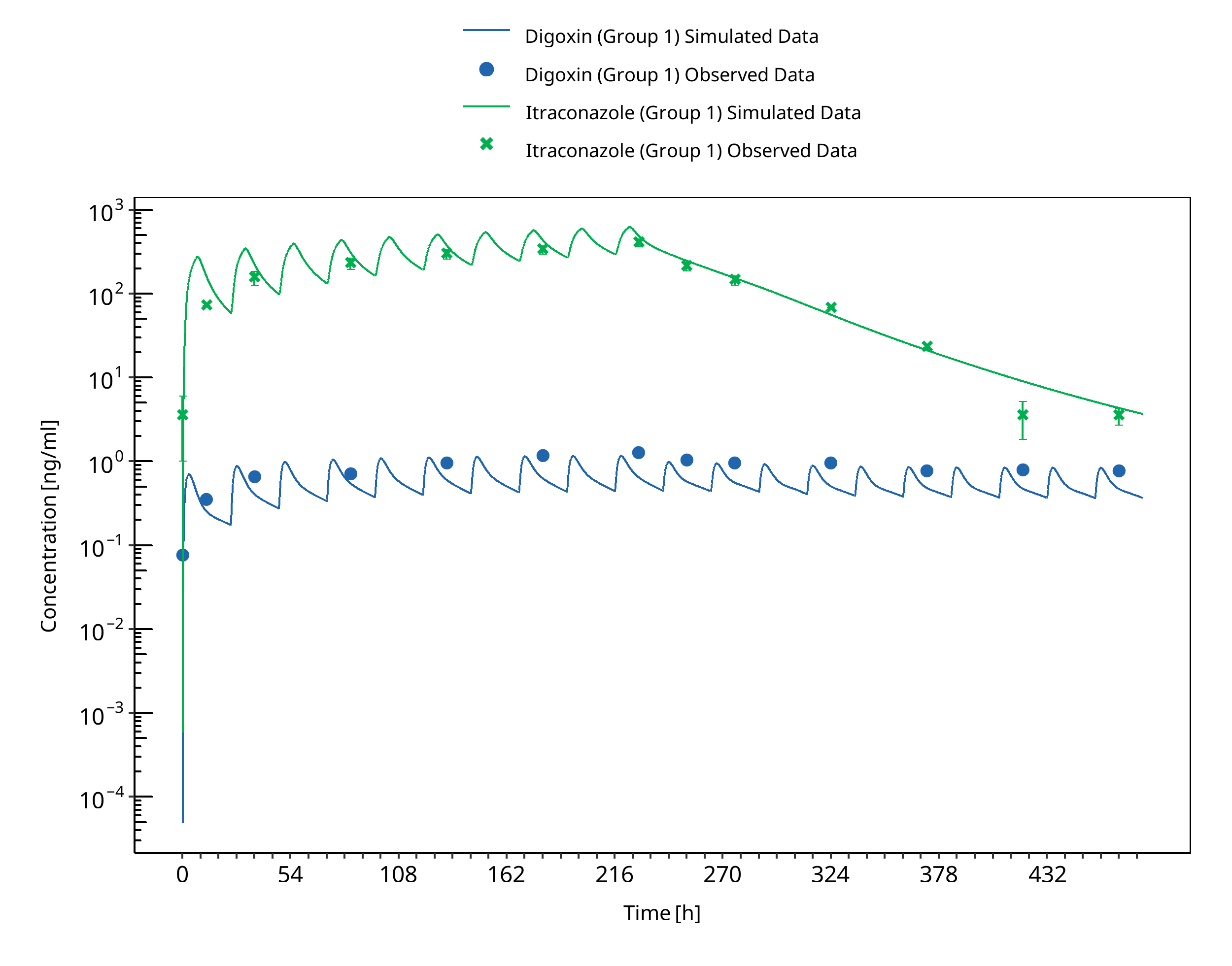

Figure 3-13: Partanen 1996 - Group 1

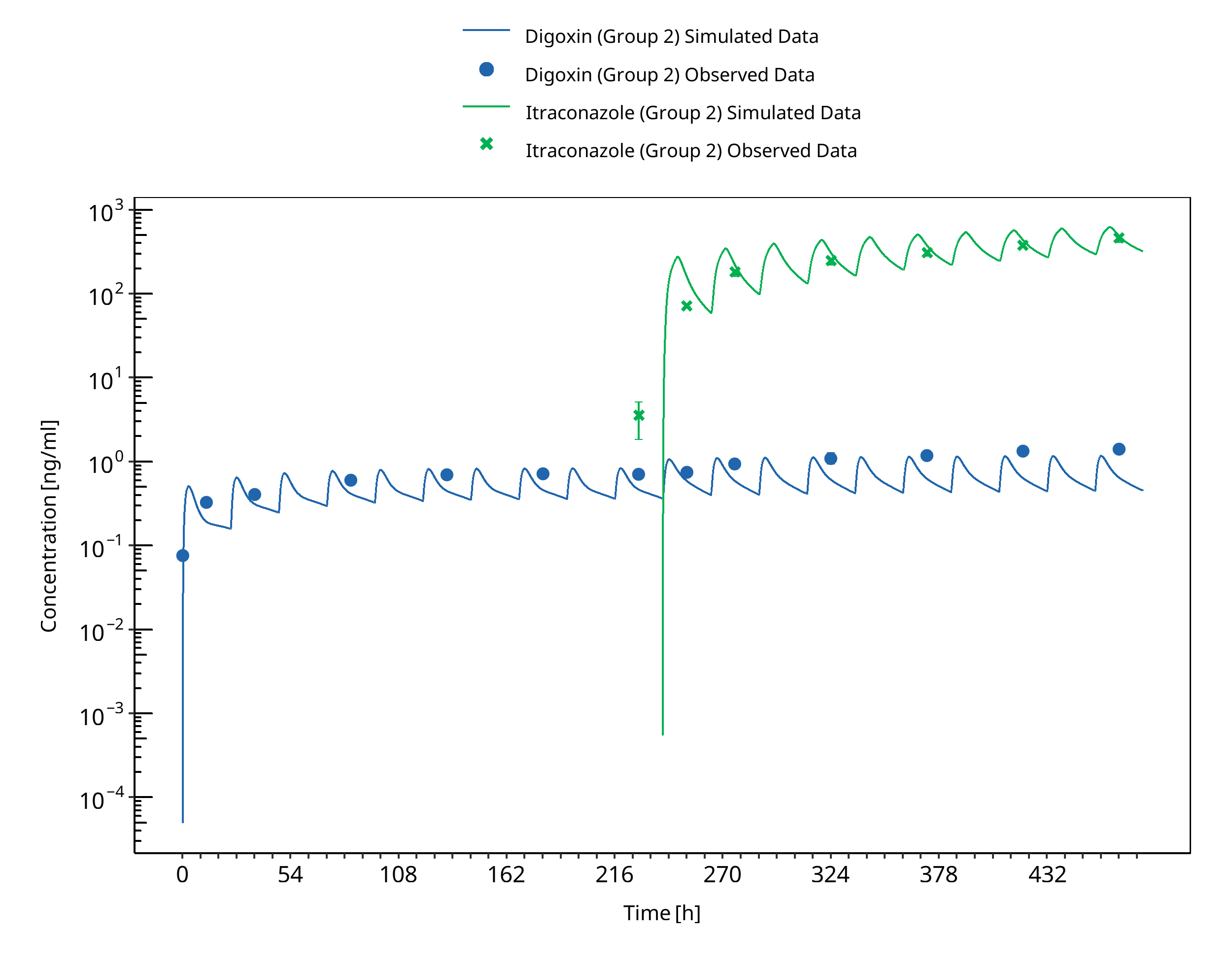

Figure 3-14: Partanen 1996 - Group 2



3.4 Verapamil - Digoxin DDI

Figure 3-15: Johnson 1987

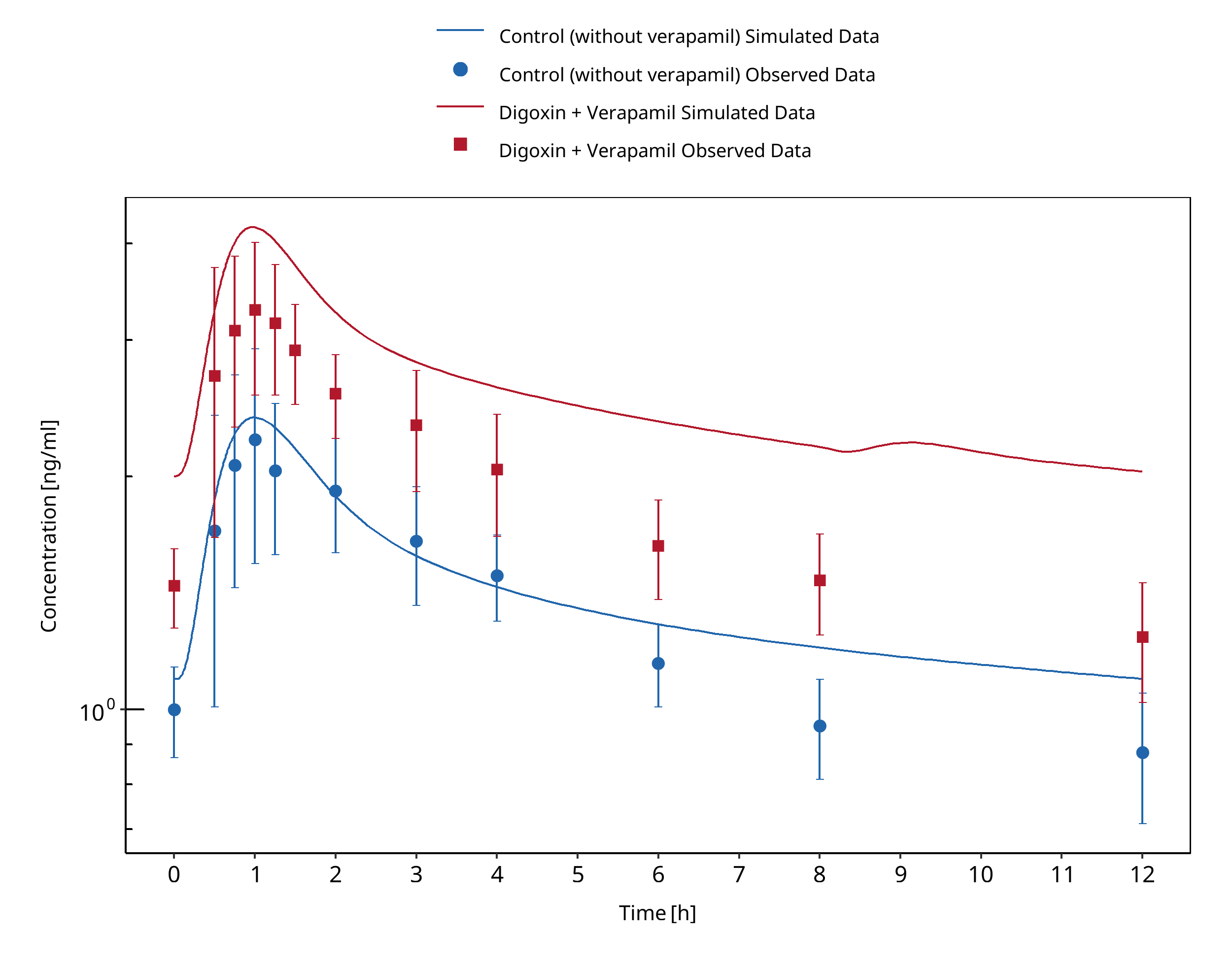

Figure 3-16: Rodin 1988



Figure 3-17: Wiebe 2020

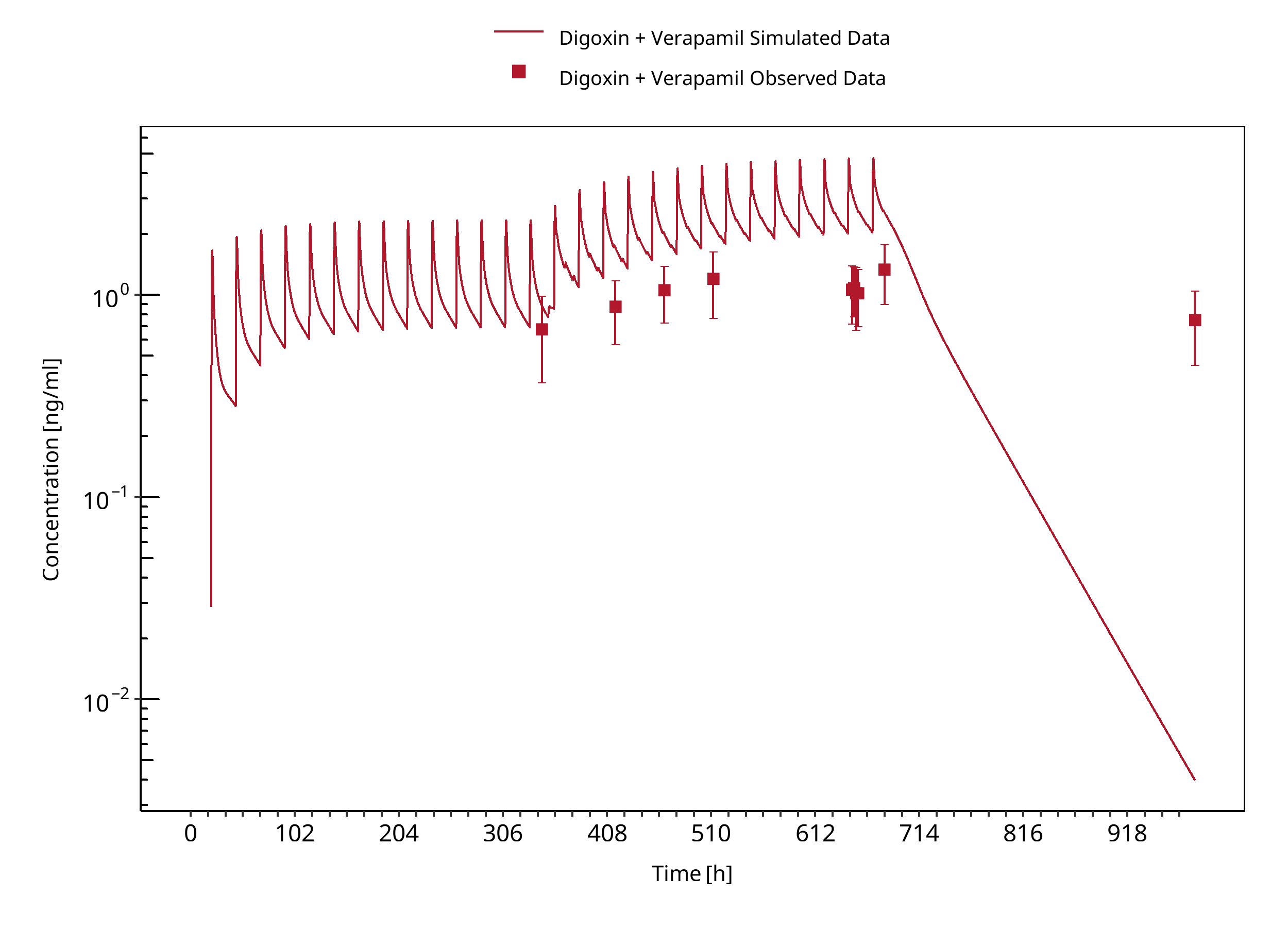

Figure 3-18: Klein 1982

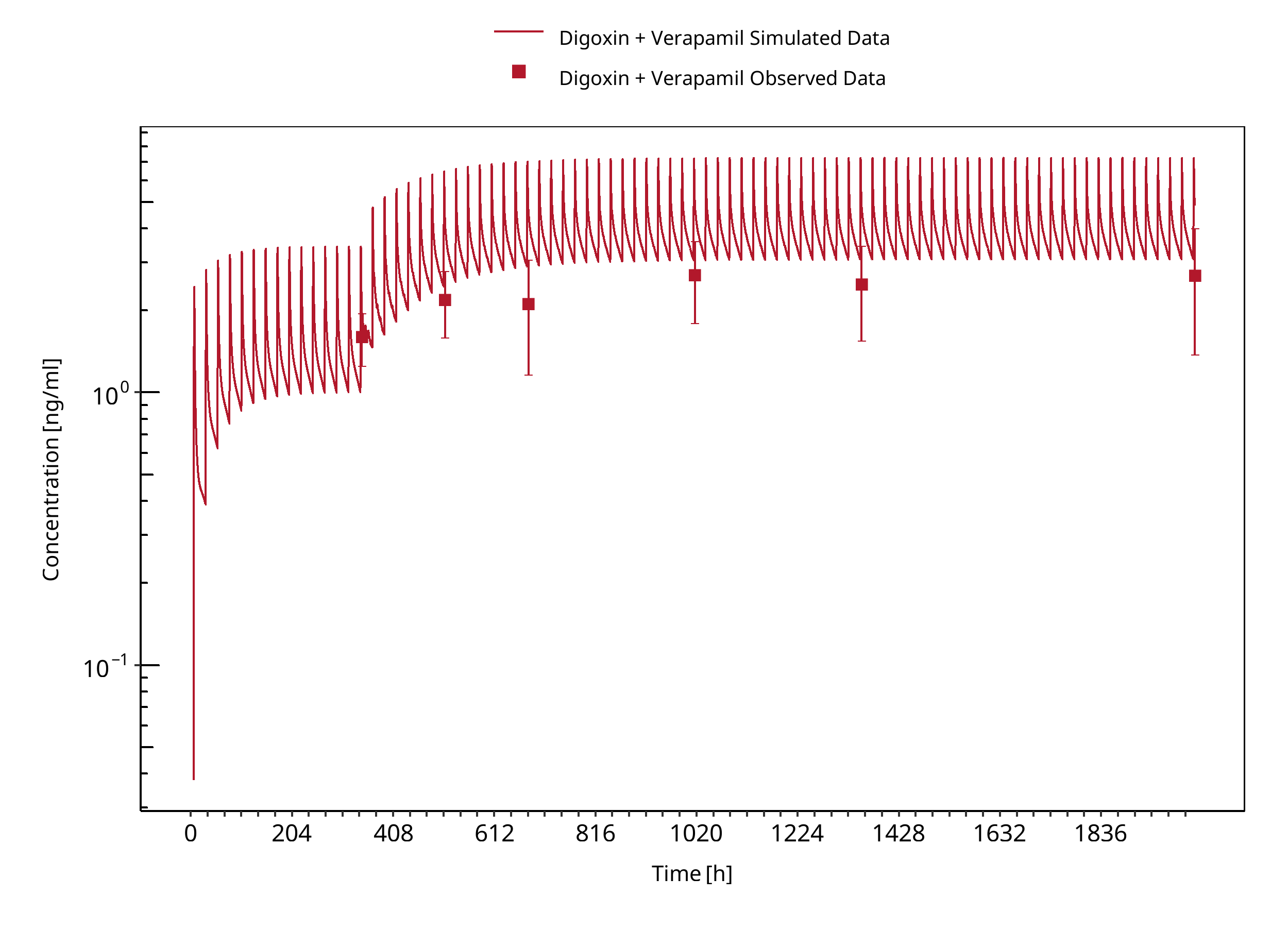

Figure 3-19: Schwartz 1982

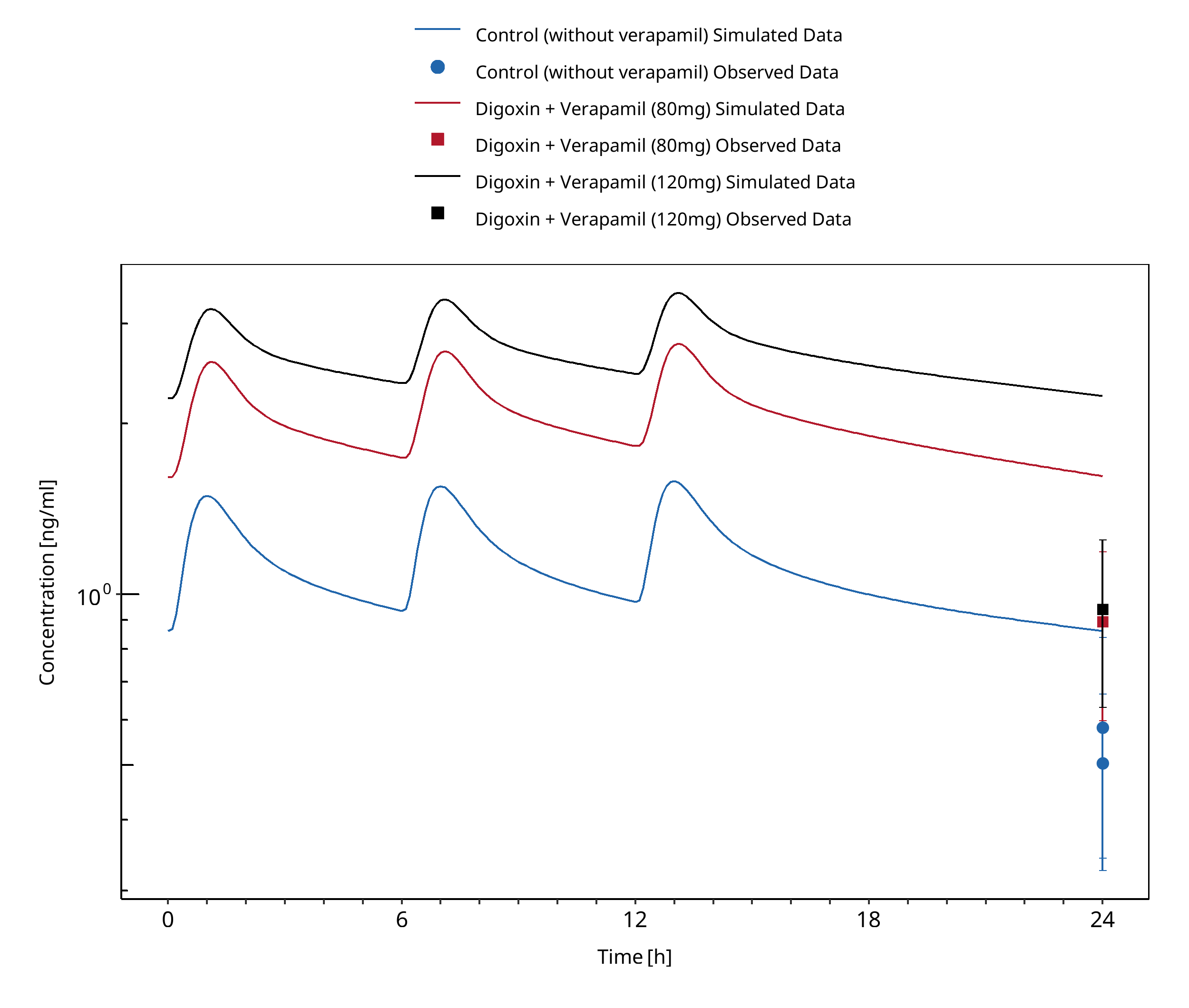

Figure 3-20: Belz 1983

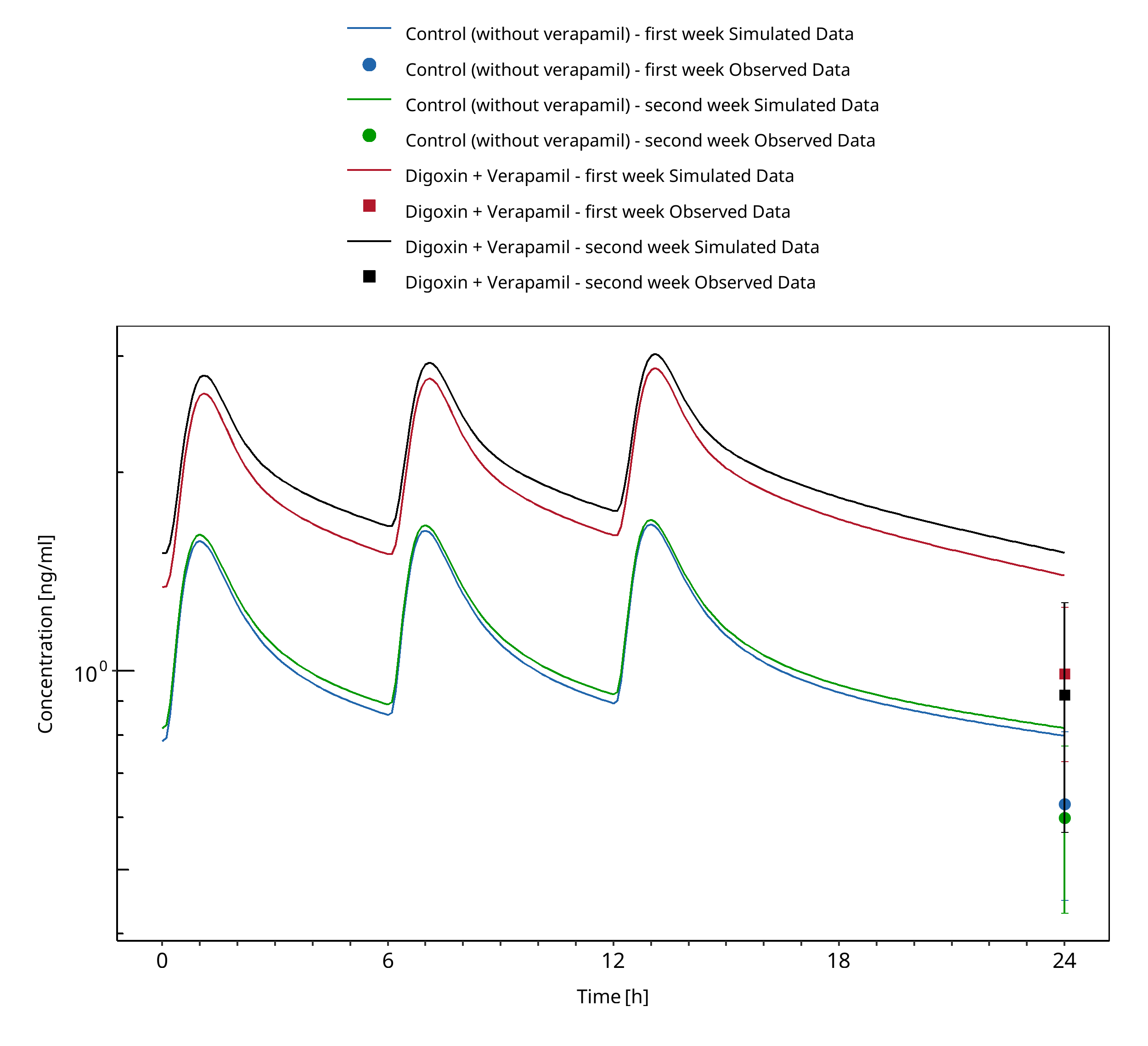

Figure 3-21: Doering 1983

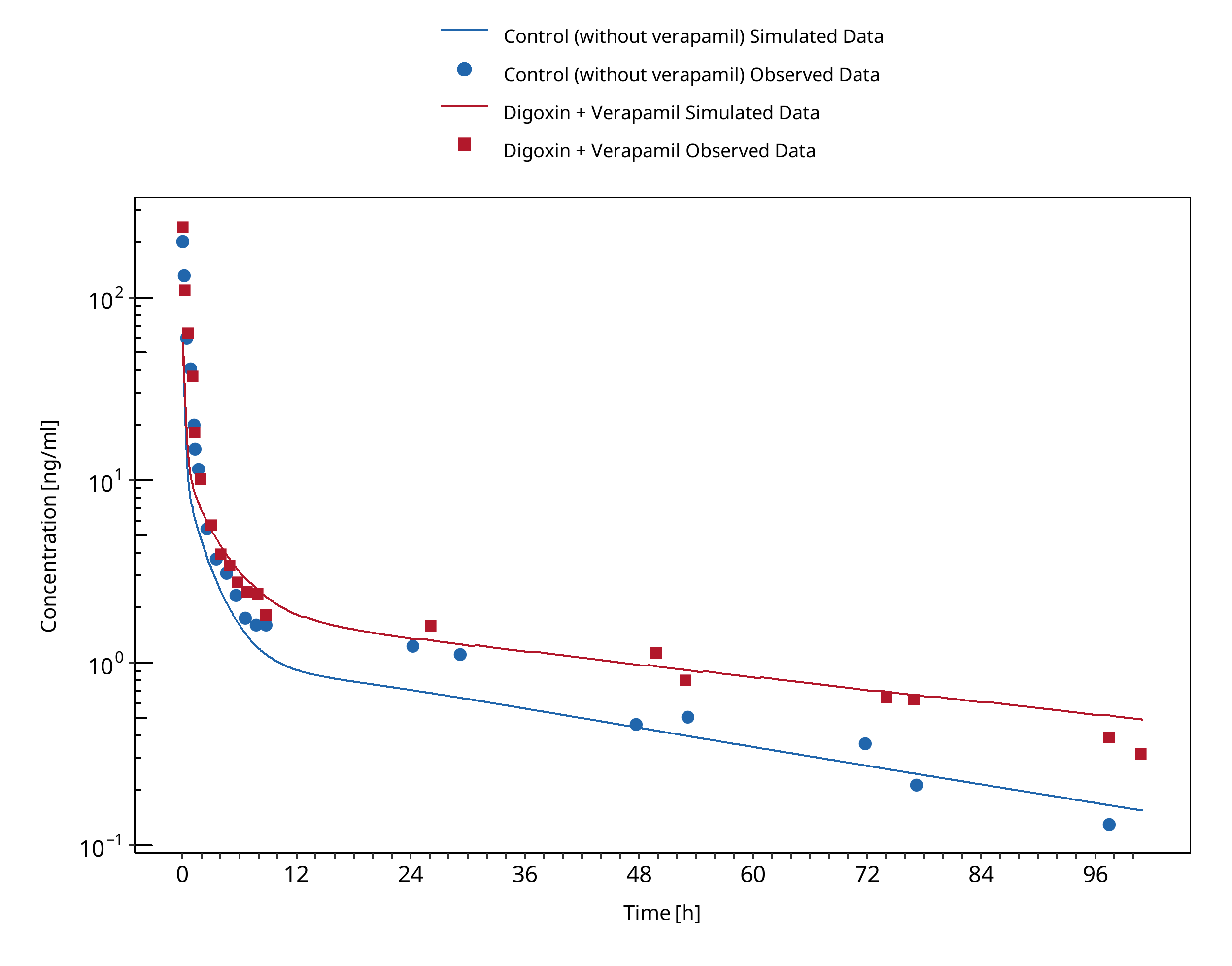

Figure 3-22: Pedersen 1983

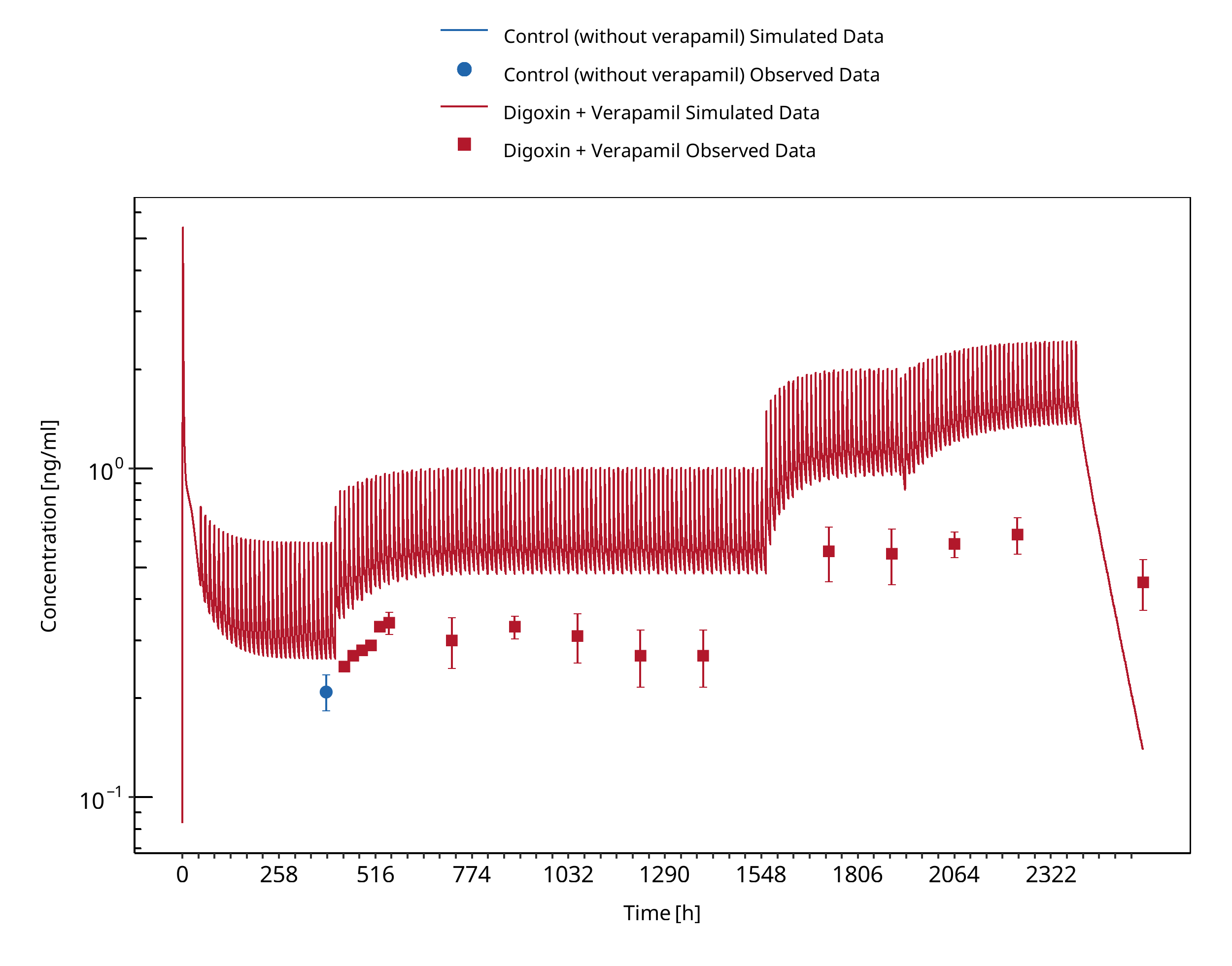

Figure 3-23: Pedersen 1982

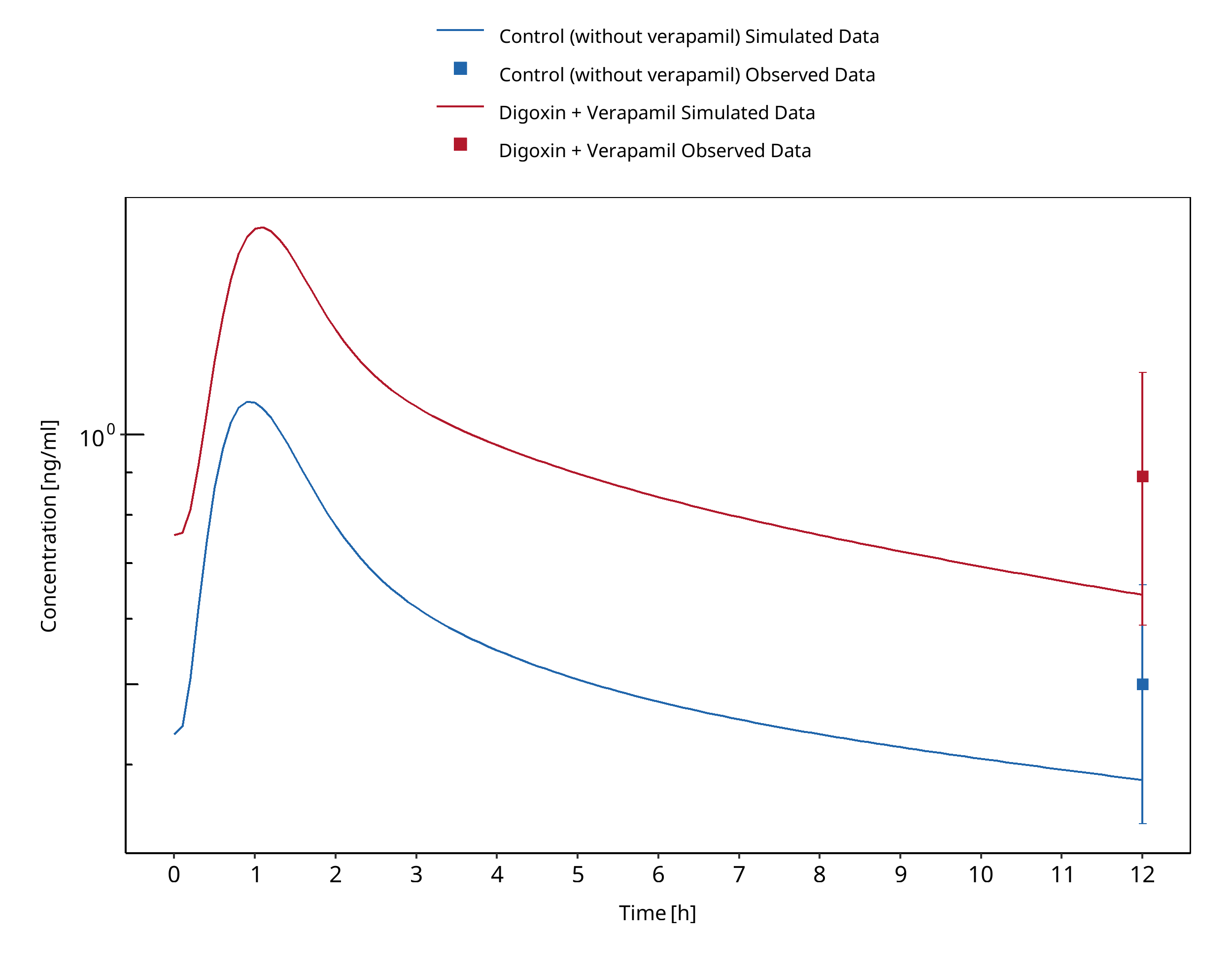

Figure 3-24: Belz 1981



3.5 Rifampicin - Digoxin DDI

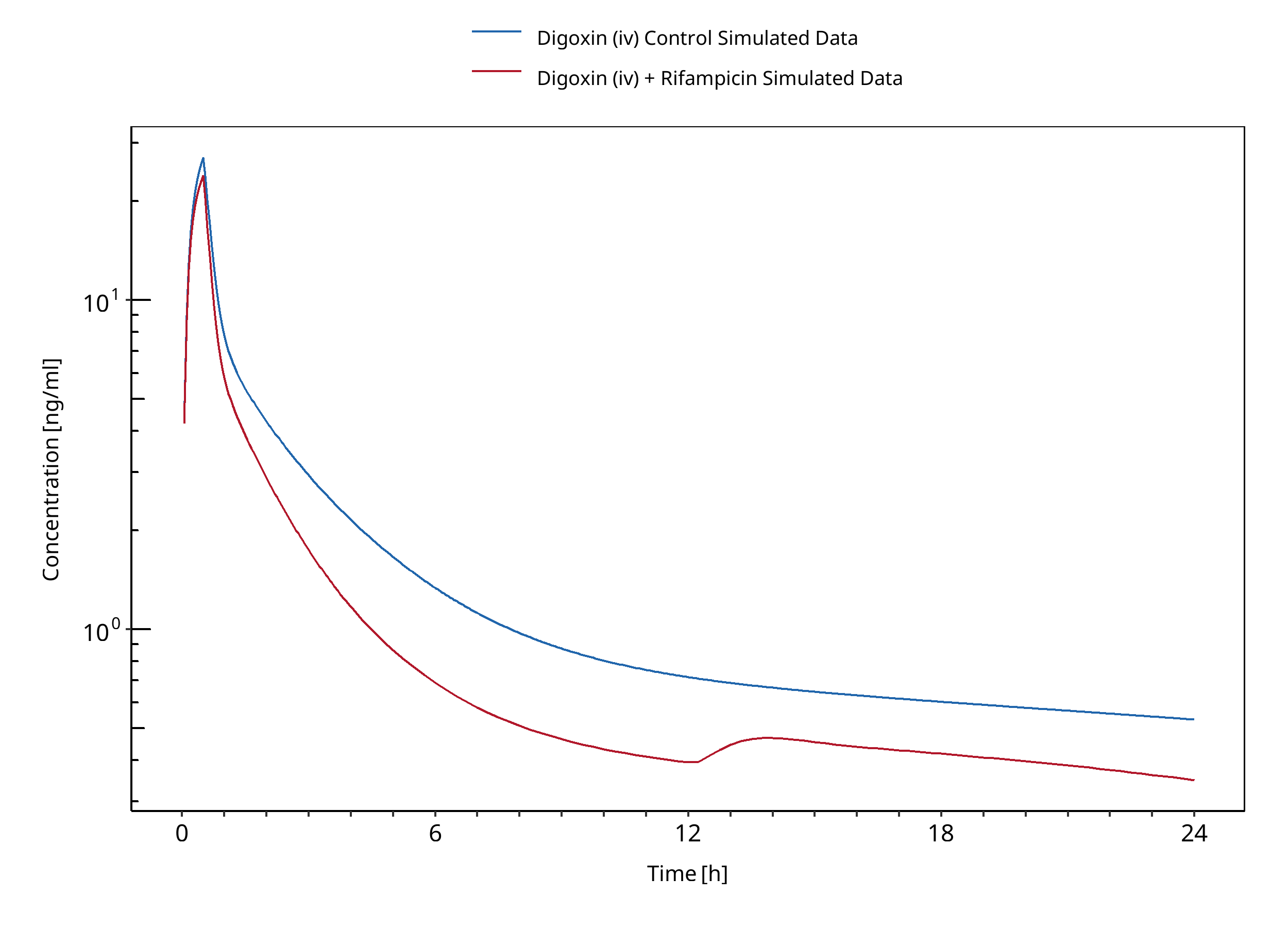

Figure 3-25: Drescher 2003

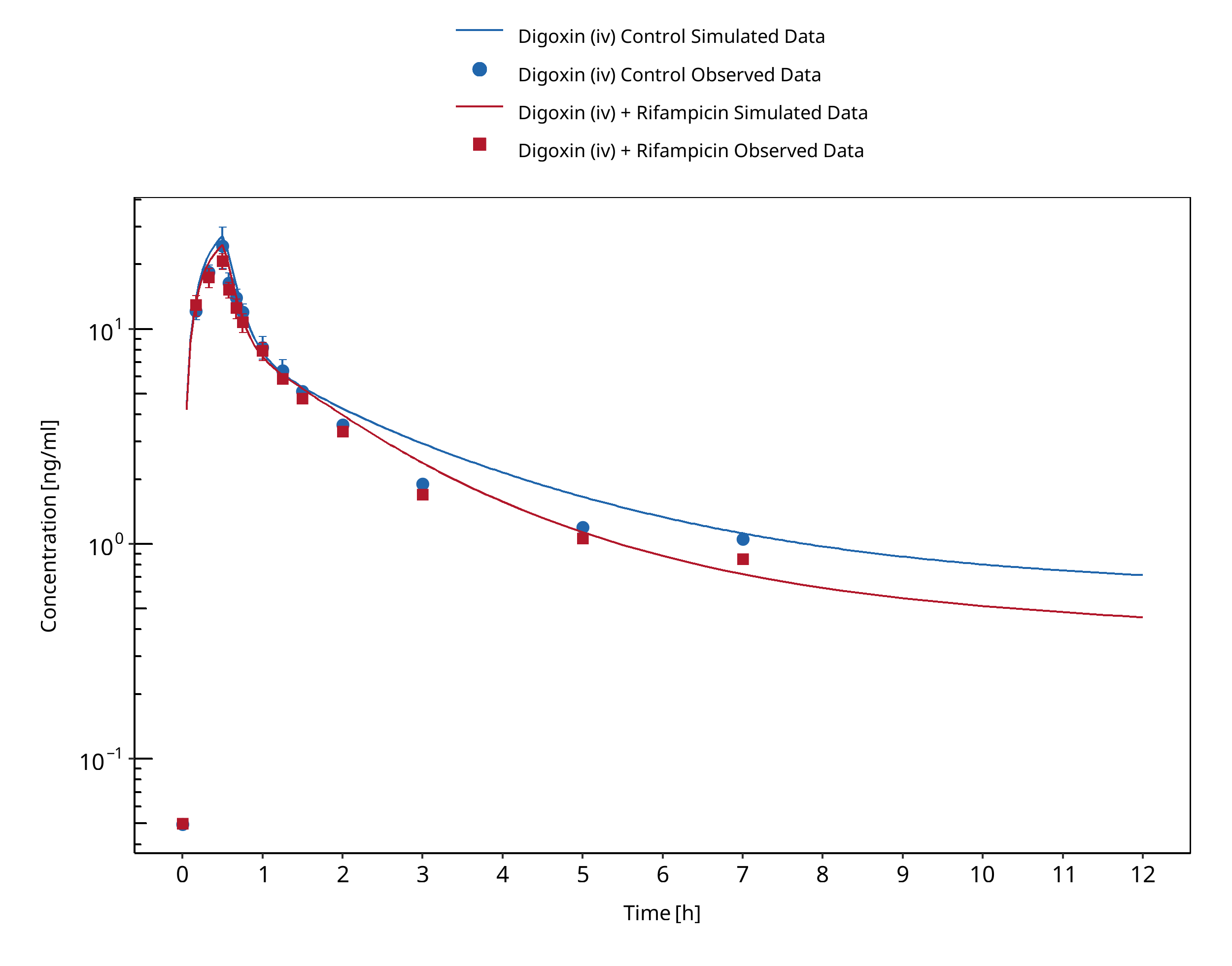

Figure 3-26: Greiner 1999 (iv)

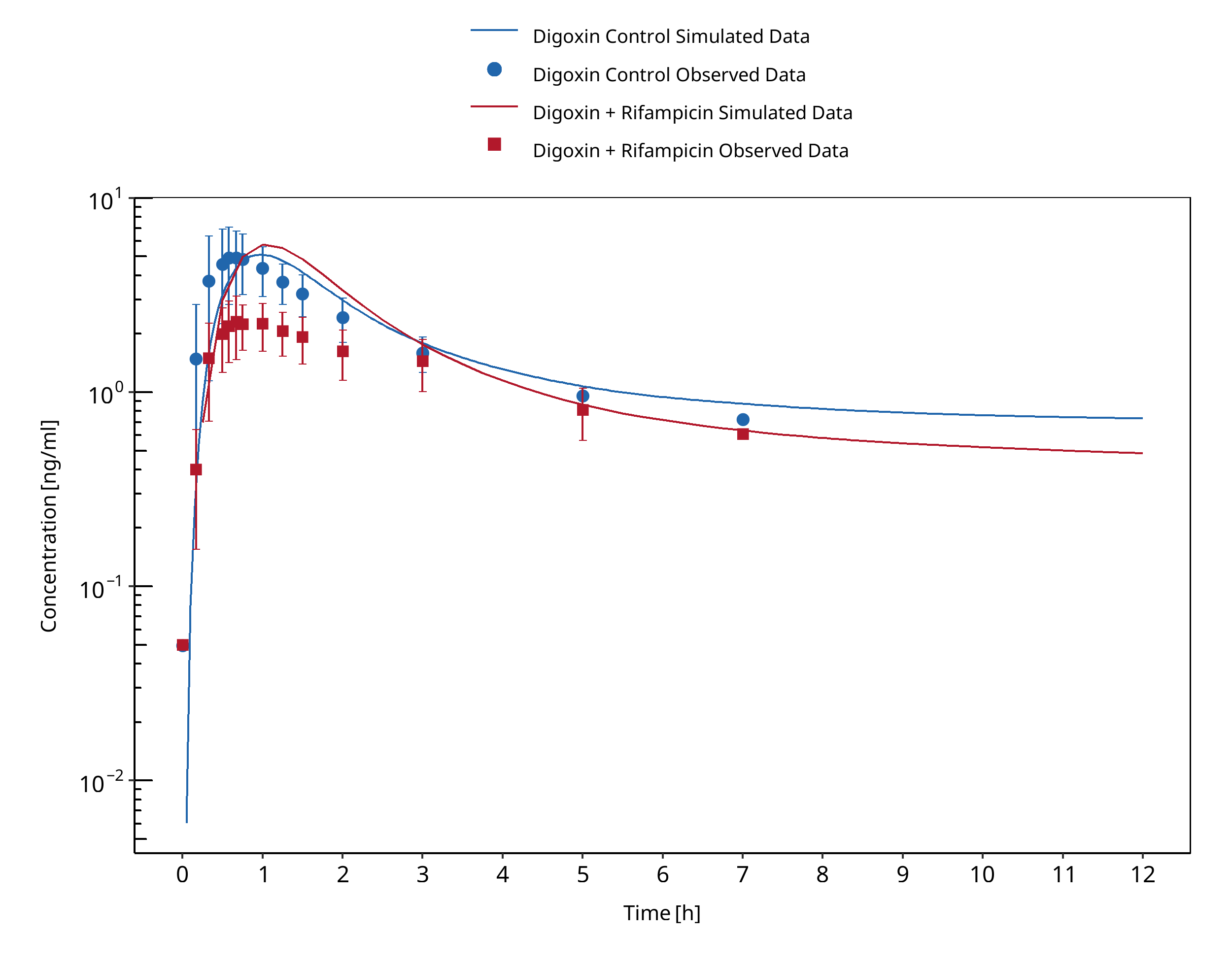

Figure 3-27: Greiner 1999 (po)

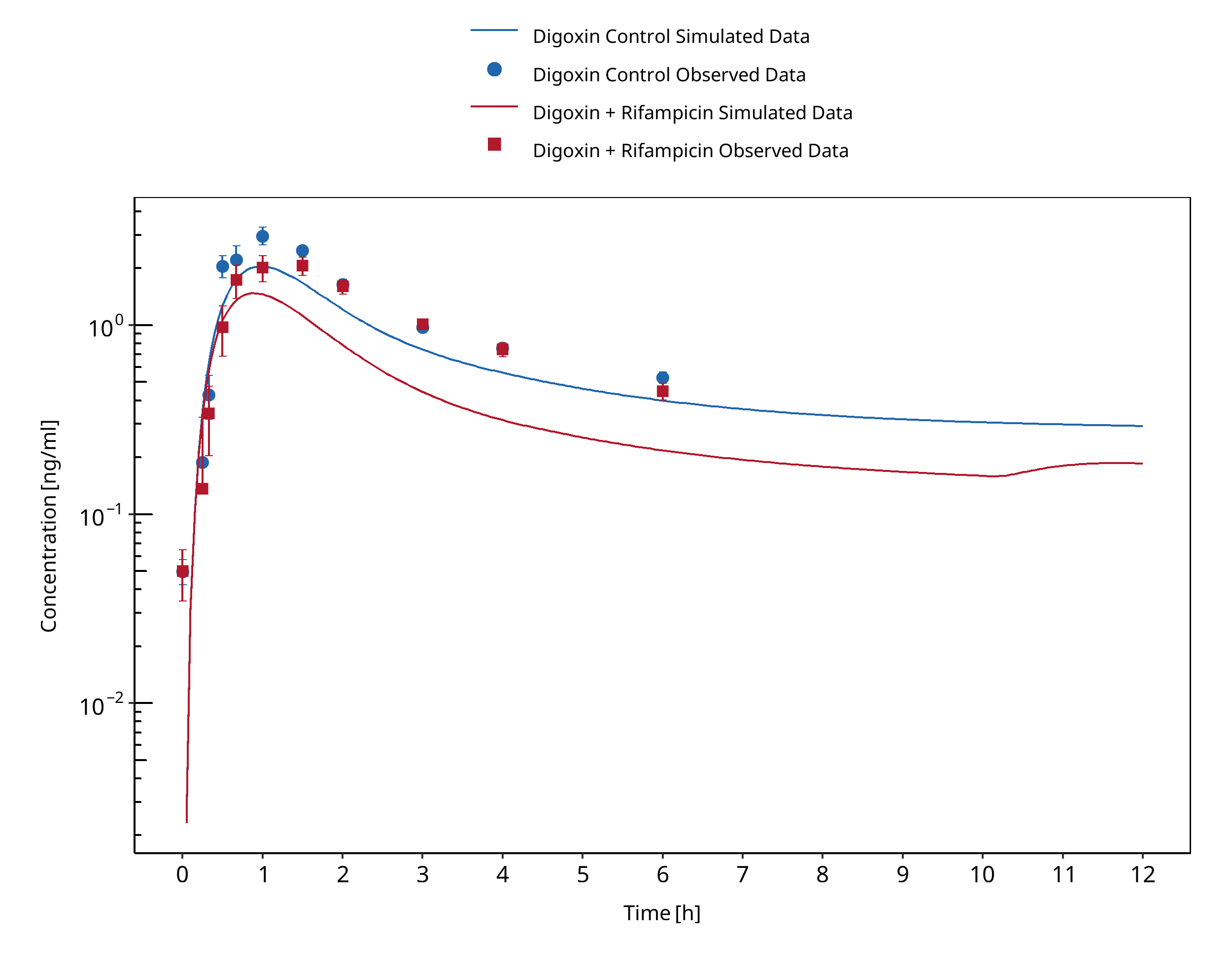

Figure 3-28: Gurley 2006

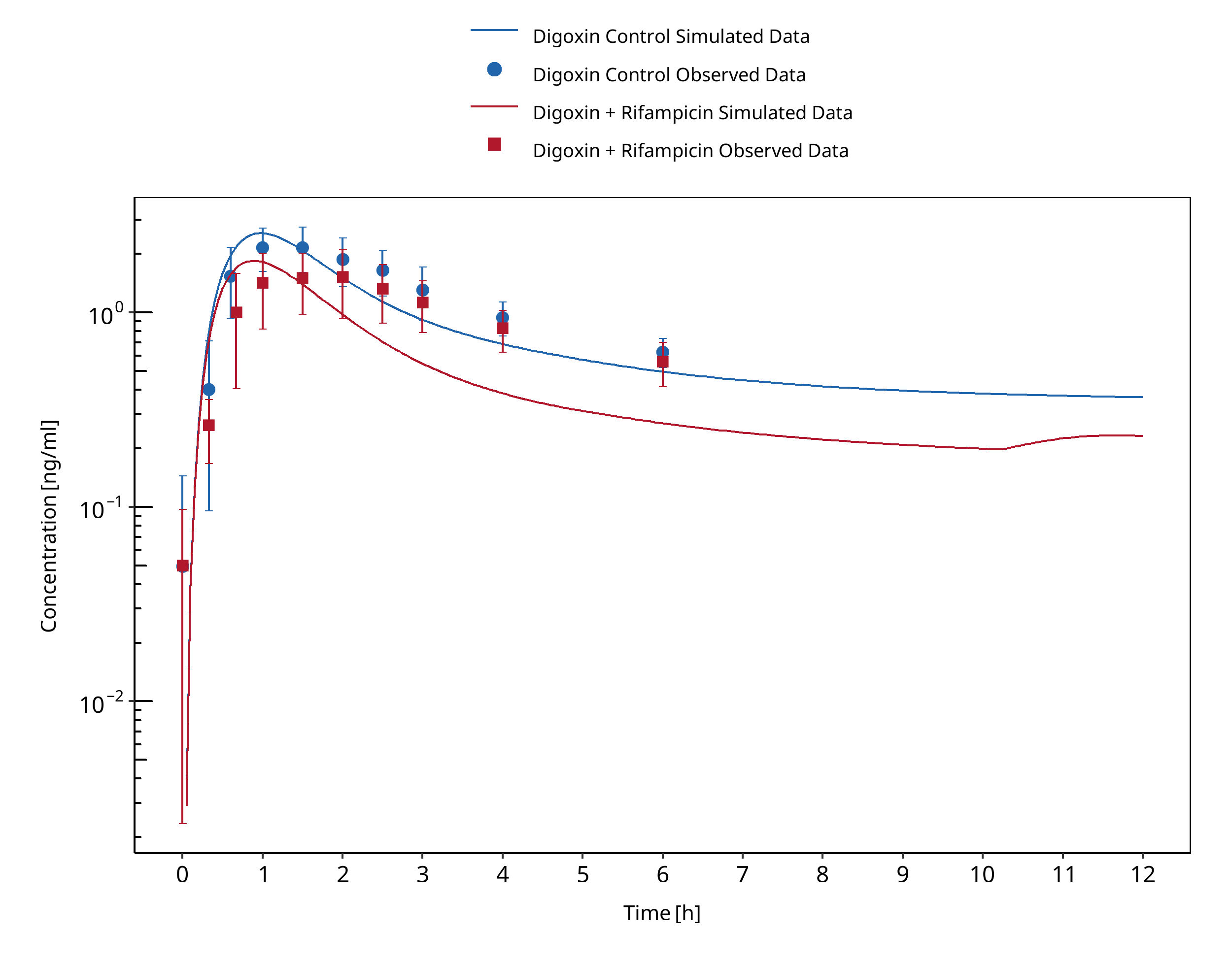

Figure 3-29: Gurley 2007

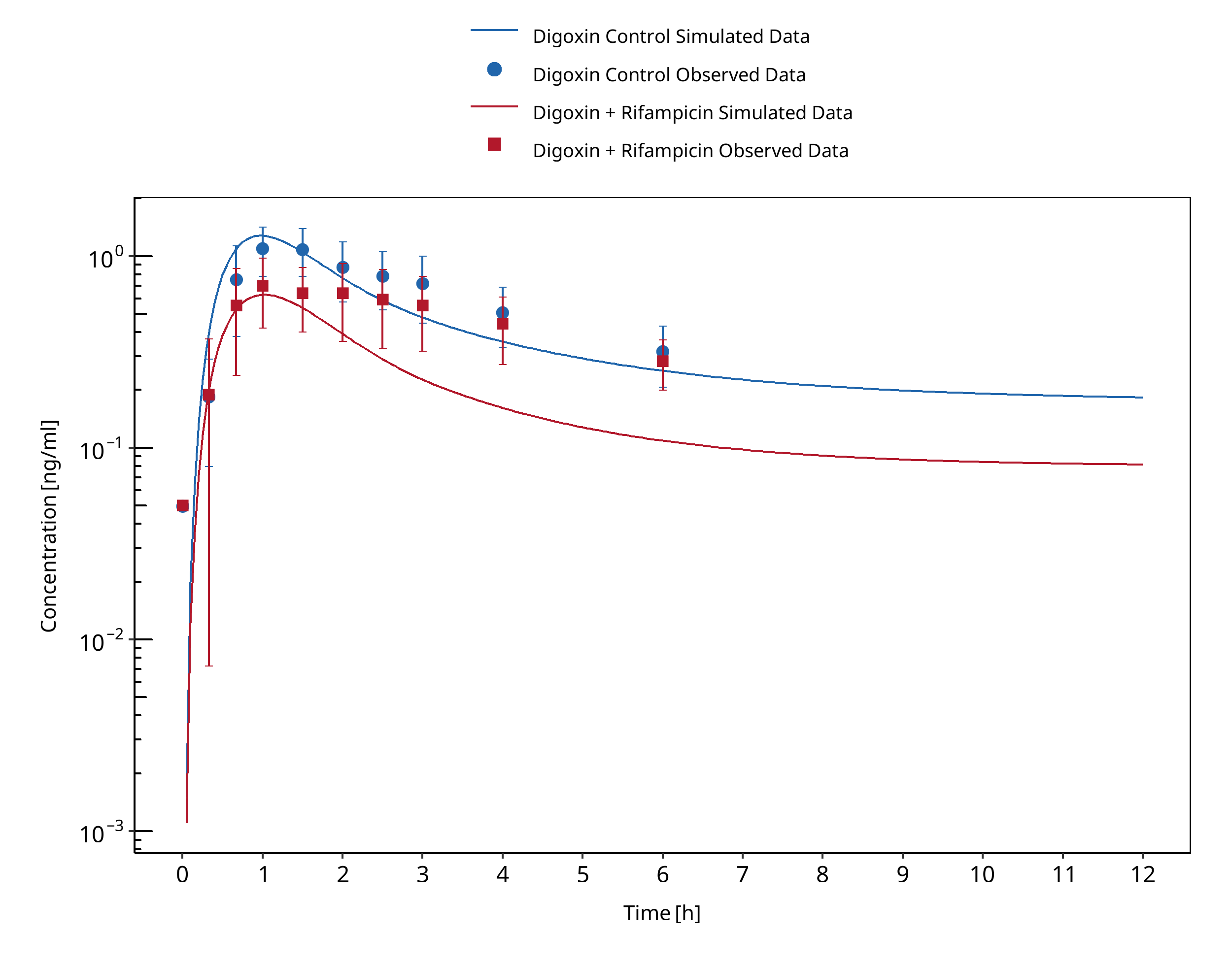

Figure 3-30: Gurley 2008

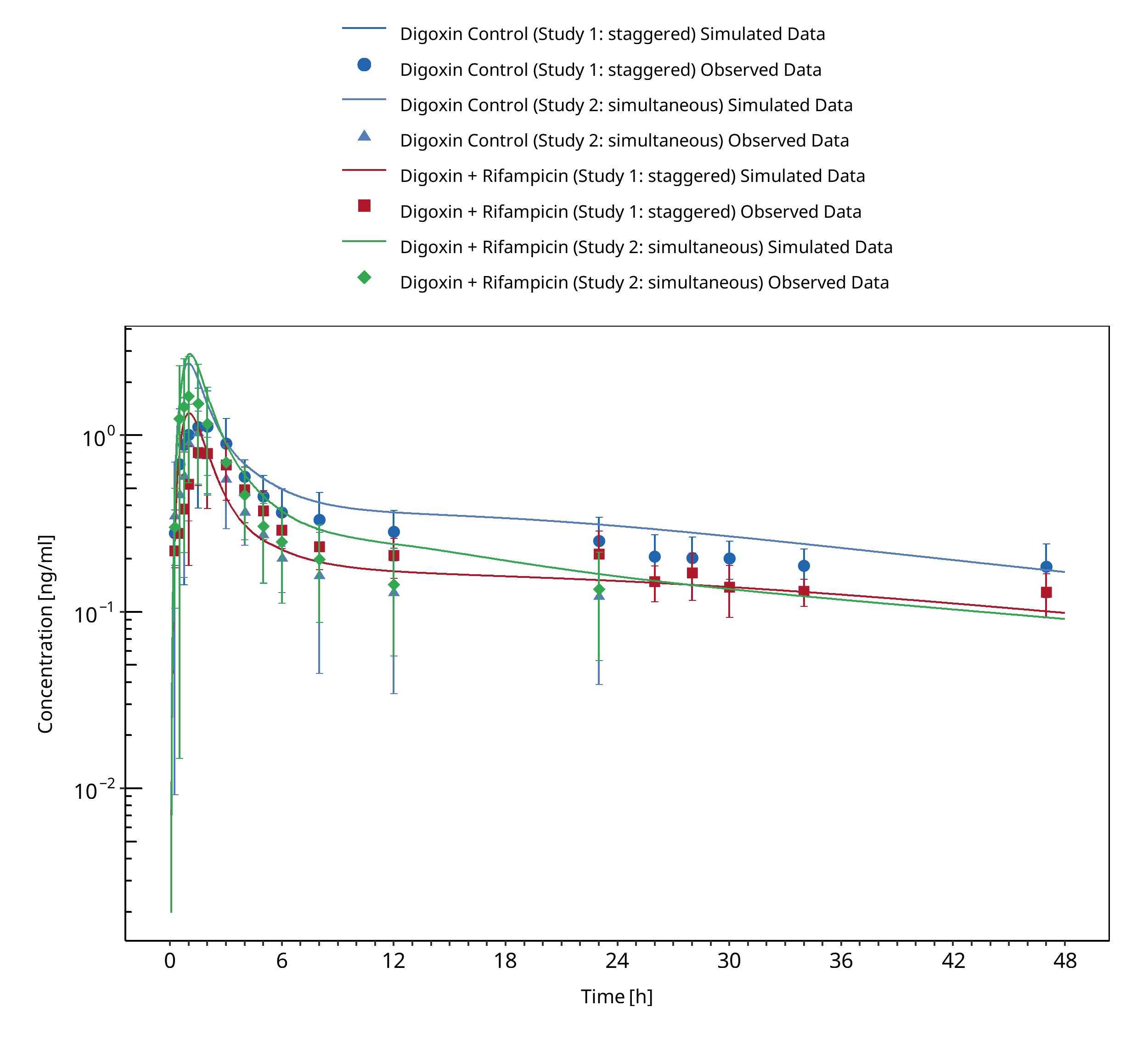

Figure 3-31: Kirby 2012

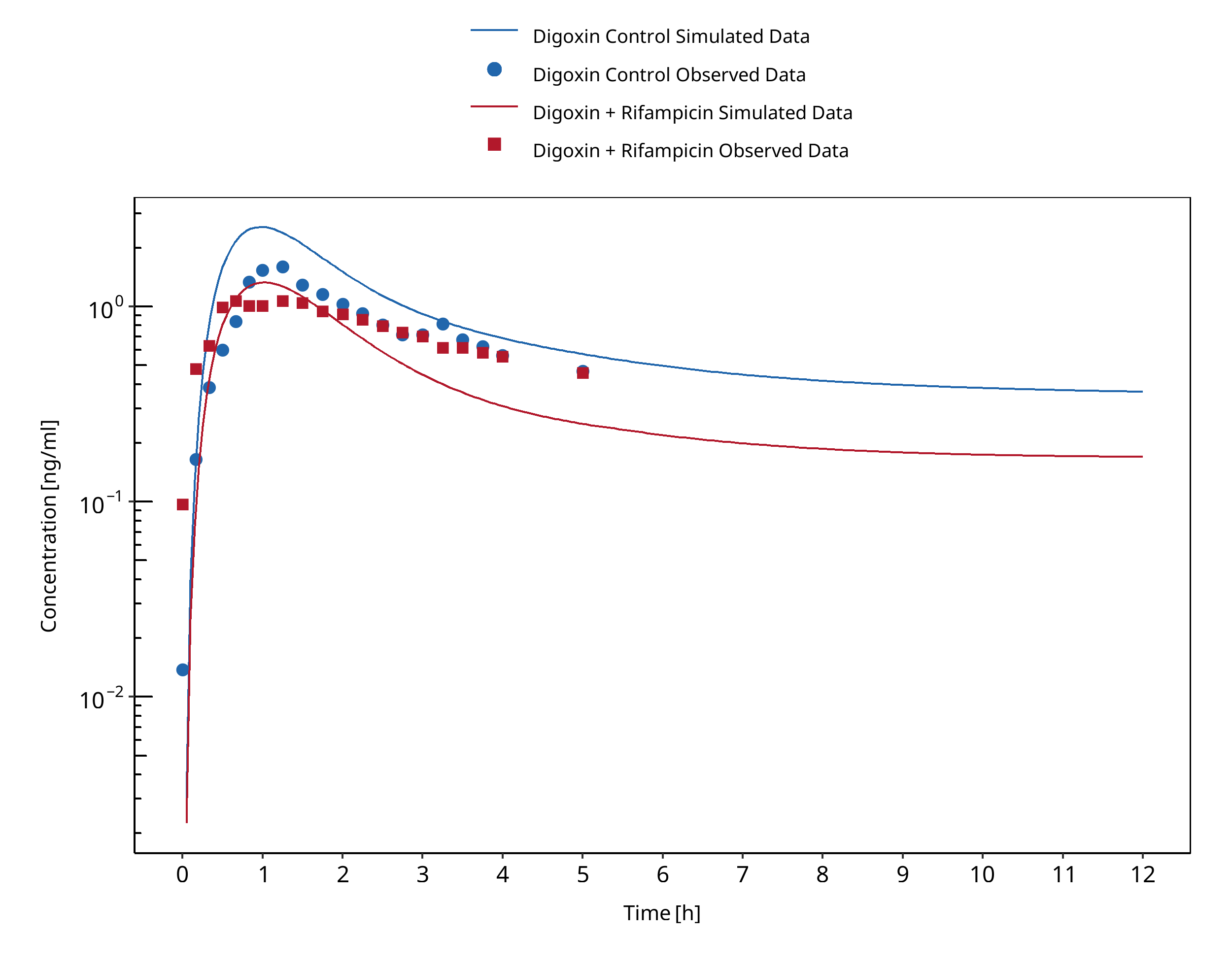

Figure 3-32: Larsen 2007

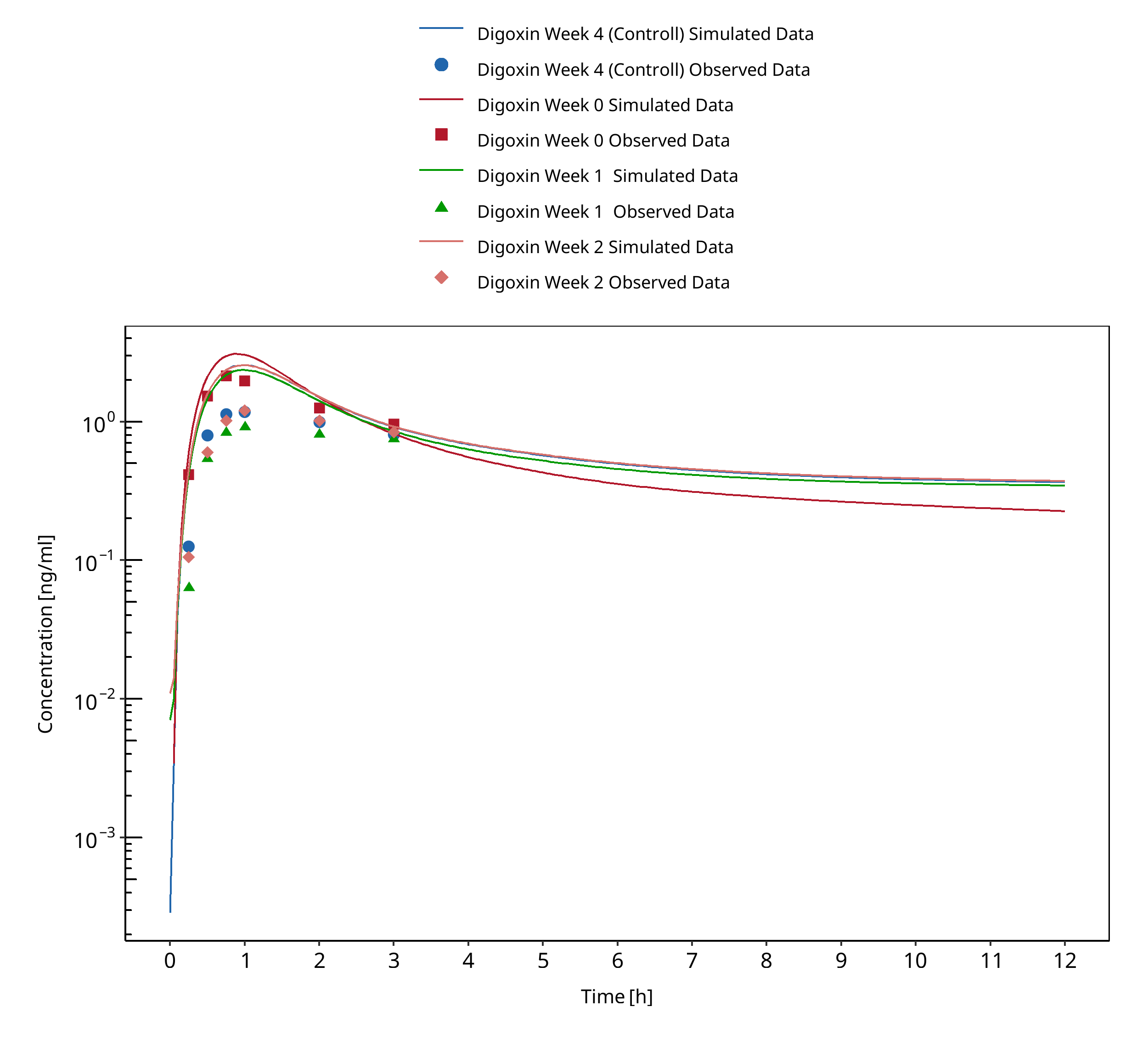

Figure 3-33: Reitman 2011



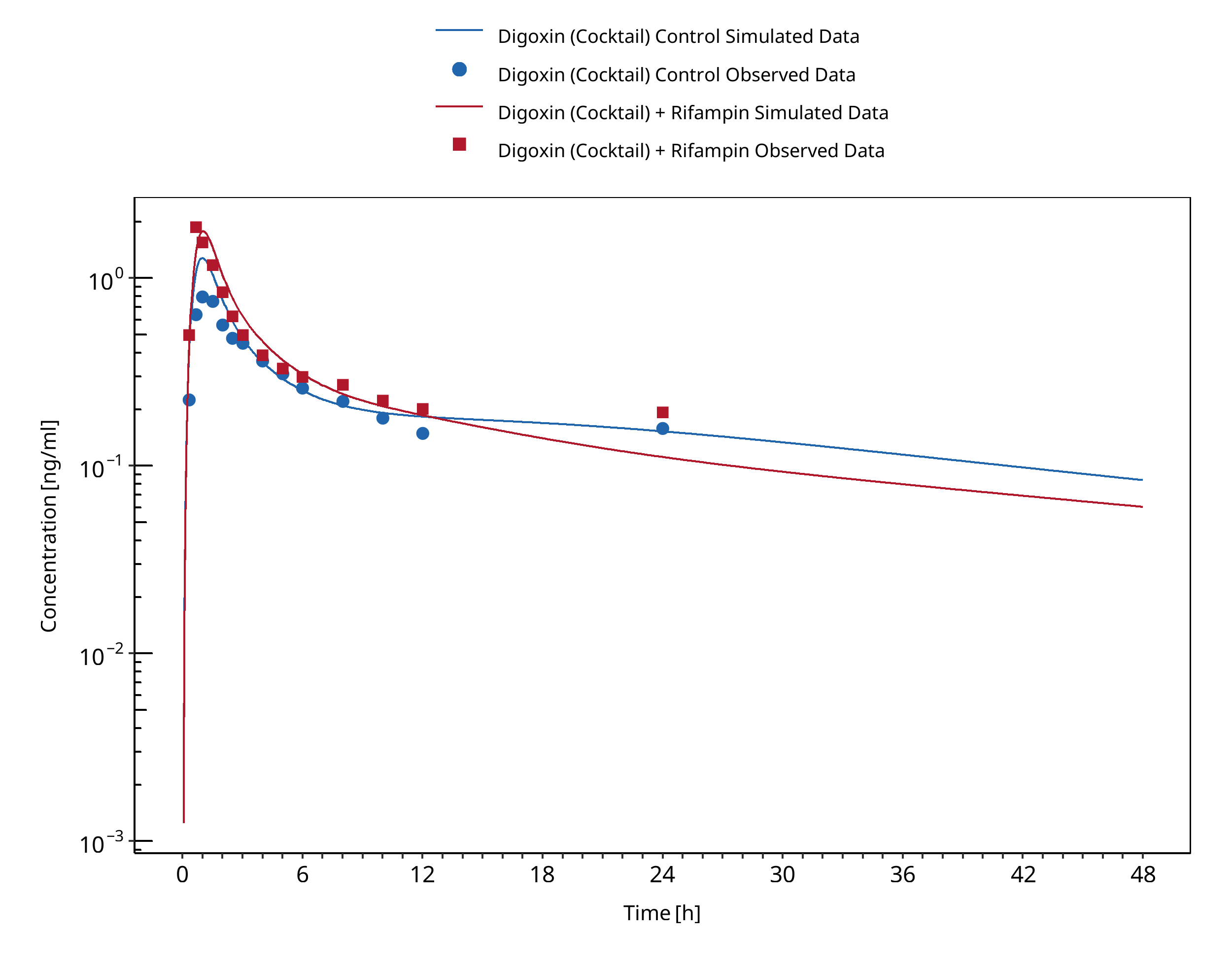

Figure 3-34: Wiebe 2020



4 References

Clarithromycin - Digoxin DDI

Gurley 2006 Gurley BJ, Barone GW, Williams DK, Carrier J, Breen P, Yates CR, Song PF, Hubbard MA, Tong Y, Cheboyina S Effect of milk thistle (Silybum marianum) and black cohosh (Cimicifuga racemosa) supplementation on digoxin pharmacokinetics in humans. Drug Metab Dispos. 2006 Jan;34(1):69-74. doi: 10.1124/dmd.105.006312. Epub 2005

Gurley 2007 Gurley BJ, Swain A, Barone GW, Williams DK, Breen P, Yates CR, Stuart LB, Hubbard MA, Tong Y, Cheboyina S Effect of goldenseal (Hydrastis canadensis) and kava kava (Piper methysticum) supplementation on digoxin pharmacokinetics in humans. Drug Metab Dispos. 2007 Feb;35(2):240-5. doi: 10.1124/dmd.106.012708. Epub 2006

Gurley 2008b Gurley BJ, Swain A, Williams DK, Barone G, Battu SK Gauging the clinical significance of P-glycoprotein-mediated herb-drug interactions: comparative effects of St. John's wort, Echinacea, clarithromycin, and rifampin on digoxin pharmacokinetics. Mol Nutr Food Res. 2008 Jul;52(7):772-9. doi: 10.1002/mnfr.200700081.

Kurata 2002 Kurata Y, Ieiri I, Kimura M, Morita T, Irie S, Urae A, Ohdo S, Ohtani H, Sawada Y, Higuchi S, Otsubo K Role of human MDR1 gene polymorphism in bioavailability and interaction of digoxin, a substrate of P-glycoprotein. Clin Pharmacol Ther. 2002 Aug;72(2):209-19. doi: 10.1067/mcp.2002.126177.

Rengelshausen 2003 Rengelshausen J, Goggelmann C, Burhenne J, Riedel KD, Ludwig J, Weiss J, Mikus G, Walter-Sack I, Haefeli WE Contribution of increased oral bioavailability and reduced nonglomerular renal clearance of digoxin to the digoxin-clarithromycin interaction. Br J Clin Pharmacol. 2003 Jul;56(1):32-8. doi: 10.1046/j.1365-2125.2003.01824.x.

Tsutsumi 2002 Tsutsumi K, Kotegawa T, Kuranari M, Otani Y, Morimoto T, Matsuki S, Nakano S The effect of erythromycin and clarithromycin on the pharmacokinetics of intravenous digoxin in healthy volunteers. J Clin Pharmacol. 2002 Oct;42(10):1159-64. doi: 10.1177/009127002401382641.

Erythromycin-Digoxin-DDI

Tsutsumi 2002 Tsutsumi K, Kotegawa T, Kuranari M, Otani Y, Morimoto T, Matsuki S, Nakano S. The effect of erythromycin and clarithromycin on the pharmacokinetics of intravenous digoxin in healthy volunteers. J Clin Pharmacol. 2002 Oct;42(10):1159-64. doi: 10.1177/009127002401382641. PMID: 12362931.

Itraconazole-Digoxin-DDI

Jalava 1997 Jalava KM, Partanen J, Neuvonen PJ. Itraconazole decreases renal clearance of digoxin. Ther Drug Monit. 1997 Dec;19(6):609-13. doi: 10.1097/00007691-199712000-00001. PMID: 9421099.

Partanen 1995 Partanen J, Jalava KM, Neuvonen PJ. Itraconazole increases serum digoxin concentration. Pharmacol Toxicol. 1996 Nov;79(5):274-6. doi: 10.1111/j.1600-0773.1996.tb00273.x. PMID: 8936563.

Rifampicin-Digoxin-DDI

Drescher 2003 Drescher S, Glaeser H, Mürdter T, Hitzl M, Eichelbaum M, Fromm MF. P-glycoprotein-mediated intestinal and biliary digoxin transport in humans. Clin Pharmacol Ther. 2003 Mar;73(3):223-31. doi: 10.1067/mcp.2003.27. PMID: 12621387.

Gurley 2006 Gurley BJ, Barone GW, Williams DK, Carrier J, Breen P, Yates CR, Song PF, Hubbard MA, Tong Y, Cheboyina S. Effect of milk thistle (Silybum marianum) and black cohosh (Cimicifuga racemosa) supplementation on digoxin pharmacokinetics in humans. Drug Metab Dispos. 2006 Jan;34(1):69-74. doi: 10.1124/dmd.105.006312. Epub 2005 Oct 12. PMID: 16221754; PMCID: PMC1865121.

Gurley 2007 Gurley BJ, Swain A, Barone GW, Williams DK, Breen P, Yates CR, Stuart LB, Hubbard MA, Tong Y, Cheboyina S. Effect of goldenseal (Hydrastis canadensis) and kava kava (Piper methysticum) supplementation on digoxin pharmacokinetics in humans. Drug Metab Dispos. 2007 Feb;35(2):240-5. doi: 10.1124/dmd.106.012708. Epub 2006 Nov 1. PMID: 17079360; PMCID: PMC1868501.

Gurley 2008b Gurley BJ, Swain A, Williams DK, Barone G, Battu SK. Gauging the clinical significance of P-glycoprotein-mediated herb-drug interactions: comparative effects of St. John's wort, Echinacea, clarithromycin, and rifampin on digoxin pharmacokinetics. Mol Nutr Food Res. 2008 Jul;52(7):772-9. doi: 10.1002/mnfr.200700081. PMID: 18214850; PMCID: PMC2562898.

Greiner 1999 Greiner B, Eichelbaum M, Fritz P, Kreichgauer HP, von Richter O, Zundler J, Kroemer HK. The role of intestinal P-glycoprotein in the interaction of digoxin and rifampin. J Clin Invest. 1999 Jul;104(2):147-53. doi: 10.1172/JCI6663. Erratum in: J Clin Invest 2002 Aug;110(4):571. PMID: 10411543; PMCID: PMC408477.

Kirby 2012 Kirby BJ, Collier AC, Kharasch ED, Whittington D, Thummel KE, Unadkat JD. Complex drug interactions of the HIV protease inhibitors 3: effect of simultaneous or staggered dosing of digoxin and ritonavir, nelfinavir, rifampin, or bupropion. Drug Metab Dispos. 2012 Mar;40(3):610-6. doi: 10.1124/dmd.111.042705. Epub 2011 Dec 21. PMID: 22190694; PMCID: PMC3286266.

Larsen 2007 Larsen UL, Hyldahl Olesen L, Guldborg Nyvold C, Eriksen J, Jakobsen P, Østergaard M, Autrup H, Andersen V. Human intestinal P-glycoprotein activity estimated by the model substrate digoxin. Scand J Clin Lab Invest. 2007;67(2):123-34. doi: 10.1080/00365510600986084. PMID: 17365992.

Reitmann 2011 Reitman ML, Chu X, Cai X, Yabut J, Venkatasubramanian R, Zajic S, Stone JA, Ding Y, Witter R, Gibson C, Roupe K, Evers R, Wagner JA, Stoch A. Rifampin's acute inhibitory and chronic inductive drug interactions: experimental and model-based approaches to drug-drug interaction trial design. Clin Pharmacol Ther. 2011 Feb;89(2):234-42. doi: 10.1038/clpt.2010.271. Epub 2010 Dec 29. PMID: 21191377.

Wiebe 2020 Wiebe ST, Giessmann T, Hohl K, Schmidt-Gerets S, Hauel E, Jambrecina A, Bader K, Ishiguro N, Taub ME, Sharma A, Ebner T, Mikus G, Fromm MF, Müller F, Stopfer P. Validation of a Drug Transporter Probe Cocktail Using the Prototypical Inhibitors Rifampin, Probenecid, Verapamil, and Cimetidine. Clin Pharmacokinet. 2020 Dec;59(12):1627-1639. doi: 10.1007/s40262-020-00907-w. PMID: 32504272; PMCID: PMC7716890.

Verapamil - Digoxin DDI

Belz 1981 Belz GG, Aust PE, Munkes R. Digoxin plasma concentrations and nifedipine. Lancet. 1981 Apr 11;1(8224):844-5. doi: 10.1016/s0140-6736(81)92727-6. PMID: 6111709.

Belz 1983 Belz GG, Doering W, Munkes R, Matthews J. Interaction between digoxin and calcium antagonists and antiarrhythmic drugs. Clin Pharmacol Ther. 1983 Apr;33(4):410-7. doi: 10.1038/clpt.1983.55. PMID: 6831819.

Doering 1983 Doering W. Effect of coadministration of verapamil and quinidine on serum digoxin concentration. Eur J Clin Pharmacol. 1983;25(4):517-21. doi: 10.1007/BF00542121. PMID: 6653647.

Johnson 1987 Johnson BF, Wilson J, Marwaha R, Hoch K, Johnson J. The comparative effects of verapamil and a new dihydropyridine calcium channel blocker on digoxin pharmacokinetics. Clin Pharmacol Ther. 1987 Jul;42(1):66-71. doi: 10.1038/clpt.1987.109. PMID: 2954736.

Klein 1982 Klein HO, Lang R, Weiss E, Di Segni E, Libhaber C, Guerrero J, Kaplinsky E. The influence of verapamil on serum digoxin concentration. Circulation. 1982 May;65(5):998-1003. doi: 10.1161/01.cir.65.5.998. PMID: 7074765.

Pedersen 1981 Pedersen KE, Dorph-Pedersen A, Hvidt S, Klitgaard NA, Nielsen-Kudsk F. Digoxin-verapamil interaction. Clin Pharmacol Ther. 1981 Sep;30(3):311-6. doi: 10.1038/clpt.1981.165. PMID: 7273594.

Pedersen 1982 Pedersen KE, Dorph-Pedersen A, Hvidt S, Klitgaard NA, Pedersen KK. The long-term effect of verapamil on plasma digoxin concentration and renal digoxin clearance in healthy subjects. Eur J Clin Pharmacol. 1982;22(2):123-7. doi: 10.1007/BF00542456. PMID: 7094982.

Pedersen 1983 Pedersen KE, Thayssen P, Klitgaard NA, Christiansen BD, Nielsen-Kudsk F. Influence of verapamil on the inotropism and pharmacokinetics of digoxin. Eur J Clin Pharmacol. 1983;25(2):199-206. doi: 10.1007/BF00543791. PMID: 6628501.

Rodin 1988 Rodin SM, Johnson BF, Wilson J, Ritchie P, Johnson J. Comparative effects of verapamil and isradipine on steady-state digoxin kinetics. Clin Pharmacol Ther. 1988 Jun;43(6):668-72. doi: 10.1038/clpt.1988.93. PMID: 2967742.

Schwartz 1982 Schwartz JB, Keefe D, Kates RE, Kirsten E, Harrison DC. Acute and chronic pharmacodynamic interaction of verapamil and digoxin in atrial fibrillation. Circulation. 1982 Jun;65(6):1163-70. doi: 10.1161/01.cir.65.6.1163. PMID: 7074776.

Wiebe 2020 Wiebe ST, Giessmann T, Hohl K, Schmidt-Gerets S, Hauel E, Jambrecina A, Bader K, Ishiguro N, Taub ME, Sharma A, Ebner T, Mikus G, Fromm MF, Müller F, Stopfer P. Validation of a Drug Transporter Probe Cocktail Using the Prototypical Inhibitors Rifampin, Probenecid, Verapamil, and Cimetidine. Clin Pharmacokinet. 2020 Dec;59(12):1627-1639. doi: 10.1007/s40262-020-00907-w. PMID: 32504272; PMCID: PMC7716890.

5 Appendix

5.1 Open Systems Pharmacology Suite (OSPS) Introduction

Open Systems Pharmacology Suite (OSP suite) is a tool for PBPK modeling and simulation of drugs in laboratory animals and humans. PK-Sim® and MoBi® are part of the OSP suite [1]. PK-Sim® is based on a generic PBPK-model with 18 organs and tissues. One of the main assumptions is that all compartments are well-stirred. Represented organs/tissues include arterial and venous blood, adipose tissue (separable adipose, excluding yellow marrow), brain, lung, bone (including yellow marrow), gonads, heart, kidneys, large intestine, liver, muscle, portal vein, pancreas, skin, small intestine, spleen and stomach, as shown in Figure Appendix-1.

Each organ consists of four sub-compartments namely the plasma, blood cells (which together build the vascular space), interstitial space, and cellular space. Distribution between the plasma and blood cells as well as between the interstitial and cellular compartments can be permeability-limited. In the brain, the permeation barrier is located between the vascular and the interstitial space. PK-Sim® estimates model parameters (intestinal permeability [2] organ partition coefficients (tissue-to-plasma partition coefficients) [3,4], and permeabilities) from physico-chemical properties of compounds (molecular weight, pKa, acid/base properties) and the composition of each tissue compartment (lipids, water and proteins). Partition coefficients can be calculated using a variety of methods available in PK-Sim®, for example the internal PK-Sim® method [3,4] or that of Rodgers and Rowland [5-7].

Physiological databases included in the software incorporate the dependencies of organ composition, organ weights, organ blood flows and gastrointestinal parameters (gastrointestinal length, radius of each section, intestinal surface area, gastrointestinal transit times, and pH in different intestinal segments [2]), with the user-defined body weight and height and ethnicity of the individual [8]. Thereby, PK Sim® allows generating realistic virtual populations. For a detailed description of the PBPK model structure implemented in PK Sim®, see Willmann et al. [2,4,8,9] or the OSP Suite homepage (https://docs.open-systems-pharmacology.org/mechanistic-modeling-of-pharmacokinetics-and-dynamics/modeling-concepts).

generic PBPK model

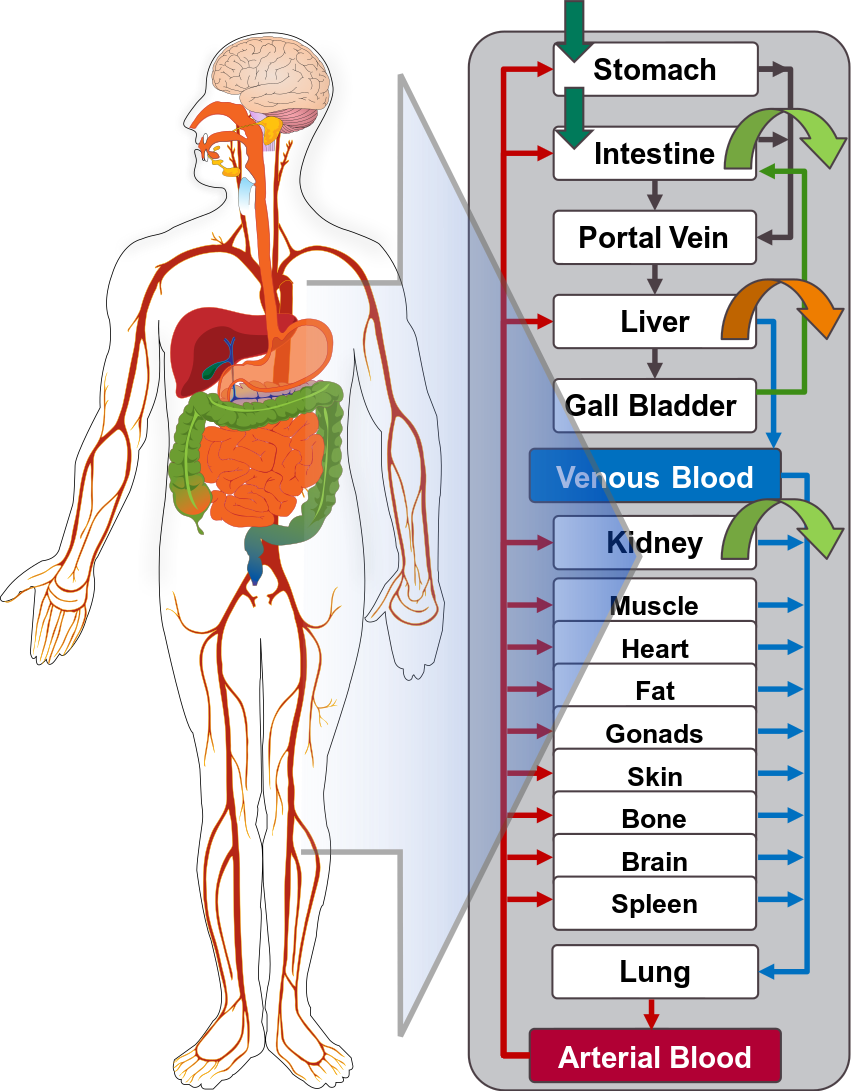

Figure Appendix-1: Structure of the Whole Body PBPK Model integrated in PK-Sim®

References for OSPS introduction

[1] www.open-systems-pharmacology.org

[2] Willmann S, Schmitt W, Keldenich J, Lippert J, Dressman JB. A physiological model for the estimation of the fraction dose absorbed in humans.J Med Chem. 2004 Jul 29;47(16):4022-31.

[3] Haerter MW, K.J., Schmitt W, Estimation of physicochemical and ADME parameters. , in Handbook of Combinatorial Chemistry: Drugs, Catalysts, Materials, H.W. Nicolaou KC HR, Editor. 2002, Wiley VCH Verlag GmbH: Weinheim, Germany. p. 743-60.

[4] Willmann S, Lippert J, Schmitt W. From physicochemistry to absorption and distribution: predictive mechanistic modelling and computational tools. Expert Opin Drug Metab Toxicol. 2005 Jun;1(1):159-68.

[5] Rodgers, T, D. Leahy, and M. Rowland. Physiologically based pharmacokinetic modeling 1: predicting the tissue distribution of moderate-to-strong bases. J Pharm Sci. 2005 Jun;94(6):1259-76.

[6] Rodgers T, Rowland M. Physiologically based pharmacokinetic modelling 2: predicting the tissue distribution of acids, very weak bases, neutrals and zwitterions. J Pharm Sci. 2006 Jun;95(6):1238-57.

[7] Rodgers T, Rowland M. Mechanistic approaches to volume of distribution predictions: understanding the processes. Pharm Res. 2007 May;24(5):918-33.

[8] Willmann S, Höhn K, Edginton A, Sevestre M, Solodenko J, Weiss W, Lippert J, Schmitt W. Development of a physiology-based whole-body population model for assessing the influence of individual variability on the pharmacokinetics of drugs. J Pharmacokinet Pharmacodyn. 2007 Jun;34(3):401-31.

[9] Willmann S, Lippert J, Sevestre M, Solodenko J, Fois F, Schmitt W. PK-Sim®: a physiologically based pharmacokinetic ‘whole-body’ model. Biosilico 2003.1(4):121-24.

5.2 Mathematical Implementation of Drug-Drug Interactions

DDI modeling: Competitive inhibition

A detailed representation of the mathematical implementation of competitive enzyme inhibition can be found in the OSP manual (https://docs.open-systems-pharmacology.org/working-with-pk-sim/pk-sim-documentation/pk-sim-compounds-defining-inhibition-induction-processes#competitive-inhibition-simple-setting-with-one-inhibitor).

DDI modeling: Mechanism-based inhibition

A detailed representation of the mathematical implementation of mechanism-based enzyme inhibition can be found in the OSP manual (https://docs.open-systems-pharmacology.org/working-with-pk-sim/pk-sim-documentation/pk-sim-compounds-defining-inhibition-induction-processes#irreversible-inhibition).

DDI modeling: Induction

A detailed representation of the mathematical implementation of enzyme induction can be found in the OSP manual (https://docs.open-systems-pharmacology.org/working-with-pk-sim/pk-sim-documentation/pk-sim-compounds-defining-inhibition-induction-processes#enzyme-induction).

5.3 Automatic (re)-qualification workflow

Open Systems Pharmacology (https://www.open-systems-pharmacology.org/) provides a dynamic landscape of model repositories and a database of observed clinical data. Additionally, a technical framework to assess confidence of a specific intended use has been developed (qualification runner and reporting engine). This framework allows for an automatic (re)-qualification workflow of the OSP suite, comprising the following steps Figure Appendix-2:

  • PBPK model development and verification with observed data,

  • Qualification plan generation,

  • Qualification plan execution,

  • Qualification report generation.

OSP qualification workflow

Figure Appendix-2: OSP suite automatic (re)-qualification workflow

In a first step, the respective qualification scenario is saved in a special qualification repository on OSP GitHub (https://github.com/Open-Systems-Pharmacology/). This qualification scenario repository contains a detailed qualification plan that links and combines respective models and data to address the use case that shall be qualified. Therefore, the qualification plan consists of:

  • PK-Sim project files,
  • Additional model building steps (if applicable),
  • Description of potential cross-dependencies between PK-Sim project files (if applicable),
  • Observed data (needed for model development and verification),
  • Qualification scenario description text modules
  • Detailed report settings to describe the generation of charts and qualification measures.

PK-Sim projects, observed data sets, and qualification scenario text modules are deposited in distinct repositories and are referenced by the qualification plan (Figure Appendix-3).

OSP qualification workflow detail

Figure Appendix-3: Qualification scenario repository landscape on GitHub

In a second step the qualification runner (https://github.com/Open-Systems-Pharmacology/QualificationRunner) processes the qualification plan, i.e. all project parts are exported and prepared for the reporting engine (https://github.com/Open-Systems-Pharmacology/Reporting-Engine). The reporting engine provides a validated environment (implemented in R) for model execution and finally generates the qualification report. This report contains the evaluation of the individual PBPK models with observed data (i.e. standard goodness of fit plots, visual predictive checks) and a comprehensive qualification of the specific use case assessing the predictive performance of the OSP suite by means of a predefined set of qualification measures and charts.

The automated execution of the described workflow can be triggered to assess re-qualification in case new data, changes in model structure or parameterization, or new OSP suite releases arise.

Other Drug-Drug Interaction (DDI) qualification reports:

View all Drug-Drug Interaction (DDI) →

← Back to Home
